Huion L4S LED Light Pad

Only 5.1mm of thickness, USB Powered, 12-by-8 inch work surface

PB Tech price
PB Tech price
$ 61 .20
 +GST
$ 70 .38
 inc GST
$61.20  +GST
$70.38

Huion L4S LED Light Pad

Only 5.1mm of thickness, USB Powered, 12-by-8 inch work surface

  • Brand: Huion
  • MPN: L4S Black
  • Part #: KEYHUN4007
  • UPC:
2
PB Tech price
$ 61 .20 $ 70 .38
 +GST  inc GST
Tax free price $64.87*
*Price includes surcharge


Click & Collect: Available from 13 stores.
Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$61.20  +GST
$70.38
  • Brand: Huion
  • MPN: L4S Black
  • Part #: KEYHUN4007
  • UPC:

Pen Pressure Levels

N/A

What PB Tech customers are saying about this product...

See More Reviews

"I bought this for producing flat frames for astrophotography and does is exactly what I need. An even white light even when contrast and saturation are pushed (for testing). It's ...view more"

LD
By: LeeD2 29/07/24
Verified Owner

"I bought it for viewing negatives, and have found it to be excellent. Easy to use"

G
By: Guest 12/05/22

Features

https://store.huion.com/products/huion-l4s

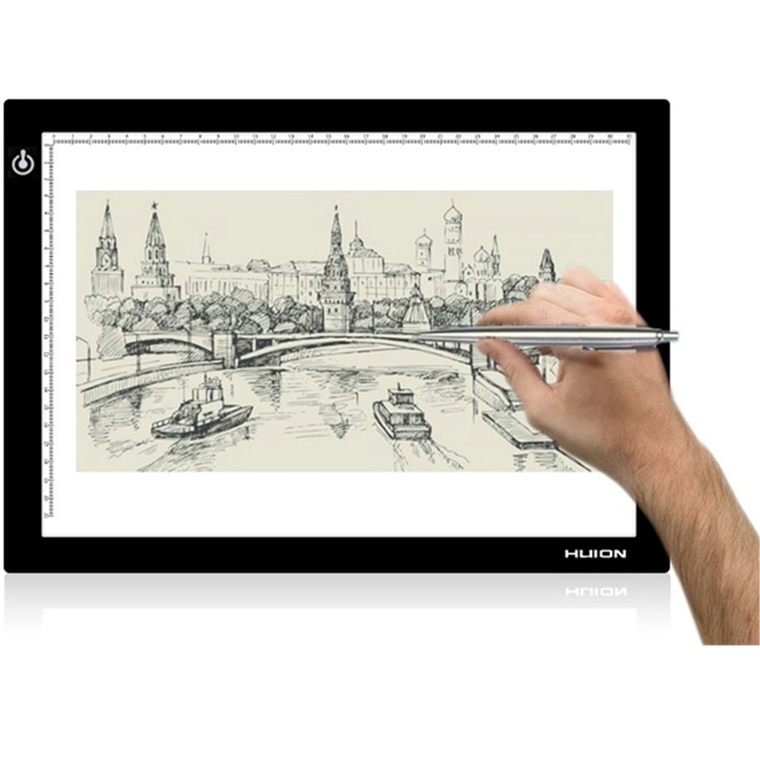

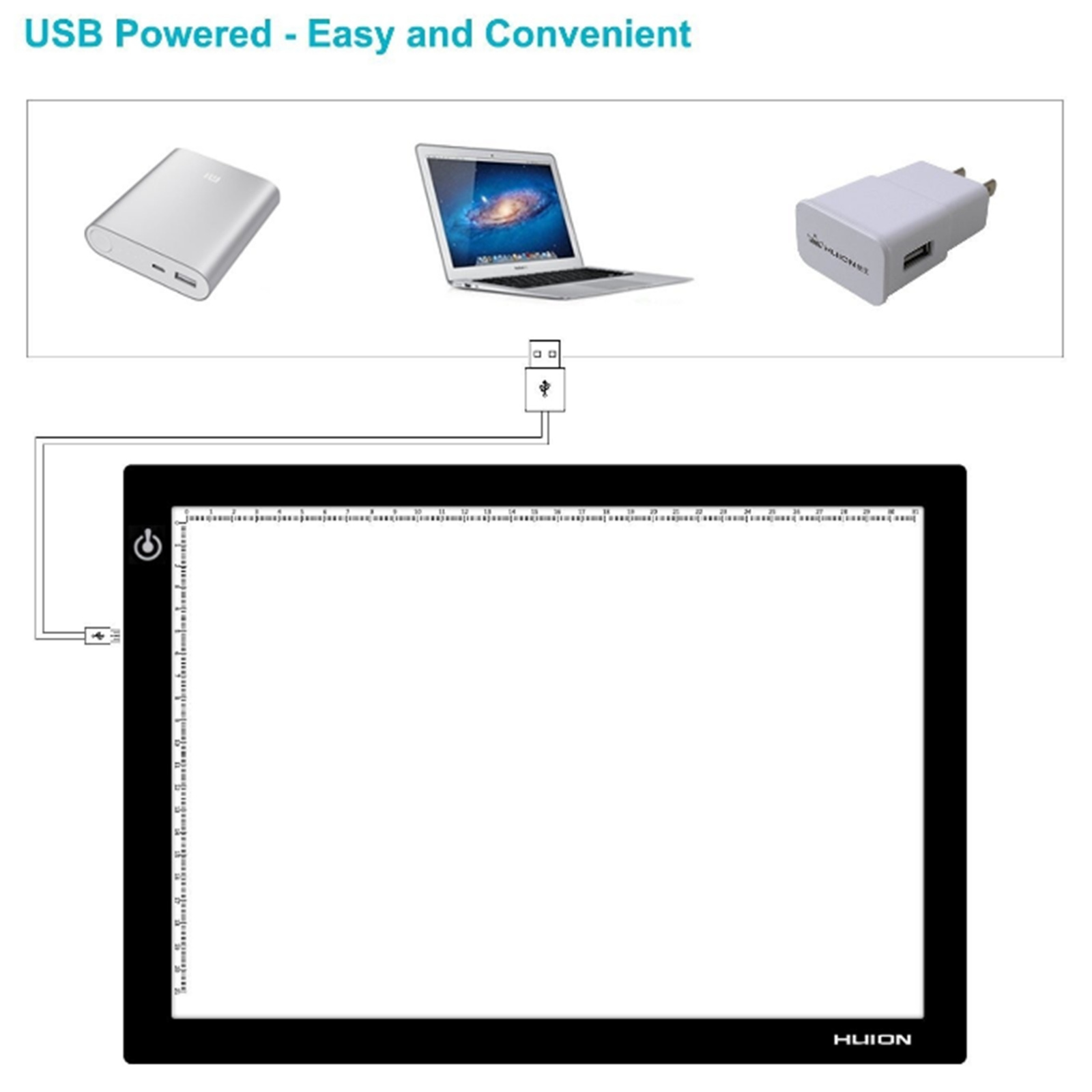

This is the simple types of Huion Light Box. With only USB powered, you just need to connect it with your computer.

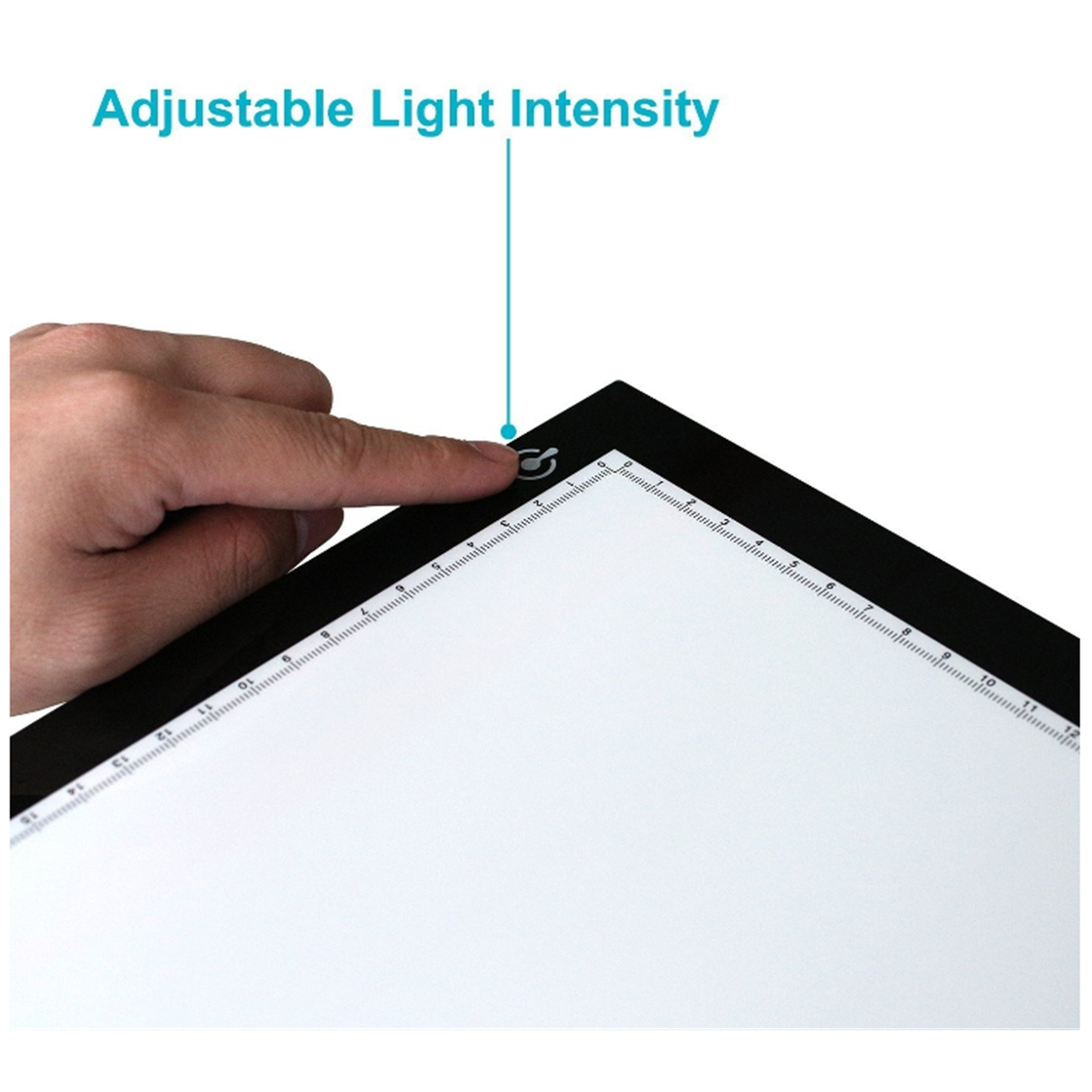

The dimming is gradual, not in steps like low, medium, and high. Also, after you turn it off and restart it, it remembers your last setting and restarts at that setting.

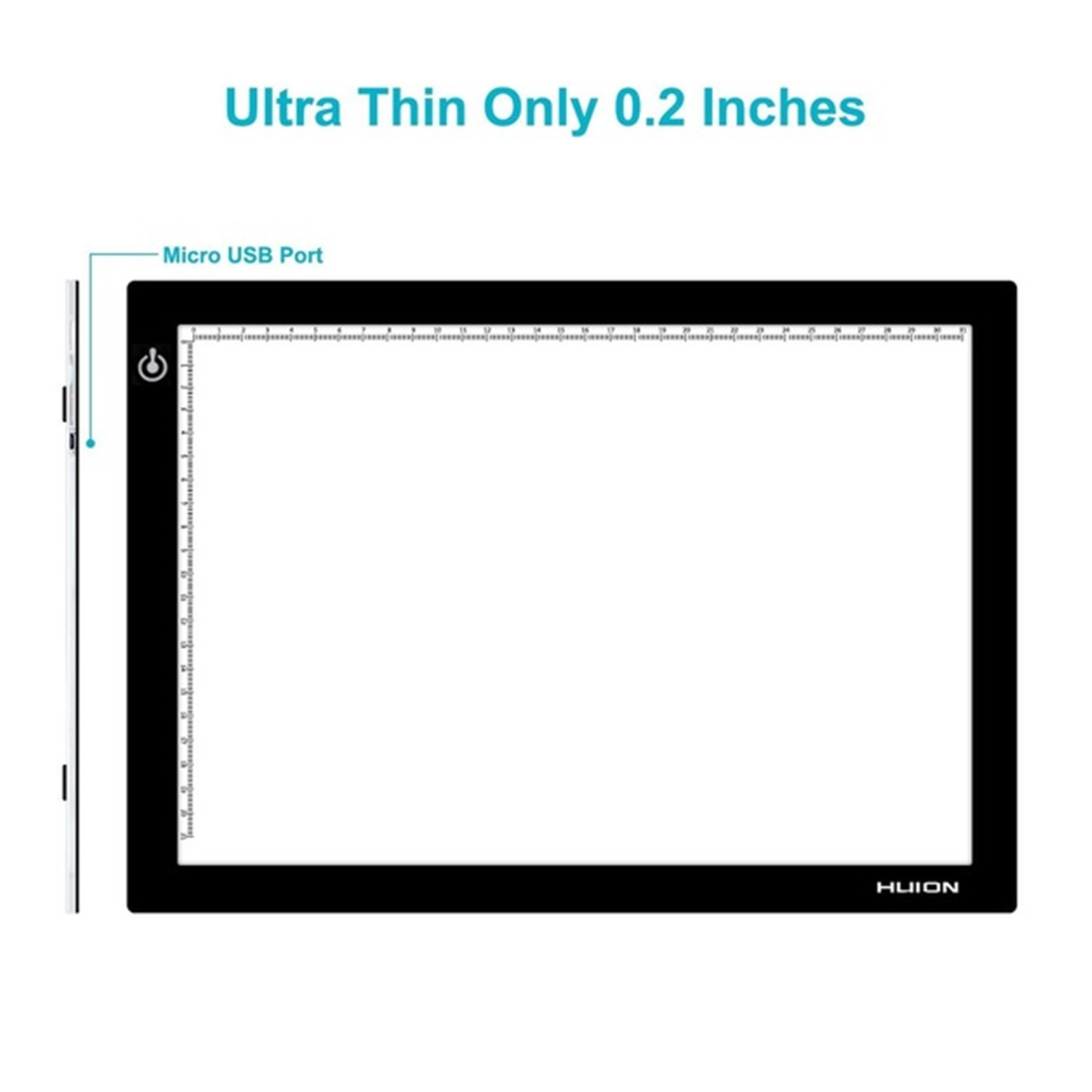

It's A4 size and 5mm super thin as well as the acrylic surface makes it feel like a glass panel and .With super bright LED lamps inside, the light pad provides a maximum of 1500 lux of brightness which can see through very thick paper.


The LED Light Box is designed for everyone whether you are an enthusiastic amateur or a professional artist. Eyesight-protected Technology is designed in it that's perfect for sketching, drawing,animation making,calligraphy and tattoo tracing.



Applications

1) Professional Copy in Animation, Cartoon
2) Tattoo Tracing, Craft Projects, Fabric Design
3) Photograph, Film, Slider Transferring

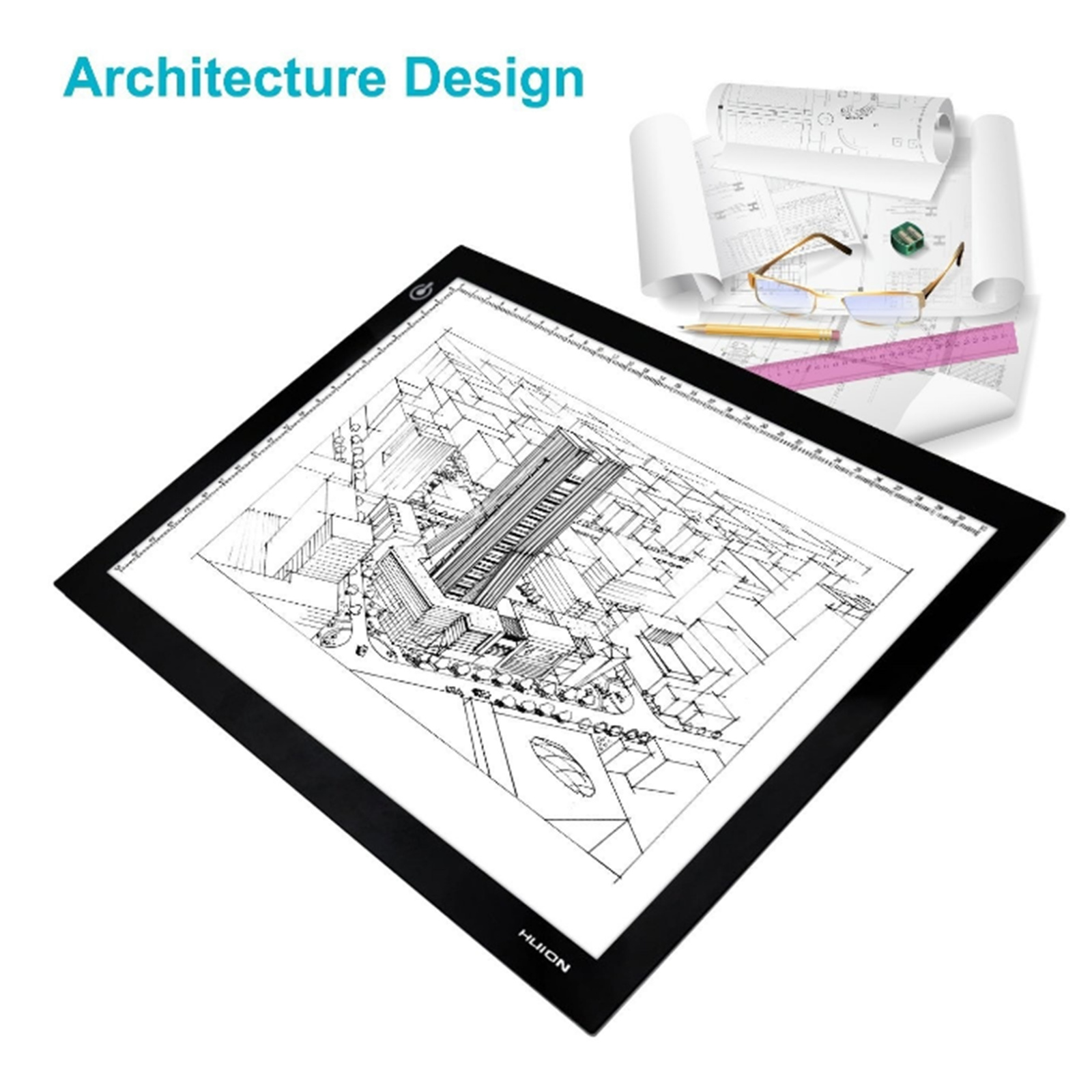

4) Professional Tracing in Indoor, Architecture, Design and Drawing
5) As X-ray viewer in Hospital



Accessories:

A. Huion L4S Light Box
B. USB Cable
C. User Manual


Specifications

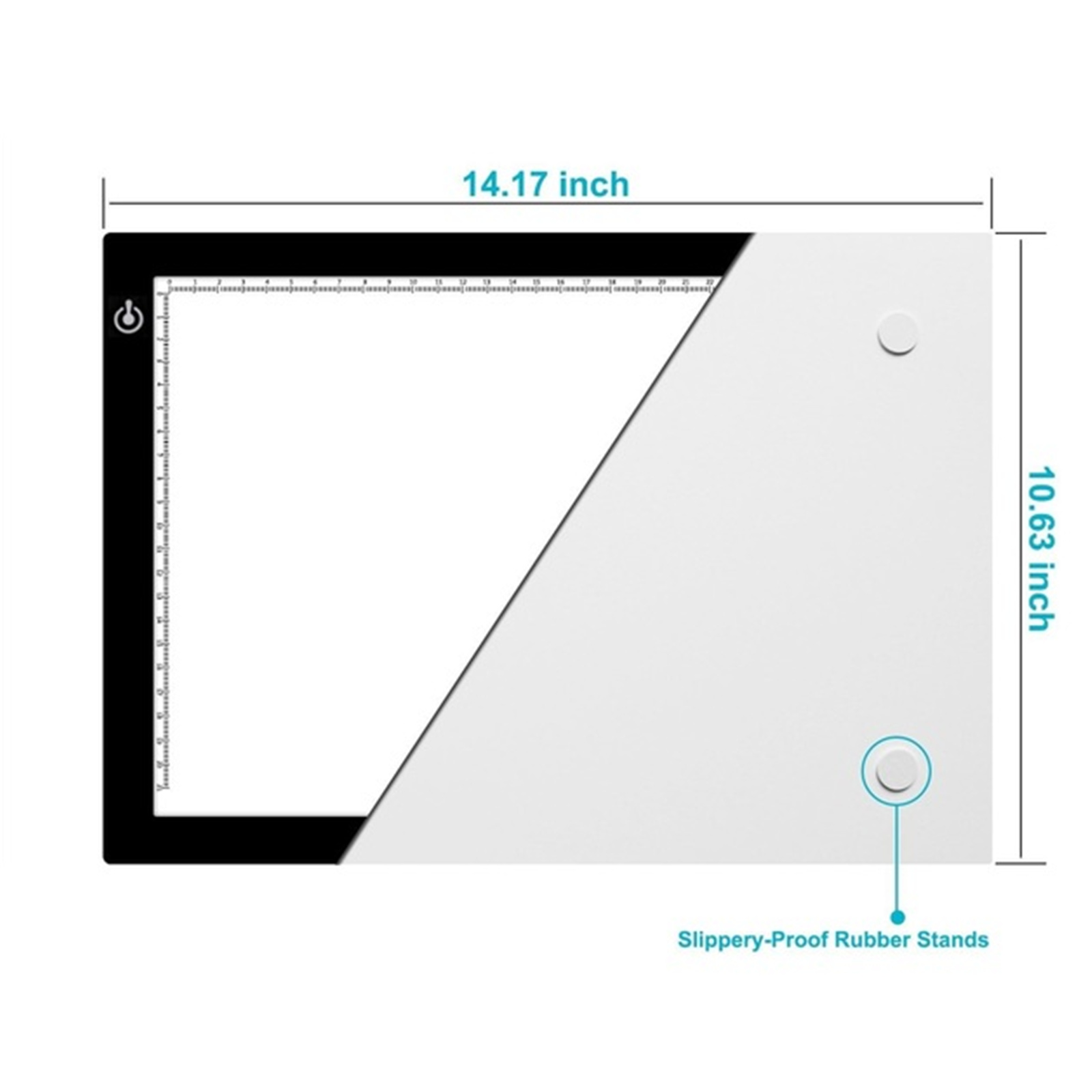

Dimension(LxWxH):

360 × 270 × 5.1 mm

Active Area:

210 × 310 mm

Work Surface:

Acrylic Panels

Light source of:

LED

Colour temperature(K):

8000-10000

Lumen Output(LM):

110

Brightness:

745 cd/m2

Evenness (%):

90

Working Voltage:

USB 5V

Rated power:

3W

Scale size:

YES

Net Weight:

0.6KG

Power:

1050 mAh

Manufacturer Part No:
L4S Black
Brand:
Product Type:
LED Light Pad
UPC
-
Product Family:
-
Shipping Weight:
0.85 kg
PB Part No:
KEYHUN4007
Product Model:
L4S
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
