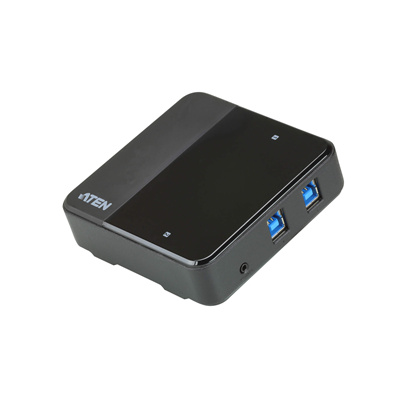

Aten US3324 USB-C enabled USB 3.1 Gen 1 Peripheral Sharing Switch , switches 4 USB devices between 2 different computers,

Aten US3324 USB-C enabled USB 3.1 Gen 1 Peripheral Sharing Switch , switches 4 USB devices between 2 different computers,
PB Tech price: PB Tech price:
$131 17  +GST $150 85  inc GST

Generating Print Page

Aten US3324 USB-C enabled USB 3.1 Gen 1 Peripheral Sharing Switch , switches 4 USB devices between 2 different computers,

Enables 2 computers to share 4 USB 3.1 Gen1 devices
Part #: KVMATN0113
3
PB Tech price: PB Tech price:
$131 17 $150 85
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 20/01/2022 When will I receive it?

Six easy payments of $25.90 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $31.07 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: Aten
  • MPN: US3324
  • Part #: KVMATN0113
  • UPC: 672792008689

What PB Tech customers are saying about this product...

See More Reviews

"I bought this to share a keyboard, mouse and USB headset between two computers without unplugging and re-plugging multiple cables each time.
I've now wired the switch under my des ...view more"

G
By: Guest 29/09/21

"This item is great.. simple easy to use. User friendly option to splitting the usb."

D
By: DCVR 18/06/20
Verified Owner

Features

ATEN US3324 is a 2-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 2 different general computers by using USB 3.1 Gen 1 Type-B to Type-A cables.

The US3324 allows for a neat and tidy installation -The connecting cables are bundled to save the extra cost of purchasing USB cables. The additional USB 3.1 Gen 1 Type-B to Type-C cable included in the US3324 package, which can connect to the USB-C computers and allows for hybrid and flexible usage, is the most cost-effective solution for USB-C equipped laptops and tablet computers

The US3324 is USB 3.1 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.

In addition, the US3324 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and allin - one design, you can create a space saving, convenient and productive work environment.

Enables 2 computers to share 4 USB 3.1 Gen1 devices
Simple port selection via remote port selector for convenient switch placement
USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5Gbps
LEDs indicates which computer is active
Over-current protection
Micro USB power jack for additional power supply
Bus-powered - no external power supply needed
Plug and Play - no drivers or external power adapter needed
Multiplatform support - Windows, Linux and Mac


Specifications

Computer Connections

2

Port Selection

Remote port selector

Computer

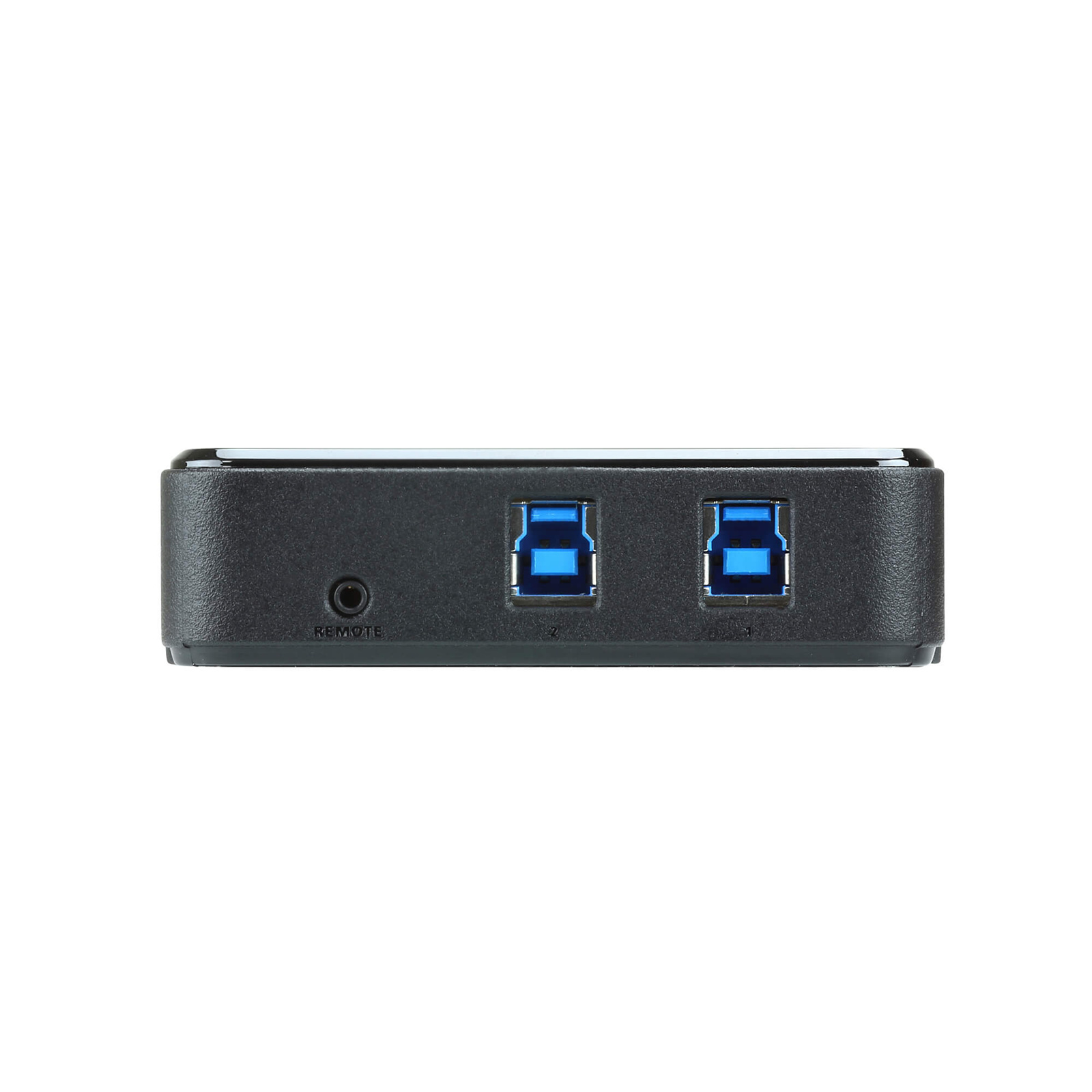

2 x USB Type B Femal (Blue)

Device

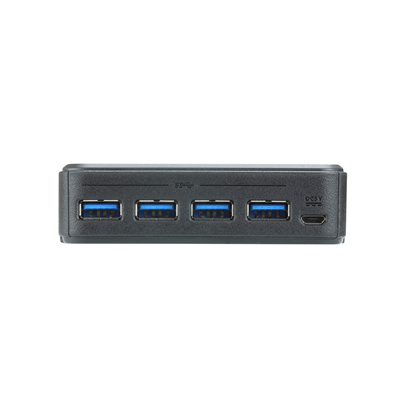

4 x USB Type A Female (Blue)

Power (Optional)

1 x USB micro B Female (Black)

USB Cable

USB 3.1 Gen 1 B to A Cable 1.2m x 2
USB 3.1 Gen 1 B to C Cable 1.8m x 1

Remote Port Selector

1.8 m

LEDs Selected

2 (White)

Operating Temperature

0-40°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

Housing

Plastic

Weight

0.45 kg ( 0.99 lb )

Dimensions (L x W x H)

9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)

Manufacturer Part No:
US3324
Brand:
Product Type:
-
UPC
672792008689
Product Family:
-
Shipping Weight:
0.49 kg
PB Part No:
KVMATN0113
Product Model:
US3324
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 3 Reviews
5 Stars
2
4 Stars
0
3 Stars
0
3 Stars
0
2 Stars
1
1 Stars
0

Filter Results

Do you own this product?

Write a review and go into the draw Win great prizes each month!
Displaying 1 - 3 of 3 reviews

Meh

Pros:
USB Type C.

Cons:
For the price I expected cables longer than 1m so I'm going to have to buy them.
The only way to switch between computers is with the thumb sized remote, there's no switch on the box.
Made of plastic and is extremely light.
Can't be mounted.
Gave it 2 stars based on value for money.

P
By: PeterC13 14/08/20
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Efficient and easy to use

I bought this to share a keyboard, mouse and USB headset between two computers without unplugging and re-plugging multiple cables each time.
I've now wired the switch under my desk and plugged in the peripherals I needed; what makes this incredibly useful is the little wired remote that comes with it, so now all I have to do is push a small button to use a different computer A+.
It's been very reliable and has meant I save a lot of space on my desk by only having one keyboard, mouse and headset.

G
By: Guest 29/09/21
0 out of 0 users found this review helpful
Did you find it helpful?

Easy to use interface

This item is great.. simple easy to use. User friendly option to splitting the usb.

D
By: DCVR 18/06/20
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
