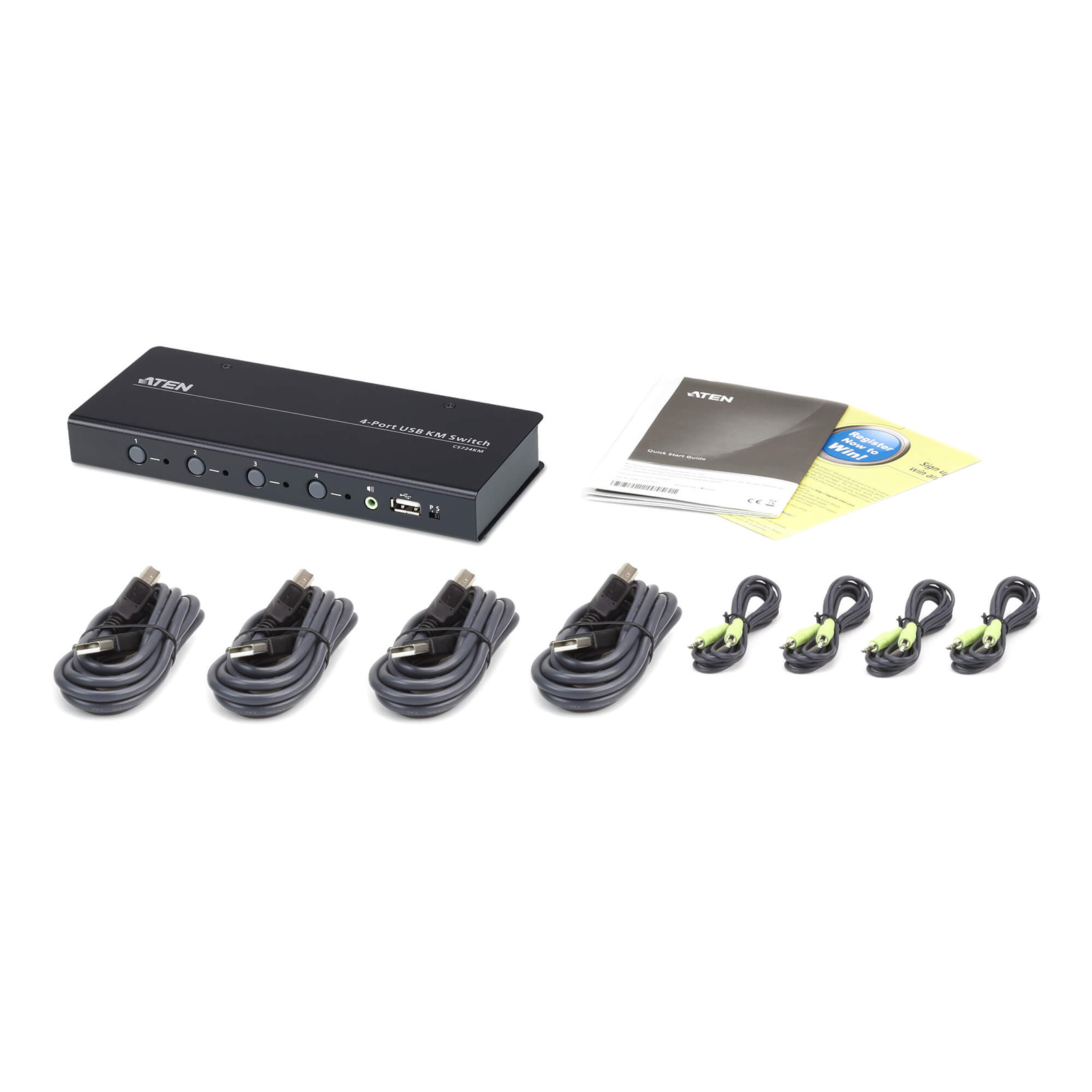

Aten CS724KM 4-port USB Boundless KM Switch (Cables included)

PB Tech price: PB Tech price:
$750 00  +GST $862 50  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Aten CS724KM 4-port USB Boundless KM Switch (Cables included)

Aten CS724KM 4-port USB Boundless KM Switch (Cables included)

  • Brand: Aten
  • MPN: CS724KM
  • Part #: KVMATN0126
  • UPC:
PB Tech price:PB Tech price:
$75000$86250
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships on 20/12/2019
When will I receive it?
Add To Compare

Four easy payments of $222.09 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $148.06 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $8.09 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

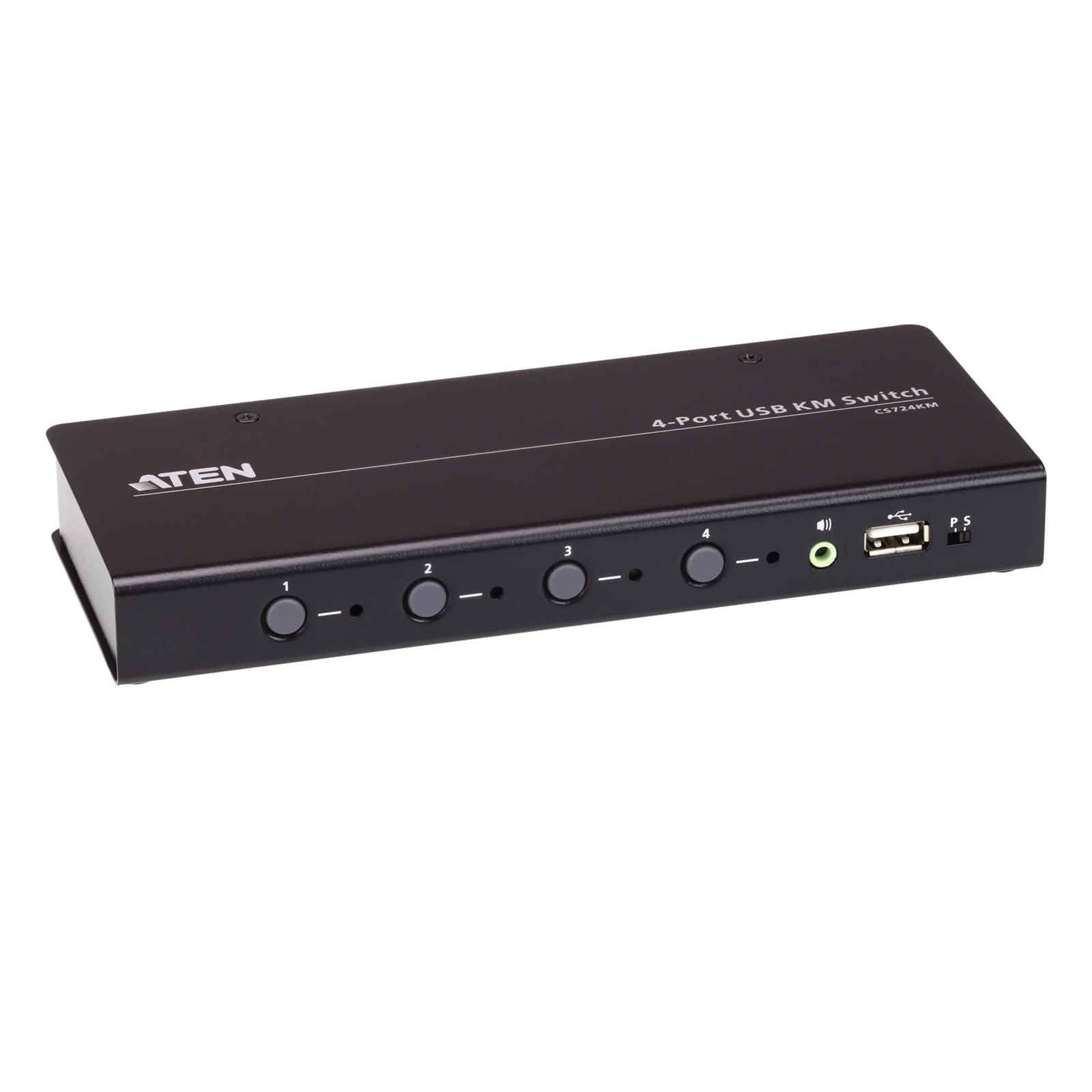

Aten 4 Port USB Boundless KM Switch

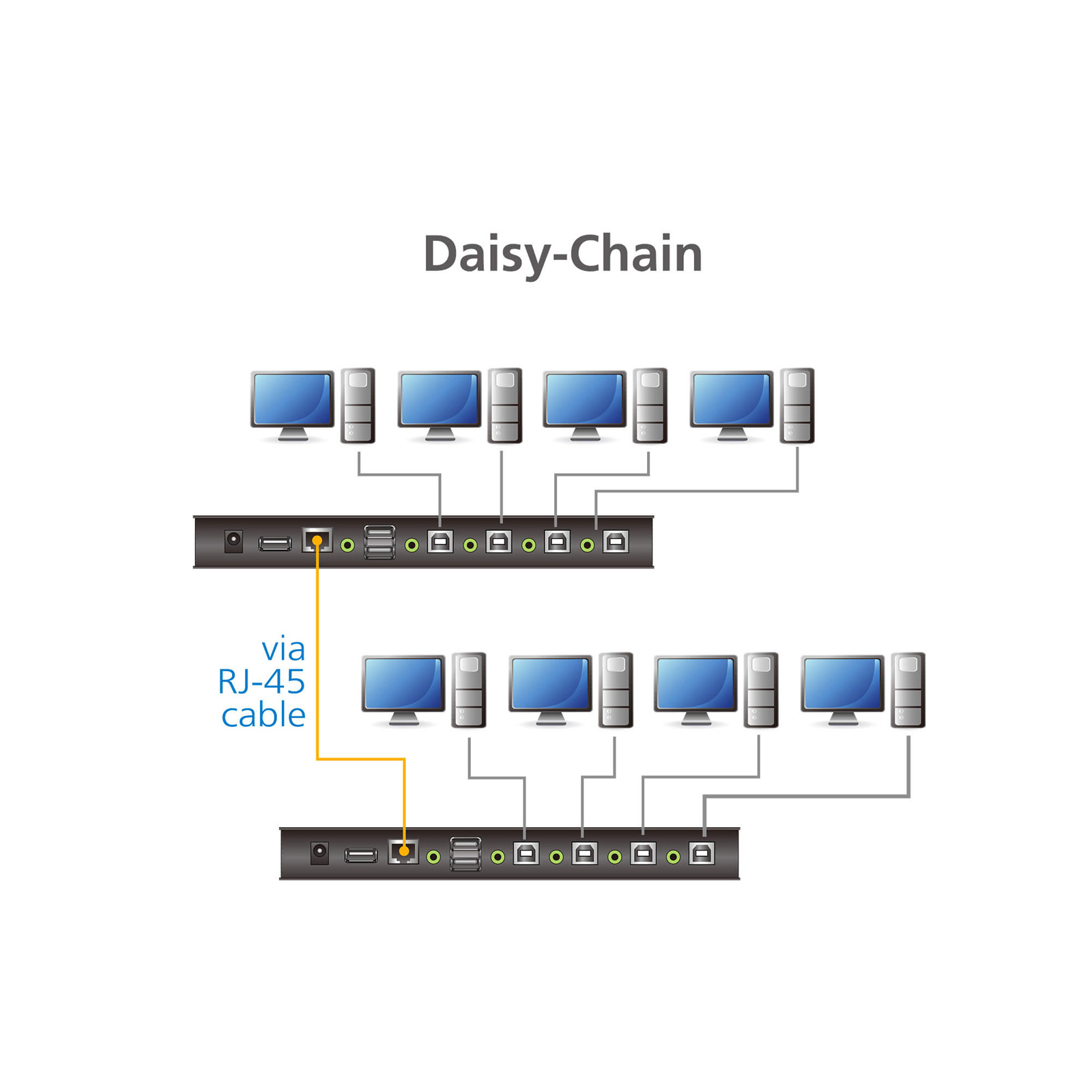

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

Innovative port selection

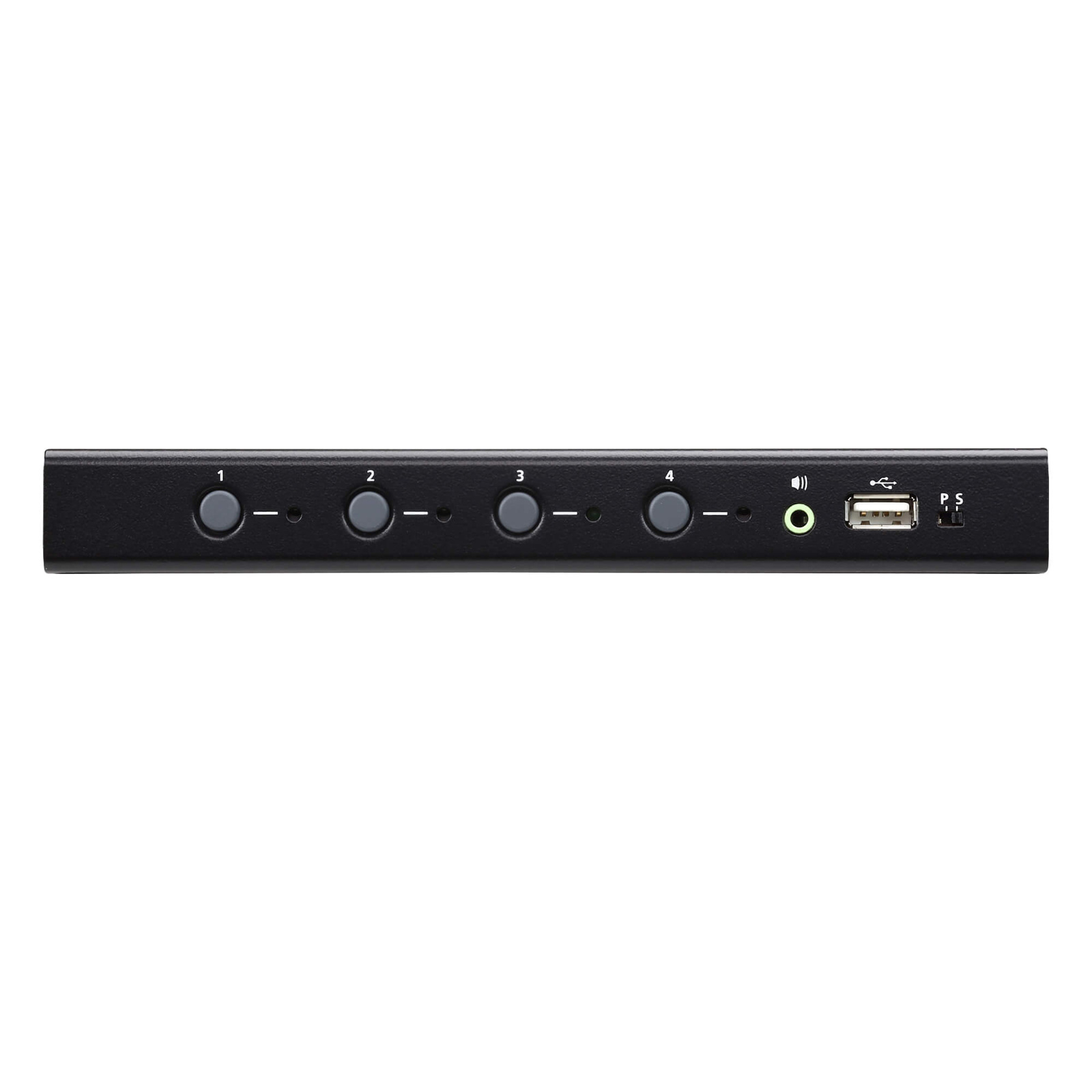

The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN's exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display. Move the mouse cursor in any direction to switch the control focus without limitations.



Boundless Switching function

The CS724KM's Boundless Switching function supports extended desktops with up to four monitors (one per computer), and up to eight monitors when two switches are daisy-chained, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.



Advanced features

The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems. Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry.


Specifications

Computer Connections

4

Port Selection

Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands

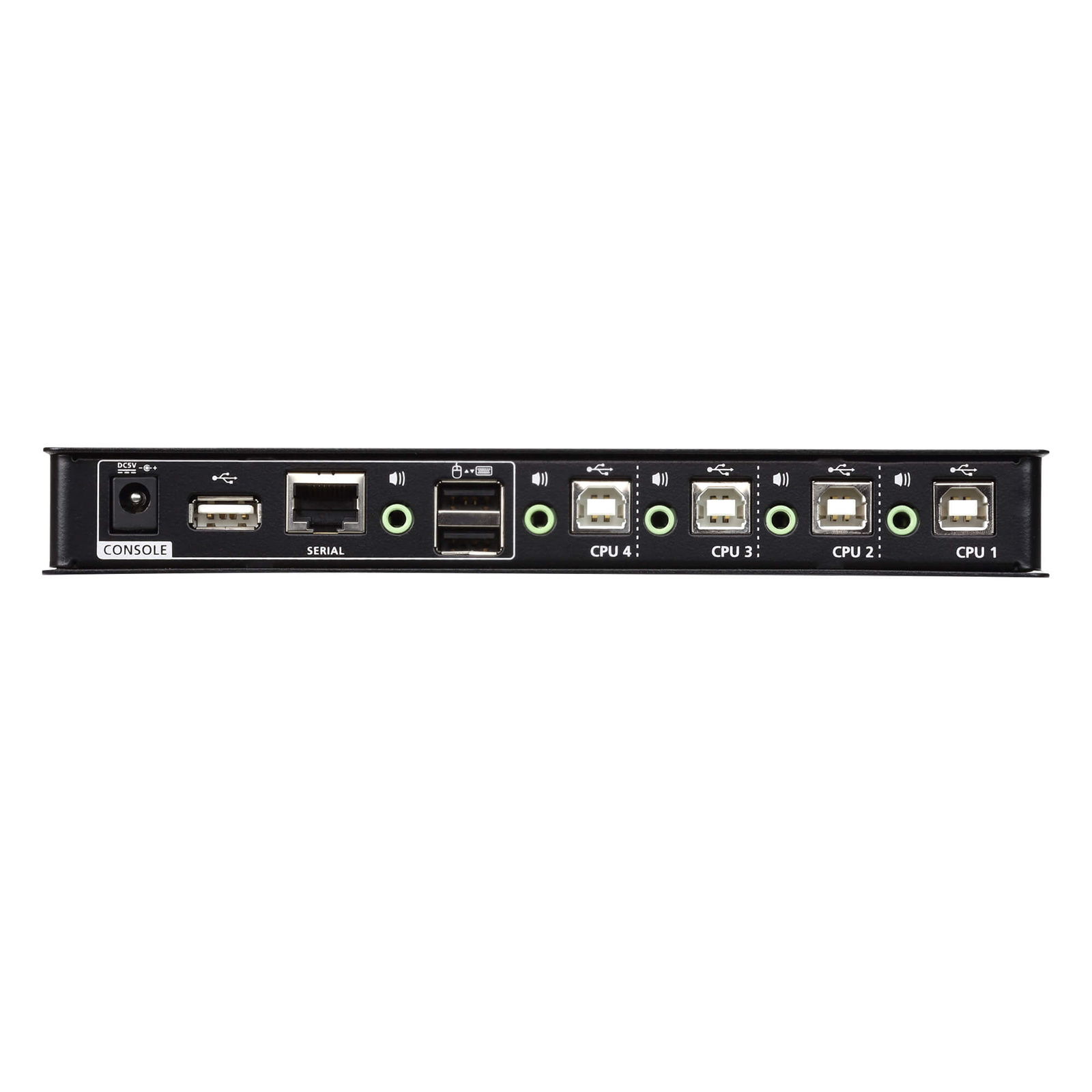

Console Ports

2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
1 x RJ-45

KVM (Computer) Ports

4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)

Power

1 x DC Jack

USB Hub

2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)

Port Selection

4 x Pushbutton

Station Selection

1 x Slide Switch

LEDs Selected

4 (Green)

Keyboard / Mouse

USB

Scan Interval

1-99 seconds (default: 5 sec.)

Power Consumption

DC5V:1.69W:33BTU

Operating Temperature

0-50°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

Housing

Metal, Plastic

Weight

0.50 kg

Dimensions (L x W x H)

20.00 x 8.06 x 2.50 cm

Manufacturer Part No: CS724KM Brand: Aten Product Type: -
UPC - Product Family: - Shipping Weight: 1 kg
PB Part No: KVMATN0126 Product Model: CS724KM

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
