Aten VE800A HDMI Extender Over Single networking cable to Transmit HDMI Signal up to 60m

PB Tech price
PB Tech price
$ 111 .91
 +GST
$ 128 .70
 inc GST
$111.91  +GST
$128.70

Aten VE800A HDMI Extender Over Single networking cable to Transmit HDMI Signal up to 60m

  • Brand: Aten
  • MPN: VE800A
  • Part #: KVMATN2802
  • UPC: 672792005749
1
PB Tech price
$ 111 .91 $ 128 .70
 +GST  inc GST
Tax free price $118.62*
*Price includes surcharge


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$111.91  +GST
$128.70

Four payments of $32.50 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Aten
  • MPN: VE800A
  • Part #: KVMATN2802
  • UPC: 672792005749

Extension Distance

40m

Maximum Supported Resolution

1920x1080

Video Interface

HDMI

Device Type

Transmitters & Receivers

Wireless Technology

Not Specified

What PB Tech customers are saying about this product...

See More Reviews

"use them for transmitting HDMI at work where the distance is longer than 10m. most of the runs we use this for are at least 30m. great little devices"

G
By: Guest 22/02/18

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Aten VE800A HDMI Extender Over Single networking cable to Transmit...
Aten VE800A HDMI Extender Over Single networking cable to Transmit HDMI Signal up to 60m
Total:
$ 117 .71
 +GST
$ 135 .37
Buy together and save $0.28 $0.32
Dynamix C-HDMIHSE-1 1M Slimline HDMI Cable High Speed with Ethernet Support 19 Pin Type A male to male
Dynamix C-HDMIHSE-1 1M Slimline HDMI Cable High Speed with Ethernet Support 19 Pin Type A male to male

$5.80  +GST

$6.67

You save 4% You save 4%

Features

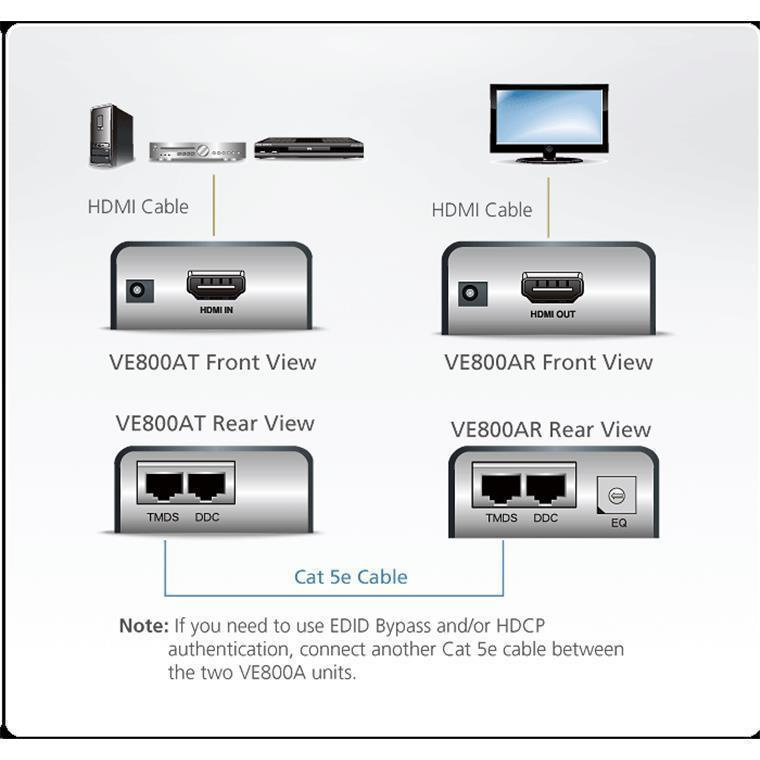

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Feature:

  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality - 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible

Package Contents

  • 1x VE800AT HDMI Extender
  • 1x VE800AR HDMI Extender
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions

Specifications

Function

VE800AR

VE800AT

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 ?

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 ?

N/A

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

225 MHz

Compliance

HDMI (3D, Deep Color)
HDCP Compatible

HDMI (3D, Deep Color)
HDCP Compatible

Max. Resolutions / Distance

Up to 1080p@40m; 1080i@60m

Up to 1080p@40m; 1080i@60m

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Power

Connectors

1 x DC Jack

1 x DC Jack

Consumption

5 VDC, 0.75W

5 VDC, 1W

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.16 kg ( 0.35 lb )

0.16 kg ( 0.35 lb )

Dimensions (L x W x H)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

Manufacturer Part No:
VE800A
Brand:
Product Type:
HDMI Extender
UPC
672792005749
Product Family:
-
Shipping Weight:
0.762 kg
PB Part No:
KVMATN2802
Product Model:
VE800A
Warranty: 24 months *
