Features
VK2100A ATEN's 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 1GB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.
The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2100A is a part of ATEN's Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
- High-performance processor embedded with quad-core CPU and 1GB memory for designing and controlling complex projects
- Supports various interface connections for hardware-software integration and mobile device control
- DC outputs for power supply connections
- USB port for easy project upload
- IR learning function for adding IR device drivers
- Web Viewer - integrated with 3rd-party systems or any web-based console for easier room equipment management
- Supports IEEE 802.1x authentication protocol for enhanced network security
- Supports SNMP and enables IT management software to retrieve information from ATEN controllers
- Supports native KNX IP for building management systems
- TCP, UDP, Telnet, SSH, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
- Supports Pronto formatted IR codes - IR command codes can be entered in Hex format
- Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- Supports centralized control and management by ATEN Unizon™
- Supports project file backup
- Web GUI for easy system configuration
- Supports SSH communication for convenient data monitoring
- LED indication of connection and hardware status
- 2 free licenses for mobile control*
Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.

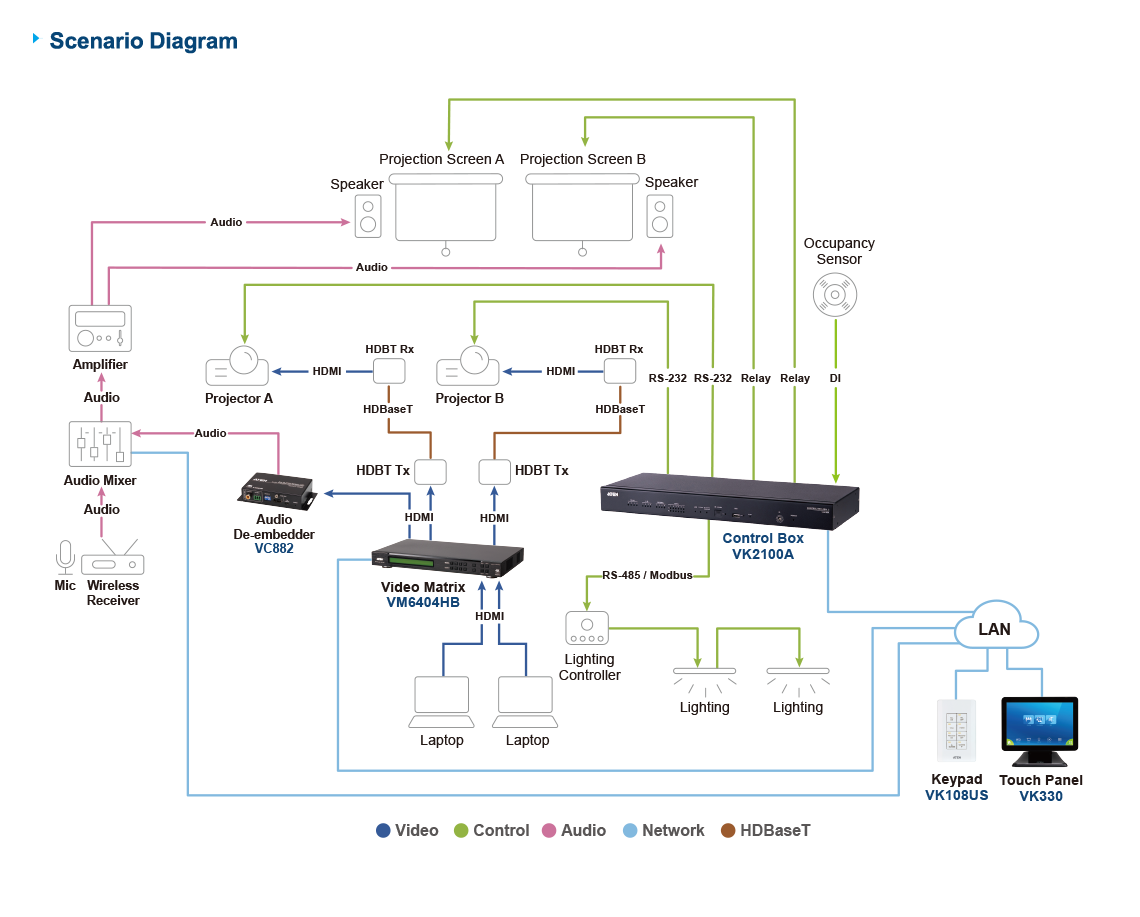

Diagram
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
.webp)
Popular Other AV Splitters / Switches
StarTech.com HD202A 4K 60Hz HDMI Audio Extractor HDMI Audio De...
StarTech.com MSTDP122DP 2-Port Multi Monitor Adapter DisplayPort...
StarTech.com MSTDP123HD 3-Port Multi Monitor Adapter DisplayPort...
StarTech.com MSTMDP122DP 2-Port Multi Monitor Adapter Mini...
Aten VE811 HDBaseT Class A HDMI Extender HDCP 2.2 - 4K/100m -...
Aten VK2100A Control System - Control Box Gen2 License Key )
- Brand: Aten
- MPN: VK2100A
- Part #: KVMATN8217
Product URL: https://www.pbtech.co.nz/product/KVMATN8217/Aten-VK2100A-Control-System---Control-Box-Gen2-Lic?srsltid=AfmBOorfGnl3I8X3U0HizL5e3opfn0fIk9YwqTpVJMrSW2ollXML4cTq
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
VK2100A ATEN's 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 1GB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.
The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2100A is a part of ATEN's Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
- High-performance processor embedded with quad-core CPU and 1GB memory for designing and controlling complex projects
- Supports various interface connections for hardware-software integration and mobile device control
- DC outputs for power supply connections
- USB port for easy project upload
- IR learning function for adding IR device drivers
- Web Viewer - integrated with 3rd-party systems or any web-based console for easier room equipment management
- Supports IEEE 802.1x authentication protocol for enhanced network security
- Supports SNMP and enables IT management software to retrieve information from ATEN controllers
- Supports native KNX IP for building management systems
- TCP, UDP, Telnet, SSH, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
- Supports Pronto formatted IR codes - IR command codes can be entered in Hex format
- Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- Supports centralized control and management by ATEN Unizon™
- Supports project file backup
- Web GUI for easy system configuration
- Supports SSH communication for convenient data monitoring
- LED indication of connection and hardware status
- 2 free licenses for mobile control*
Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.

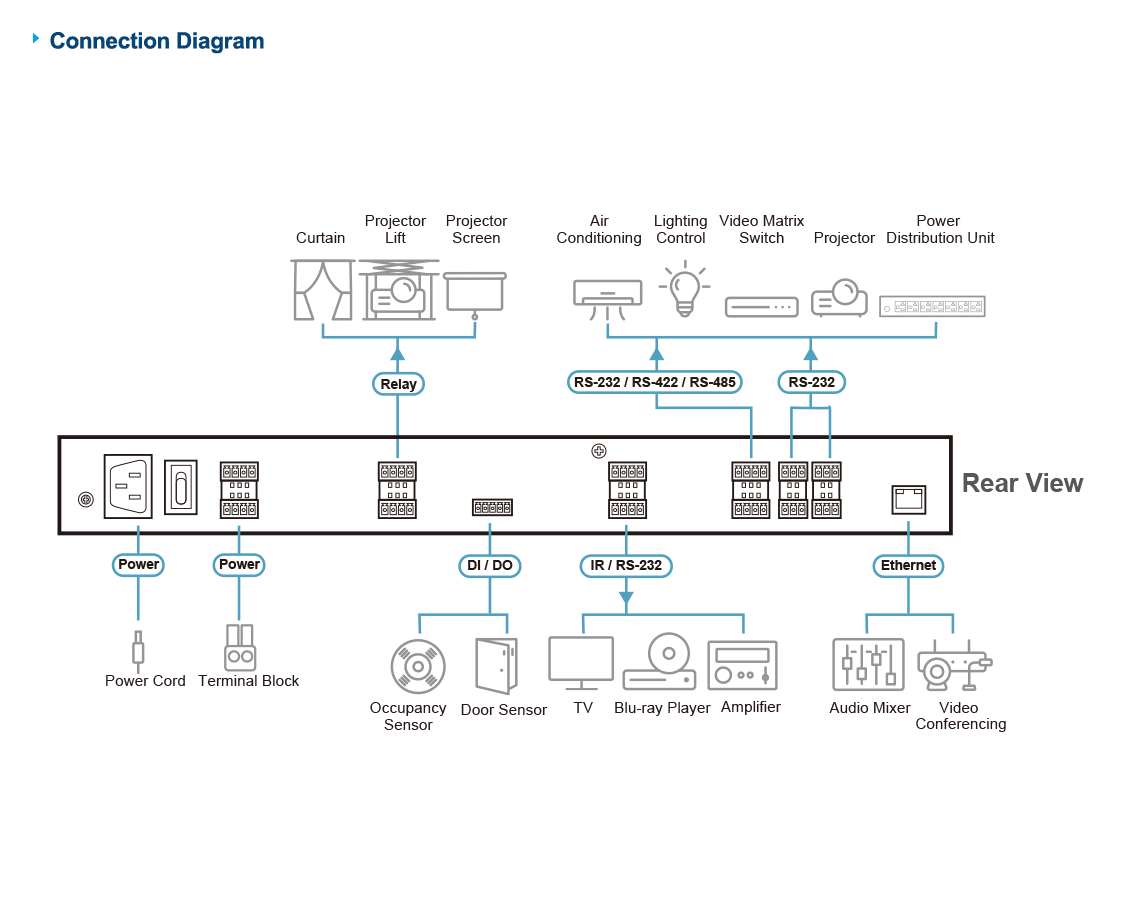

Diagram
Specifications
Memory
SDRAM
1GB
Flash
8GB
Interfaces
Serial
- 2 x Programmable Bi-directional RS-232/422/485 Port
(2 x 5-Pole Terminal Block Connector, configurable via pin assignments);
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd;
- Flow Control: None (default) or RTS/CTS
- 4 x Bi-directional RS-232 Port
(4 x 3-Pole Terminal Block Connector);
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd
IR/Serial
- 4 x Programmable IR / Uni-directional RS-232 Port
(2 x 4-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
- Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
- Baud Rate: 300 to 115200 (default: 9600);
- Data Bit: 8 (default) or 7;
- Stop Bit: 1 (default) or 2;
- Parity: None (default), Even or Odd
Relay
- 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
- Normally open, isolated Relays;
- Contact Rating: Max 24 VDC, 2A
I/O
- 4 x Programmable Digital Input / Output Channel
(1 x 5-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
- VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
- Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Ethernet
-1 x RJ-45 Female, 10/100/1000Base-T
- Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
- DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
VDC
- 4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector);
- Power Supply: 12 VDC, 2A Max (shared by 4 ports)
USB
1 x USB Type A
Switches
Power
1 x On/Off Switch
IR Learning
IR Learning
1 x IR Receiver LED
Reset Button
Reset Button
1 x Semi-recessed Pushbutton
Power Consumption
Power Consumption
AC110V:5.2W:137BTU/h
AC220V:6.5W:143BTU/h
Note
- The measurement in Watts indicates the typical power consumption of the device with no external loading.
- The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power
Maximum Input Power Rating
100-240 V AC, 50-60 Hz, 1A
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
2.59 kg ( 5.7 lb )
Dimensions (L x W x H)
43.24 x 16.32 x 4.40 cm
(17.02 x 6.43 x 1.73 in.)
License
Basic (free)
2 free licenses
Max. No. Allowed
16 licenses
Note
The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
