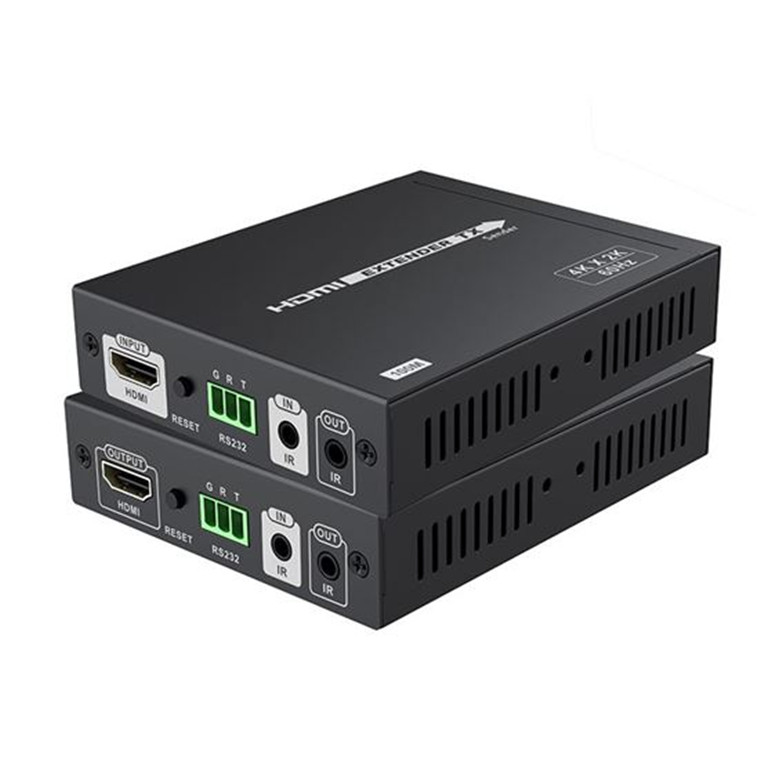

LENKENG LKV675 HDMI2.0 70M HDMI extender over HDBASET

PB Tech price: PB Tech price:
$228 70  +GST $263 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

LENKENG LKV675 HDMI2.0 70M HDMI extender over HDBASET

LENKENG LKV675 HDMI2.0 70M HDMI extender over HDBASET

  • Brand: LENKENG
  • MPN: LKV675
  • Part #: KVMLNK1063
  • UPC:
  • Wireless Technology:N/A
  • Video Interface:HDMI
  • Maximum Supported Resolution:4096x2160
  • Extension Distance:61 - 70m
  • Device Type:Transmitters & Receivers
PB Tech price:PB Tech price:
$22870$26300
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships tomorrow
When will I receive it?
Add To Compare

Four easy payments of $67.72 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Finance from $2.96 per week *

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

LKV675
This HDBaseT single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, 4kx2k, CEC, HDCP and ultra HD 4KX2K @ 60Hz. This product supports to power over network cable, just connect the power adapter with the receiver unit, can keep this device working well. It's a perfect solution for audio&video transmission in applications of HD conference system, HD multimedia education system, HD digital advertising and signage etc.

1. Apply HDBaseT extend technology

2. Support bi-directional IR pass back
3. Support bi-directional RS232 control
4. Apply HDBaseT transmission technology
5. Support HDMI2.0 HDCP2.2 ,CEC, 24 deep color
6. Support LPCM DTS-HD and Dolby True HD audio
7. Supported resolution is up to 4Kx2K @ 60Hz ultra HD
8. Transmit 4Kx2K @ 60Hz signal over cat6 up to 70 meters
9. Can be powered by network cable. It only needs to connect
   the 12V power on the receiver unit, both transmitter and receiver start work

Specifications

HDMI signal

Support HDMI2.0 HDCP2.2, support CEC and 24bits deep color

Resolution Supported

480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K

Audio

LPCM?DTS Digital, Dolby Digital

Network cable

CAT6?CAT6A?CAT7

Transmission length

70m

IR control

Support 20~60kHz wide frequency devices and Bi-directional IR transmission

Working temperature

0~55?

Storage temperature

-10~70?

Humidity

0~90%(no condensation)

Power supply

DC12V/2A x1pcs

Power consumption

TX: <6W;   RX: <8W

Product dimension

109.49(L)x87.0(W)x23.4(H)mm

Material

Iron alloy material

Weight

TX:240g   RX:250g

Color

Black

Manufacturer Part No: LKV675 Brand: LENKENG Product Type: -
UPC - Product Family: - Shipping Weight: 0.667 kg
PB Part No: KVMLNK1063 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
