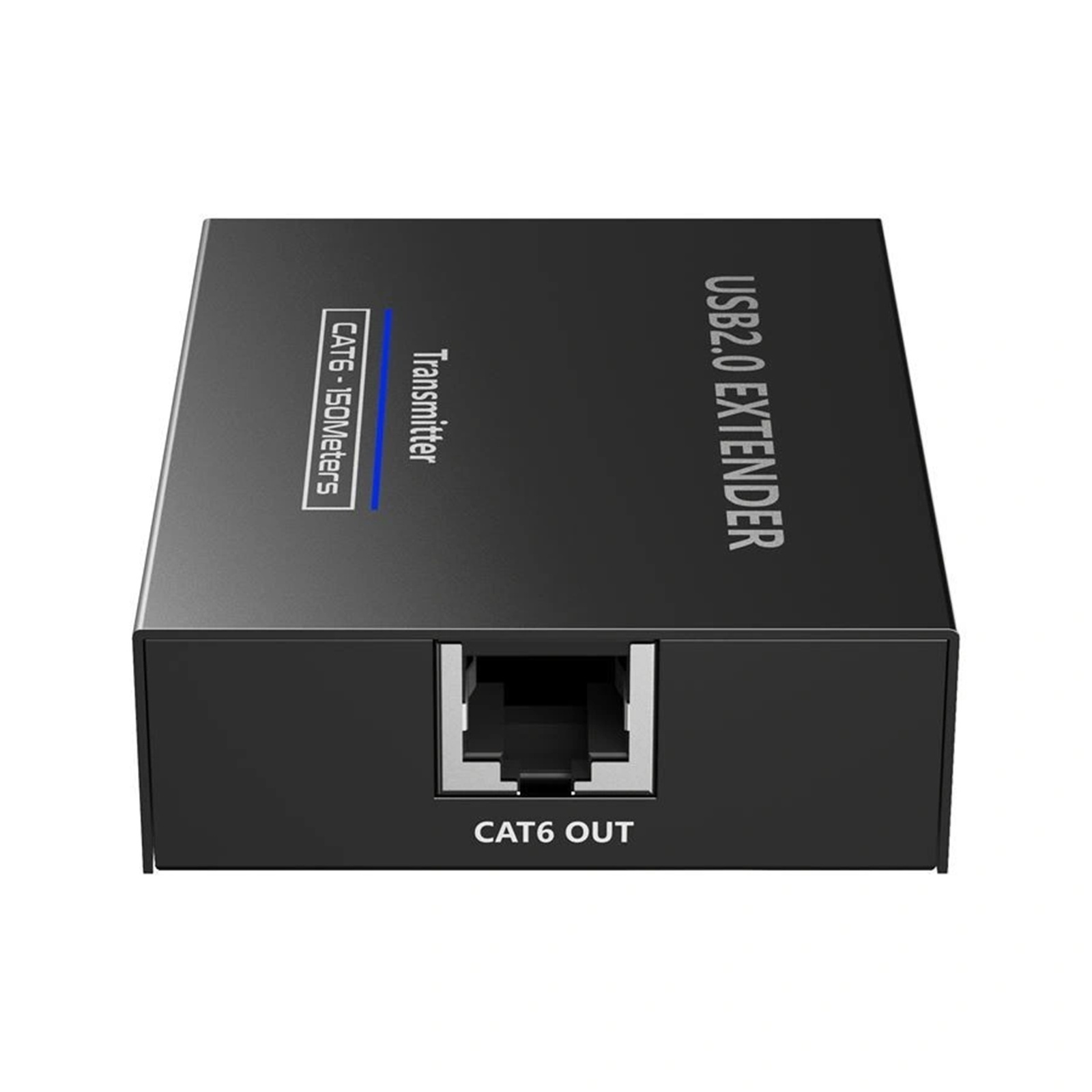

LENKENG LKV100USB 4-Port USB-A Extender Over Cat5e/6/7 Network Cable. Extend up to 150m (Cat6). Easy Plug&Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.

PB Tech price
PB Tech price
$ 139 .26
 +GST
$ 160 .15
 inc GST
$139.26  +GST
$160.15

LENKENG LKV100USB 4-Port USB-A Extender Over Cat5e/6/7 Network Cable. Extend up to 150m (Cat6). Easy Plug&Play. Includes Both Tx & Rx Units Rx Includes 4x USB-A, 1x RJ45 In Ports. Tx 1x USB-A, 1x RJ45 Out.

  • Brand: LENKENG
  • MPN: LKV100USB
  • Part #: KVMLNK1094
  • UPC:
1
PB Tech price
$ 139 .26 $ 160 .15
 +GST  inc GST
Hurry, only 2 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$139.26  +GST
$160.15
  • Brand: LENKENG
  • MPN: LKV100USB
  • Part #: KVMLNK1094
  • UPC:

Input Connector

USB-A (Female)

Output Connector

4x USB-A (Female)

What PB Tech customers are saying about this product...

See More Reviews

"I bought these to replace the Unitek ones I was using previously. They are way more reliable when you need higher bandwidth devices like USB Webcams to work across the link. The Un ...view more"

JP
By: JeffP86 27/02/25
Verified Owner

Features

This Lenkeng LKV100USB 150m 4-Ports High-Speed USB2.0 Extender supports connection through CAT5E/6/7 network cables, with a transmission distance of up to 100m for CAT5E and up to 150m for CAT6 and above.

Supports all USB 2.0 devices up to 480Mbps

Support printers, scanners, cameras, USB drives, keyboards, mice and more, also can be compatible for USB1.1 (12Mbps) and SUB1.0 (1.5Mbps). Which can be widely applied in daily office, computer teaching systems, video conferences, monitoring and more.

- Support USB 2.0 High-Speed, Compatible with USB 1.1 Full-Speed, USB1.0 Low-Speed
- Support 4xUSB 2.0 inputs and 1xUSB 2.0 outputs
- Transmits up to 100m with CAT5E and up to 150m with CAT6/7 cables
- Support USB hub connection
- The transmitter is powered by the input device, no additional power supply required
- Support switch relay, the transmission distance can be increased through the switch
- Support hot-plugging of USB devices and automatically identify USB speed
- Lightning, surge, ESD protection
- Plug and play

Specifications

USB Compliance

USB2.0 and backwards compatible with USB1.1, USB1.0

USB Rate

compatible with High-Speed, Full-Speed, Low-Speed

Transmission Distance

CAT5E=100m; CAT6/6A/7=150m

USB Device

Printer, camera, scanner, U disk, keyboard, mouse, touch screen

Switch

Support Gigabit switch extension

USB Hot-Plug

Support

System

Windows, MacOS, Linux, Android

Output

USB-A×1, RJ45 ×1

Network cable standard

CAT5E/CAT6/CAT6A/CAT7 , follow IEEE-5688 standard

Housing

Iron

Dimensions(L×W×H mm)

77.0(L) x 60.0(W) x 21.0(H) mm

Net weight

Transmitter: 123g
Receiver: 128g

Power supply

Transmitter: Power from the input device
Receiver: 5V/1A

Power consumption

=2W

Operation temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Relative humidity

0%~90% (no condensation)

Protection

Lightning Protection, Surge Protection, ESD Protection

Application

Industrial Control, KVM Extension, Professional Audio-Visual, Security and monitoring, Medical Device Connectivity

Manufacturer Part No:
LKV100USB
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
KVMLNK1094
Product Model:
LKV100USB
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
