Features
LENKENG HDbitT HDMI Video Matrix Receiver Unit Over IP CAT5/5e/6 Network Cable. Supports up to 120m 4K@30Hz. Multi Cast Many to Many Matrix Connection. IR Control. Tx Unit - LKV686MATRIX-TX

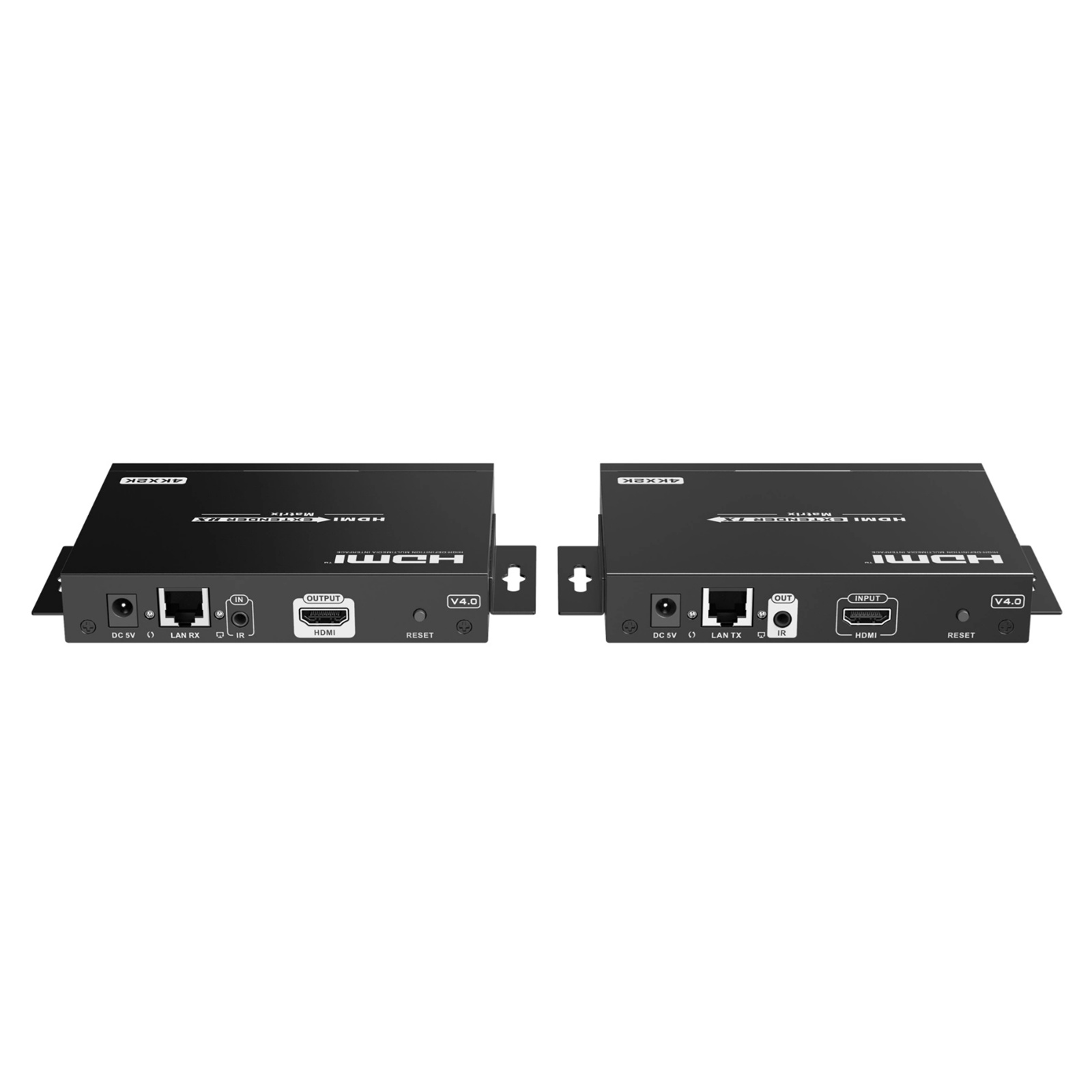

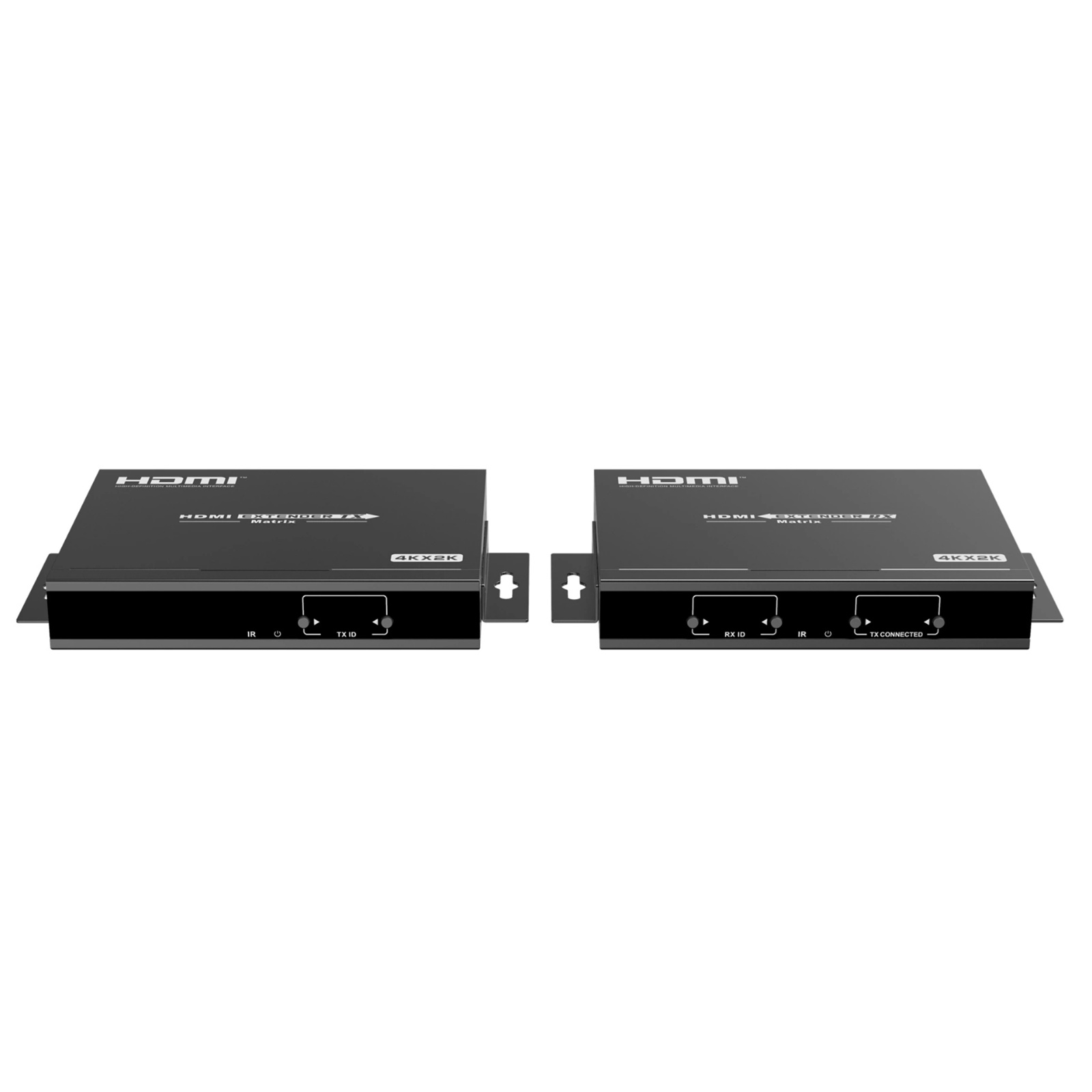

This HDbitT HDMI video matrix over IP includes a transmitter unit(TX) and a receiver unit(RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applied advanced HDbitT technology, the resolution supported is up to 4Kx2K@30Hz ultra HD. It can also be used in a point-to-point connection, the distance is up to 120 metres. It is widely applied in digital signage advertisements, control rooms, command centres, entertainment and exhibition centre, safety monitoring system, etc.
- Apply advanced over IP Technology
- Resolution Supported is up to 4K x 2K 30Hz Ultra HD
- Transmission distance is up to 120 metres via CAT6
- Support IR Passback function to control source device from RX Location.
- Plug and Play.
- Support Scalable and flexible input-output matrix configuration allows 100 inputs to infinite output.
- support computer control software to select and switch source device input.
- Support to select and switch source device input from the receiver via remote control and hard button.
- Surge protection, Lighting Protection, ESD Protection.
Specifications
HDMI compliance
HDMI1.4
HDCP compliance
HDCP1.4
Transport procotol
HDbitT
Network bandwidth
28Mbps
Video support
480i @ 60Hz? 480p @ 60Hz ? 576i @ 50Hz ? 576p @ 50Hz ? 720p @ 50/60Hz ? 1080i @ 50/60Hz ? 1080p @ 50/60Hz ? 4K×2K @ 24/25/30HZ
Audio support
PCM
InputTMDS signal
0.7~1.2Vp-p
InputDDC signal
5Vp-p
IR passback
yes
IR frequance Range( KHz )
20-60KHz
Network switch required
with IGMP function
Input port
1×HDMI 1×RJ45, 1×3.5mm(IR)
Output port
1×RJ45, 1×3.5mm(IR)
1×HDMI
HDMI source control
Support IR pass back function to control source device from RX location.
