LENKENG 1-In-8-Out 4K 30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

PB Tech price
PB Tech price
$ 690 .43
 +GST
$ 793 .99
 inc GST
$690.43  +GST
$793.99

LENKENG 1-In-8-Out 4K 30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

  • Brand: LENKENG
  • MPN: LKV728P
  • Part #: KVMLNK1174
  • UPC:
PB Tech price
$ 690 .43 $ 793 .99
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Oct When will I receive it?
$690.43  +GST
$793.99

Finance from $7.90 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

LENKENG 1-In-8-Out 4K@30Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

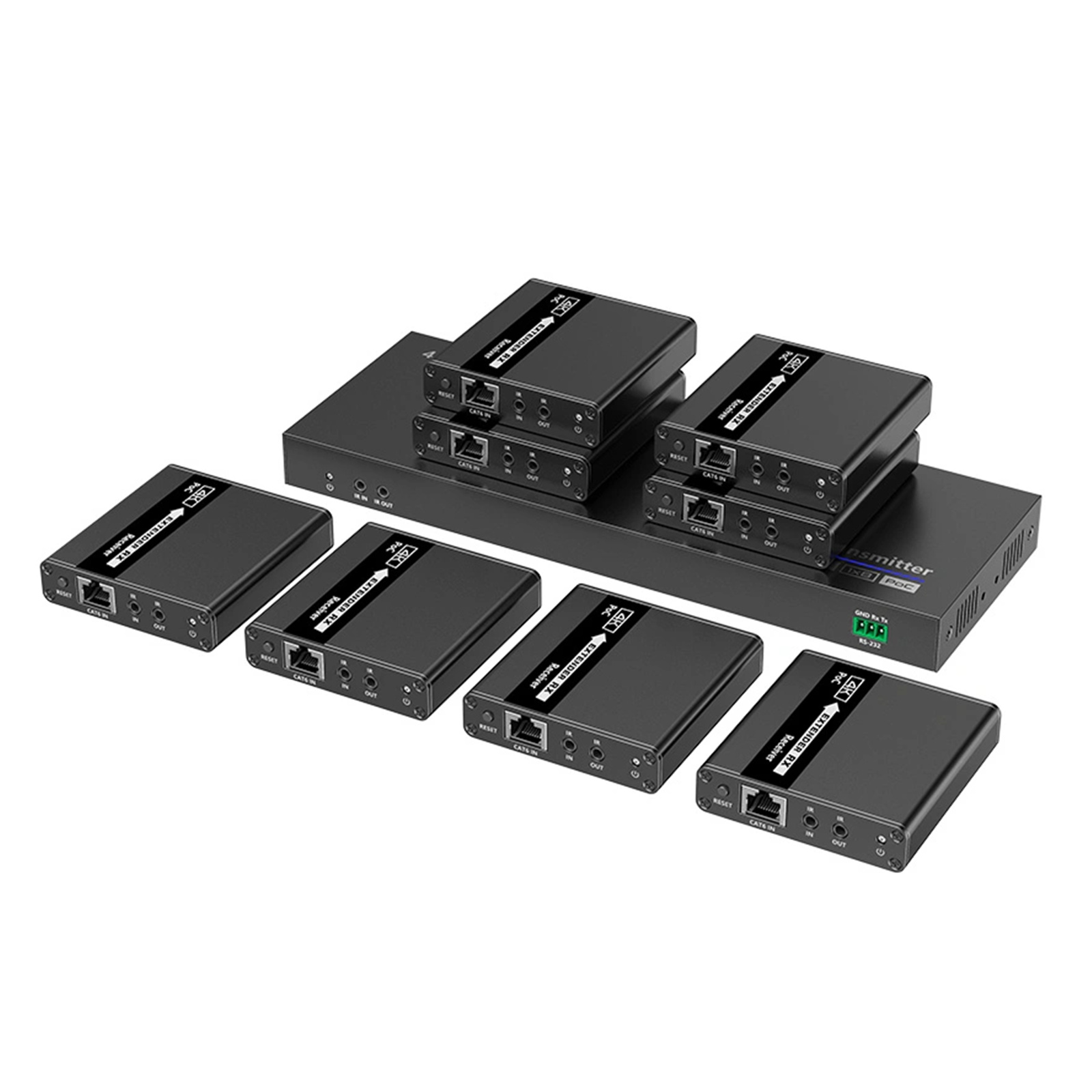

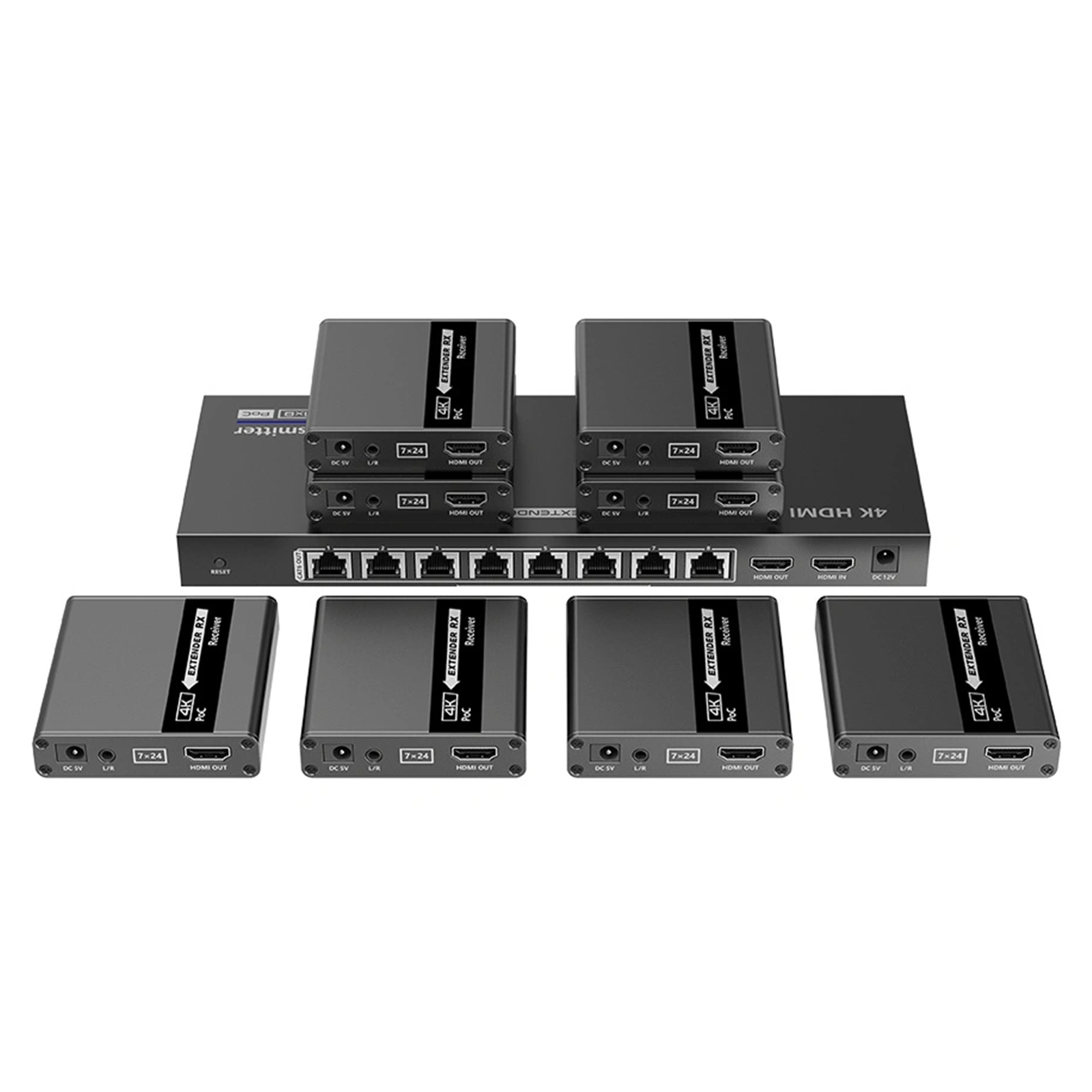

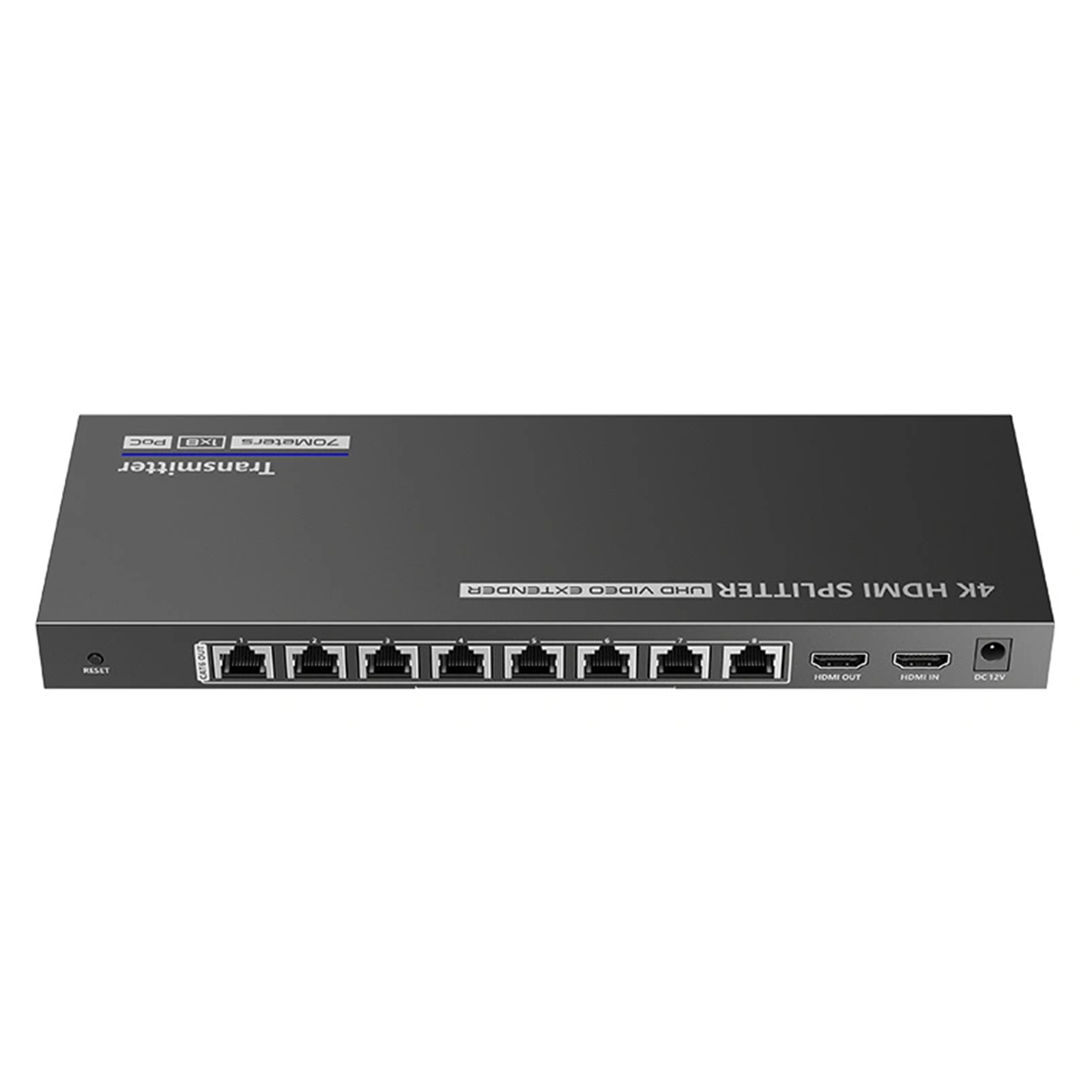

1-In-8-Out 4K@30Hz HDMI Extender. Distributes 1 HDMI input signal to 8 identical signal outputs, extending these signals up to 70m. Supports 4K@30Hz resolution, bi-directional IR passthrough, RS-232 control and 3.5mm L/R audio output functions.

- Zero-latency transmission

- Supports up to 4K@30Hz resolution, downward compatible

- Supports HDR10

- Distribute 1 HDMI source to 8 HDIMI displays

- Support CAT6/6A/7 network cable, which can transmit 1080p signal up to 70m and 4K@30Hz signal up to 40m

- Supports power over network cable, only the transmitter needs to be powered

- Transmitter supports HDMI loop out

- Supports bi-directional IR passthrough (20~60KHz)

- Supports RS-232 command control

- Surge protection, lightning protection, ESD protection

Specifications

Splitter

1 input, 8 output

HDMI compliance

HDMI 1.4

HDCP compliance

HDCP 1.4

Transmission medium

CAT6/CAT6A/CAT7

Transmission distance

1080p@60Hz=70m, 4K@30Hz=40m

Video bandwidth

10.2Gbps

Video support

800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz

Audio support

PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH

PoE

support

1080P HDR10

support

HDMI Loop-out

support

EDID through

support

RS-232 Control

3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600

Bi-directional IR passback

support

Input TMDS signal

0.7~1.2Vp-p

Input DDC signal

5Vp-p

Input

HDMI IN ×1, DC2.1 ×1, 3.5mm jack ×1 (IR)

Output

HDMI OUT×1, RJ45 ×8, 3.5mm jack ×1 (IR)

HDMI connector

Type A 19 Pins, Female

Network cable standard

CAT6/CAT6A/CAT7, follow IEEE-5688 standard

Mechanical

Housing

TX: Iron, RX: Aluminium alloy material+crystal panel

Dimensions (L×W×H mm)

TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm

Weight

TX: 615g, RX: 160g x8

Power supply

TX: DC12V/5A

Power consumption

TX<34W RX<2.5W

Operation temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Relative humidity

0%~90% (no condensation)

Protection

Lightning protection, surge protection, ESD protection

Manufacturer Part No:
LKV728P
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
KVMLNK1174
Product Model:
-
