LENKENG LKV582-RX Receiver unit only 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable Receiver Supports Res up to 4K 60Hz. Signal up to 120M over Cat6/6A/7 and up to 100m Cat5e. Compatible with LKV582.
Out of stock
LENKENG LKV582-RX Receiver unit only 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable Receiver Supports Res up to 4K 60Hz. Signal up to 120M over Cat6/6A/7 and up to 100m Cat5e. Compatible with LKV582.
- Brand: LENKENG
- MPN: LKV582-RX
- Part #: KVMLNK1194
- UPC:
- Brand: LENKENG
- MPN: LKV582-RX
- Part #: KVMLNK1194
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders





LENKENG LKV582-RX Receiver unit only 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable Receiver Supports Res up to 4K 60Hz. Signal up to 120M over Cat6/6A/7 and up to 100m Cat5e. Compatible with LKV582.
- Brand: LENKENG
- MPN: LKV582-RX
- Part #: KVMLNK1194

Product URL: https://www.pbtech.co.nz/product/KVMLNK1194/LENKENG-LKV582-RX-Receiver-unit-only-4K-HDMI-Exten
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
**Receiver unit only**
This 4K@60Hz HDMI extender kit offers flexible and advanced connectivity options, making it suitable for a range of purposes where high-quality audio and video transmission over long distances is required.
Utilizing ipcolour STREAM technology, ensuring high-definition and low-latency transmission. The key features include:
Transmission Distance
The 4K@60Hz HDMI signal can be extended up to 120 meters using Category 6 and above network cables.

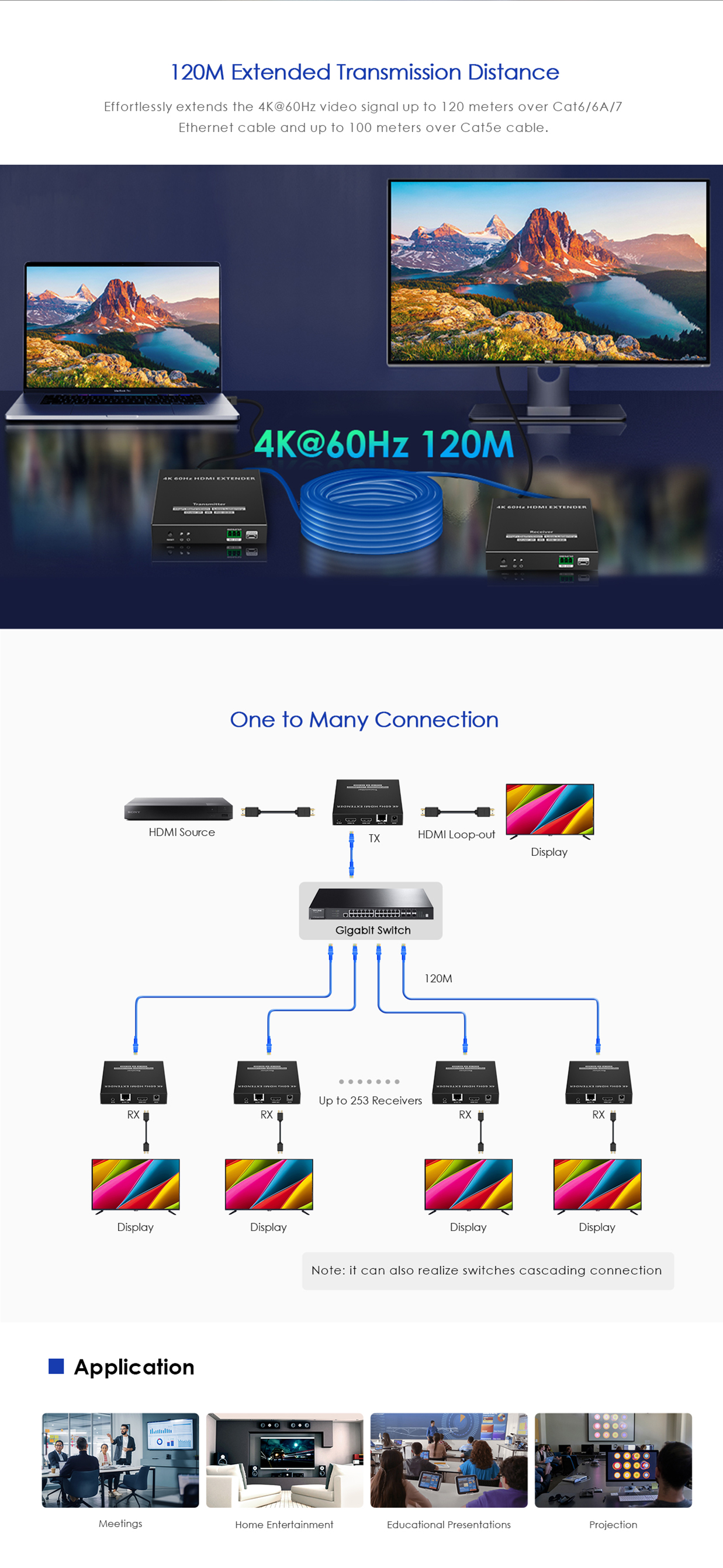

Connection Options
- One-to-One: Direct connection between the transmitter and receiver.
- One-to-Many: Multiple receivers can be connected via a gigabit switch.
- Switch Cascades: Allows for cascading switches, expanding the range of connections.
Additional Features
- HDMI Loop Out: The extender supports HDMI loop out, allowing the original signal to be sent to another display device.
- IR Passback: Infrared signals can pass through the extender, enabling remote control of devices.
- RS-232 Passthrough: Supports RS-232 communication, which can be useful for certain applications.
Versatile Applications
The kit finds applications in various settings, such as meetings, home entertainment systems, educational presentations, and more.
Specifications

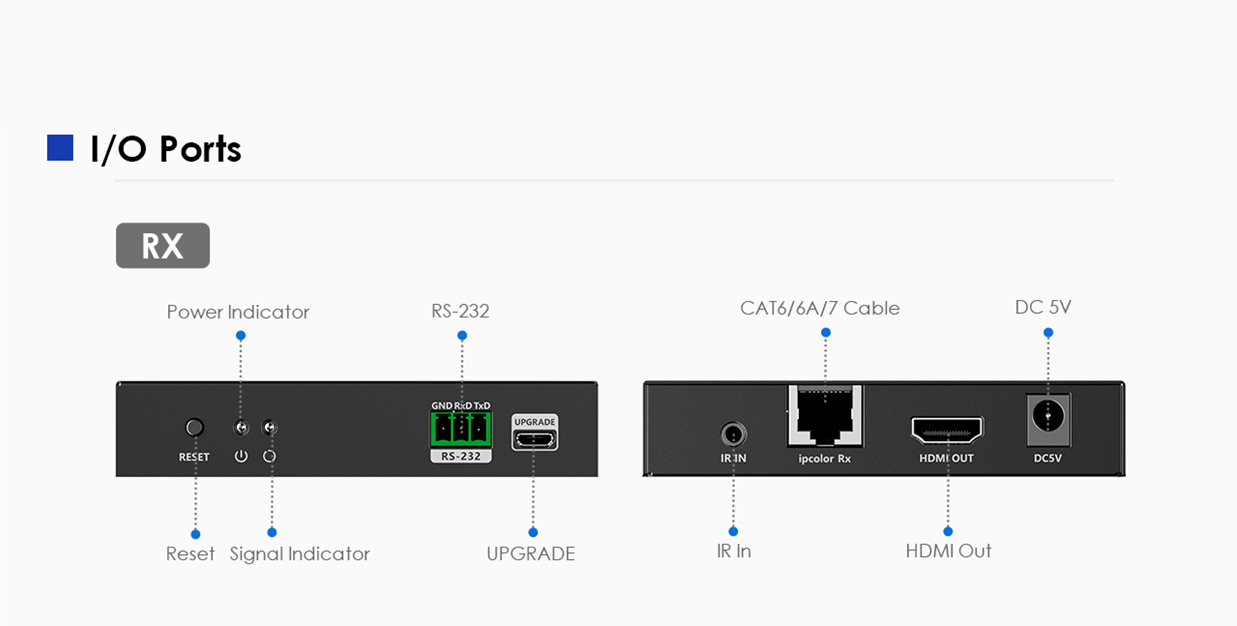

Video
Input interface
1x RJ45
Output interface
1x HDMI
HDMI Length
= 5m
Max Transfer Rate
18Gbps
Compatibility
HDMI 2.0 | HDMI 1.4/HDCP 2.2
Resolutions
3840x2160@ 24/30/50/60Hz, 1080p@ 50/60Hz, 720p@ 50/60Hz, 1920x1200@ 60Hz, 2560x1440@ 60Hz,2560x1600@ 60Hz
Connection types
One-to-one connection, One-to-many connection, Switch cascading
Transmission distance
Cat6/6A/7=120m
Transmisson latency
70~180ms
Command Signal
IR interface
1x 3.5mm IR in
IR receiving range
= 5m
IR frequency
20kHz~60kHz
RS-232 (GND/RXD/TXD)
Default baud rate: 115200 | Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power
Power Supply
DC 5V/1A
Power Consumption
TX = 4.5W
