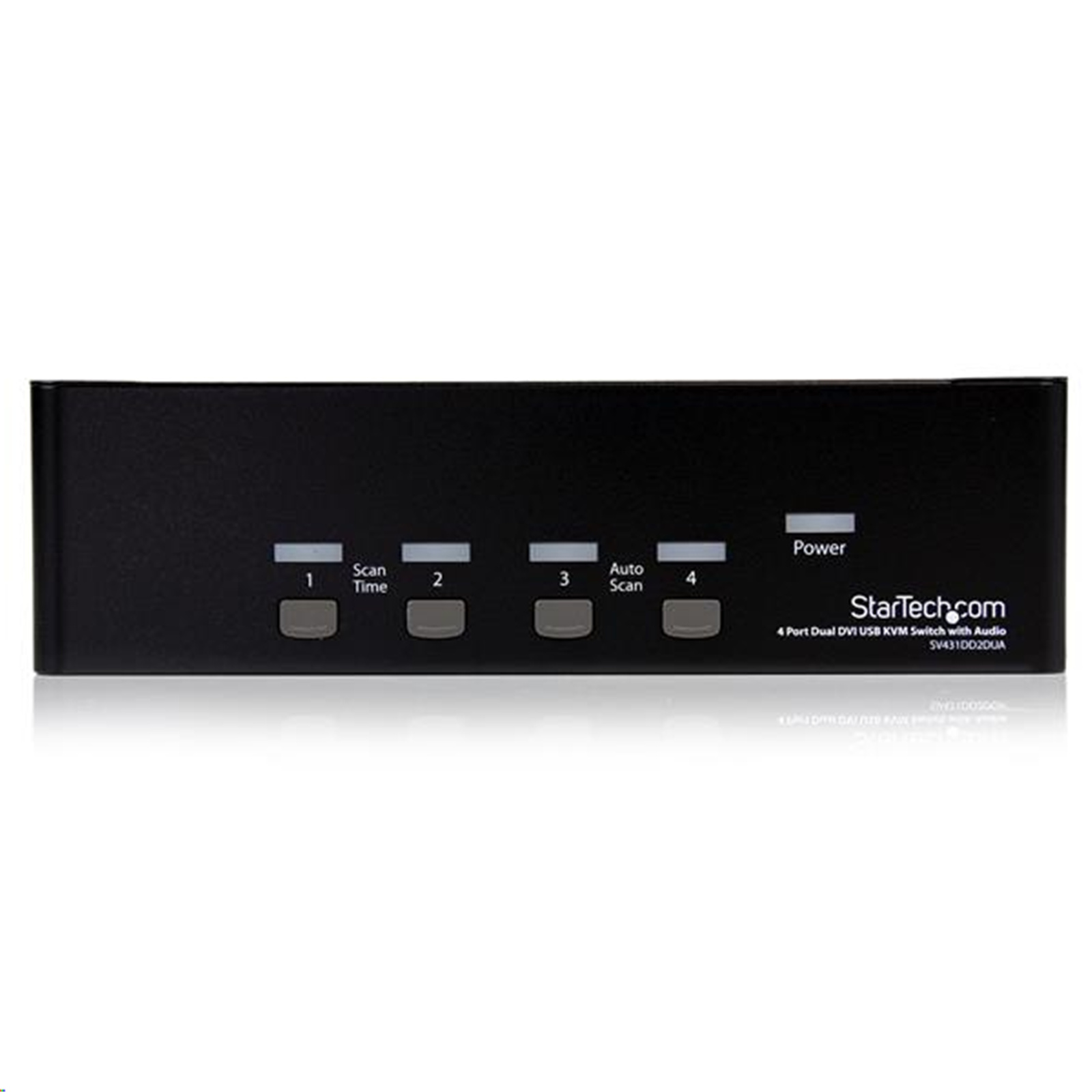

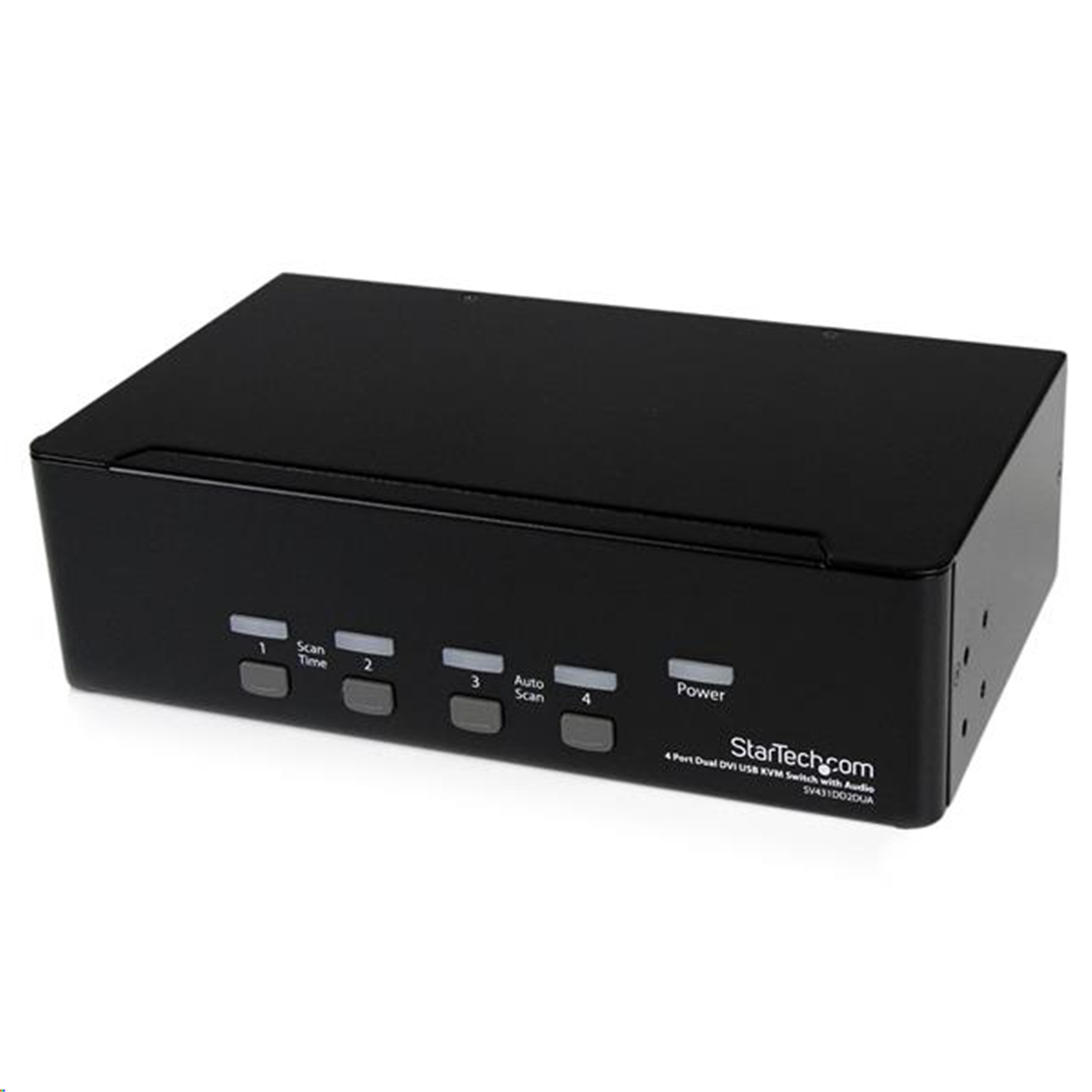

StarTech.com SV431DD2DUA 4 Port Dual DVI USB KVM Switch

PB Tech price
PB Tech price
$ 554 .78
 +GST
$ 638 .00
 inc GST

Out of stock

StarTech.com SV431DD2DUA 4 Port Dual DVI USB KVM Switch

  • Brand: StarTech.com
  • MPN: SV431DD2DUA
  • Part #: KVMSTT1605885
  • UPC: 065030835695
PB Tech price
$ 554 .78 $ 638 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals. An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source. Backed by a StarTech.com 3 year warranty and free lifetime technical support.


Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.


The StarTech.com Advantage

- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching up to four machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Hardware

Audio

Yes
Cables Included
No
Daisy-Chain
No
KVM Ports
4
Number of Monitors Supported
2
PC Interface
USB
PC Video Type
DVI
Rack-Mountable
Optional

Performance

DVI Support
Yes - Single Link
Hot-Key Selection
Yes
IP Control
No
Maximum Analog Resolutions
2048x1536 @85Hz
Maximum Digital Resolutions
1920x1200 @60Hz
Maximum Number of Users
1
On-Screen Display
No
Port Selection Support
Push Button and Hotkeys

Connector(s)


Console Interface(s)
2 - 3.5 mm Mini-Jack (3 Position) Female
2 - DVI-I (29 pin) Female
4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors
4 - USB B (4 pin) Female
8 - 3.5 mm Mini-Jack (3 Position) Female
8 - DVI-I (29 pin) Female

Software


OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Green - Power
4 - Green - Host Online, Red - Host Selected

Power

Center Tip Polarity
Positive
Input Current
0.8A
Input Voltage
110V-240V AC
Output Current
1.5A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
18
Power Source
AC Adapter Included

Environmental


Humidity
90% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Colour
Black
Enclosure Type
Steel

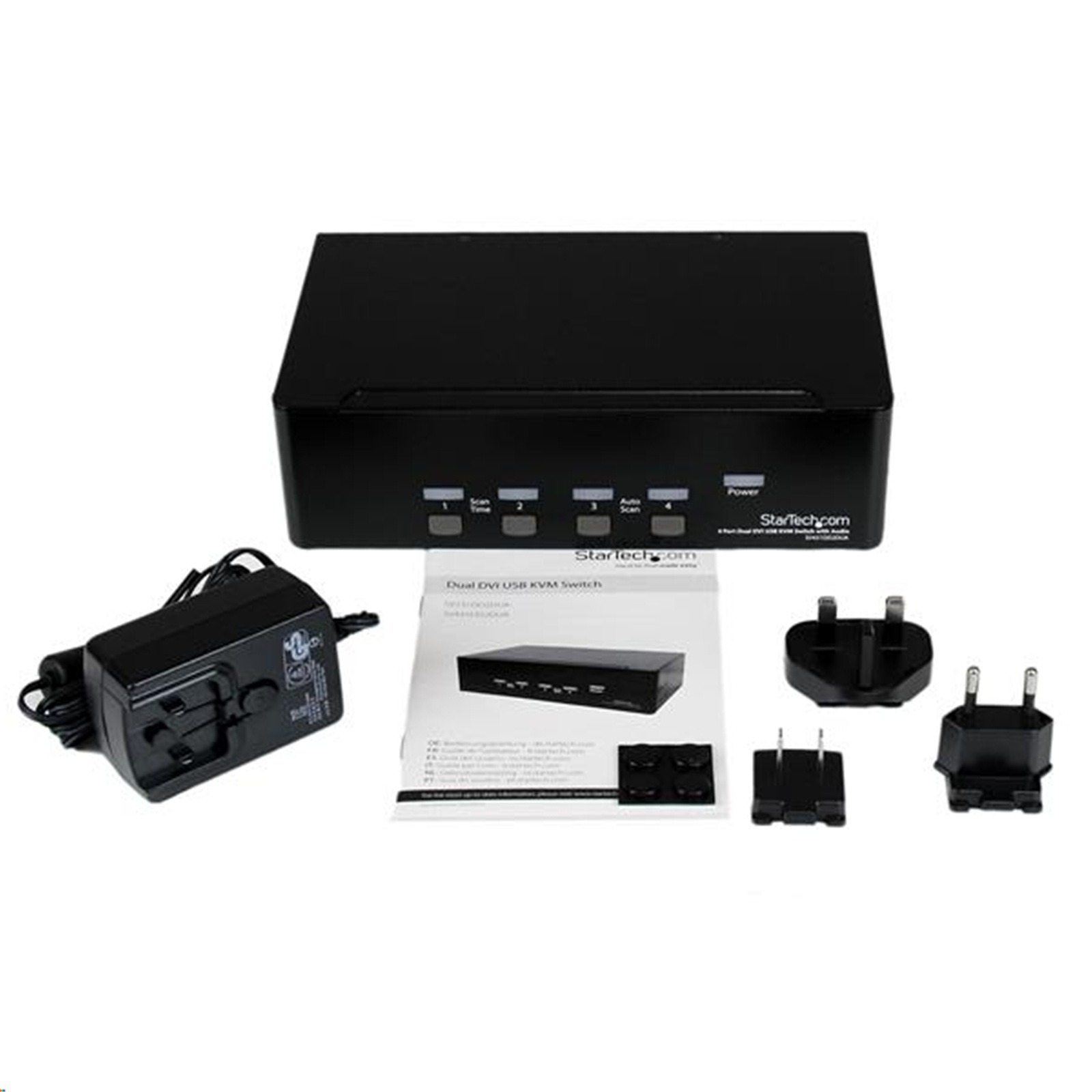

Included in Package
1 - 4-port dual DVI USB KVM
4 - foot pads
1 - universal power adapter (NA/EU/UK/AU)
1 - instruction manual
Manufacturer Part No:
SV431DD2DUA
Brand:
Product Type:
-
UPC
065030835695
Product Family:
-
Shipping Weight:
1.825 kg
PB Part No:
KVMSTT1605885
Product Model:
SV431DD2DUA
Warranty: 24 months *
