StarTech SV431DDVDUA 4 Port DVI VGA Dual Monitor KVM Switch

StarTech SV431DDVDUA 4 Port DVI VGA Dual Monitor KVM Switch
PB Tech price: PB Tech price:
$510 43  +GST $586 99  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

StarTech SV431DDVDUA 4 Port DVI VGA Dual Monitor KVM Switch

StarTech SV431DDVDUA 4 Port DVI VGA Dual Monitor KVM Switch

  • Brand: StarTech
  • MPN: SV431DDVDUA
  • Part #: KVMSTT1607458
  • UPC:065030835701
PB Tech price: PB Tech price:
$510 43 $586 99
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 27/01/2021 When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $120.92 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $100.77 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $5.73 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Popular KVM Desktop Switches

#3
#4

Features

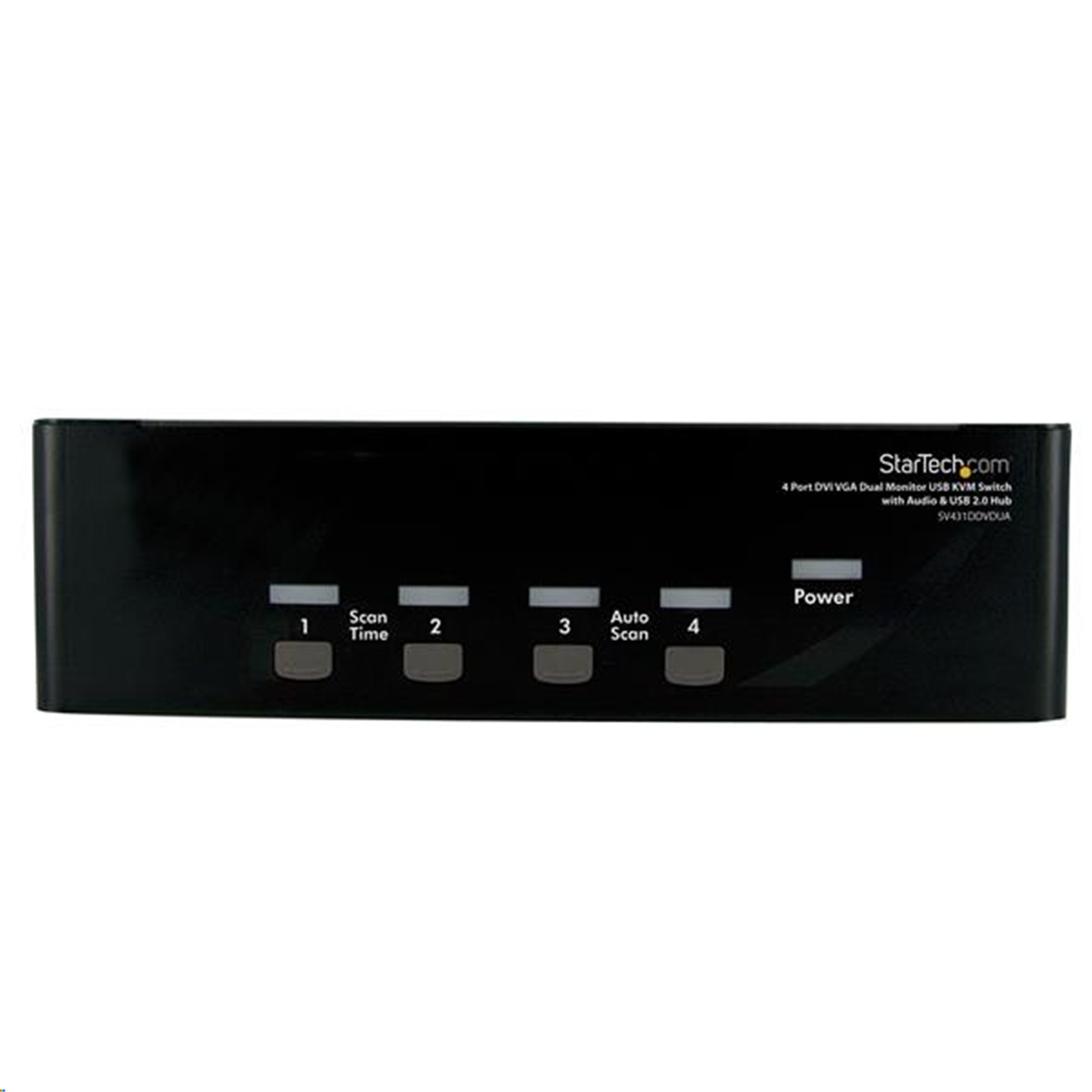

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set. This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers. The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source. Backed by a StarTech.com 3-year warranty and free lifetime technical support.


Rackmount your KVM switch


If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.


The StarTech.com Advantage


- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Audio
Yes

Cables Included
No

Daisy-Chain
No

KVM Ports
4

Number of Monitors Supported
 2

PC Interface
USB

PC Video Type
DVI+VGA

Rack-Mountable
Optional

DVI Support
Yes - Single Link

Hot-Key Selection
Yes

IP Control
No

Maximum Analog Resolutions
1920 x 1400

Maximum Digital Resolutions
1920 x 1200

Maximum Number of Users
1

On-Screen Display
No

Port Selection Support
Push Button and Hotkeys

Console Interface(s)
1 - DVI-I (29 pin) Female
1 - VGA (15 pin, High Density D-Sub) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
4 - USB Type-A (4 pin) USB 2.0 Female

Host Connectors
4 - 3.5 mm Mini-Jack (3 Position) Female
4 - DVI-I (29 pin) Female
4 - USB B (4 pin) Female
4 - VGA (15 pin, High Density D-Sub) Female

OS Compatibility
OS independent; No software or drivers required

LED Indicators
1 - Green - Power
2 - Green - PC Detected
2 - Red - PC Indicator

Center Tip Polarity
Positive

Input Current
0.8A

Input Voltage
110V-240V AC

Output Current
1.5A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
18

Power Source
AC Adapter Included

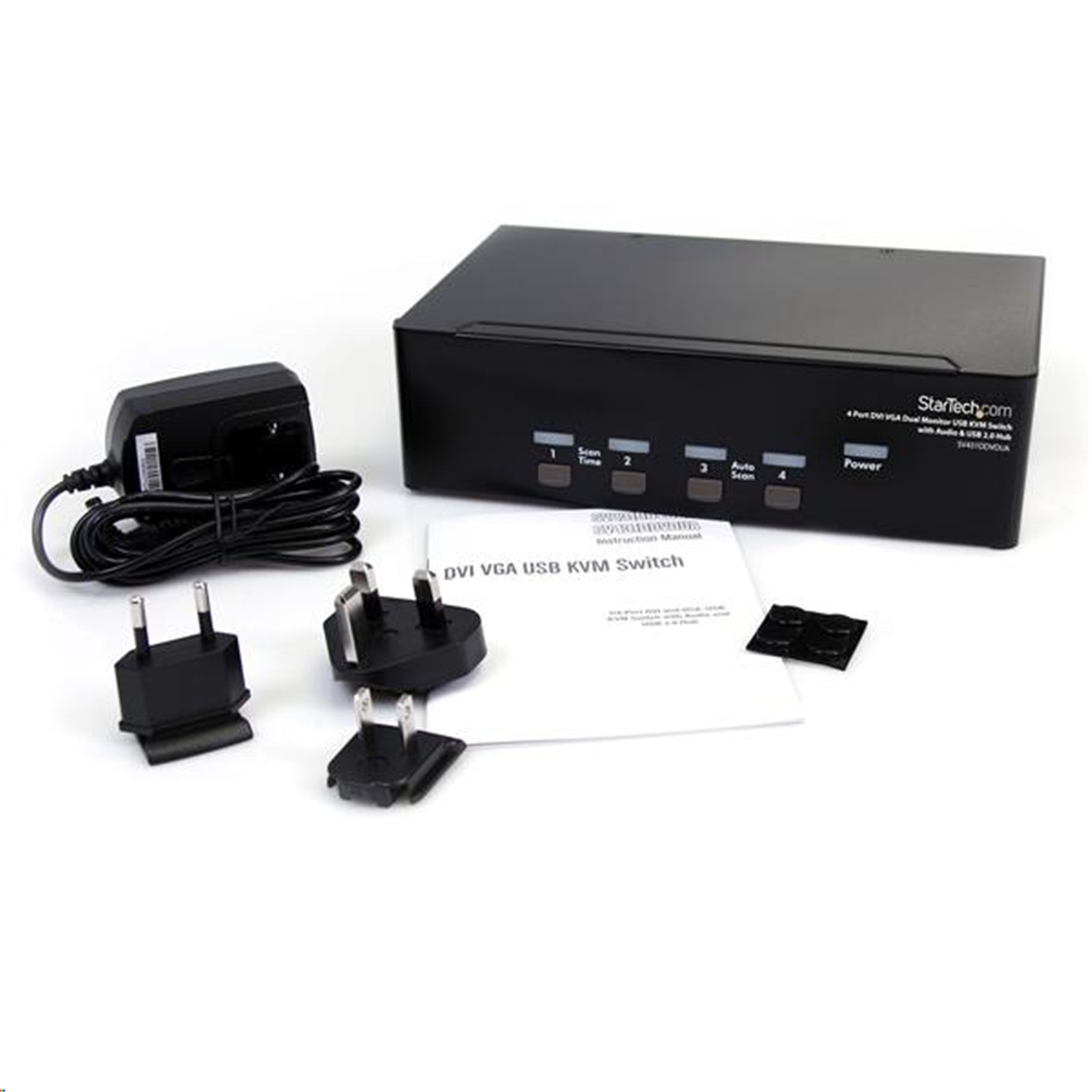

Included in Package
1 - 4-port KVM switch
4 - foot pads
1 - universal power adapter (NA/EU/UK/AU)
1 - instruction manual
Manufacturer Part No: SV431DDVDUA Brand: StarTech Product Type: -
UPC 065030835701 Product Family: - Shipping Weight: 3 kg
PB Part No: KVMSTT1607458 Product Model: -

Warranty: 24 months local warranty *
