StarTech.com KVM Switch 2-Port USB-C PD Pass-Through

  • Brand: StarTech.com
  • MPN: C2-H46-UC2-PD-KVM
  • Part #: KVMSTT5979687
  • UPC:
PB Tech price
$ 351 .30 $ 404 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 17 Oct When will I receive it?
$351.30  +GST
$404.00

Finance from $4.56 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor

Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection

- DUAL LAPTOP CHARGING: 100W Power Delivery Pass-Through is enabled using dedicated USB-C Power Adapters (not included), with 10W reserved and up to 90W charging available for each host laptop simultaneously using the two PD 3.0 pass-through ports
- 4K 60HZ USB-C KVM SWITCH: Enables fast switching of a keyboard, video, and mouse using a single USB-C cable connected to a laptop that supports USB-C DP Alt Mode; It features a 4K 60Hz HDMI output, two USB HID ports, and pushbutton switching
- COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook); Works with USB-C, USB4, Thunderbolt 3/4 laptops
- READY TO DEPLOY: Compact KVM is bus powered and includes two 3ft/1m USB-C host cables; Small form factor is sturdy and features attached rubber feet, keeping the KVM in place during use; Streamlined Port Layout; LED Indicators for Port and Charging Status
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.

100W Power Delivery Pass-through

Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.

Universal Compatibility

The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.

Ready for Quick Deployment

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.

Specifications

Connector(s)

Console Interface(s)

2 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - HDMI
2 - USB Type-C (24 pin) USB Power Delivery Only

Host Connectors

2 - USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps)

Environmental

Operating Temperature

5°C to 55°C (41°F to 131°F)

Storage Temperature

-20°C to 50°C (-4°F to 122°F)

Humidity

20% ~ 80% RH

Hardware

Audio

Yes

KVM Ports

2

PC Interface

USB-C

PC Video Type

HDMI

Number of Monitors Supported

1

Rack-Mountable

No

Cables Included

Yes

Industry Standards

HDMI 2.1 TMDS

Chipset ID

VLI - VL103R
VLI - VL171
Parade - PS186
VLI - VL817

Daisy-Chain

No

Indicators

LED Indicators

2 - Power Input LED: Solid Blue = USB-C Power Adapter connected
2 - Host Connection LED: Solid Blue = Port Selected

Packaging Information

Package Length

4.8 in [12.3 cm]

Package Width

6.8 in [17.3 cm]

Package Height

3.5 in [8.8 cm]

Shipping (Package) Weight

15.5 oz [438.0 g]

Package Quantity

1

Performance

On-Screen Display

No

IP Control

No

Hot-Key Selection

No

Maximum Data Transfer Rate

480Mbps (USB 2.0)

Maximum Digital Resolutions

4096 x 2160 @ 60Hz
Supported Resolutions
5120 x 1440 @ 60Hz
4096 x 2160 @ 60Hz
3840 x 2160 @ 60Ha
3840 x 2160 @ 60Hz
3440 x 1440 @ 60Hz
2560 x 1440 @ 60Hz
2560 x 1080 @ 75Hz
1920 x 1200 @ 60Hz
1920 x 1080 @ 60Hz
Other lower resolutions may be supported

Wide Screen Supported

Yes

Audio Specifications

HDMI - 7.1 Channel Audio

Auto Scan

None

Port Selection Support

Push Button

General Specifications

Power Delivery Pass-through: 100W
Maximum Device Charging: 90W

MTBF

50,000 Hours

Physical Characteristics

Color

Black

Product Length

5.5 in [14.0 cm]

Product Width

2.8 in [7.0 cm]

Product Height

0.6 in [1.5 cm]

Weight of Product

7.1 oz [200.0 g]

Material

ABS

Cable Length

3ft (1m)

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Power Consumption (In Watts)

10W

Software

OS Compatibilit

No Drivers or Software Required

Special Notes / Requirements

Note

Host device must support USB-C DP Alt Mode for video functionality to work
Host device must support Power Delivery to charge when a USB-C Power Adapter is connected to the Power Delivery Pass-through Port

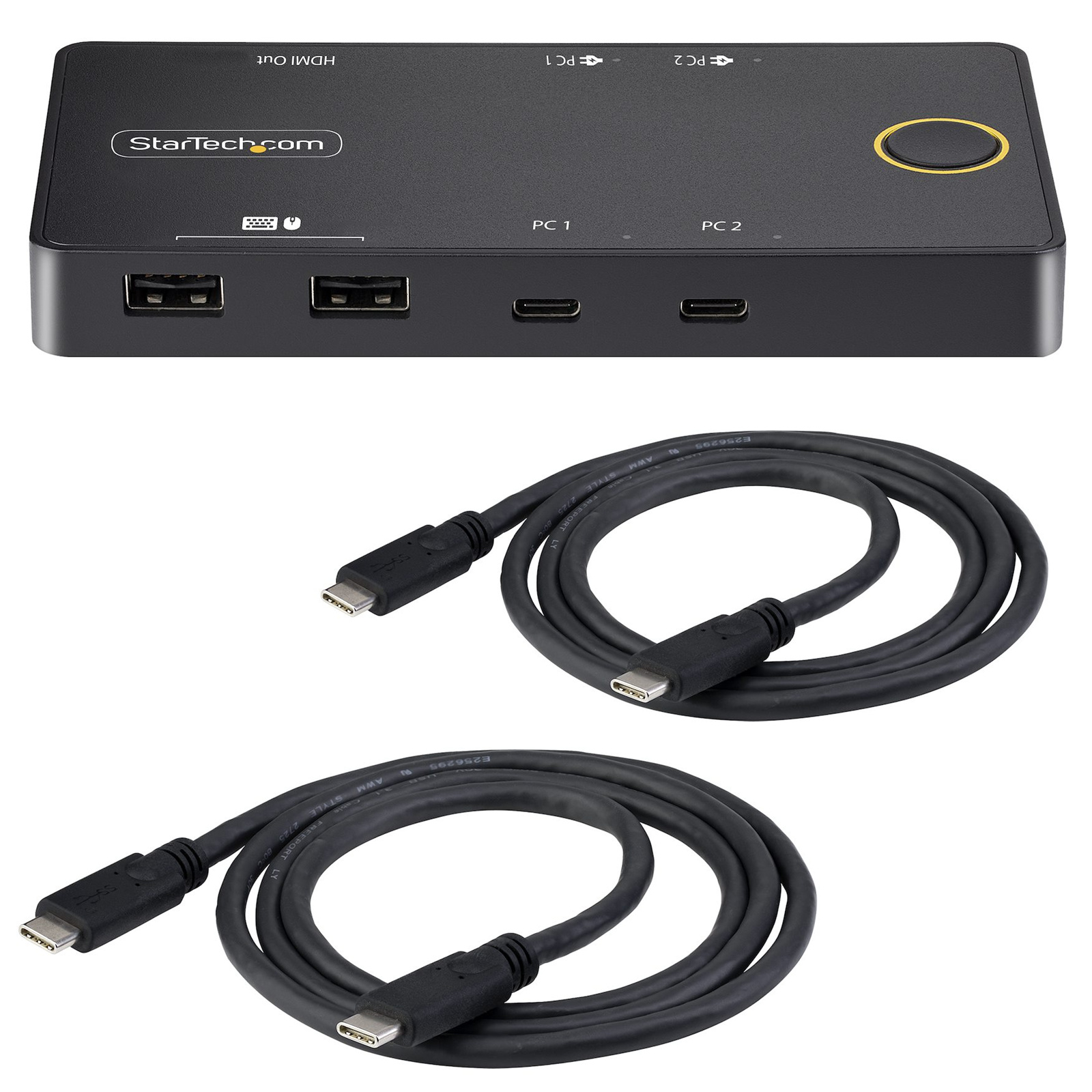

What's in the Box

Included in Package

1 - KVM Switch
2 - USB-C Host Cables
1 - Quick-Start Guide

Manufacturer Part No:
C2-H46-UC2-PD-KVM
Brand:
Product Type:
KVM Switch
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
KVMSTT5979687
Product Model:
-
Warranty: 12 months *
