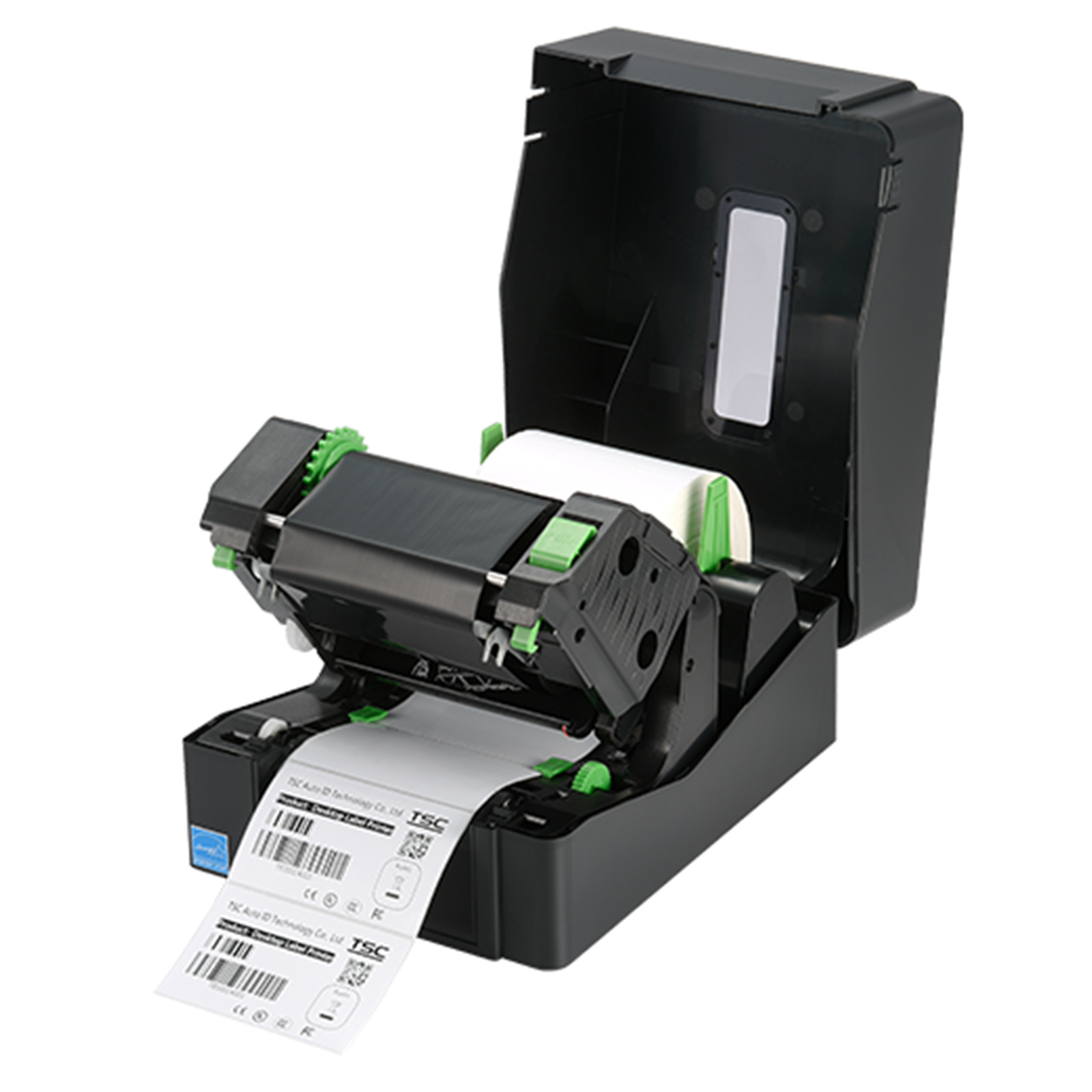

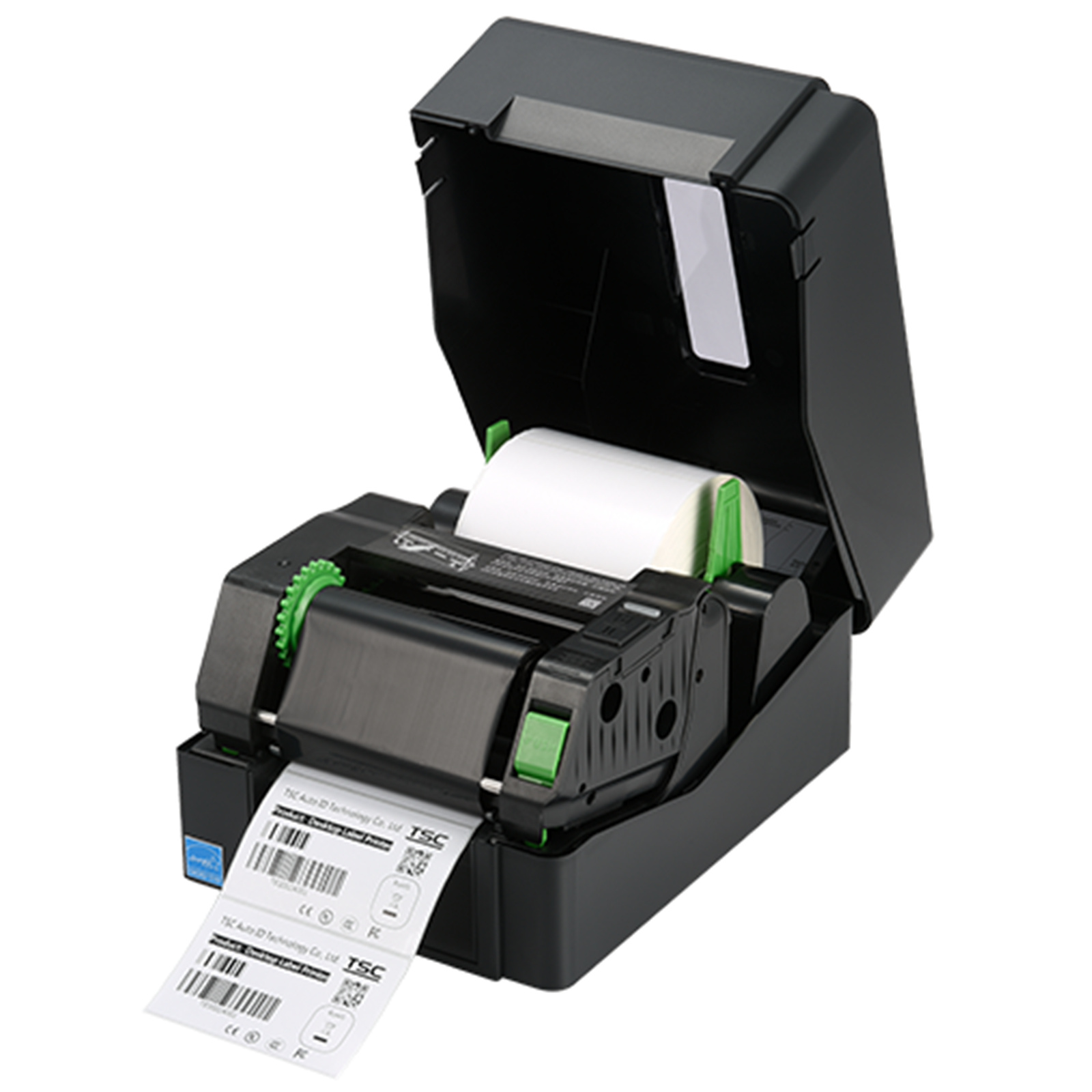

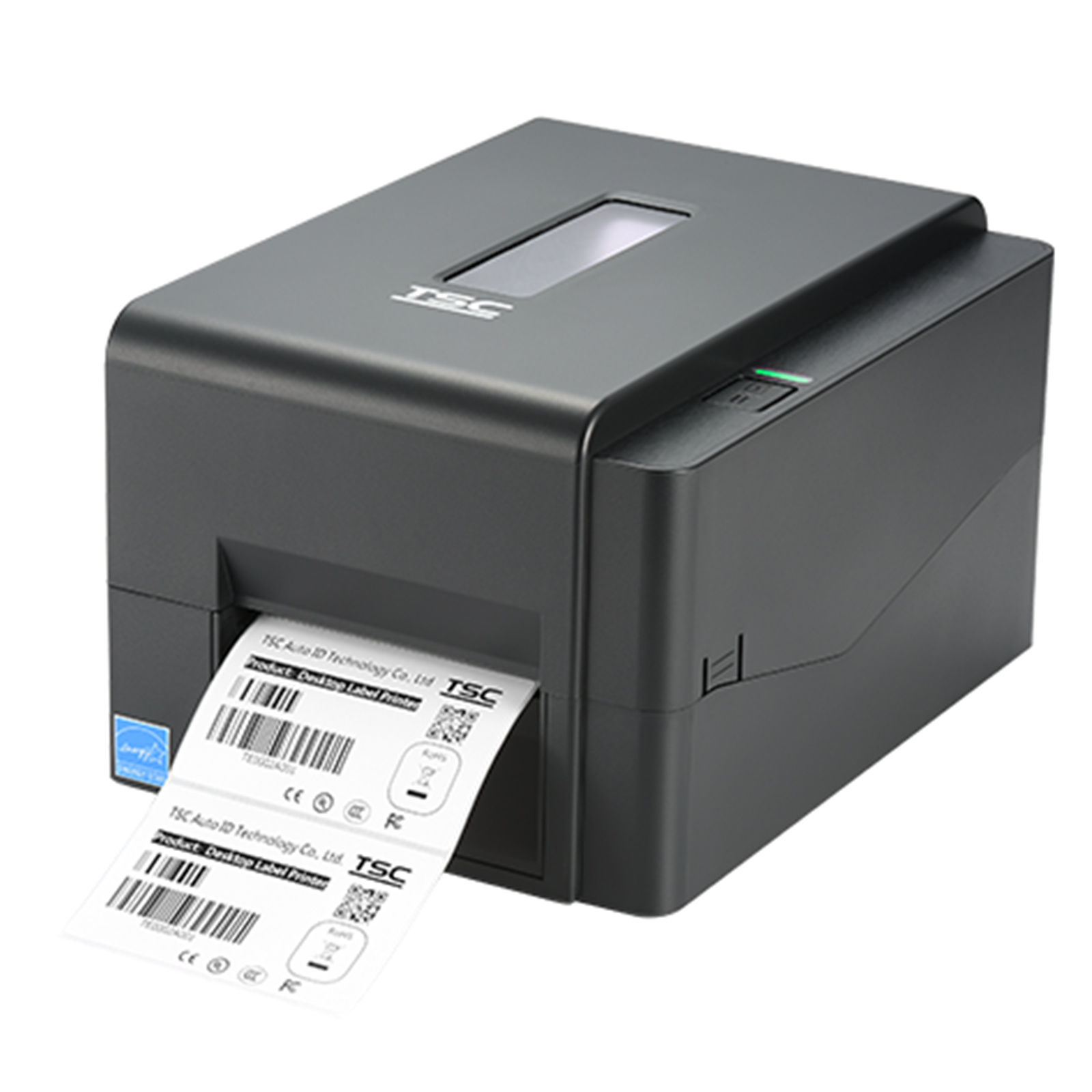

TSC TSCTE210 TE-210 200 dpi 4" Desktop Label Printer with Ethernet
TSC TSCTE210 TE-210 200 dpi 4" Desktop Label Printer with Ethernet
- Brand: TSC
- MPN: TSCTE210
- Part #: LABTSC1029
- UPC:
- Brand: TSC
- MPN: TSCTE210
- Part #: LABTSC1029
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Receipt Printers





TSC TSCTE210 TE-210 200 dpi 4" Desktop Label Printer with Ethernet
- Brand: TSC
- MPN: TSCTE210
- Part #: LABTSC1029

Product URL: https://www.pbtech.co.nz/product/LABTSC1029/TSC-TSCTE210-TE-210-200-dpi-4-Desktop-Label-Printe
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
TSC TE-210 200 dpi 4" Printer with Ethernet
The TE series of TSC printers is well-regarded for its reliability, performance, and versatility in a range of printing applications. These printers are crafted to meet the exacting requirements of industries such as manufacturing, logistics, healthcare, and retail. With a focus on delivering high-quality printing solutions, the TE series distinguishes itself through its features and capabilities.
Key features of the TE series encompass swift printing speeds, precise label handling, and the ability to accommodate various label sizes and types. These printers are equipped with advanced thermal transfer printing technology, ensuring sharp and durable prints for labels, tags, and barcodes. The TE series also provides user-friendly interfaces, making it straightforward to set up and operate the printers, even for those with minimal technical expertise.
Connectivity options are varied, with USB, serial, and Ethernet interfaces, ensuring smooth integration into existing systems and networks. TE series printers often support popular printer languages, facilitating compatibility with different label design software and applications.
Moreover, TSC's commitment to innovation is evident in features such as user-upgradable firmware, allowing for future enhancements and keeping the printers up-to-date with evolving industry standards. The TE series reflects TSC's dedication to providing reliable and efficient printing solutions tailored to the diverse needs of businesses across various sectors.
- 152.4 mm (6") per second print speed
- 300 meter (984') ribbon supply on a 25.4 mm (1") core (coated outside)
- 72 to 110 meter (361') ribbon supply on a 12.7 mm (0.5") core (coated outside)
- 127 mm (5") OD internal media supply, optional external media holder supports 214 mm (8.4") OD label rolls on 76.2 mm (3") core
- Print mechanism for kiosk applications
- 400 MHz 32-bit RISC processor with 16 MB SDRAM, 8 MB Flash memory for TE200/TE300, and 64 MB SDRAM, 128 MB Flash memory for TE210/TE310
- Internally scalable true type fonts
- TSPL-EZD firmware emulates TPLE, TPLZ, and TPLD languages out of the box
- Free Windows® drivers and label design software (available via download)
- ENERGY STAR® qualified
Specifications
?Resolution
8 dots/mm (203 DPI)
Printing method
Thermal transfer& Direct Thermal
Max. print speed
152.4 mm (6")/second
Max. print width
108 mm (4.25")
Max. print length
25,400 mm (1000")
?Enclosure
ABS plastic
Physical dimension
204 mm (W) x 164 mm (H) x 280 mm (D) 8.03" (W) x 6.46" (H) x 11.02" (D)
Weight
2.4 kg (5.29 lbs)
Label roll capacity
127 mm (5") OD
Ribbon
300 m long, max. OD 67 mm, 1" core (ink coated outside) 110 m long, max. OD 40 mm, 0.5" core (ink coated outside)
Ribbon width
40 mm 110 mm (1.6" ~ 4.3")
Processor
32-bit RISC CPU
Memory
?128 MB Flash
64 MB SDRAM
Interface
USB 2.0
Internal Ethernet, 10/100 Mbps
RS232
USB host, for scanner or PC keyboard
Internal Bluetooth 4.0 (factory option)
External Bluetooth (user option)
?Power
External universal switching power supply
Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 2.5A, 60W
Operation switch, button LED
1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)
Sensors
Transmissive gap sensor
Black mark reflective sensor (position adjustable)
Ribbon end sensor
Head open sensor
Real Time Clock
Standard
Buzzer
Standard
Internal fonts
8 alpha-numeric bitmap fonts
Monotype ImageR true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code
1D bar code
Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D bar code
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Font and barcode rotation
0, 90, 180, 270 degree
Printer language
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Media type
Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width
20 ~ 112 mm (0.8" ~ 4.4")
Media thickness
0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter
25.438 mm (1" ~ 1.5")
Label length
5~25,400 mm
(0.2" ~ 1000")
?Environment condition
Operation: 5 40°C, 25~ 85% non-condensing
Storage: -40~60°C, 10~90% non-condensing
Safety regulation
FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TUV/safety, CCC, EAC, COC, BIS, KC, TUV/safety, CCC, EAC, COC, BIS, KC, Energy Star®
Environmental concern
Comply with RoHS, REACH, WEEE
APPLICATIONS
- Manufacturing & Warehousing:
Work in Progress
Item Labels
Instruction Labels
Agency Labels
- Healthcare:
Patient Identification
Pharmacy
Specimen Identification
- Parcel Post:
Shipping Labels
Receiving Labels
-Small Office/Home Offic:
Shipping Labels
File folder labels
Product identification
- Retail Marking:
Price Tags
Shelf Labels
Jewelry Tags
