TSC TE210 Desktop Thermal Printer 200 dpi 4" Printer + Bluetooth

PB Tech price

$ 666 .09

+GST

$ 766 .00

inc GST

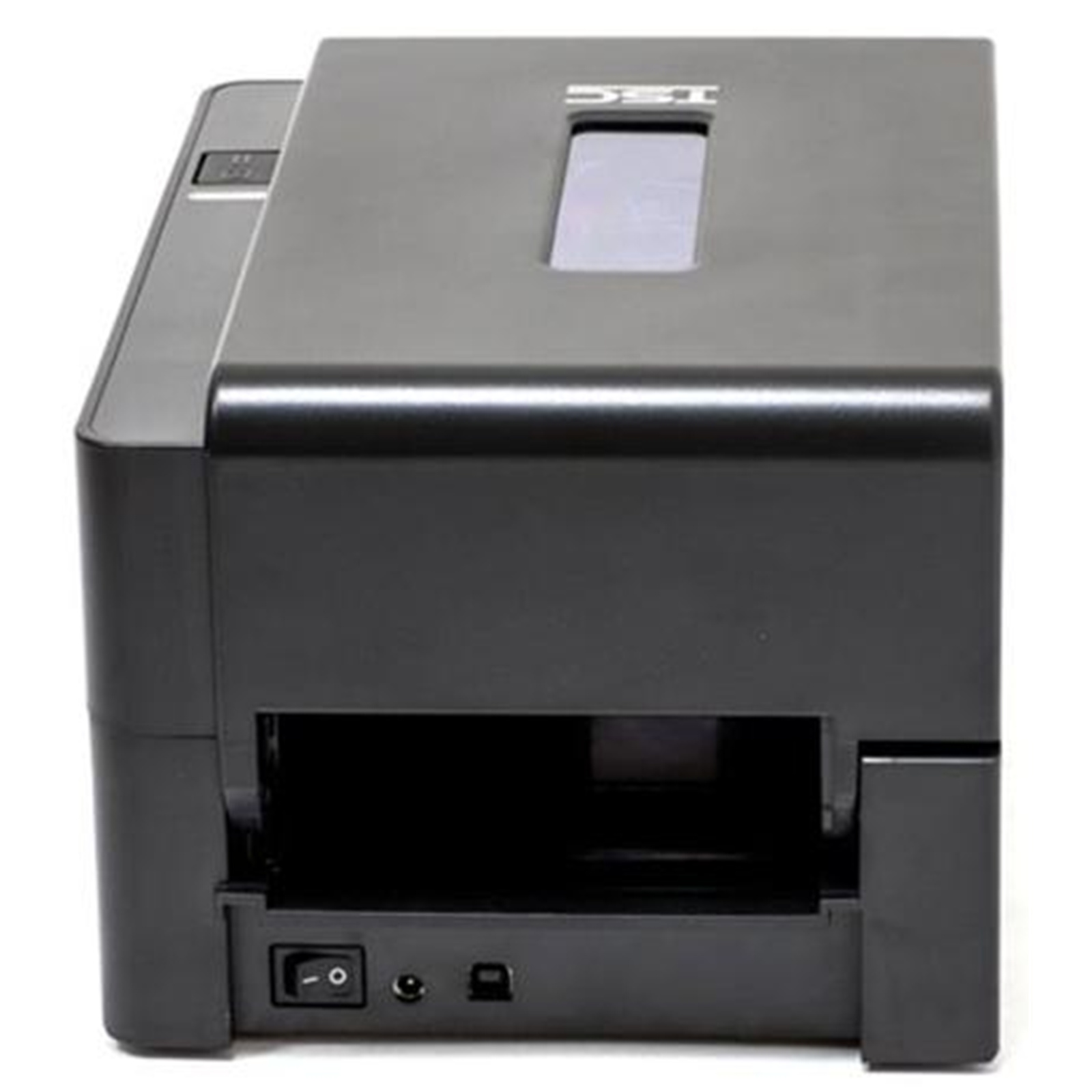

TSC TE210 Desktop Thermal Printer 200 dpi 4" Printer + Bluetooth

Brand: TSC
MPN: TSCTE210+blue
Part #: LABTSC1076
UPC:

PB Tech price

$ 766 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Click & Collect unavailable

Delivery: Order now and it ships on 22 Sep When will I receive it?

Add To Compare

Stock Alerts

Finance from $7.66 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: TSC
MPN: TSCTE210+blue
Part #: LABTSC1076
UPC:

Be the first to review this product

Printing Colour

Black & White Only

Largest Supported Size

Automatic Document Feeder

Automatic Duplex Printing

Max Monochrome Print Speed

Max Colour Print Speed

Maximum Print Resolution

200 x 200 dpi

Wireless Technology

Bluetooth

View full specs

Returns & Warranty Bulk Quote Print Page

Features

The TE series of TSC printers is well-regarded for its reliability, performance, and versatility in a range of printing applications. These printers are crafted to meet the exacting requirements of industries such as manufacturing, logistics, healthcare, and retail. With a focus on delivering high-quality printing solutions, the TE series distinguishes itself through its features and capabilities.

TSC TE210 is an entry-level desktop printer. It can perform many essential printing functions at a fraction of other brands' costs. TSC TE210 is part of TSC's 4-inch desktop series.

TSC TE210 comes with an outer ABS shell that protects the thermal transfer print mechanism. It has a minimal footprint, perfect for desktop or kiosk installations. The printer weighs only 2.5 kg (5.51 lbs), making it very light and portable.

TE210 is an ideal choice for low to medium-volume printing applications. The printer is perfect for printing identification labels, tags, receipts and barcodes. TE210 can print at a resolution of 203 dpi at a speed of 6ips.

Printing Modes

TSC TE210 can print in two different modes - Direct Thermal and Thermal Transfer

In Direct Thermal mode, the heat generated by the printhead is used to blacken the heat-sensitive media. This blackened media then becomes your label. This printing mode is best suited for short-term labelling applications like boarding passes.

In Thermal transfer mode, the heat generated by the printhead is used to melt the wax or resin-based ribbon. This melted ribbon then transfers the ink onto the label. This printing mode is best suited to print high-quality labels that need to withstand harsh conditions such as direct sunlight.

Print Resolution and Efficiency

TSC TE210 can print at a maximum print resolution of 203 dpi (8 dots/mm) at a speed of 6ips (152.4 mm/s). The printer has a maximum print length of 25400 mm (1000 inches) and can print labels up to 108 mm (4.25 inches) wide.

The print speed and the print resolution are not the best in the thermal label printer industry. However, 203 dpi is sufficient for most barcoding and labelling print applications.

TE210 comes with a 127 mm (5 inches) OD internal media supply with an optional external media holder. This external media holder supports 214 mm (8.4 inches) OD label rolls on a 76.2 mm (3 inches) core.

Moreover, TSC's TE printer series allows users to purchase and integrate a print mechanism separately. This one-of-a-kind print mechanism is suitable for kiosk applications, small label applicators, two-colour on-demand printing, and two-sided printing.

Loading the Ribbon

Loading the Media

Note on Toner Yields:

Toner cartridge yields are provided as approximate values based on ISO/IEC standard testing methods.
Actual yield may vary depending on usage, print content, and other environmental factors.
In-box toner is typically a starter cartridge and may yield fewer pages than replacement cartridges.

Specifications

Model

TE210 + Bluetooth

Resolution

8 dots/mm(203dpi)

Printing Method

Direct Thermal and Thermal Transfer

Max. print speed

152.4mm(6")/second

Max. print width

108mm(4.25")

Max. print length

25,400mm(1000")

Enclosure

ABS plastic

Physical dimension

204 mm(W) x 164 mm(H) x 280 mm(D)
8.03 inches(W) x 6.46 inches(H) x 11.02 inches(D)

Hardwire Connectivity

Ethernet
Serial RS-232
USB
USB Host

Wireless Connectivity

Bluetooth

Display

LED with buttons

Weight

2.5 kg (5.51 lbs)

Label roll capacity

127mm(5")OD

Ribbon

- 300 m long, max. OD 67 mm, 1" core (ink coated outside)
- 110 m long, max. OD 40 mm, 0.5" core (ink coated outside)

Ribbon width

40 mm 110 mm (1.6" ~ 4.3")

Processor

32-bit RISC CPU

Memory

- 128 MB Flash memory
- 64 MB SDRAM

Power

External universal switching power supply
- Input: AC 100-240V, 2.5A, 50-60Hz
- Output: DC 24V, 2.5A, 60W

Operation switch, button LED

1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)

Real Time Clock

Standard

Buzzer

Standard

Internal fonts

- 8 alpha-numeric bitmap fonts
- Monotype ImageR true type font engine with one CG Triumvirate Bold Condensed scalable font

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20-112 mm (0.8" ~ 4.4")

Media thickness

0.06-0.19 mm (2.36 ~ 7.48 mil)

Media core diameter

25.4-38 mm (1" ~ 1.5")

Label length

5~25,400 mm (0.2" ~ 1000")

Environment condition

Operation: 5-40°C, 25-85% non-condensing
Storage: -40-60°C, 10~90% non-condensing

Manufacturer Part No:

TSCTE210+blue

Brand:

TSC

Product Type:

UPC

Product Family:

Shipping Weight:

18 kg

PB Part No:

LABTSC1076

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
