Sapphire NITRO+ B850M WIFI mATX Form Factor For AMD Ryzen 7000/9000 Series AM5, PCIE 5.0, 4x DDR5, 2x M.2, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Heaeder

PB Tech price
PB Tech price
$ 269 .00
 +GST
 $ 309 .35
 inc GST
$269.00  +GST
$309.35

Sapphire NITRO+ B850M WIFI mATX Form Factor For AMD Ryzen 7000/9000 Series AM5, PCIE 5.0, 4x DDR5, 2x M.2, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Heaeder

PCIE 5.0 For The Latest Graphics Cards
  • Brand: Sapphire
  • MPN: 52123-01-40G
  • Part #: MBDSAP1010
  • UPC: 840777092316
PB Tech price
$ 269 .00 $ 309 .35
 +GST  inc GST
Check store stock levels
Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$269.00  +GST
$309.35
Add To Compare
Stock Alerts

Four payments of $78.11 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $3.75 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

18 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

View All Finance Options
+ 1 More
Click or hover over image to enlarge
  • Brand: Sapphire
  • MPN: 52123-01-40G
  • Part #: MBDSAP1010
  • UPC: 840777092316

MB Socket

AMD AM5

Chipset

B850

Form Factor

mATX

Wireless Connectivity

WiFi 6 (802.11ax) + Bluetooth

M.2 Connectors

2

SATA Connectors

4

RAM Slots

4 Slots

Memory Type

DDR5

View full specs
Returns & Warranty Bulk Quote Print Page

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Sapphire NITRO+ B850M WIFI mATX Form Factor For AMD Ryzen 7000/9000...
Sapphire NITRO+ B850M WIFI mATX Form Factor For AMD Ryzen 7000/9000 Series AM5, PCIE 5.0, 4x DDR5, 2x M.2, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Heaeder
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
ADATA XPG Lancer Blade RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v - CL36 - Supports Intel XMP and AMD EXPO
Total:
$ 1,097 .33
 +GST
$ 1,261 .93
Buy together and save $19.33 $22.23
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required

AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP -...

Collect from 10 stores by 9:19am today
Ships today

$390.43  +GST

$448.99

Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty

Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...

Collect from 10 stores by 9:19am today
Ships tomorrow
$109.00 $125.35

$105.00  +GST

$120.75

You save $4 You save $4
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4

DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 /...

Collect on 16 Jan
Ships on 12 Jan
$79.00 $90.85

$69.00  +GST

$79.35

You save 12% You save 12%
ADATA XPG Lancer Blade RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v - CL36 - Supports Intel XMP and AMD EXPO
ADATA XPG Lancer Blade RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v - CL36 - Supports Intel XMP and AMD EXPO

ADATA XPG Lancer Blade RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v - CL36 -...

Collect from 7 stores by 9:19am today
Ships today
$269.23 $309.61

$263.90  +GST

$303.48

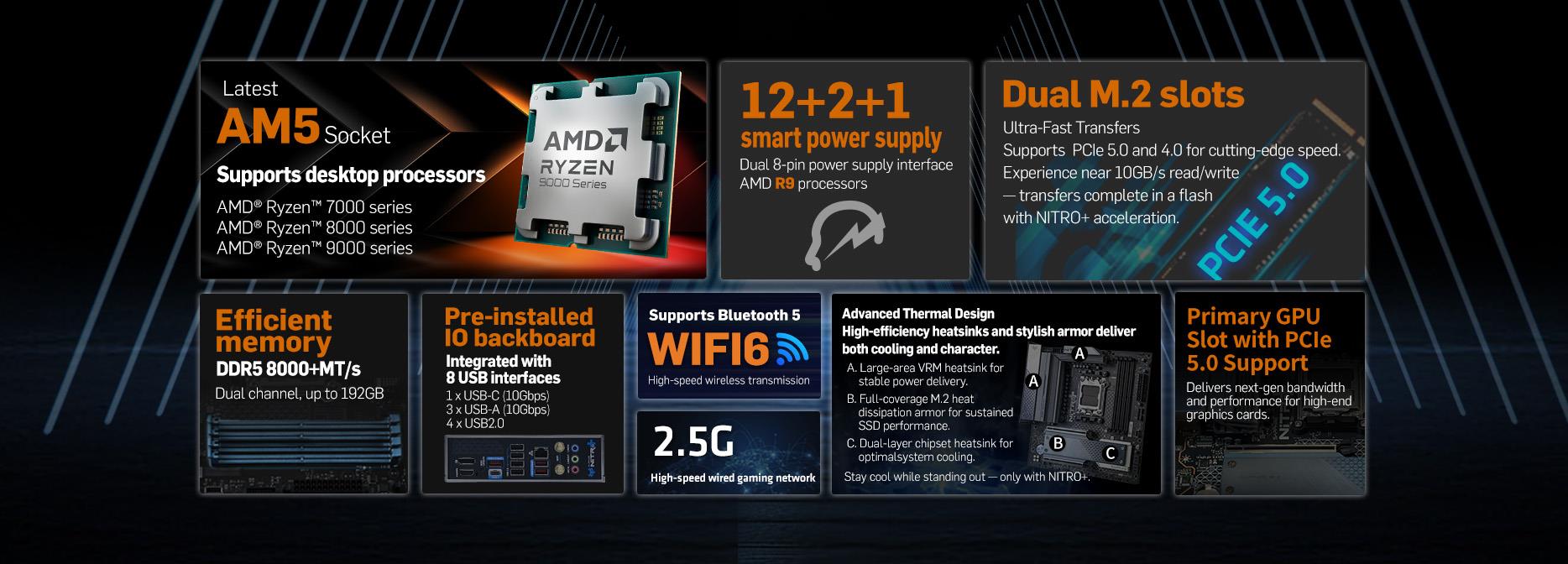

Features

NITRO+ B850M WIFI

- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 12+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 8000 MHz Memory OC
- PCI Express 5.0 x16
- PCIe 5.0 M.2 Support
- Debug LED

Specifications

Chipset

AMD® B850

CPU Support

Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory Support

4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)

PCI-E Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x4 in 16x slot

Display Connector

DisplayPort x1
HDMI x1

Audio

Realtek® ALC897 HD Audio, 5.1 Channel

Network

Realtek® RTL8125BG 2.5 Gigabit Ethernet
M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support

Front USB Headers

1x USB 3.2 Gen1 (1 x Type-C)
1x USB 3.2 Gen1 (2 x Type-A)
1x USB 2.0 (2 x Type-A)

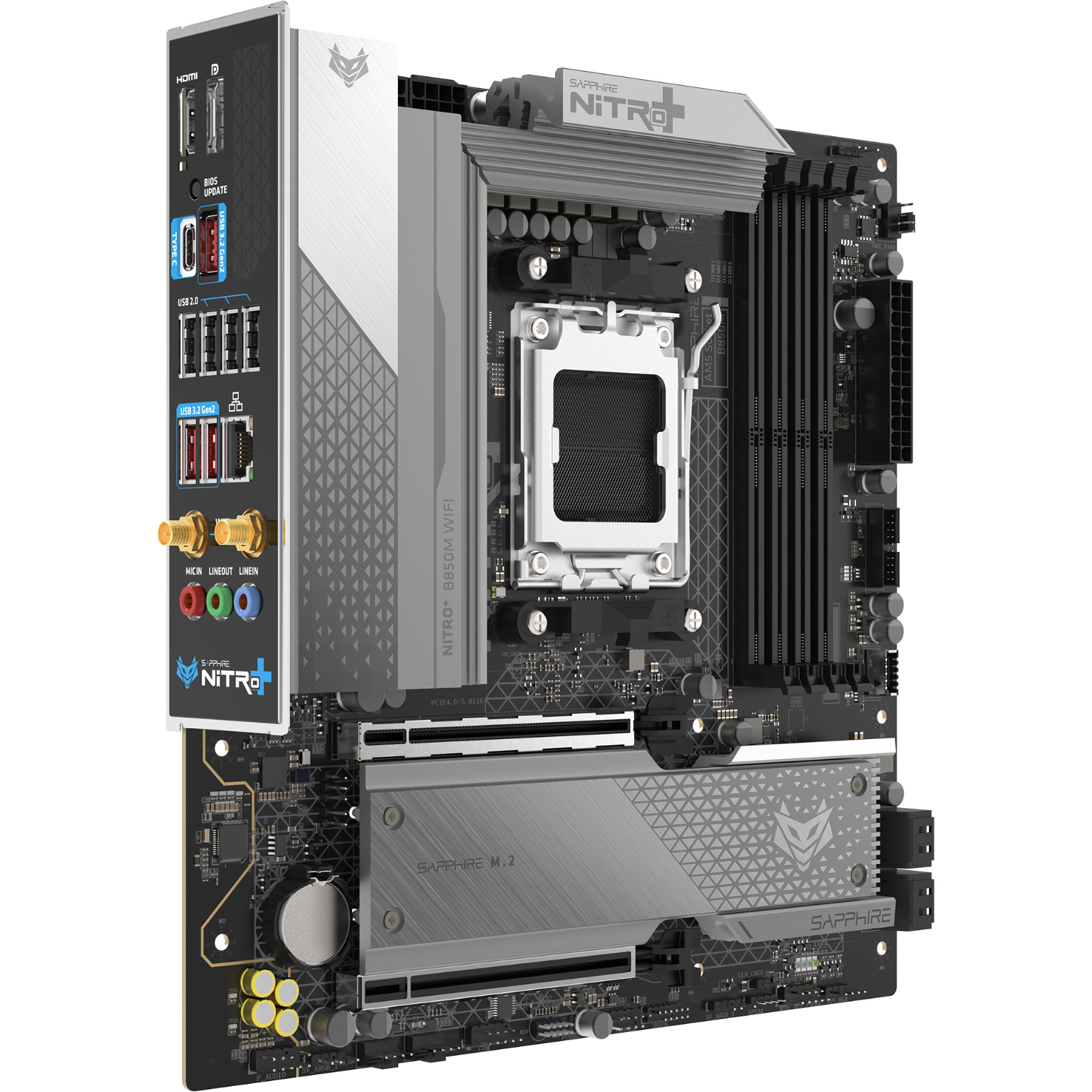

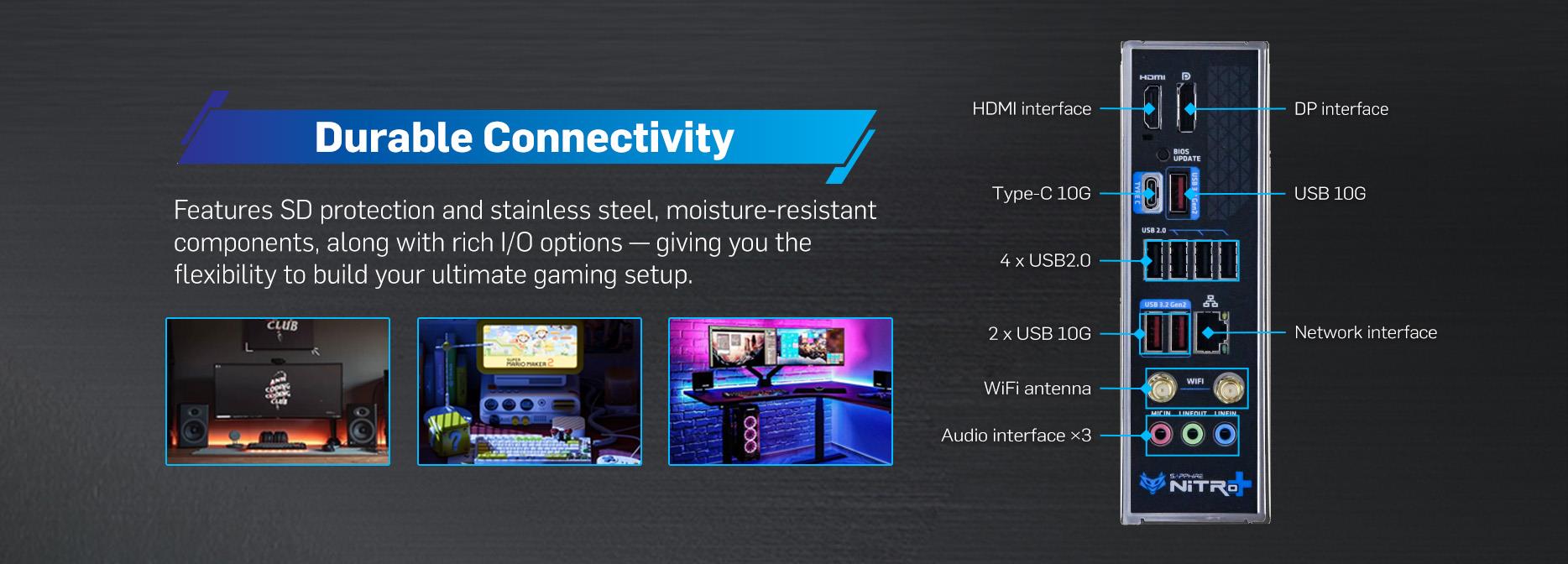

Rear Ports

1× DisplayPort
1× HDMI™
1× RJ45 LAN
2× Wi-Fi Antenna
One-click Flash BIOS Button
4× USB 2.0
3× USB 3.2 Gen2 Type-A
1× USB 3.2 Gen2 Type-C
3× Audio Jacks

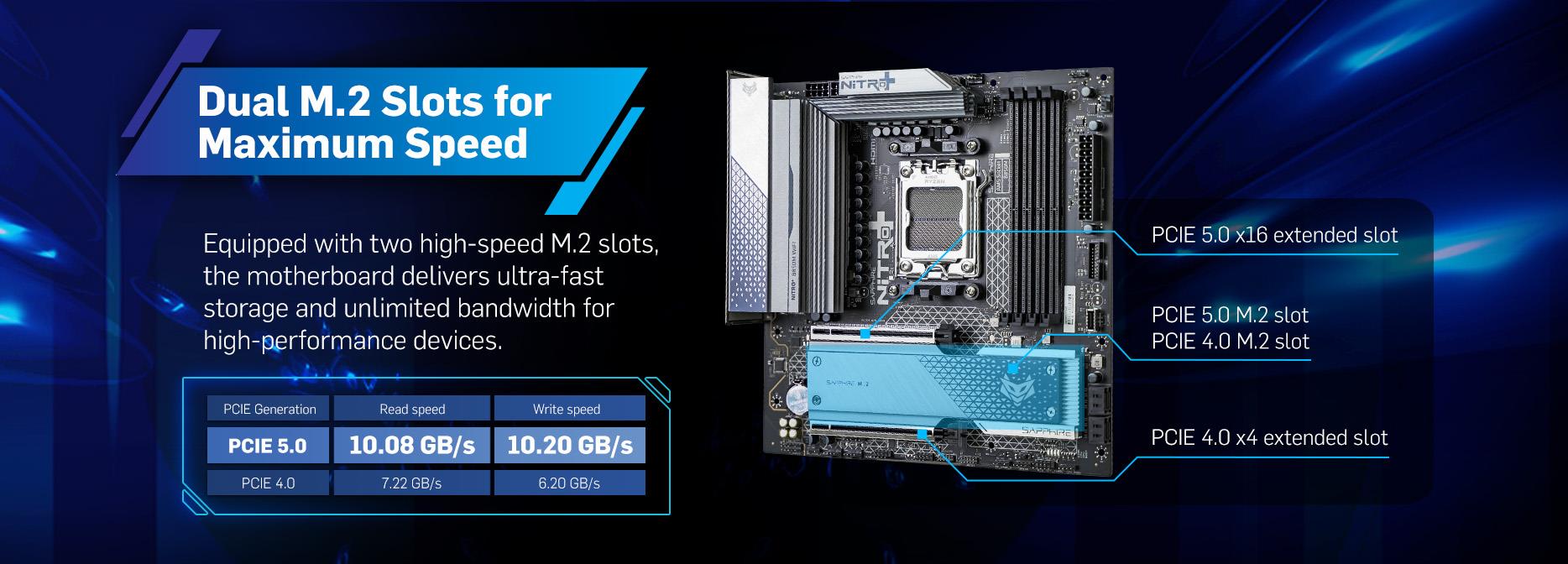

Storage

1x PCIe 5.0 M.2
1x PCIe 4.0 M.2
4x SATA

Dimensions

Micro-ATX, 244x244mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green

Manufacturer Part No:
52123-01-40G
Brand:
Sapphire
Product Type:
mATX Form Factor
UPC
840777092316
Product Family:
NITRO+
Shipping Weight:
1.77 kg
PB Part No:
MBDSAP1010
Product Model:
B850M WIFI
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Accessories

6

AMD Ryzen 7 9800X3D CPU

8 Core / 16 Thread - 104MB Total Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
Latest AMD Ryzen 9000 Series!
AMD Ryzen 7 9800X3D CPU 8 Core / 16 Thread - 104MB Total Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
Wishlist Compare
CPU Family:
AMD Ryzen 7
CPU Socket:
AMD AM5
Number of Cores:
8
Integrated Graphics:
Yes
Base Clock Speed:
4.7GHz
Turbo Boost Clock Speed:
5.2GHz
TDP:
120W
CPU Cooler Included:
No
MPN:
100-100001084WOF
Part #:
CPUAMD09800X3D
52 reviews
PB Tech price
PB Tech price
$799 .00
$799.00
$918 .85
$918.85
Excl GST
AMD Ryzen 7 9800X3D CPU 8 Core / 16 Thread - 104MB Total Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
52 reviews
Ships today
Collect from 18 stores by 9:19am today
Wishlist Compare

AMD Ryzen 5 9600X CPU

6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
Powerful AMD Ryzen 9000 Series!
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
Wishlist Compare
CPU Family:
AMD Ryzen 5
CPU Socket:
AMD AM5
Number of Cores:
6
Integrated Graphics:
Yes
Base Clock Speed:
3.9GHz
Turbo Boost Clock Speed:
5.4GHz
TDP:
65W
CPU Cooler Included:
No
MPN:
100-100001405WOF
Part #:
CPUAMD09600X
20 reviews
PB Tech price
PB Tech price
$390 .43
$390.43
$448 .99
$448.99
Excl GST
AMD Ryzen 5 9600X CPU 6 Core / 12 Thread - Max Boost 5.4GHz - 38MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
20 reviews
Ships today
Collect from 10 stores by 9:19am today
Wishlist Compare

AMD Ryzen 7 9700X CPU

8 Core / 16 Thread - Max Boost 5.5GHz - 40MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
Latest AMD Ryzen 9000 Series!
AMD Ryzen 7 9700X CPU 8 Core / 16 Thread - Max Boost 5.5GHz - 40MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
Wishlist Compare
CPU Family:
AMD Ryzen 7
CPU Socket:
AMD AM5
Number of Cores:
8
Integrated Graphics:
Yes
Base Clock Speed:
3.8GHz
Turbo Boost Clock Speed:
5.5GHz
TDP:
65W
CPU Cooler Included:
No
MPN:
100-100001404WOF
Part #:
CPUAMD09700X
25 reviews
PB Tech price
PB Tech price
$559 .00
$559.00
$642 .85
$642.85
Excl GST
AMD Ryzen 7 9700X CPU 8 Core / 16 Thread - Max Boost 5.5GHz - 40MB Cache - AM5 Socket - 65W TDP - AMD Radeon Graphics - Heatsink Required
25 reviews
Ships today
Collect from 14 stores by 9:19am today
Wishlist Compare

AMD Ryzen 9 9900X CPU

12 Core / 24 Thread - Max Boost 5.6GHz - 76MB Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
Latest AMD Ryzen 9000 Series!
AMD Ryzen 9 9900X CPU 12 Core / 24 Thread - Max Boost 5.6GHz - 76MB Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
Wishlist Compare
CPU Family:
AMD Ryzen 9
CPU Socket:
AMD AM5
Number of Cores:
12
Integrated Graphics:
Yes
Base Clock Speed:
4.4GHz
Turbo Boost Clock Speed:
5.6GHz
TDP:
120W
CPU Cooler Included:
No
MPN:
100-100000662WOF
Part #:
CPUAMD09900X
8 reviews
PB Tech price
PB Tech price
$694 .78
$694.78
$799 .00
$799.00
Excl GST
AMD Ryzen 9 9900X CPU 12 Core / 24 Thread - Max Boost 5.6GHz - 76MB Cache - AM5 Socket - 120W TDP - AMD Radeon Graphics - Heatsink Required
8 reviews
Ships today
Collect from 9 stores by 9:19am today
Wishlist Compare

AMD Ryzen 9 9950X CPU

16 Core / 32 Thread - Max Boost 5.7GHz - 80MB Cache - AM5 Socket - 170W TDP - AMD Radeon Graphics - Heatsink Required
Latest AMD Ryzen 9000 Series!
AMD Ryzen 9 9950X CPU 16 Core / 32 Thread - Max Boost 5.7GHz - 80MB Cache - AM5 Socket - 170W TDP - AMD Radeon Graphics - Heatsink Required
Wishlist Compare
CPU Family:
AMD Ryzen 9
CPU Socket:
AMD AM5
Number of Cores:
16
Integrated Graphics:
Yes
Base Clock Speed:
4.3GHz
Turbo Boost Clock Speed:
5.7GHz
TDP:
170W
CPU Cooler Included:
No
MPN:
100-100001277WOF
Part #:
CPUAMD09950X
5 reviews
PB Tech price
PB Tech price
$999 .00
$999.00
$1,148 .85
$1,148.85
Excl GST
AMD Ryzen 9 9950X CPU 16 Core / 32 Thread - Max Boost 5.7GHz - 80MB Cache - AM5 Socket - 170W TDP - AMD Radeon Graphics - Heatsink Required
5 reviews
Ships today
Collect from 7 stores by 9:19am today
Wishlist Compare

PB Motherboard + CPU BIOS Update Service, order must contain both CPU + Motherboard together
PB Motherboard + CPU BIOS Update Service, order must contain both CPU + Motherboard together
Wishlist Compare
MPN:
ASSEMBIOS
Part #:
ASSEMBIOS
1 review
PB Tech price
PB Tech price
$13 .04
$13.04
$15 .00
$15.00
Excl GST
PB Motherboard + CPU BIOS Update Service, order must contain both CPU + Motherboard together
1 review
Ships on 28 Oct
Click & Collect on 03 Nov
Wishlist Compare

Delivery & Pick-up

Christmas holiday delivery times

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Related Promotions
View All Promotions

Promotion_Image
NVIDIA RTX ARC Raiders Game BONUS!
Promotion ends in 14 days
Promotion_Image
PNY Graphics Card USB BONUS!
Promotion ends in 10 days
Promotion_Image
ASUS Z890 + Expedition 33 Game BONUS!
Promotion ends in 71 days
Promotion_Image
Crucial RAM & SSD BONUS!
Promotion ends in 71 days
View All Promotions

 Popular AMD Desktop Motherboards

#1
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
$189.00 +GST $217.35
#2
ASRock B550M WIFI SE mATX Motherboard For AMD Ryzen 3rd Gen 5000...
$159.00 +GST $182.85
#3
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
$173.04 +GST $199.00
#4
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
$219.00 +GST $251.85
#5
ASUS PRIME B650M-A WIFI II-CSM MATX Ready Motherboard For AMD...
$199.00 +GST $228.85

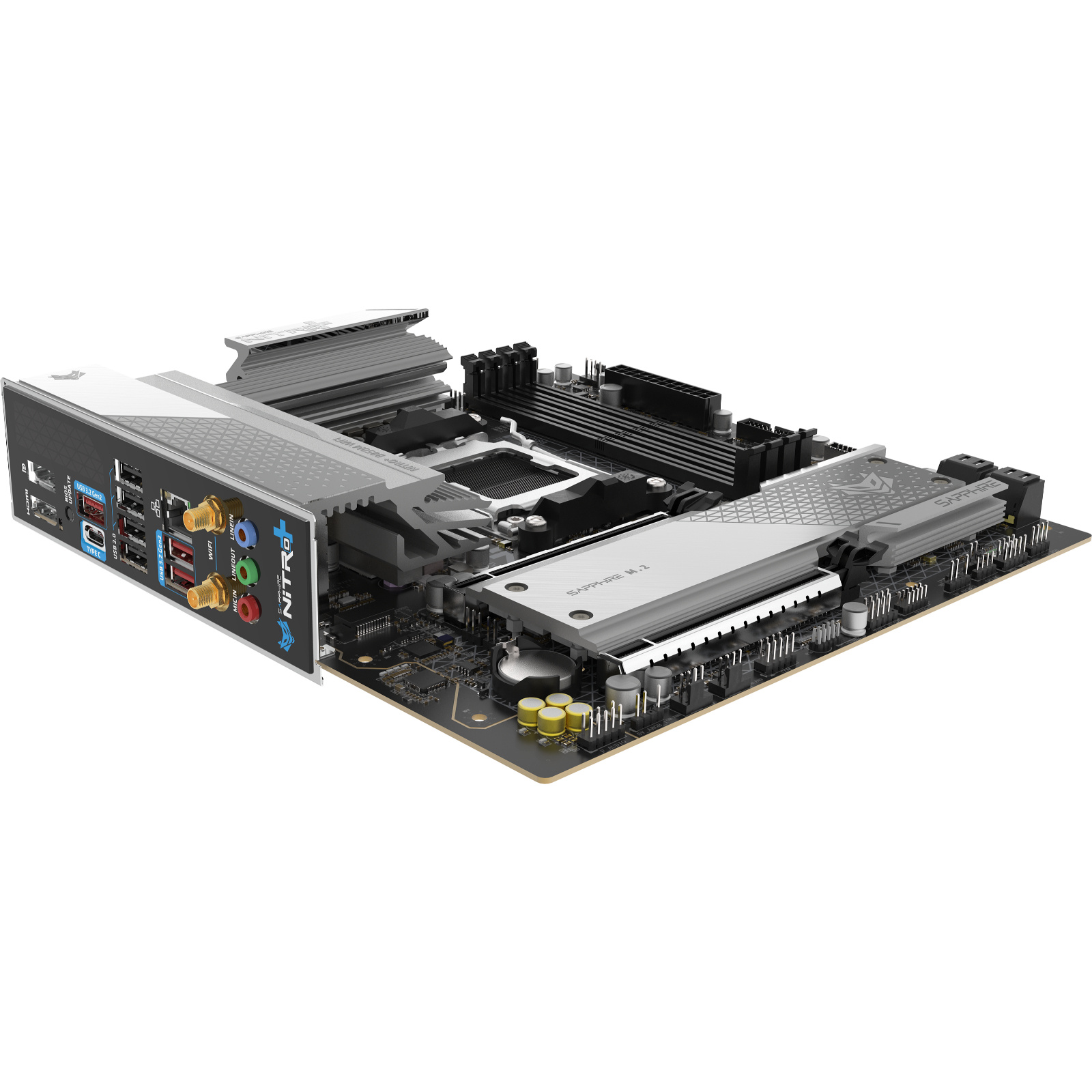

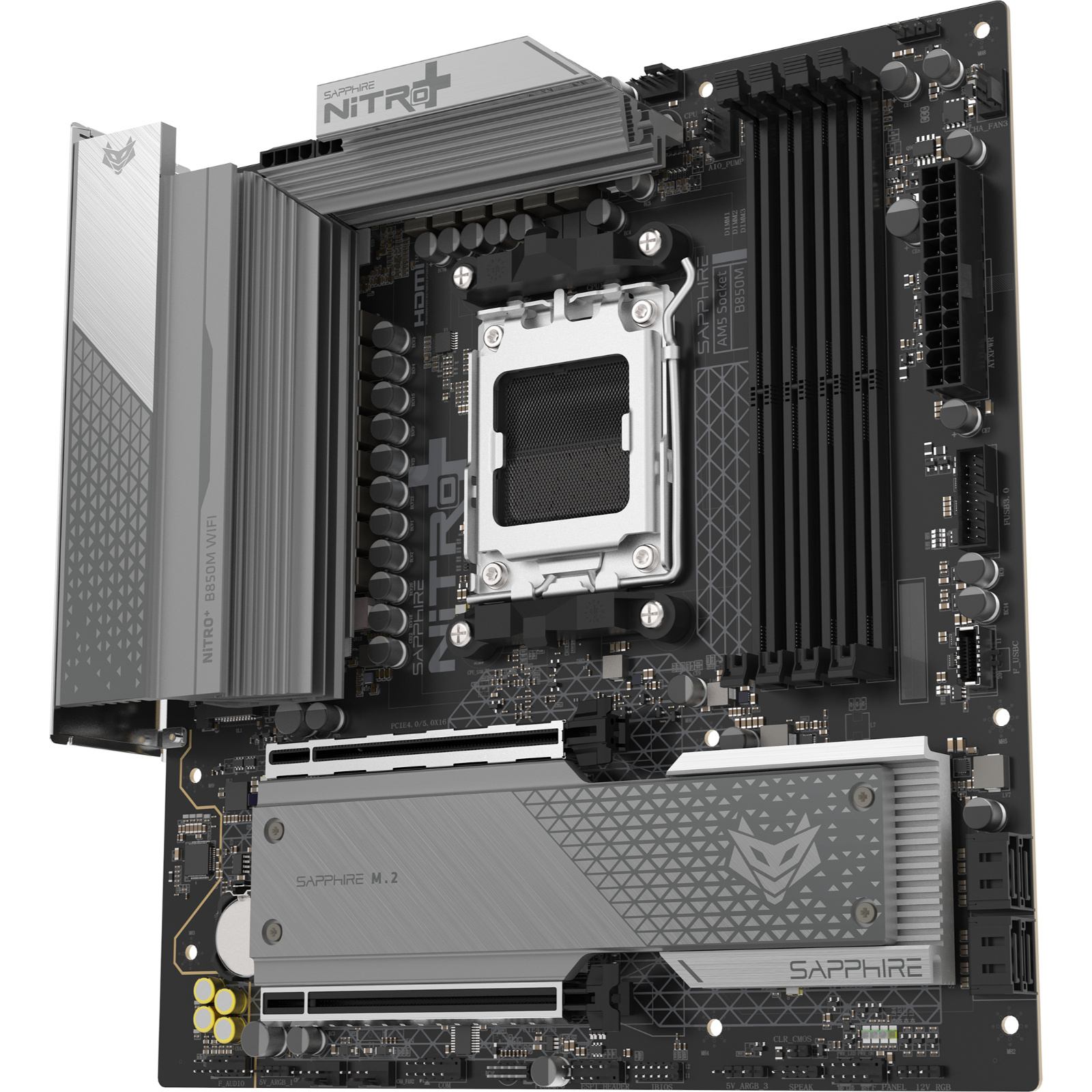

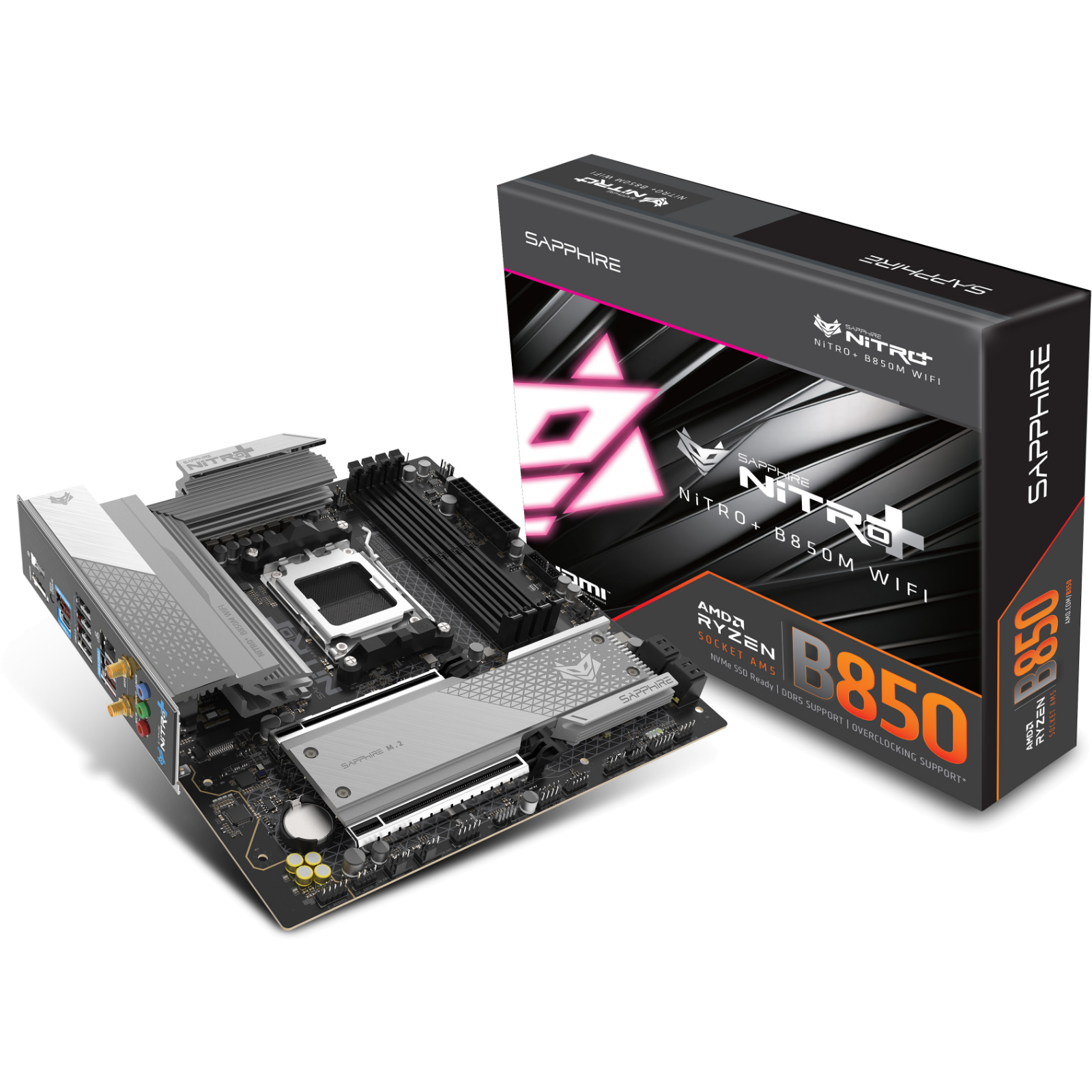

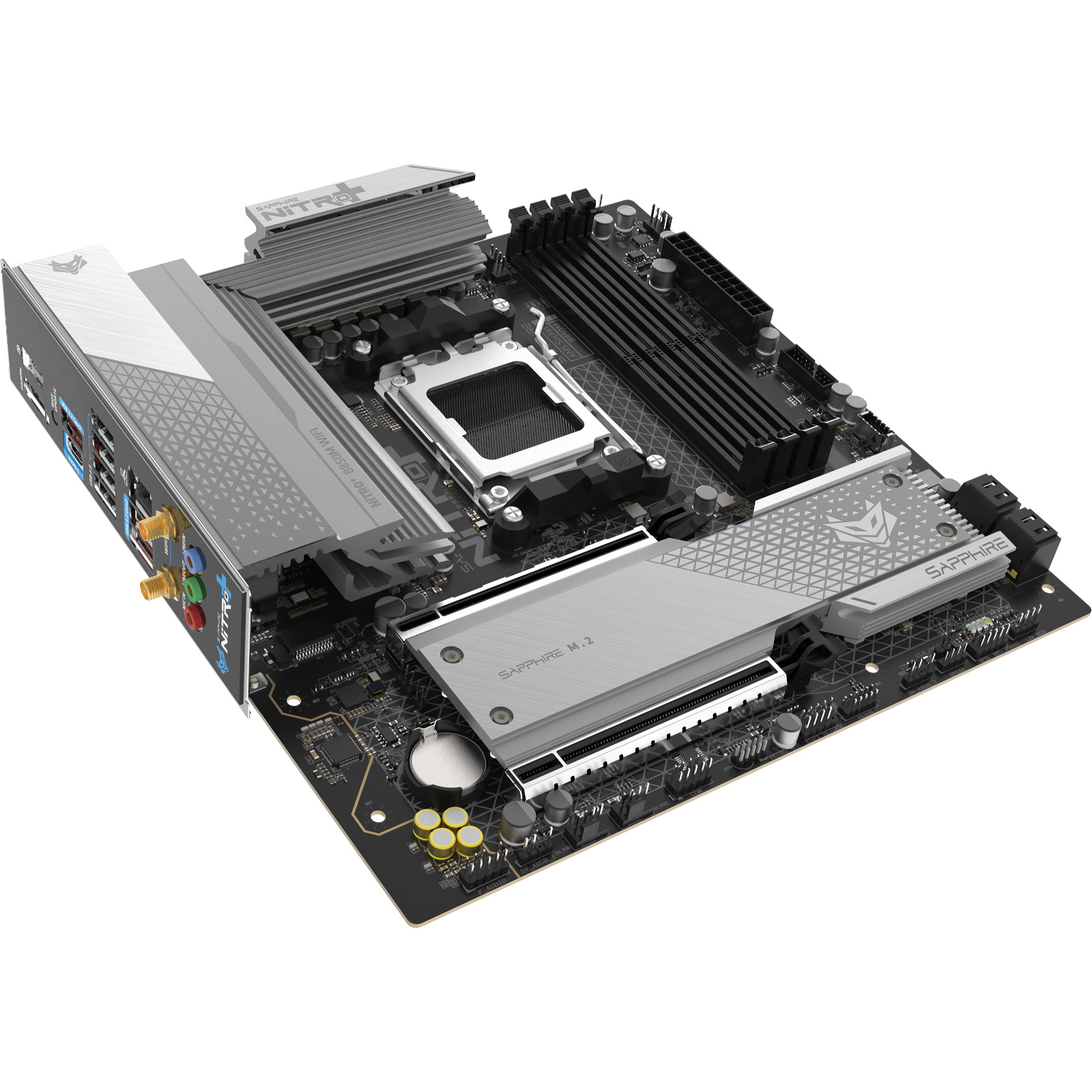

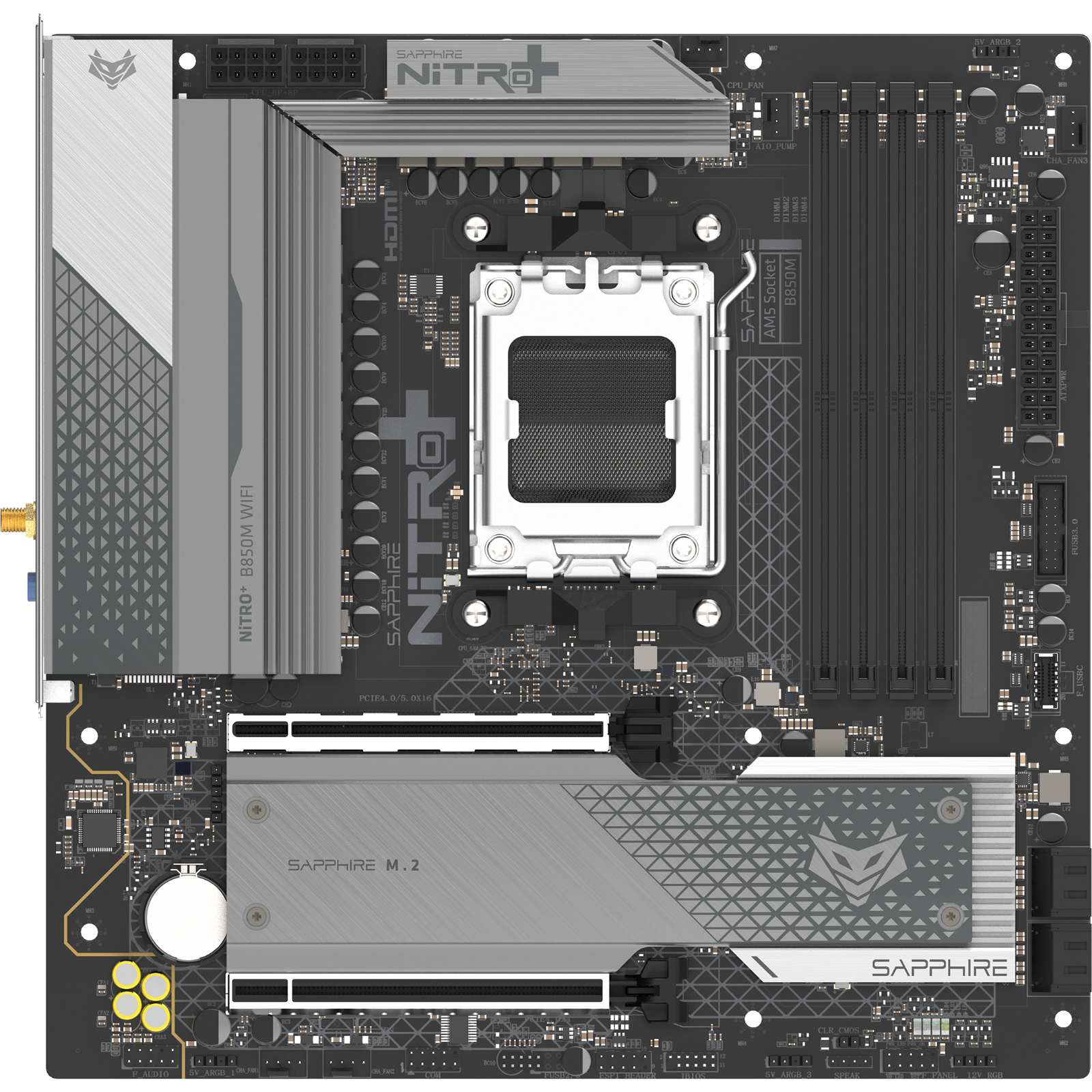

Sapphire NITRO+ B850M WIFI mATX Form Factor For AMD Ryzen 7000/9000 Series AM5, PCIE 5.0, 4x DDR5, 2x M.2, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Heaeder

PCIE 5.0 For The Latest Graphics Cards
  • Brand: Sapphire
  • MPN: 52123-01-40G
  • Part #: MBDSAP1010
  • UPC:840777092316
PB Tech price $269.00 Excluding GST PB Tech price $309.35 Including GST

Date Created: 00:19, 21-10-2025
Product URL: https://www.pbtech.co.nz/product/MBDSAP1010/Sapphire-NITRO-B850M-WIFI-mATX-Form-Factor-For-AMD
Branch New Stock On Display
Auckland - Albany 0
Auckland - Glenfield 0
Auckland - Queen Street 0
Auckland - Auckland Uni 0
Auckland - Westgate 0
Auckland - Penrose 0
Auckland - Henderson (Express) 0
Auckland - St Lukes 0
Auckland - Manukau 0
Hamilton 0
Tauranga 0
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Auckland - Head Office 30+
Auckland - East Tamaki Warehouse 0
Christchurch - Hornby 0
Christchurch - Christchurch Central 0
Dunedin 0

Features

NITRO+ B850M WIFI

- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 12+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 8000 MHz Memory OC
- PCI Express 5.0 x16
- PCIe 5.0 M.2 Support
- Debug LED

Specifications

Chipset

AMD® B850

CPU Support

Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory Support

4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)

PCI-E Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x4 in 16x slot

Display Connector

DisplayPort x1
HDMI x1

Audio

Realtek® ALC897 HD Audio, 5.1 Channel

Network

Realtek® RTL8125BG 2.5 Gigabit Ethernet
M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support

Front USB Headers

1x USB 3.2 Gen1 (1 x Type-C)
1x USB 3.2 Gen1 (2 x Type-A)
1x USB 2.0 (2 x Type-A)

Rear Ports

1× DisplayPort
1× HDMI™
1× RJ45 LAN
2× Wi-Fi Antenna
One-click Flash BIOS Button
4× USB 2.0
3× USB 3.2 Gen2 Type-A
1× USB 3.2 Gen2 Type-C
3× Audio Jacks

Storage

1x PCIe 5.0 M.2
1x PCIe 4.0 M.2
4x SATA

Dimensions

Micro-ATX, 244x244mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green

Date Created: 00:19, 21-10-2025
Product URL: https://www.pbtech.co.nz/product/MBDSAP1010/Sapphire-NITRO-B850M-WIFI-mATX-Form-Factor-For-AMD
