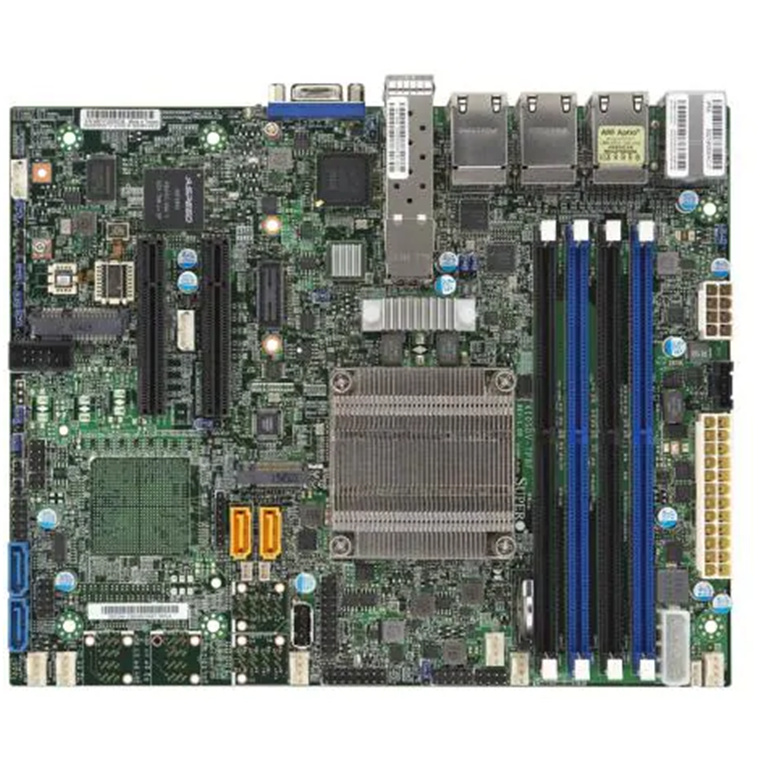

Supermicro X10SDV-TP8F Server Board Xeon D-1518 4C/8T 35W, 4DIMM, 2x PCI-E 3.0 x8, Mini PCI-E, 1x M.2 PCI-E 3.0, 2x 10G SFP+ 6x GbE LAN, 12V DC input and ATX power support
Out of stock
Supermicro X10SDV-TP8F Server Board Xeon D-1518 4C/8T 35W, 4DIMM, 2x PCI-E 3.0 x8, Mini PCI-E, 1x M.2 PCI-E 3.0, 2x 10G SFP+ 6x GbE LAN, 12V DC input and ATX power support
- Brand: Supermicro
- MPN: MBD-X10SDV-TP8F-O
- Part #: MBDSPM1106
- UPC: 672042224241
- Brand: Supermicro
- MPN: MBD-X10SDV-TP8F-O
- Part #: MBDSPM1106
- UPC: 672042224241
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Supermicro X10SDV-TP8F Server Board Xeon D-1518 4C/8T 35W, 4DIMM, 2x PCI-E 3.0 x8, Mini PCI-E, 1x M.2 PCI-E 3.0, 2x 10G SFP+ 6x GbE LAN, 12V DC input and ATX power support
- Brand: Supermicro
- MPN: MBD-X10SDV-TP8F-O
- Part #: MBDSPM1106
- UPC:672042224241
Product URL: https://www.pbtech.co.nz/product/MBDSPM1106/Supermicro-X10SDV-TP8F-Server-Board-Xeon-D-1518-4C
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
X10SDV-TP8F
- Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
- 2 PCI-E 3.0 x8,
- Mini PCI-E (mSATA support),
- M.2 PCI-E 3.0 x4 (SATA support),
- M Key 2242/2280/22110
- 2 10G SFP+ and 6 GbE LAN
- 4 SATA3 (6Gbps) ports via SoC
- 2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
- 2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
- 12V DC Input and ATX Power Source
Specifications
Physical Stats
Form Factor
Flex ATX
Dimensions
9.0" x 7.25" (22.86cm x 18.42cm)
Processor/Cache
CPU
Intel® Xeon® Processor D-1518.
Single Socket FCBGA1667 supported, CPU TDP support 35W
Cores / Cache
4 cores, 8 threads / 6MB cache
System Memory
Memory Capacity
Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type
2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
Dual LAN with 10G SFP+ from D-1500 SoC
Quad LAN with 1GbE with Inte® I350-AM4
Dual LAN with 1GbE with Intel® I210
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC
Input / Output
SATA
4 SATA3 (6Gbps) port
LAN
1 RJ45 Dedicated IPMI LAN port
2 10G SFP+ LAN ports
6 1GbE LAN ports
USB
5 USB 2.0 ports (4 headers, 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x8
M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4
Management
Software
Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
Power Configurations
ACPI Power Management
ATX Power connector
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, Intel Smart Response Technology, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
Operating Environment
Operating Temperature Range
0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
