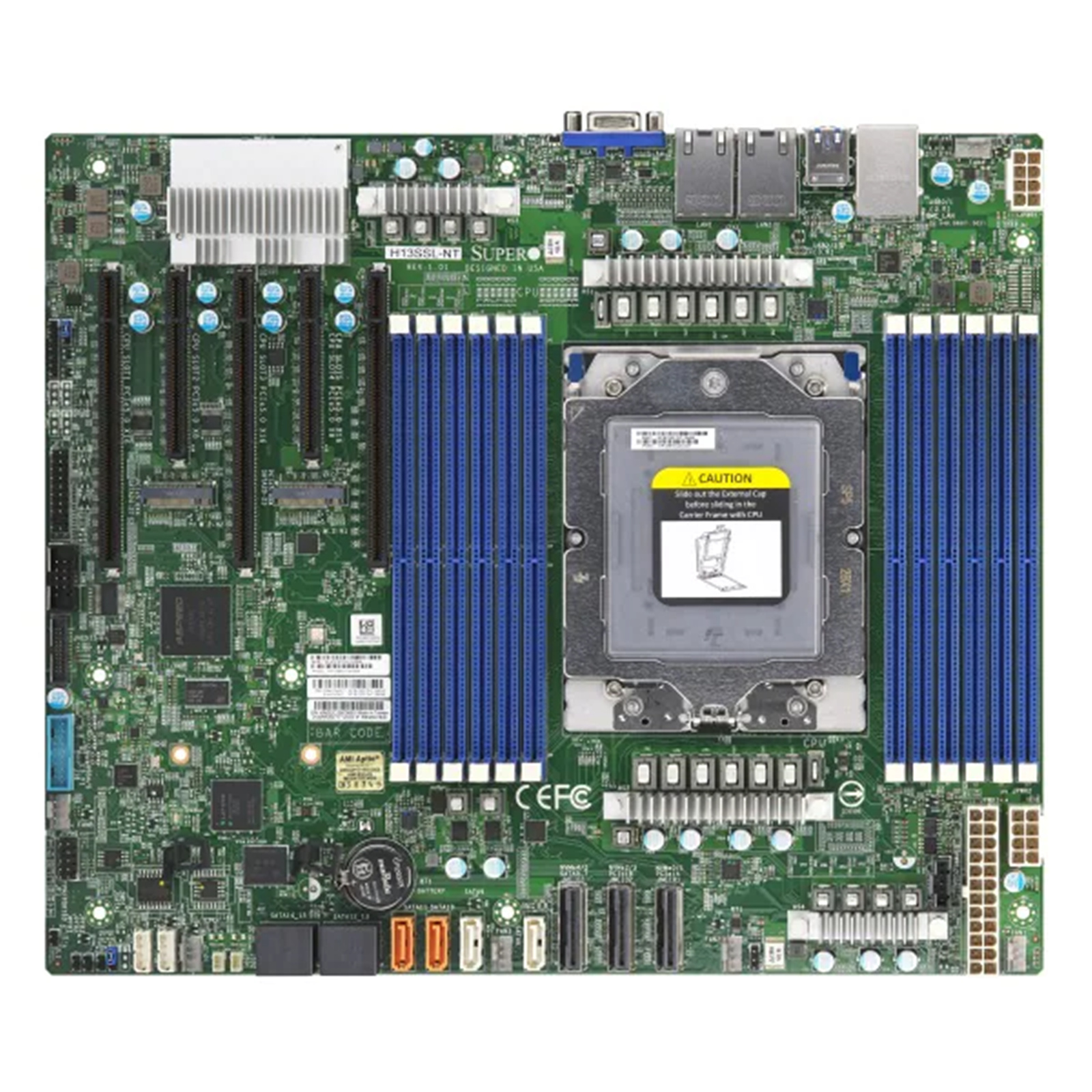

Supermicro H13SSL-NT Server Board, ATX, Single Socket SP5 LGA 6096, 12 DIMM, 2x 10G RJ-45 BCM57416, 8x SATA3, 3x PCIe 5.0 x16, 2x PCIe 5.0 x8, 2x PCIe 4.0 M.2, IPMI
Out of stock
Supermicro H13SSL-NT Server Board, ATX, Single Socket SP5 LGA 6096, 12 DIMM, 2x 10G RJ-45 BCM57416, 8x SATA3, 3x PCIe 5.0 x16, 2x PCIe 5.0 x8, 2x PCIe 4.0 M.2, IPMI
- Brand: Supermicro
- MPN: MBD-H13SSL-NT-O
- Part #: MBDSPMH13101
- UPC: 672042517473
- Brand: Supermicro
- MPN: MBD-H13SSL-NT-O
- Part #: MBDSPMH13101
- UPC: 672042517473
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Supermicro H13SSL-NT Server Board, ATX, Single Socket SP5 LGA 6096, 12 DIMM, 2x 10G RJ-45 BCM57416, 8x SATA3, 3x PCIe 5.0 x16, 2x PCIe 5.0 x8, 2x PCIe 4.0 M.2, IPMI
- Brand: Supermicro
- MPN: MBD-H13SSL-NT-O
- Part #: MBDSPMH13101
- UPC:672042517473
Product URL: https://www.pbtech.co.nz/product/MBDSPMH13101/Supermicro-H13SSL-NT-Server-Board-ATX-Single-Socke
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
H13SSL-NT
- AMD EPYC™ 9004 series Processors
- System on Chip
- Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
- 3 PCIe 5.0 x16 2 PCIe 5.0 x8
- 2x 10GBase-T LAN Ports via Broadcom BCM57416
- Up to 6 USB 3.0 ports(4 rear + 2 via header)
- 8 SATA3
- ASPEED AST2600 BMC graphics
- 6 PWM 4-pin Fans with tachometer status monitoring
- M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110
Specifications
Physical Stats
Form Factor
ATX
Dimension
12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
AMD EPYC™ 9004 series Processors
Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
Up to 128 cores, 256 threads
System Memory
Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
Network Controllers
Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Others
1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
2 MCIO (PCIe 5.0 x8) Port(s)
Expansion Slots
PCIe
3 PCIe 5.0 x16 (in x16 slot),
2 PCIe 5.0 x8
M.2
M.2 Interface: 2 SATA/PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
Voltage
VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED
UID/Remote UID
BMC/IPMI Heartbeat LED
Other Features
RoT
FAN
6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
