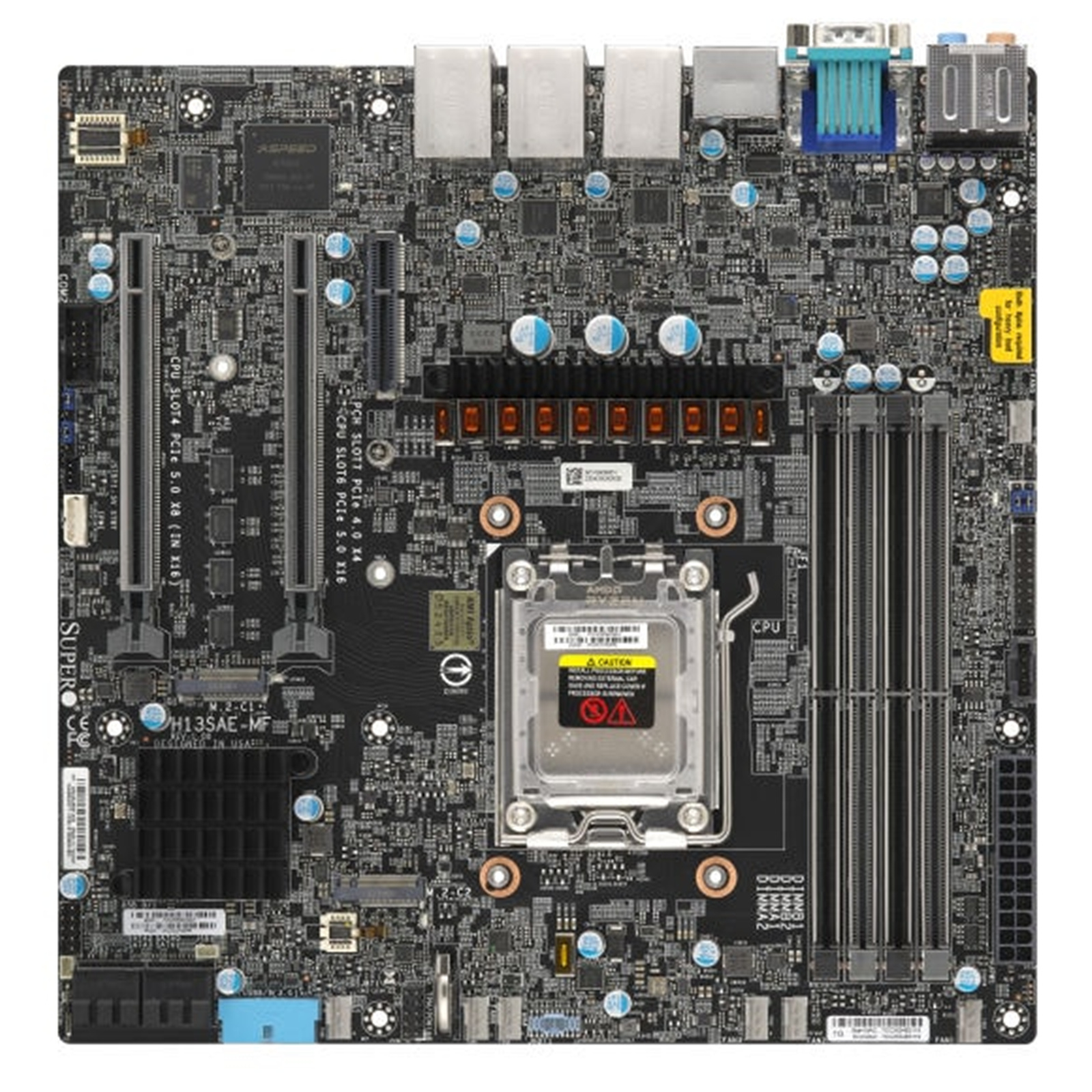

Supermicro H13SAE-MF Server Board, mATX, AM5, 4 DIMM, B650, 2x GbE, 4x SATA3, 2x PCIe 5.0 x16 (16/NA or 8/8), 1x PCIe 4.0 x4, 2x PCIe 5.0 M.2 2280/22110, IPMI
Out of stock
Supermicro H13SAE-MF Server Board, mATX, AM5, 4 DIMM, B650, 2x GbE, 4x SATA3, 2x PCIe 5.0 x16 (16/NA or 8/8), 1x PCIe 4.0 x4, 2x PCIe 5.0 M.2 2280/22110, IPMI
- Brand: Supermicro
- MPN: MBD-H13SAE-MF-O
- Part #: MBDSPMH13102
- UPC: 672042893737
- Brand: Supermicro
- MPN: MBD-H13SAE-MF-O
- Part #: MBDSPMH13102
- UPC: 672042893737
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Supermicro H13SAE-MF Server Board, mATX, AM5, 4 DIMM, B650, 2x GbE, 4x SATA3, 2x PCIe 5.0 x16 (16/NA or 8/8), 1x PCIe 4.0 x4, 2x PCIe 5.0 M.2 2280/22110, IPMI
- Brand: Supermicro
- MPN: MBD-H13SAE-MF-O
- Part #: MBDSPMH13102
- UPC:672042893737
Product URL: https://www.pbtech.co.nz/product/MBDSPMH13102/Supermicro-H13SAE-MF-Server-Board-mATX-AM5-4-DIMM
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
H13SAE-MF
- AMD Ryzen™ 7000 series Processors, single socket LGA-1718 (socket AM5) supported
- TDP supports up to 170W.
- Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.
- 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards(mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards)
- 1 PCIe 4.0 x4
- 2x 1Gbit LAN port(i210 AT); a dedicated Realtek 1Gbit LAN for IPMI.
- Micro-ATX form factor
- 1 USB 3.2 Gen2x2 ports (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports(2 Type C, rear, support DP 1.4 Alt mode)
- 1 HDMI 2.0 port, 1 DP 1.4a port
- M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1)
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
Specifications
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.384cm x 24.384cm)
Processor
CPU
AMD Ryzen™ 7000 series Processors
Single Socket LGA-1718 (Socket AM5) supported, CPU TDP supports Up to 170W TDP
Core
Up to 16 cores, 32 threads
System Memory
Memory Capacity
4 DIMM slots
Memory Type
5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
1.1V
On-Board Devices
Chipset
B650
SATA
4 SATA3 ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
ALC 888S HD Audio
Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
Input / Output
USB
1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)
5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
2 USB 3.2 Gen1 port(s) (2 headers 5Gb)
1 USB 2 port(s) (1 via header 2 ports by a header)
Video Output
1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCIe
1 PCIe 4.0 x4,
2 PCIe 5.0 x16 slots (16/NA or 8/8)
M.2
M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
Power Configurations
Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
FAN
7x 4-pin fan headers (up to 7 fans)
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
