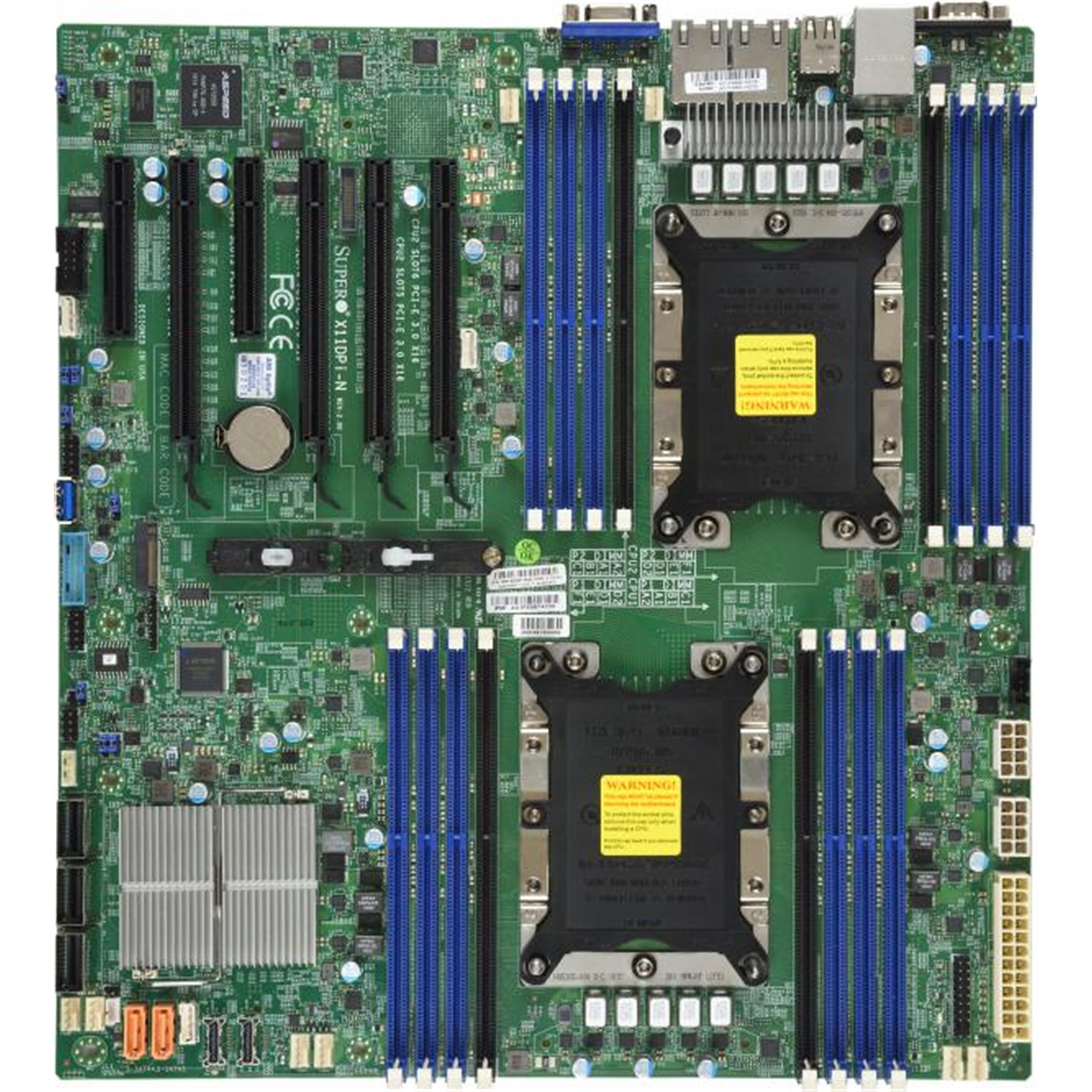

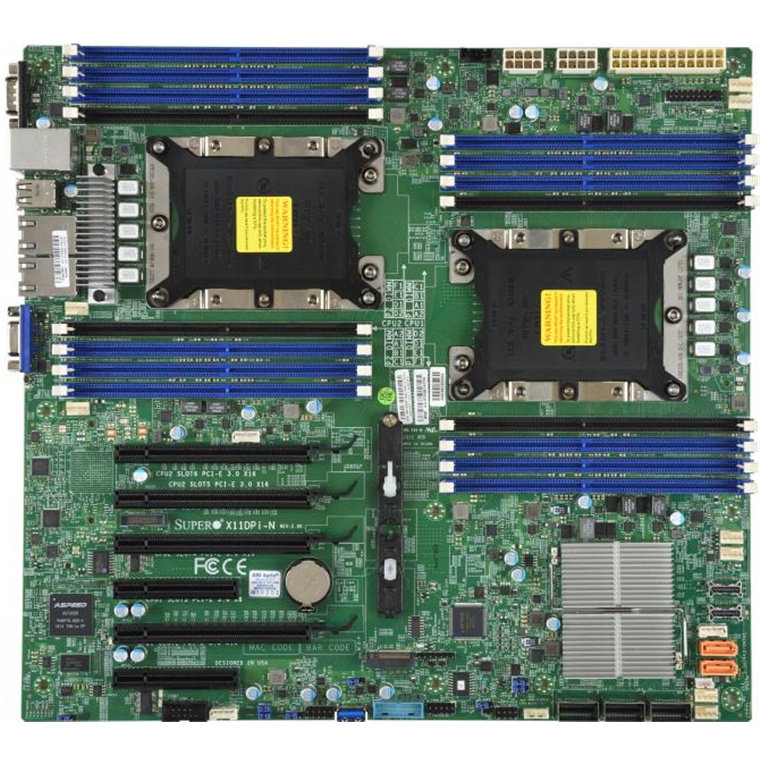

Supermicro X11DPI-NT-O Server Board, E-ATX, 2x LGA3647, C622, 16 DIMM, 2x 10G RJ-45, 4x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, VGA, IPMI, 1x M.2

Supermicro X11DPI-NT-O Server Board, E-ATX, 2x LGA3647, C622, 16 DIMM, 2x 10G RJ-45, 4x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, VGA, IPMI, 1x M.2
Special price: Special price:
$1,071 41  +GST $1,232 12  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Supermicro X11DPI-NT-O Server Board, E-ATX, 2x LGA3647, C622, 16 DIMM, 2x 10G RJ-45, 4x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, VGA, IPMI, 1x M.2

ON SPECIAL

Supermicro X11DPI-NT-O Server Board, E-ATX, 2x LGA3647, C622, 16 DIMM, 2x 10G RJ-45, 4x PCI-E 3.0...

  • Brand: Supermicro
  • MPN: MBD-X11DPI-NT-O
  • Part #: MBDSPMX11203
  • UPC:672042280070
  • MB Socket:Intel LGA3647
  • Wi-Fi:No
  • Chipset:C622
  • Form Factor:EATX
  • Multi GPU Support:None
  • Memory Type:DDR4
  • PCIE x16 Slots:4
  • PCIE x8 Slots:2
  • View more
Special price: Special price:
$1,071 41 $1,232 12
 +GST  inc GST
Ends in --, only 1 unit left!

Click & Collect: Select your store to check availability
Delivery: Order now and it ships in 2 working days When will I receive it?
Shop in-store: Check store stock levels

Six easy payments of $211.51 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s

- Intel® C622

- Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

- 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

- 1 VGA port

- Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

- Dual LAN with 10GBase-T with Intel® X722 + X557

Specifications

Physical Stats

Form Factor

E-ATX

Dimensions

12" x 13" (30.48cm x 33.02cm)

Processor/Cache

CPU

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s

Cores / Cache

Up to 28 cores

Note

BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory

Memory Capacity

Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

Memory Type

2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 256GB

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel® C622

SATA

Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2500

Network Controllers

Dual LAN with 10GBase-T with Intel® X722 + X557

Graphics

Aspeed AST2500 BMC

Input / Output

SATA

14 SATA3 (6Gbps) port

USB

4 USB 2.0 ports (2 rear + 2 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output

1 VGA port

Serial Port / Header

2 COM Ports (1 rear, 1 header)

TPM

1 TPM Header

Expansion Slots

PCI-E

4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8

M.2

M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key

System BIOS

BIOS Type

AMI UEFI

Management

Software

Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring

Voltage

+12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility

FAN

8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control

Temperature

CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED

CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED

Other Features

ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, SDDC, UID

Operating Environment

Operating Temperature Range

10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

-40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

5% - 95% (non-condensing)

Manufacturer Part No: MBD-X11DPI-NT-O Brand: Supermicro Product Type: Server Board,
UPC 672042280070 Product Family: - Shipping Weight: 1.958 kg
PB Part No: MBDSPMX11203 Product Model: X11DPI-NT-O

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
