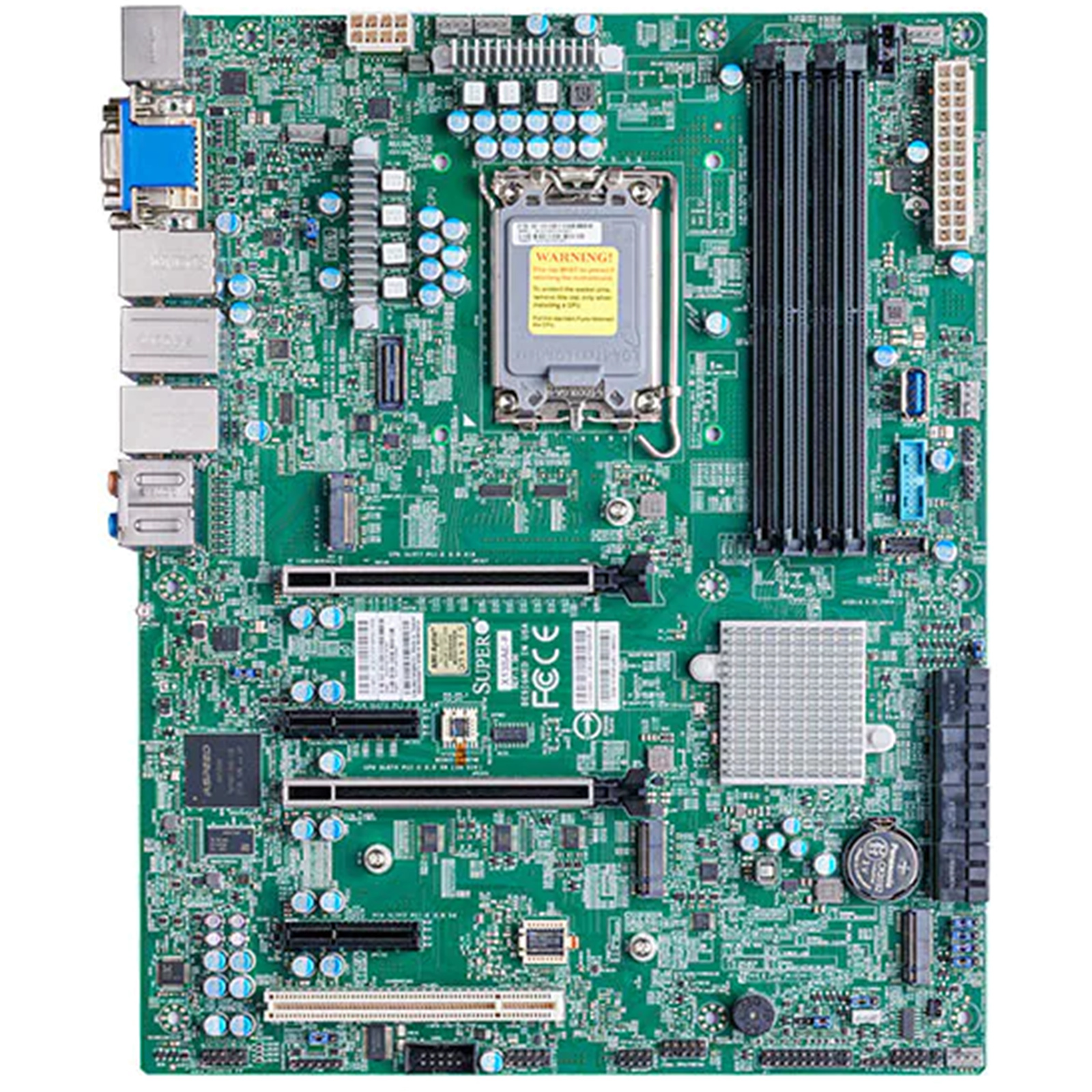

Supermicro X13SAE-F Workstation Board, ATX, LGA1700, W680, 4 DIMM, 1x 2.5GbE, 1x 1GbE, 8x SATA3, 3x M.2, 2x PCIe 5.0 x16 (16/NA or 8/8), 2x PCIe 3.0 x4, 1x PCI, 1x DP 1.4a, 1x HDMI 2.1, 1x DVI-D, IPMI
Out of stock
Supermicro X13SAE-F Workstation Board, ATX, LGA1700, W680, 4 DIMM, 1x 2.5GbE, 1x 1GbE, 8x SATA3, 3x M.2, 2x PCIe 5.0 x16 (16/NA or 8/8), 2x PCIe 3.0 x4, 1x PCI, 1x DP 1.4a, 1x HDMI 2.1, 1x DVI-D, IPMI
- Brand: Supermicro
- MPN: MBD-X13SAE-F-O
- Part #: MBDSPMX13102
- UPC: 672042472864
- Brand: Supermicro
- MPN: MBD-X13SAE-F-O
- Part #: MBDSPMX13102
- UPC: 672042472864
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Intel Desktop Motherboards
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
Gigabyte B760M Gaming Plus WIFI DDR4 mATX Motherboard Intel...
Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 mATX Motherboard Intel...
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 -...
Gigabyte Z790 D AX ATX Motherboard Intel Socket LGA1700 - Z790...
Supermicro X13SAE-F Workstation Board, ATX, LGA1700, W680, 4 DIMM, 1x 2.5GbE, 1x 1GbE, 8x SATA3, 3x M.2, 2x PCIe 5.0 x16 (16/NA or 8/8), 2x PCIe 3.0 x4, 1x PCI, 1x DP 1.4a, 1x HDMI 2.1, 1x DVI-D, IPMI
- Brand: Supermicro
- MPN: MBD-X13SAE-F-O
- Part #: MBDSPMX13102
- UPC:672042472864
Product URL: https://www.pbtech.co.nz/product/MBDSPMX13102/Supermicro-X13SAE-F-Workstation-Board-ATX-LGA1700
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
X13SAE-F
- 12th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
- Intel® W680
- Single LAN with Intel® Ethernet i225LM
Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Single LAN with RTL8211
Dedicated LAN for IPMI - 2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4
1 - 5V PCI 32bit
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5
M.2 Form Factor: 2280
M.2 Key: M-Key - 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
- Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- 1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
Specifications
Product SKUs
MBD-X13SAE-F
X13SAE-F
Physical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
12th Generation Intel® Core™ i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 16(8+8) cores
System Memory
Memory Capacity
4 DIMM slots
128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
128GB
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel® W680
SATA
Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
Single LAN with Intel® Ethernet i225LM
Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 2 port(s) (2 via header; 2 rear)
4 USB 3.2 Gen2 port(s) (4 rear type A)
3 USB 3.2 Gen1 port(s) (2 via header; 1 Vertical)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
Video Output
1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x4,
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
SuperDoctor® 5, SUM, SSM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
