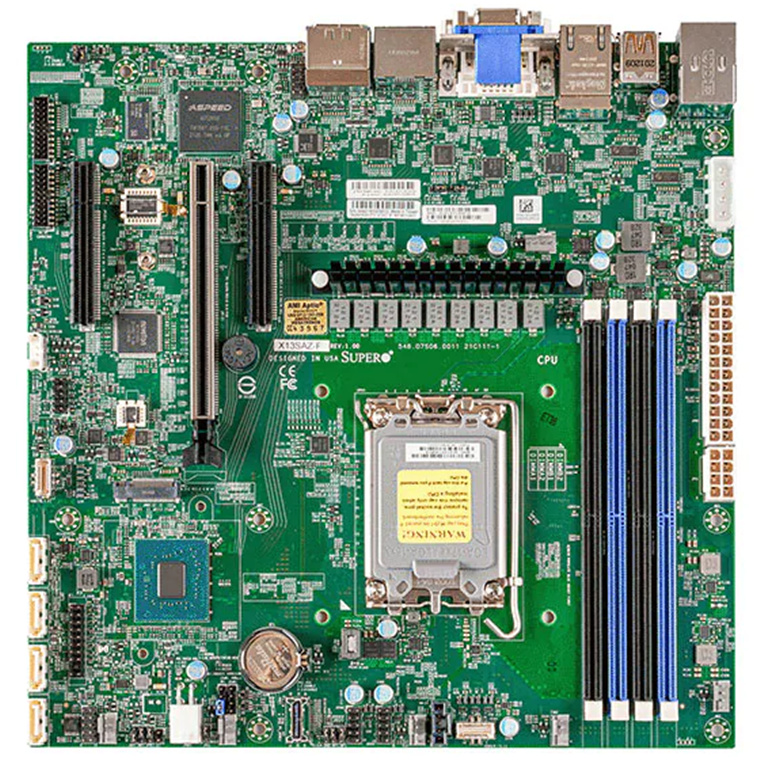

Supermicro X13SAZ-F Server Board, mATX, LGA1700, R680E, 4 DIMM, 2x 2.5GbE, 4x SATA, 1x M.2, 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, IPMI

PB Tech price

$ 851 .24

+GST

$ 978 .93

inc GST

Out of stock

Supermicro X13SAZ-F Server Board, mATX, LGA1700, R680E, 4 DIMM, 2x 2.5GbE, 4x SATA, 1x M.2, 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, IPMI

Brand: Supermicro
MPN: MBD-X13SAZ-F-O
Part #: MBDSPMX13103
UPC: 672042500611

PB Tech price

$ 978 .93

inc GST

+GST inc GST

Out of stock

No store stock available.

Click & Collect: Collect unavailable

Delivery: Out of stock

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Supermicro
MPN: MBD-X13SAZ-F-O
Part #: MBDSPMX13103
UPC: 672042500611

Be the first to review this product

MB Socket

Intel LGA 1700

Chipset

R680E

Form Factor

Wireless Connectivity

Memory Type

RAM Slots

4 Slots

PCIE Version

PCIe 5.0

M.2 Connectors

View full specs

Returns & Warranty Bulk Quote Print Page

Features

X13SAZ-F

- 13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
- Intel® R680E
- Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
- 1 PCIe 5.0 x16 slot,
- 2 PCIe 4.0 x4 slots,
- 1 PCIe 4.0 x4 OCulink port
- M.2 Interface: 1 PCIe 4.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
- Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
- Intel® R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- 4 Independent Displays (1 VGA port, 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port)
- Supports 12V DC power input
- Onboard TPM2.0

Specifications

Physical Stats

Form Factor

Micro-ATX

Dimension

9.6" x 9.6" (24.38cm x 24.38cm)

Processor

CPU

13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1700 supported

Core

Up to 16 cores

System Memory

Memory Capacity

4 DIMM slots
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz
*Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots

Memory Type

4400/4000/3600MHz

DIMM Sizes

4GB, 8GB, 16GB, 32GB

Memory Voltage

1.1V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel R680E

SATA

Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio

1x ALC 888S HD Audio port(s)ALC 888S HD Audio

Network Controllers

Dual LAN with Intel® Ethernet i225LM

Input / Output

SATA

4 SATA3 (6Gbps) port(s)

USB

2 USB 2 port(s) (2 via header)
6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
2 USB 3.1 Gen1 port(s) (2 via header)

Video Output

1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)

Serial Port

4 COM Port(s) (2 header RS232/422/485; 2 header RS232)

TPM

TPM Header & Chip both

Expansion Slots

PCIe

1 PCIe 5.0 x16,
2 PCIe 4.0 x4 (in x8 slot)

M.2

M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Type

AMI UEFI

BIOS Features

ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup

Management

Software

SuperDoctor® 5, SUM, AMT, vPro, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool

System Management Software

Wake-on-LAN, Watchdog, KVM with dedicated LAN

Power Configurations

ACPI Power Management, ATX Power connector, +12V DC Power Input

PC Health Monitoring

Voltage

VBAT, Memory temperature, CPU temperature, Chipset Voltage, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID

LED

Power LED

Temperature

Monitoring for CPU and chassis environment
CPU thermal trip support

Other Features

RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source

FAN

5x 4-pin fan headers (up to 5 fans)

Operating Environment

Operating Temperature Range

0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

-40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range

10% - 85% (non-condensing)

Non Operating Relative Humidity Range

5% - 95% (non-condensing)

Manufacturer Part No:

MBD-X13SAZ-F-O

Brand:

Supermicro

Product Type:

Server Board,

UPC

672042500611

Product Family:

Shipping Weight:

1.2 kg

PB Part No:

MBDSPMX13103

Product Model:

X13SAZ-F

Warranty: 12 months *
