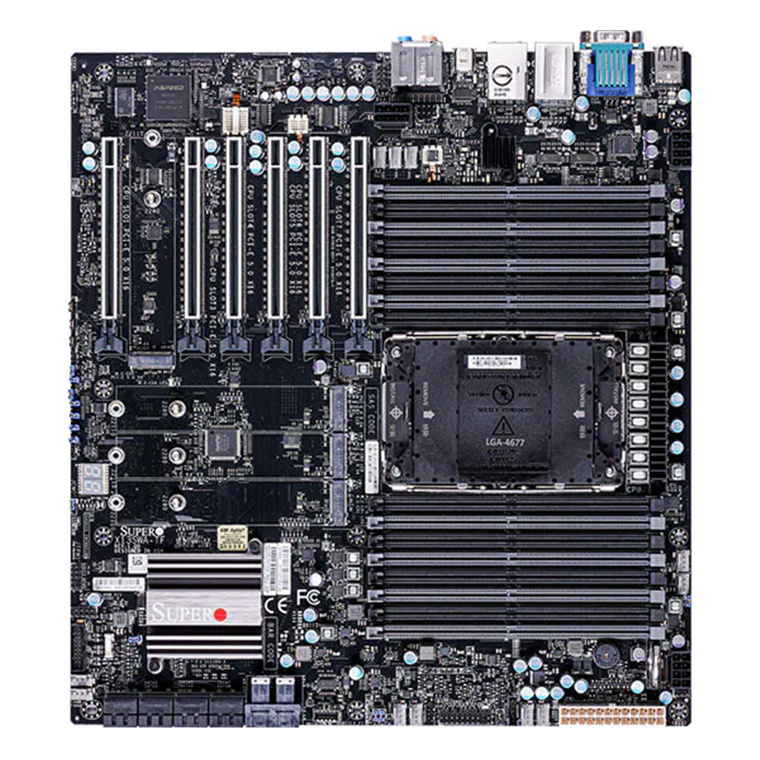

Supermicro X13SWA-TF Workstation Board, E-ATX, 1x LGA4677 Xeon W-3400 / W-2400 Series, 16 DIMM, W790, 1x 10GbE RJ45, 1x 1G RJ45, 8x SATA3, 6x PCIe 5.0 x16, 4x PCIe 5.0 M.2 2280/22110, 2x U.2 PCIe 3.0, IPMI
Out of stock
Supermicro X13SWA-TF Workstation Board, E-ATX, 1x LGA4677 Xeon W-3400 / W-2400 Series, 16 DIMM, W790, 1x 10GbE RJ45, 1x 1G RJ45, 8x SATA3, 6x PCIe 5.0 x16, 4x PCIe 5.0 M.2 2280/22110, 2x U.2 PCIe 3.0, IPMI
- Brand: Supermicro
- MPN: MBD-X13SWA-TF-O
- Part #: MBDSPMX13104
- UPC: 672042511532
- Brand: Supermicro
- MPN: MBD-X13SWA-TF-O
- Part #: MBDSPMX13104
- UPC: 672042511532
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Supermicro X13SWA-TF Workstation Board, E-ATX, 1x LGA4677 Xeon W-3400 / W-2400 Series, 16 DIMM, W790, 1x 10GbE RJ45, 1x 1G RJ45, 8x SATA3, 6x PCIe 5.0 x16, 4x PCIe 5.0 M.2 2280/22110, 2x U.2 PCIe 3.0, IPMI
- Brand: Supermicro
- MPN: MBD-X13SWA-TF-O
- Part #: MBDSPMX13104
- UPC:672042511532
Product URL: https://www.pbtech.co.nz/product/MBDSPMX13104/Supermicro-X13SWA-TF-Workstation-Board-E-ATX-1x-LG
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
X13SWA-TF
- Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
- Intel® W790
- Up to 4TB(W-3400)/2TB(W-2400) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
- M.2 Interface: 4 PCIe 5.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Socket (w/o heat sink)
- Xeon® W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon® W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
- 1GbE LAN port with Intel® Ethernet Controller I210-AT
- 10GbE LAN with Marvell AQC113C
- 8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
- 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
- IPMI Supported
- Overclocking Supported (optional)
Specifications
Physical Stats
Form Factor
E-ATX
Dimension
13" x 12" (330.2cm x 304.8cm)
Processor
CPU
Intel® Xeon® W-3400 series and Xeon® W-2400 series processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
** Support CPU overclocking (optional, processors model name with the X suffix)
Core
Up to 56 cores
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
4800/4400 MT/s ECC DDR5 RDIMM (3DS) 1.Up to 4TB 3DS ECC RDIMM, 1TB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-3400 series processor in 16 DIMM slots. 2.Up to 2TB 3DS ECC RDIMM, 512GB ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-2400 series processor in 8 DIMM slots.
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel® W790
SATA
Intel® W790 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Audio
Realtek ALC888S 7.1 HD Audio
Network Controllers
Single LAN with Marvell AQC113C, 1x 10GbE RJ45 LAN port with AQC113C
Single LAN with Intel® Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMI
Input / Output
SATA
8 SATA 3 (6Gbps) port(s)
USB
4 USB 2 port(s) (2 via header; 2 rear Type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
4 USB 3.2 Gen2x1 port(s) (4 rear Type A)
2 USB 3.2 Gen1 port(s) (2 via header)
Video Output
1 VGA port(s) for IPMI only
Serial Port
1 COM Port(s) (1 rear)
TPM
1 TPM Header
Expansion Slots
PCIe
6 PCIe 5.0 x16
M.2
M.2 Interface: 4 PCIe 5.0 x4, RAID 0, 1, 5, 10
Form Factor: 22110, 2280
Key: M-Key
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Power supply monitoring
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Vmem, Peripheral temperature, GPU temperature, NvMe temperature, Platform Environment Control Interface (PECI)/(TSI), Vcore
FAN
10x 4-pin fan headers (up to 10 fans)
Fan speed control, 10 4-pin fan headers, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED
Other Features
RoHS
Chassis intrusion detection
Power supply monitoring
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
