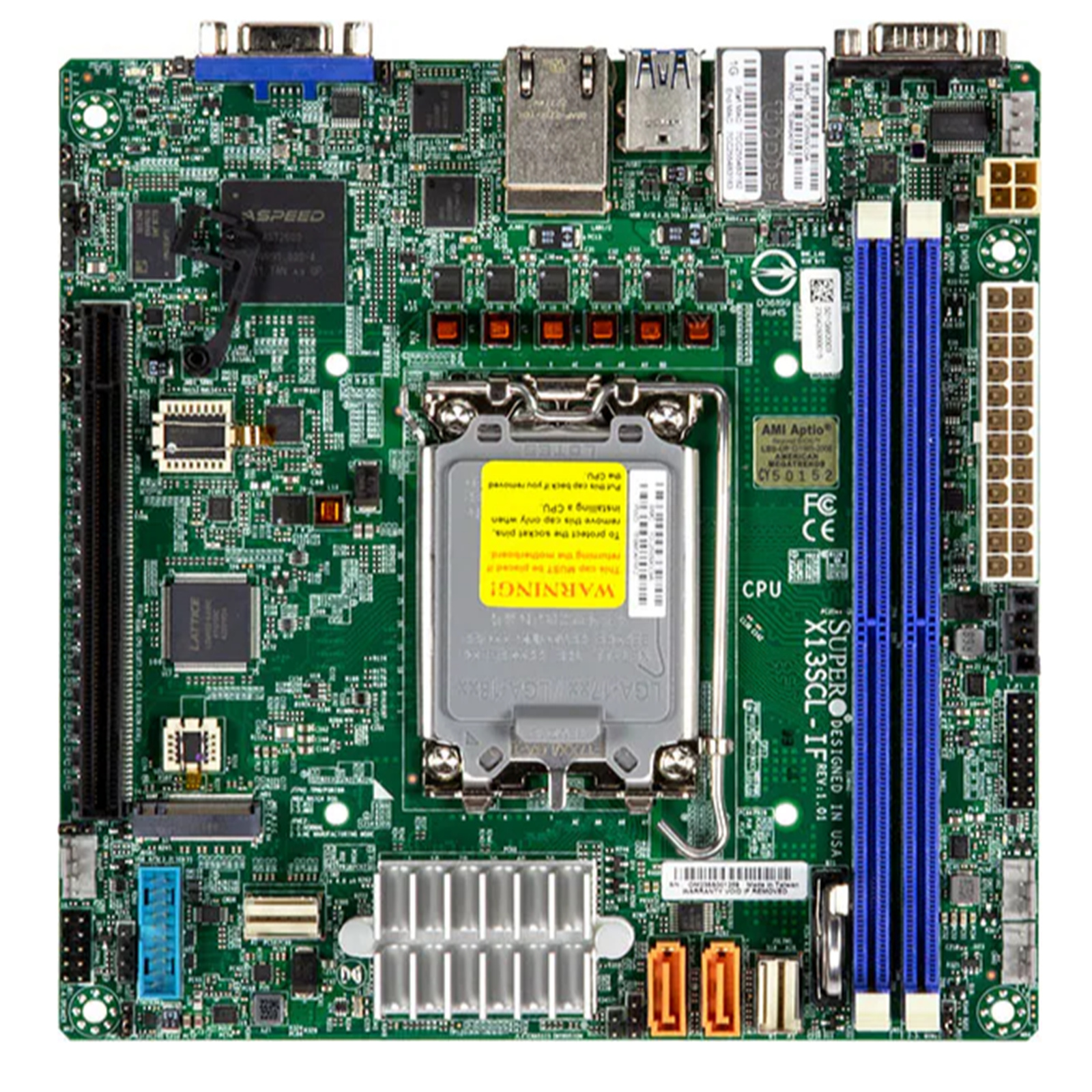

Supermicro X13SCL-IF Server Board, mITX, LGA1700, C262, 2 DIMM, 2x GbE, 6x SATA, 1x PCIe 5.0 x16, 1x M.2 2280, IPMI
Out of stock
Supermicro X13SCL-IF Server Board, mITX, LGA1700, C262, 2 DIMM, 2x GbE, 6x SATA, 1x PCIe 5.0 x16, 1x M.2 2280, IPMI
- Brand: Supermicro
- MPN: MBD-X13SCL-IF-O
- Part #: MBDSPMX13108
- UPC: 672042899159
- Brand: Supermicro
- MPN: MBD-X13SCL-IF-O
- Part #: MBDSPMX13108
- UPC: 672042899159
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Supermicro X13SCL-IF Server Board, mITX, LGA1700, C262, 2 DIMM, 2x GbE, 6x SATA, 1x PCIe 5.0 x16, 1x M.2 2280, IPMI
- Brand: Supermicro
- MPN: MBD-X13SCL-IF-O
- Part #: MBDSPMX13108
- UPC:672042899159
Product URL: https://www.pbtech.co.nz/product/MBDSPMX13108/Supermicro-X13SCL-IF-Server-Board-mITX-LGA1700-C26
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
X13SCL-IF
- Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
- Intel® C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10
- Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots
- 1 PCIe 5.0 x16
- 2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)
- Dual LAN with Intel® i210 Gigabit Ethernet Controller
- M.2 Interface: 1 PCIe 4.0 x4
- M.2 Form Factor: 2280
- M.2 Key: M-Key
- 4 USB 3.2 Gen1 ports (2 rear + 2 via header)
- 2 USB 2.0 ports (2 rear)
Specifications
Physical Stats
Form Factor
Mini-ITX
Dimension
6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
Intel® Xeon® E-2400/Pentium®* Processor
Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium® G7400 and G7400T
Core
Up to 8 cores
System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR5-4800MT/s
Memory Type
4800/4400/4000 MT/s Up to 64GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C262
SATA
Intel® C262 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
2 SATA3 (6Gbps) port(s)
4 SATA3 (6Gbps) port(s) via Slimline SAS x4 connector
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 rear)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
TPM
1 TPM Header
Expansion Slots
PCIe
1 PCIe 5.0 x16,
1 PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Management
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
