Tamiya 47326 1/10 TT-02R CHASSIS KIT (EXCL ESC)
Tamiya 47326 1/10 TT-02R CHASSIS KIT (EXCL ESC)
- Brand: Tamiya
- MPN: Tamiya 47326
- Part #: MDLTMA47326
- UPC:
- Brand: Tamiya
- MPN: Tamiya 47326
- Part #: MDLTMA47326
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Plastic Model Kits





Tamiya 47326 1/10 TT-02R CHASSIS KIT (EXCL ESC)
- Brand: Tamiya
- MPN: Tamiya 47326
- Part #: MDLTMA47326

Product URL: https://www.pbtech.co.nz/product/MDLTMA47326/Tamiya-47326-110-TT-02R-CHASSIS-KIT-EXCL-ESC
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).
- Aluminum Rear Uprights (3-Degree Toe-In)
- Aluminum Motor Mount
- TT-02 Aluminum Propeller Joints
- TT-02 Aluminum Propeller Shaft
- TT-02 Full Ball Bearing Set
- Metal Drive Shafts, Wheel Axles and Gearbox Joints
- 3x18mm Aluminum Turnbuckle Shafts
- 4mm Aluminum Flange Lock Nuts (Blue)
- 5mm Aluminum Short Ball Connector Nuts (Blue)
- 5mm Aluminum Ball Connectors (Blue)
- Medium-Narrow Racing Slick Tires
- 5mm Ball Connectors
- CVA Oil Dampers & Springs

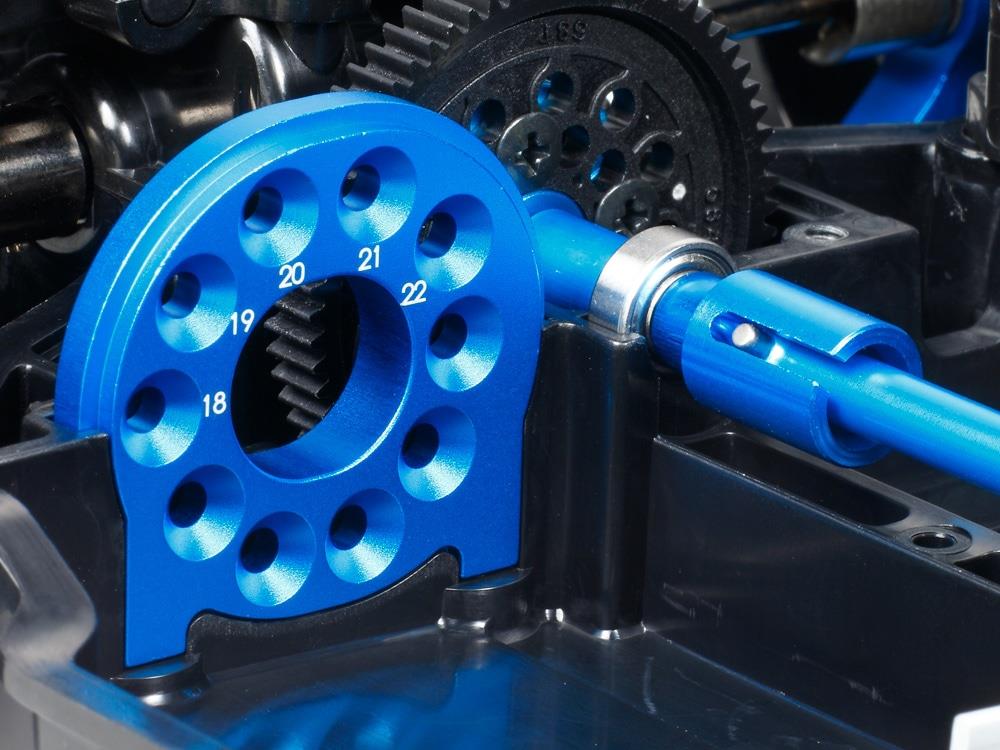

The chassis features motor mount, propeller shaft and joints made from lightweight and tough aluminum.

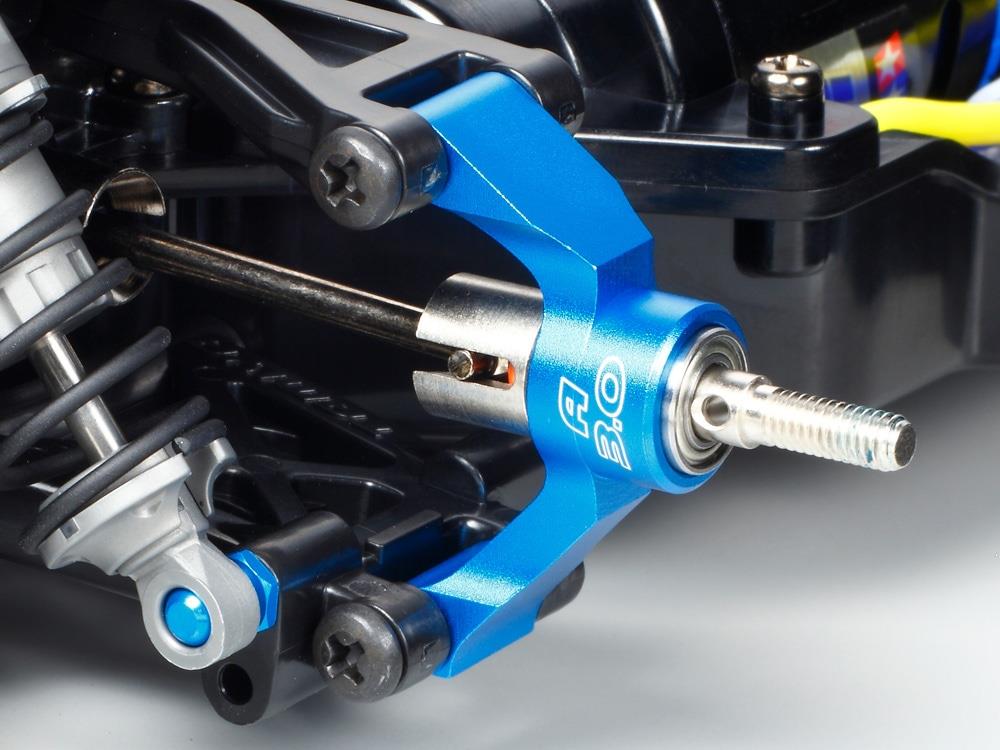

Aluminum rear uprights provide toe-in of 3 degrees. Gearbox joints and wheel axles are durable metal.

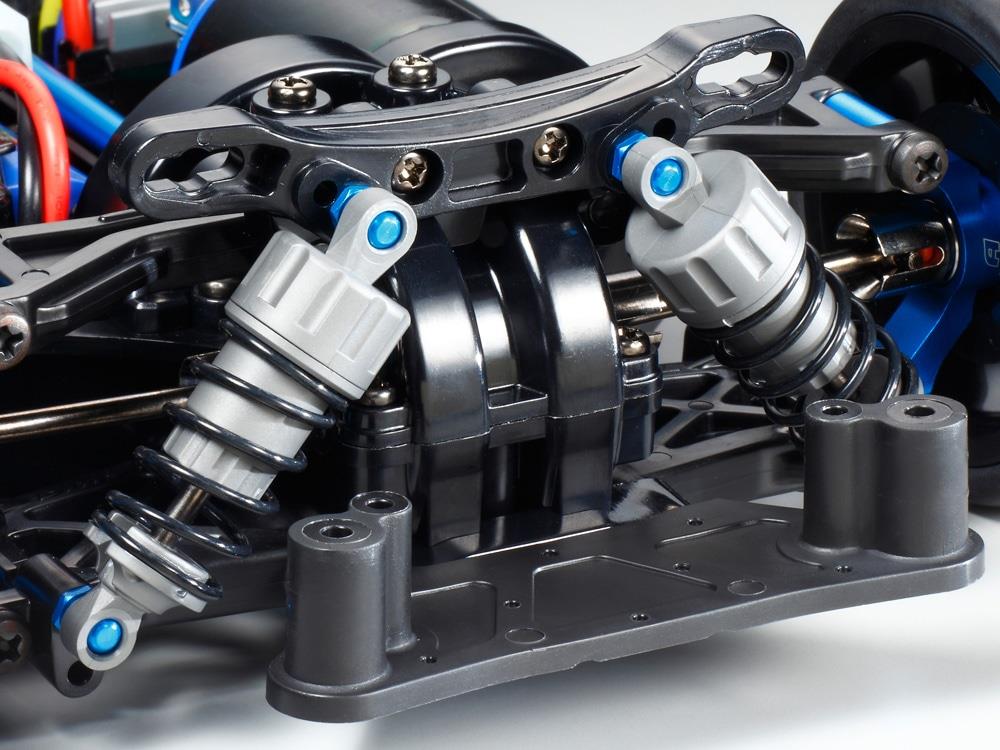

The chassis is cushioned by high-performance CVA oil dampers paired with cool black color springs.
*Body, motor, R/C equipment, battery pack and charger sold separately.
Specifications
Product Type
Plastic model assembly kit
Brand
Tamiya
Scale
1/10
Length
376mm
Width
182mm
Wheelbase
257mm
Tire Width/Diameter
24/64mm (front and rear)
Chassis Type
Bathtub frame
Drive System
Shaft-driven 4WD
Steering
3-piece tie-rod
Suspension
4-wheel double wishbone
Dampers
Front and rear CVA oil
Spur gears included
68T and 64T
Separately Required Items (Not Included)
2-channel R/C system with ESC
Battery pack and charger
Batteries for transmitter
Type 540 Motor
Body
