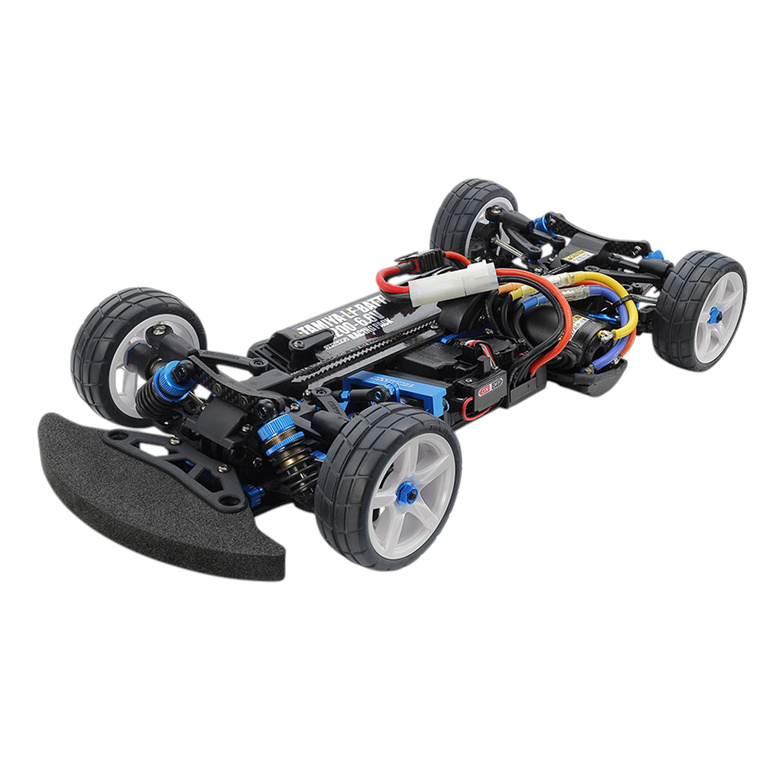

Tamiya 47498 1/10 TA08R CHASSIS KIT

PB Tech price
PB Tech price
$ 706 .96
 +GST
$ 813 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Tamiya 47498 1/10 TA08R CHASSIS KIT

  • Brand: Tamiya
  • MPN: Tamiya 47498
  • Part #: MDLTMA47498
  • UPC:
PB Tech price
$ 706 .96 $ 813 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Tamiya
  • MPN: Tamiya 47498
  • Part #: MDLTMA47498
  • UPC:

Boat Type

N/A

Country

Japan

Scale

1/10

Vehicle Manufacturer

N/A

Features

This assembly kit takes the 2-belt driven TA08 chassis and makes it into a race-focussed unit with plenty of Hop-Up Options. It is equipped with a 2mm carbon fiber upper deck, plus a plastic lower deck with reinforcements for exemplary rigidity and superior steering that can be adjusted to your heart's content. A-shaped upper arms and a four-wheel double wishbone suspension setup are employed, while aluminum upper arm mounts ensure great rigidity. The rear body mount section has been stiffened for great traction.

Drivetrain

- Full ball bearings
- Front double cardan drive shafts
- Rear universal shafts
- Front direct pulley (aluminum direct cups)
- 71T spur gear (TRF420 center pulley)
- Rear gear differential (aluminum diff joints, VG O-ring)
- Aluminum motor mount

Suspension

- Front & rear aluminum upper arm mounts
- Aluminum adjustable suspension mount
- Separate suspension mounts (XB/A)
- Low-friction king pin balls
- Super short big bore dampers (VG O-rings)

Chassis

- Carbon fiber upper deck (2.0mm)
- Carbon fiber rear body mount plate (2.5mm)
- Aluminum rear body mount posts
- Aluminum servo mount
- Aluminum steering linkage
- Clamp-type wheel hubs (4mm)

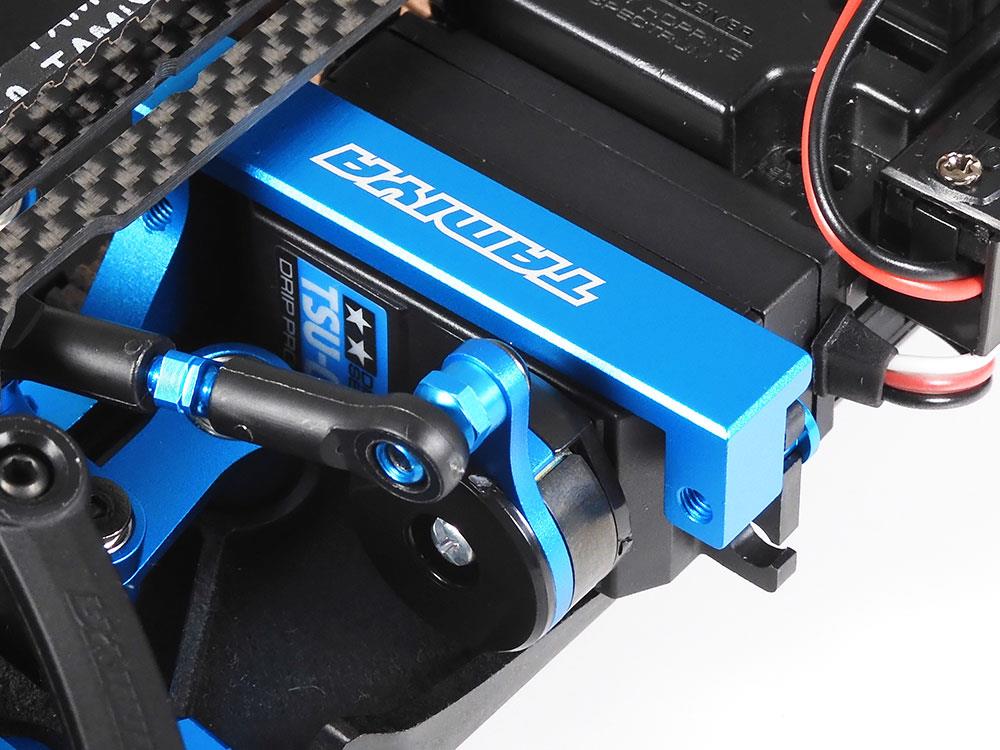

The rigid aluminum servo mount minimizes inefficiency.

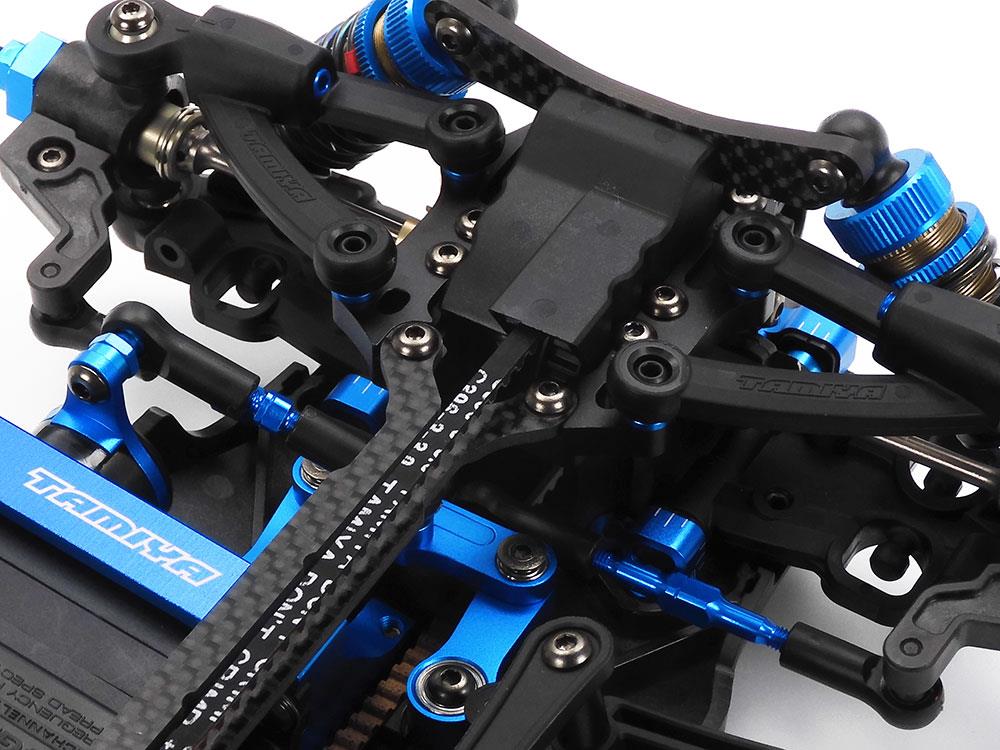

Steering tie-rods are in a linear arrangement to lessen the effect of suspension motion on toe angle. Brigde and arms are aluminum.

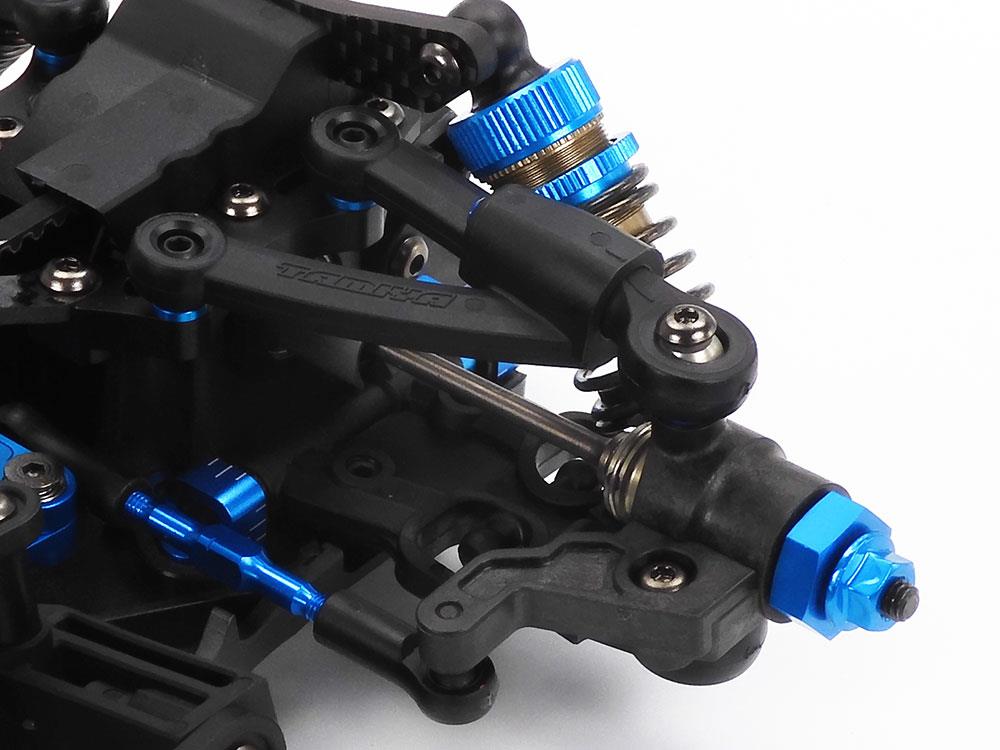

Aluminum mounts make for great upper A-arm rigidity. Low friction king pin balls are used atop and below the uprights.

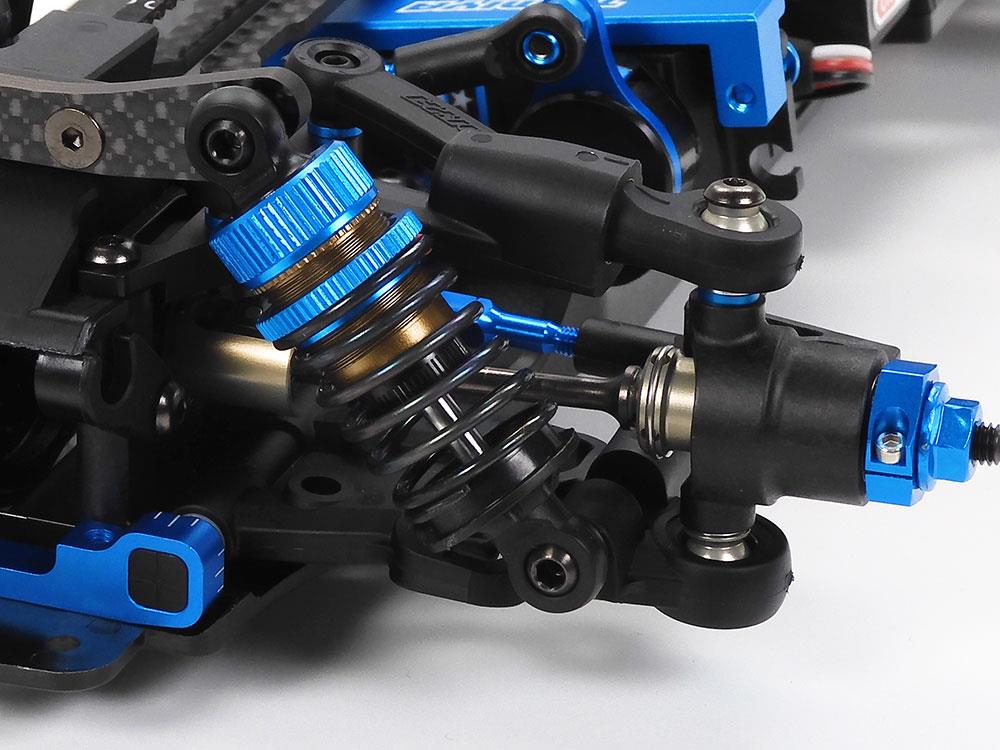

A close up on the super short big bore dampers. 43mm drive shafts and 4mm clamp-type hex hubs are employed.

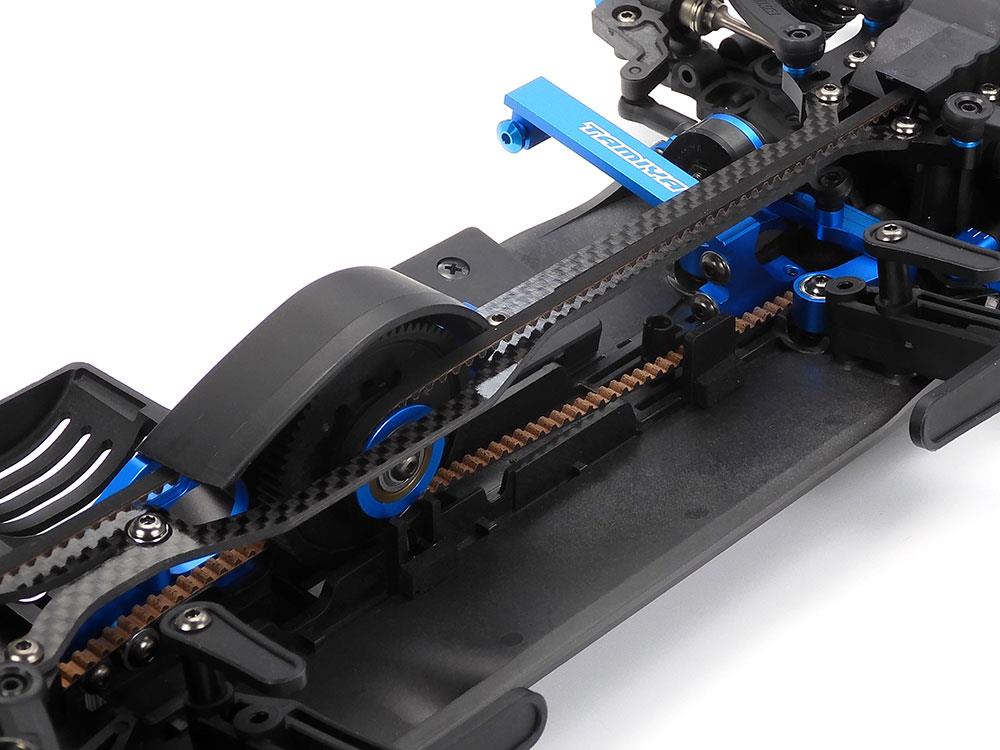

The 2mm carbon fiber upper deck boosts pitching rigidity. A rear ball bearing lends smoothness to the chassis flex.



The aluminum motor mount has upper deck attachment points front and rear.



Additional ribs on the lower deck minimize flex. Adjustable suspension mounts are employed.



Rear universal shafts use 43mm swing shafts, TRF420 wheel axles and low friction cross joints.



Toe control rear suspension helps match toe angle with compressed suspension.

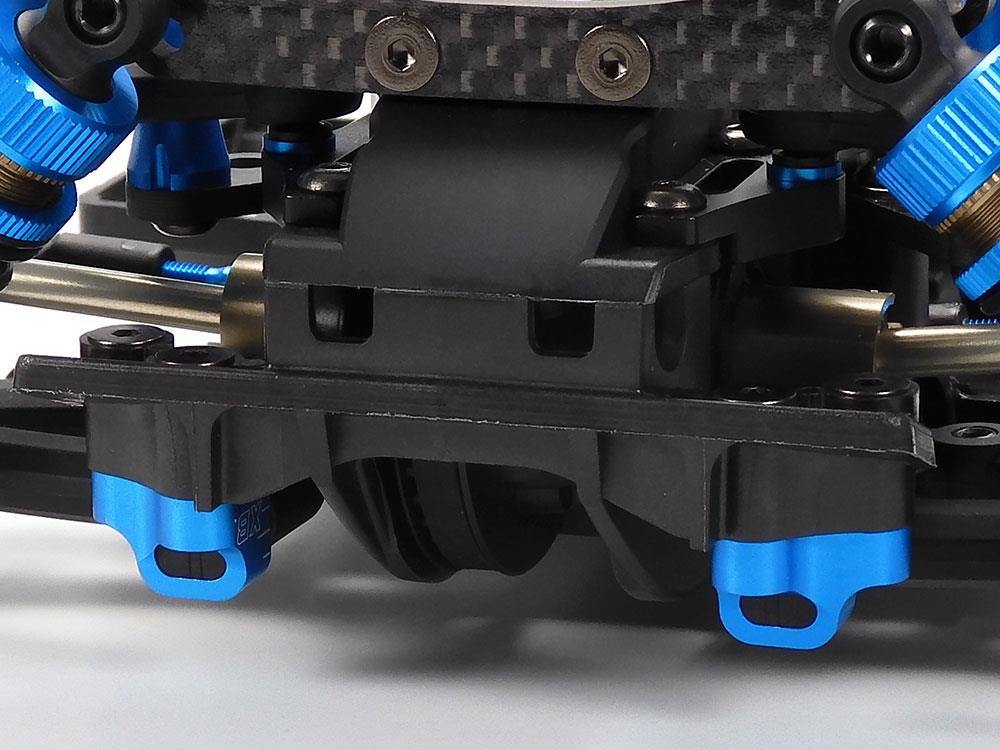

Rear body mounts are attached on a carbon fiber plate and aluminum mounts to keep that body from wobbling.



Specifications

Product Type

Plastic model assembly kit

Brand

Tamiya

Scale

1/10

Length

373mm (chassis only)

Width

182mm

Wheelbase

257mm

Chassis Design

Stepped V carbon fiber reinforced plastic lower deck

Drive System

Transverse motor 2-belt driven 4WD

Differentials

Front direct coupling rear oil-filled gear differential

Steering System

3-piece steering tie-rod

Suspension

4-wheel independent double wishbone suspension

Dampers

TRF Super Short Big Bore Dampers

Separately Required Items (Not Included)

Body
Tires
Type 540 motor
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger

Manufacturer Part No:
Tamiya 47498
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
MDLTMA47498
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
