Tamiya 58690 1/10 LANDFREEDER (EXCL ESC)QTRACK TT-02FT
Out of stock
Tamiya 58690 1/10 LANDFREEDER (EXCL ESC)QTRACK TT-02FT
- Brand: Tamiya
- MPN: Tamiya 58690
- Part #: MDLTMA58690
- UPC:
- Brand: Tamiya
- MPN: Tamiya 58690
- Part #: MDLTMA58690
- UPC:
Features
On the Right Track

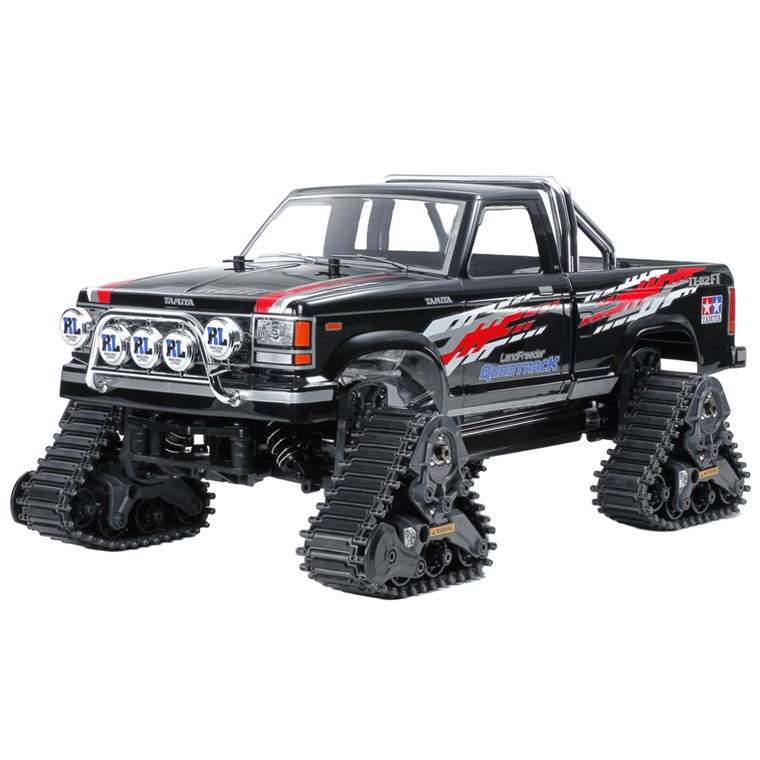

This assembly kit creates an R/C model off-road truck which shows high performance on poor surfaces. Its chassis is based upon the TT-02 shaft-driven 4WD unit, with superlative traction from its four individual tracks that helps it plow through snow, sand, mud and other testing conditions. Its 1980s pick-up truck style body is molded in polycarbonate, with fog lamps, grille guard and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners help prevent dirt and the like from getting into the chassis and potentially causing damage.
Tracked 4WD Fun: the TT-02FT Chassis
The TT-02FT chassis uses the shaft-driven TT-02 as a base, with track units in place of the four wheels. Each of the track units is attached to upper and lower suspension arms, and is powered via a drive sprocket that attached to the chassis drive shaft; they swing to allow superior contact with the running surface, and feature a sprung roller to allow easier negotiation of smaller obstacles. Plenty of ground clearance is on offer, too. Tracks are a plastic assembly type design with metal link pins, and give minimal power loss from friction for a smooth drive, even at lower speeds. Two types of link are included in the kit - standard, and jutting grouser designs - and can be used in tandem to customize your model's grip. The chassis features a CR-Tuned motor as standard.
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel resin differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- CR-Tuned motor
- Electronic Speed Controller (ESC) is sold separately

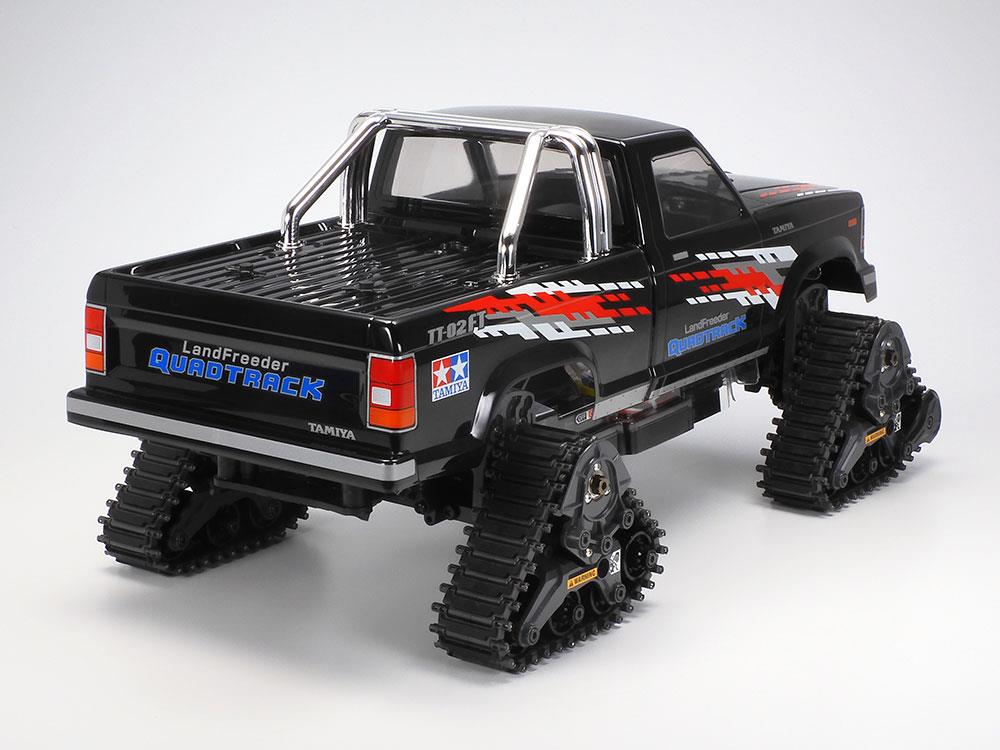

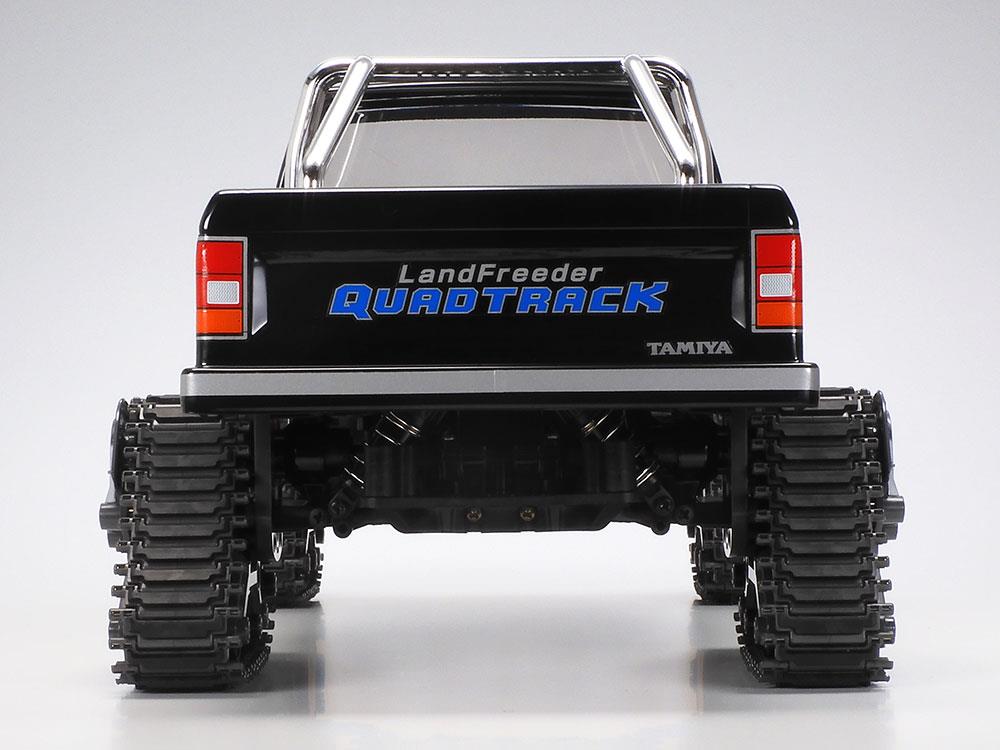

This image from the rear shows how the 1980s-inspired truck body and quadruple tracks make for a great look.

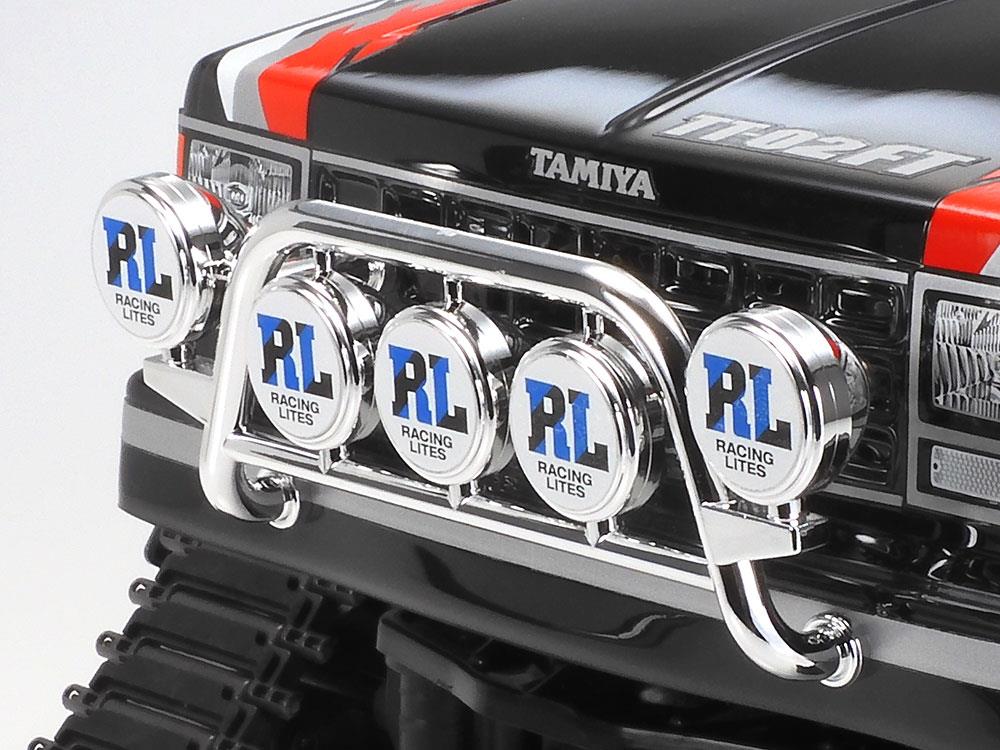

Chrome-plated components for the front bull bars and fog lamps ensure that the model has superb realism.

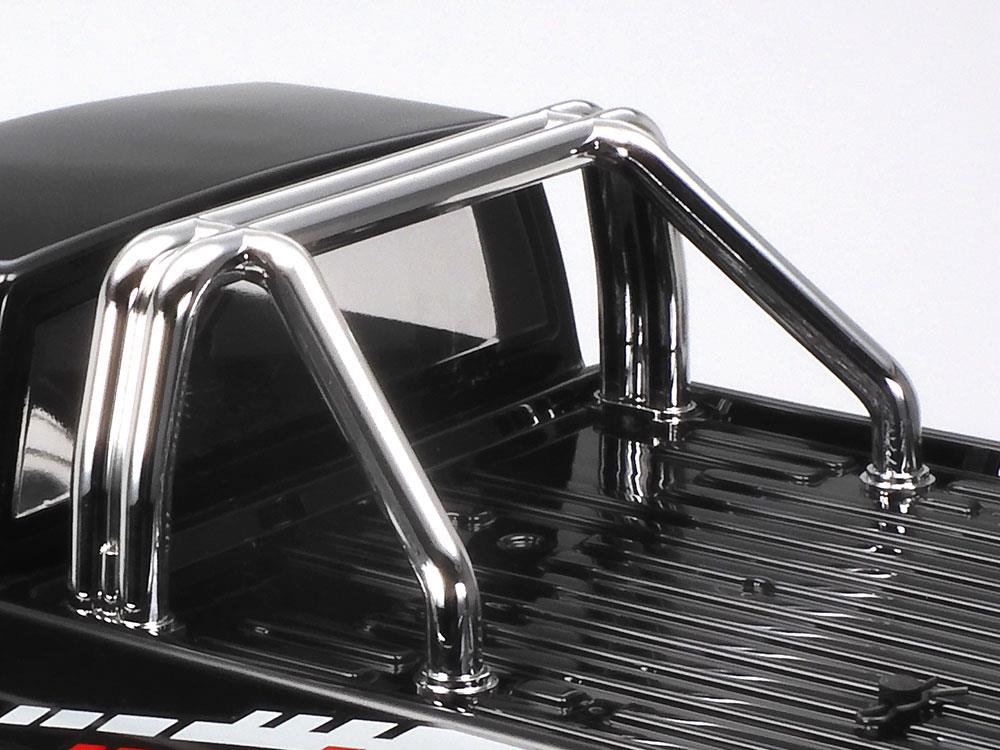

Moving around behind the cab, we can see that the roll bar is also a metal-plated part.
Take a look at the Landfreeder Quadtrack's plentiful ground clearance, which helps it take on rough surfaces.

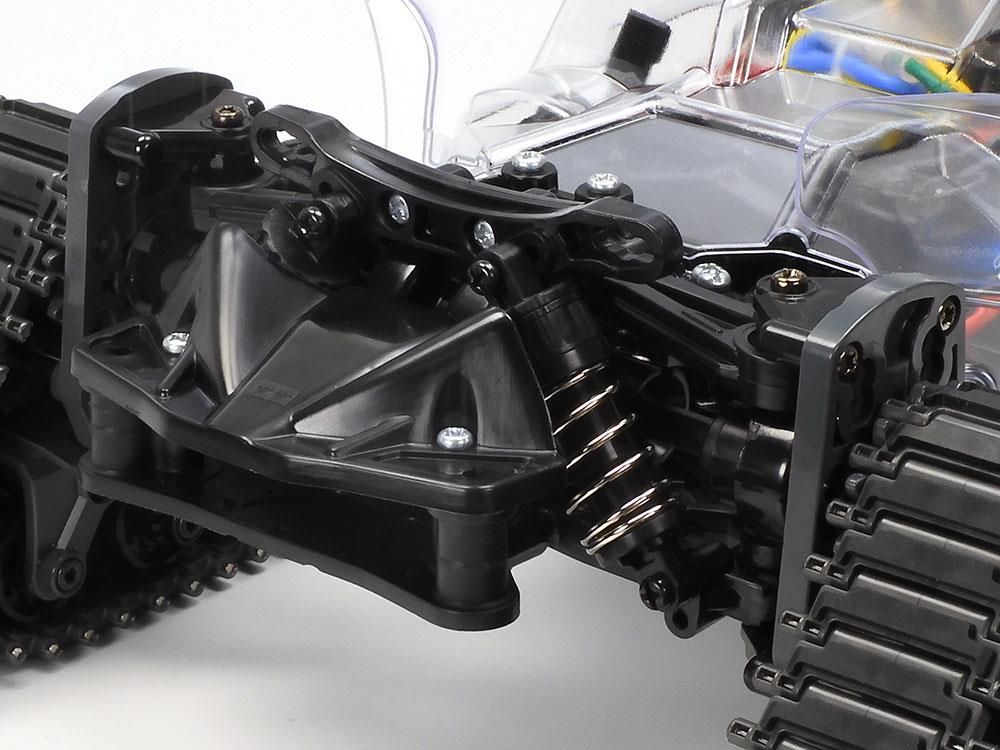

The front double wishbone suspension features friction dampers to help cushion your ride.

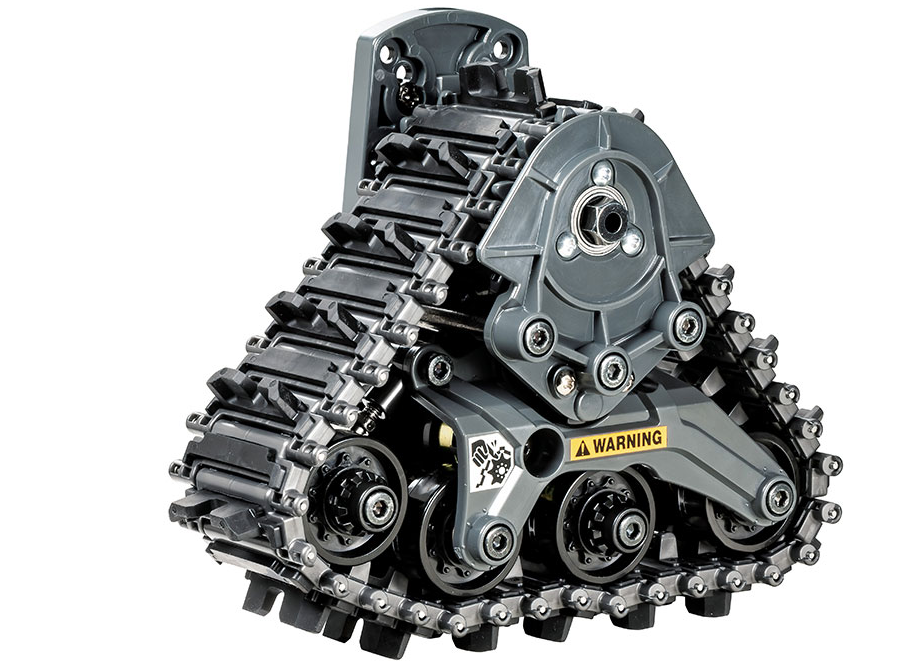

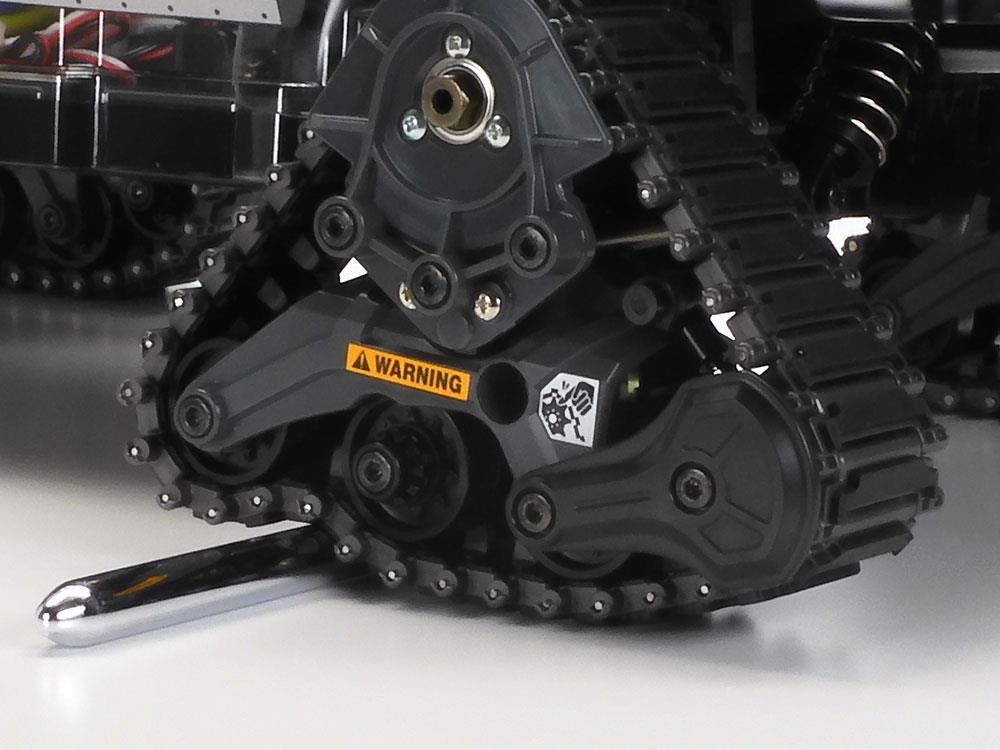

Track units are attached to the chassis drive shaft via a drive sprocket, and use eight individual rollers.

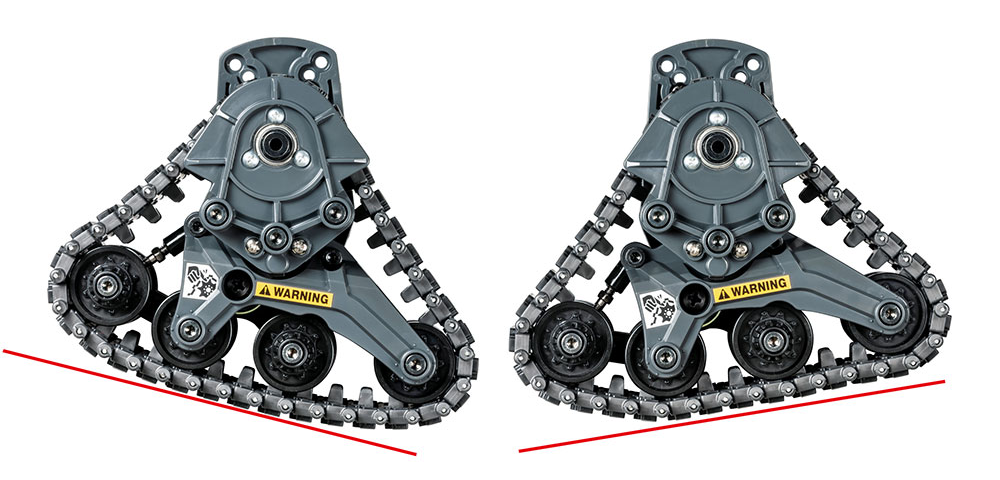

Track units can also swing to help them maintain contact with the surface and give your model vital grip.
The third roller in each track unit is sprung, allowing the unit as a whole to adapt to obstacles underfoot.

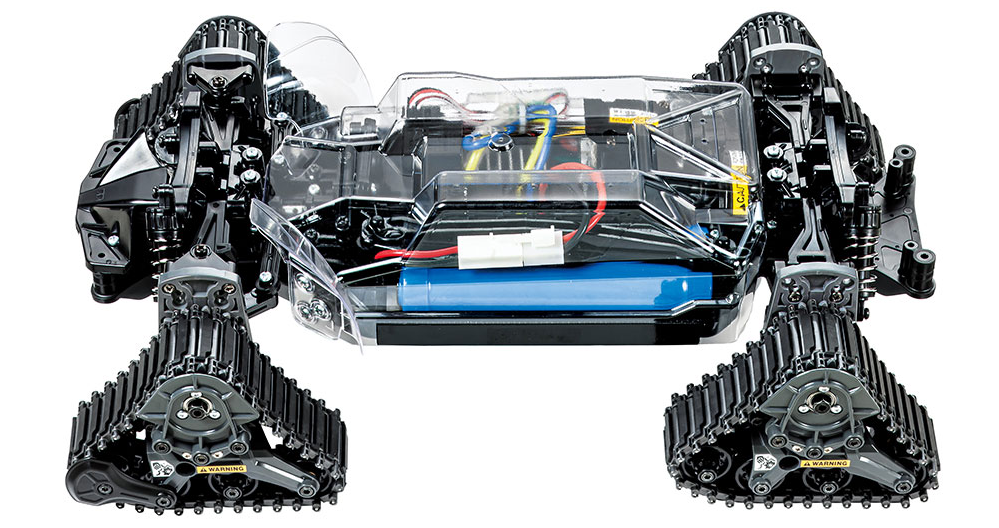

Balanced shaft-driven 4WD is on offer thanks to the chassis' TT-02 base, with track units in place of tires.

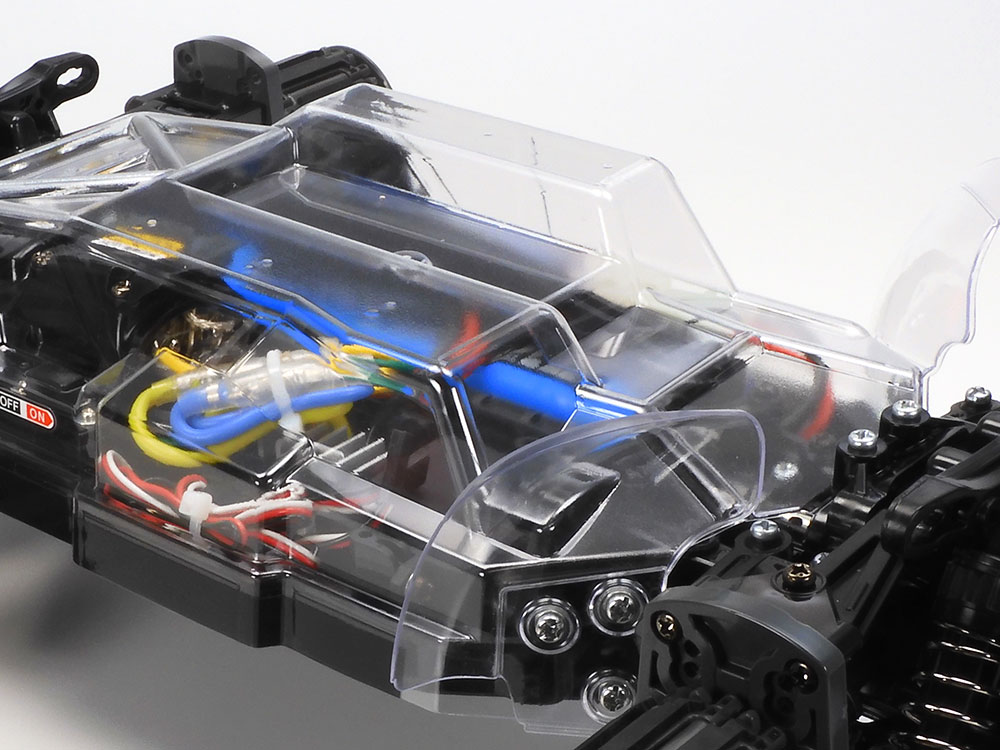

A polycarbonate chassis cover with wheel well liners helps prevent dirt and dust from getting inside.

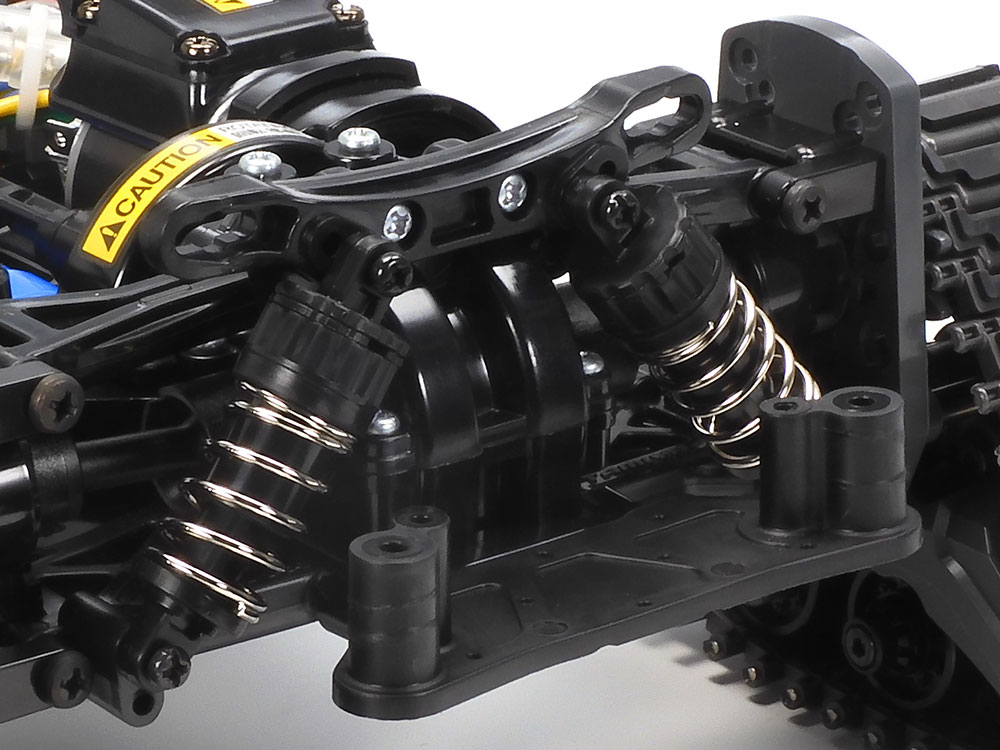

The rear double wishbone suspension also features friction dampers to help cushion your ride.
2 link types are included - grouser and standard. Use them in the patterns shown for varying grip levels.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Trucks & Trailers
Italeri - 1/24 - MAN F8 19.321 4x2
Italeri - 1/24 - Curtainside Trailer With Logo
MiniArt 2-38025 MINIART 1/35 TEMPO E400 3 WHEEL TRUCK
Italeri - 1/24 - Iveco Hi-Way E.5 - "Abarth"
MiniArt 2-38023 MINIART 1/35 GERMAN TRUCK L1500S W/TRAILER
Tamiya 58690 1/10 LANDFREEDER (EXCL ESC)QTRACK TT-02FT
- Brand: Tamiya
- MPN: Tamiya 58690
- Part #: MDLTMA58690
Product URL: https://www.pbtech.co.nz/product/MDLTMA58690/Tamiya-58690-110-LANDFREEDER-EXCL-ESCQTRACK-TT-02F
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
On the Right Track
This assembly kit creates an R/C model off-road truck which shows high performance on poor surfaces. Its chassis is based upon the TT-02 shaft-driven 4WD unit, with superlative traction from its four individual tracks that helps it plow through snow, sand, mud and other testing conditions. Its 1980s pick-up truck style body is molded in polycarbonate, with fog lamps, grille guard and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners help prevent dirt and the like from getting into the chassis and potentially causing damage.
Tracked 4WD Fun: the TT-02FT Chassis
The TT-02FT chassis uses the shaft-driven TT-02 as a base, with track units in place of the four wheels. Each of the track units is attached to upper and lower suspension arms, and is powered via a drive sprocket that attached to the chassis drive shaft; they swing to allow superior contact with the running surface, and feature a sprung roller to allow easier negotiation of smaller obstacles. Plenty of ground clearance is on offer, too. Tracks are a plastic assembly type design with metal link pins, and give minimal power loss from friction for a smooth drive, even at lower speeds. Two types of link are included in the kit - standard, and jutting grouser designs - and can be used in tandem to customize your model's grip. The chassis features a CR-Tuned motor as standard.
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel resin differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- CR-Tuned motor
- Electronic Speed Controller (ESC) is sold separately
This image from the rear shows how the 1980s-inspired truck body and quadruple tracks make for a great look.
Chrome-plated components for the front bull bars and fog lamps ensure that the model has superb realism.
Moving around behind the cab, we can see that the roll bar is also a metal-plated part.
Take a look at the Landfreeder Quadtrack's plentiful ground clearance, which helps it take on rough surfaces.
The front double wishbone suspension features friction dampers to help cushion your ride.
Track units are attached to the chassis drive shaft via a drive sprocket, and use eight individual rollers.
Track units can also swing to help them maintain contact with the surface and give your model vital grip.
The third roller in each track unit is sprung, allowing the unit as a whole to adapt to obstacles underfoot.
Balanced shaft-driven 4WD is on offer thanks to the chassis' TT-02 base, with track units in place of tires.
A polycarbonate chassis cover with wheel well liners helps prevent dirt and dust from getting inside.
The rear double wishbone suspension also features friction dampers to help cushion your ride.
2 link types are included - grouser and standard. Use them in the patterns shown for varying grip levels.
Specifications
Product Type
Plastic Model Assembly Kit
Brand
Tamiya
Scale
1/10
Length
425mm
Width
247mm
Height
199mm
Wheelbase
251mm
Surface Contact
60mm/track
Track Width
39mm
Gear Ratio
8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Separately Required Items (Not Included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
