Tamiya 58721 1/10 1000 TCR BERLINA CORSE (EXCL ESC)MB-01
Tamiya 58721 1/10 1000 TCR BERLINA CORSE (EXCL ESC)MB-01
- Brand: Tamiya
- MPN: Tamiya 58721
- Part #: MDLTMA58721
- UPC:
- Brand: Tamiya
- MPN: Tamiya 58721
- Part #: MDLTMA58721
- UPC:
Features
Great Things Come in Small Packages
The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.
The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Take a look at the model from another angle, showing off the small yet perfectly formed Fiat Abarth 1000 TCR Berlina Corse.
Highlights on the front include a depiction of the chunky radiator/oil cooler, and metal-plated headlight rims.
Separately molded parts are used for the side mirrors, while windshield wipers are a sticker.
A rather unusual sight at the rear: the opened hood, which is also a separately molded part with its props.
The model also depicts parts of the engine for a super realistic look.
Silver color wheels are paired with front 55mm and 60mm radial rear tires.
The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.
The servo is installed in the right-rear of the model, and moves the steering linkage via a link rod.
The four-wheel double wishbone suspension uses symmetrical arms.
Coil sprung dampers come as standard, although you can upgrade them with M-Chassis aluminum dampers if you wish.
The motor mount is assembled as a unit, and secured to the chassis using two screws.
The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.
The flip-up battery holder gives quick access.
Rear double wishbone suspension gives a stable drive.
Suspension elements are also unitized to help with pit and repair work.

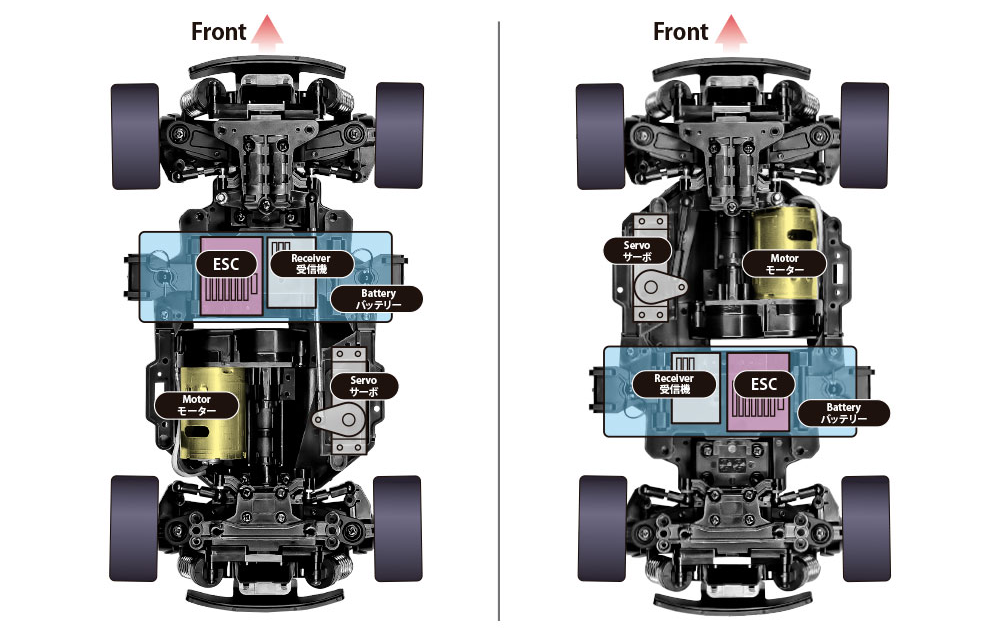

This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Cars
Tamiya Big Scale Series No.46 - 1/12 - Team Lotus Type 72D 1972
Academy 9-15617 1/24 Iconic Korean Brisa Car
Tamiya Sports Car Series No.45 - 1/24 - Honda Ballade Sports...
Italeri 1-3664 1/24 Ford Escort Zakspeed Gr.2
Aoshima - 1/24 - Toyota - Japan Taxi Checker 2017
Tamiya 58721 1/10 1000 TCR BERLINA CORSE (EXCL ESC)MB-01
- Brand: Tamiya
- MPN: Tamiya 58721
- Part #: MDLTMA58721
Product URL: https://www.pbtech.co.nz/product/MDLTMA58721/Tamiya-58721-110-1000-TCR-BERLINA-CORSE-EXCL-ESCMB
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Great Things Come in Small Packages
The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.
The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Take a look at the model from another angle, showing off the small yet perfectly formed Fiat Abarth 1000 TCR Berlina Corse.
Highlights on the front include a depiction of the chunky radiator/oil cooler, and metal-plated headlight rims.
Separately molded parts are used for the side mirrors, while windshield wipers are a sticker.
A rather unusual sight at the rear: the opened hood, which is also a separately molded part with its props.
The model also depicts parts of the engine for a super realistic look.
Silver color wheels are paired with front 55mm and 60mm radial rear tires.
The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.
The servo is installed in the right-rear of the model, and moves the steering linkage via a link rod.
The four-wheel double wishbone suspension uses symmetrical arms.
Coil sprung dampers come as standard, although you can upgrade them with M-Chassis aluminum dampers if you wish.
The motor mount is assembled as a unit, and secured to the chassis using two screws.
The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.
The flip-up battery holder gives quick access.
Rear double wishbone suspension gives a stable drive.
Suspension elements are also unitized to help with pit and repair work.
This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
Specifications
Scale
1/10
Length
374mm
Width
168mm
Height
140mm
Wheelbase
210mm (Short)
Tread (Front & Rear)
140mm
Tire Width/Diameter (Front)
25/55mm
Tire Width/Diameter (Rear)
25/59mm
Chassis Type
Bathtub type
Drive System
Midship motor, rear-wheel drive
Differential
4-bevel differential gear
Steering
3-piece steering tie-rod
Suspension
4-wheel double wishbone suspension
Dampers
Friction dampers
Gear Ratio
5.83:1 (with kit 29T pinion)
Motor
Type 540
Separately Required Items (not included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
