Tamiya 58744 TAMIYA 1/10 AUDI 90 QUATTRO (INCL ESC) TT-02
Tamiya 58744 TAMIYA 1/10 AUDI 90 QUATTRO (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58744
- Part #: MDLTMA58744
- UPC:
- Brand: Tamiya
- MPN: Tamiya 58744
- Part #: MDLTMA58744
- UPC:
Features

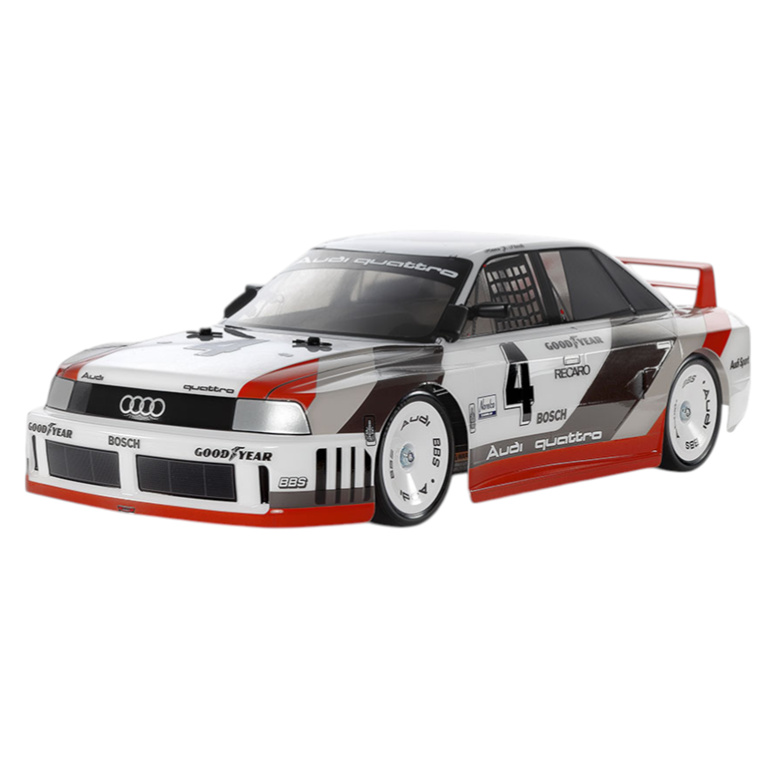

This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.

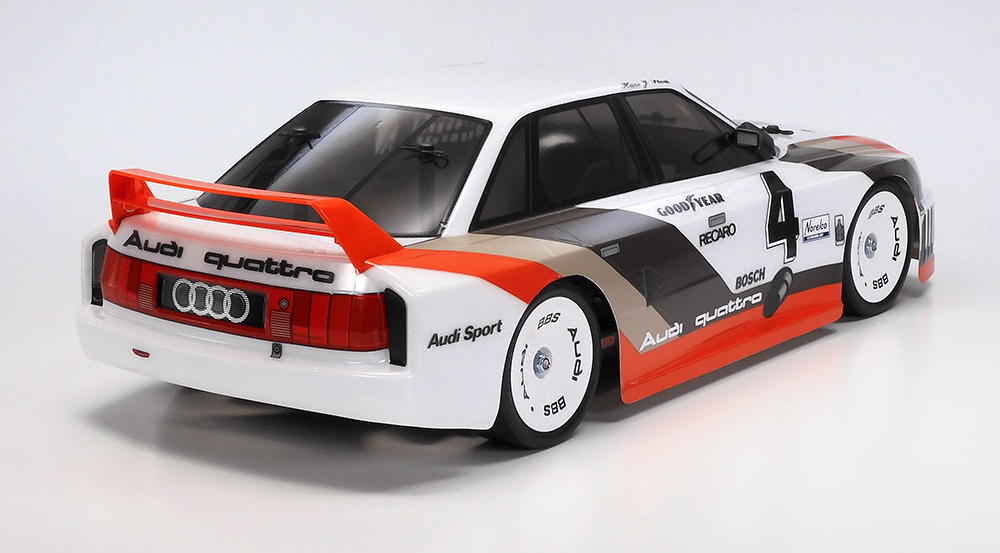

Our polycarbonate body accurately captures the bulky, muscular form of this legendary race car.

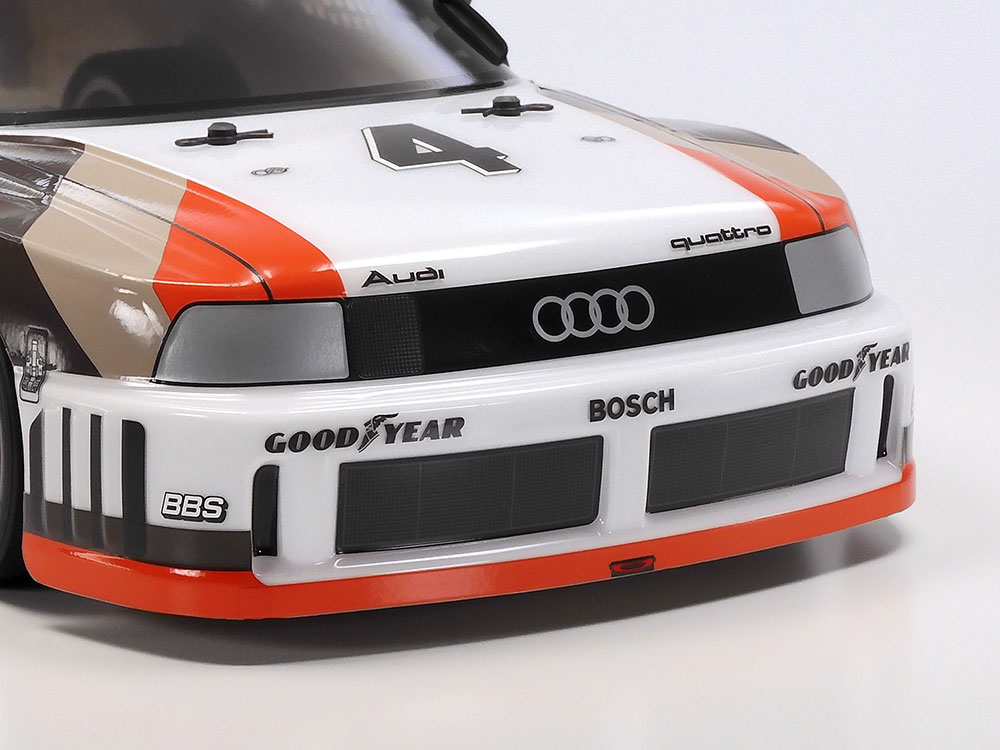

Stickers are used for the mesh on the air dam spoiler sides, front grill, headlights and more.

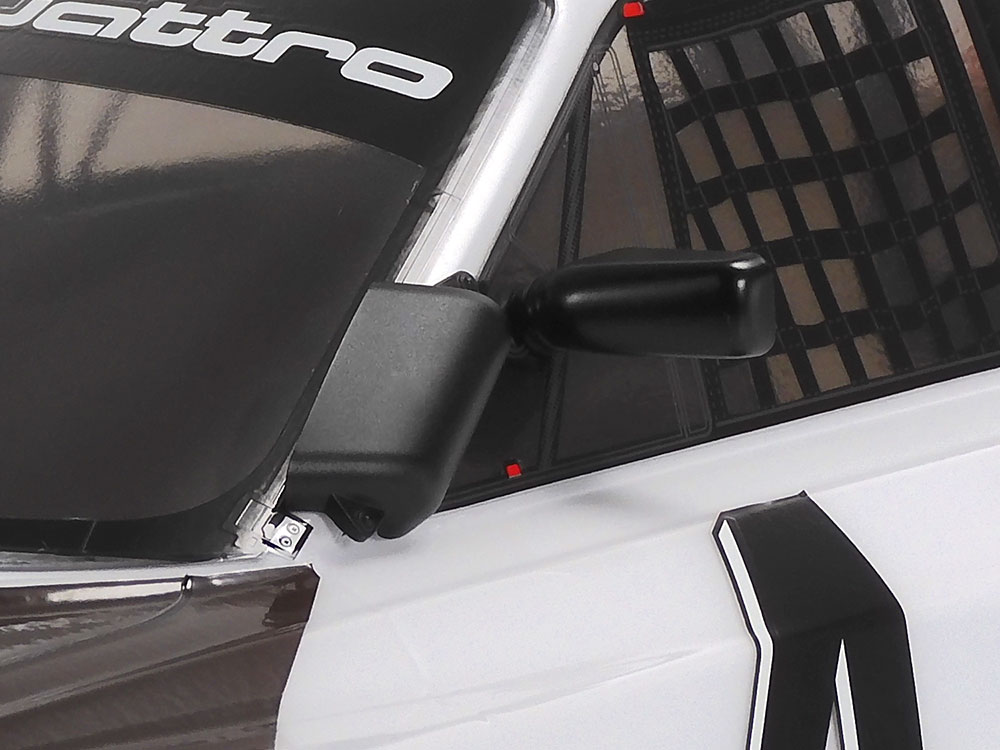

A-pillar mounted side mirrors are separate parts. The window net is a sticker.

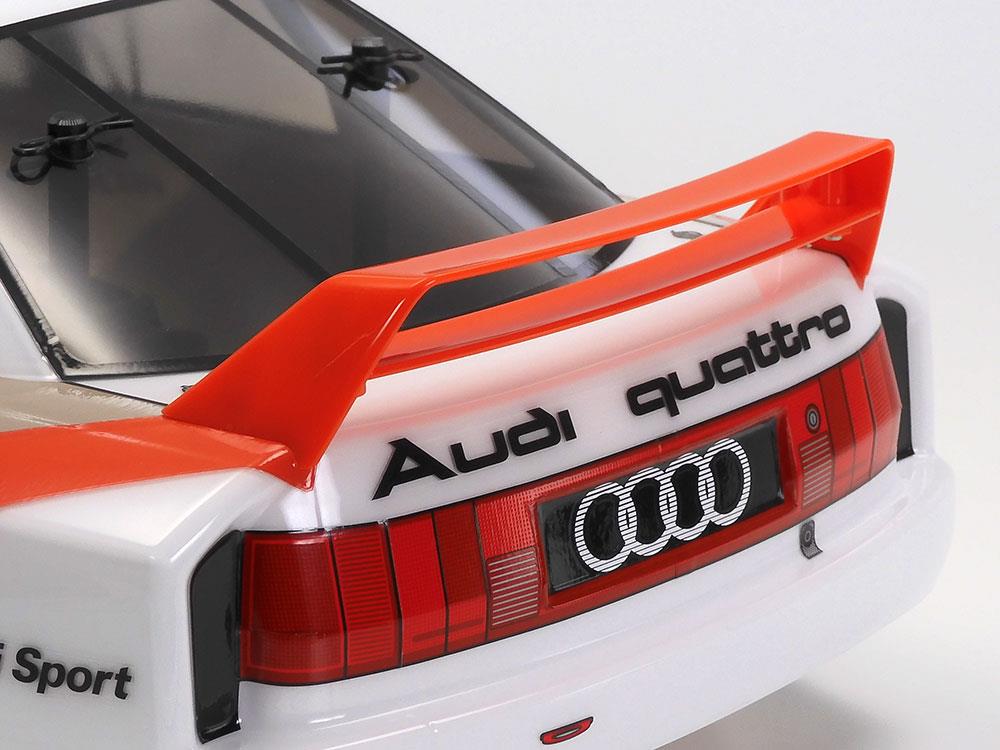

The 2-level rear wing is molded in red ABS plastic.
The flat dish wheels are a dedicated design with a +4mm offset. Logos are stickers.

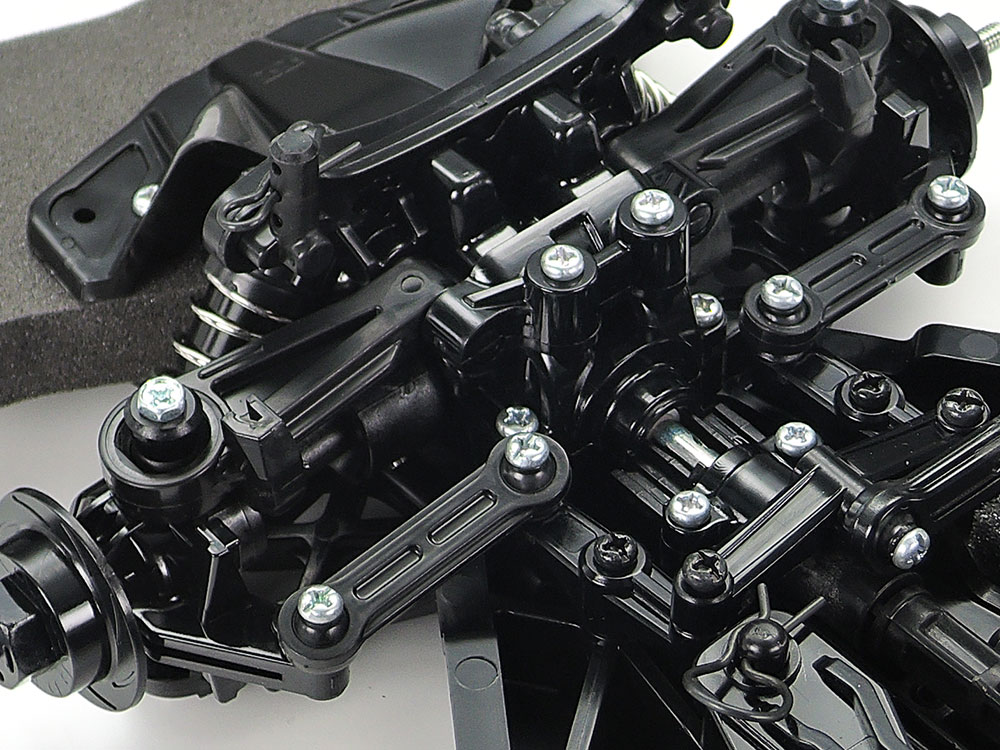

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

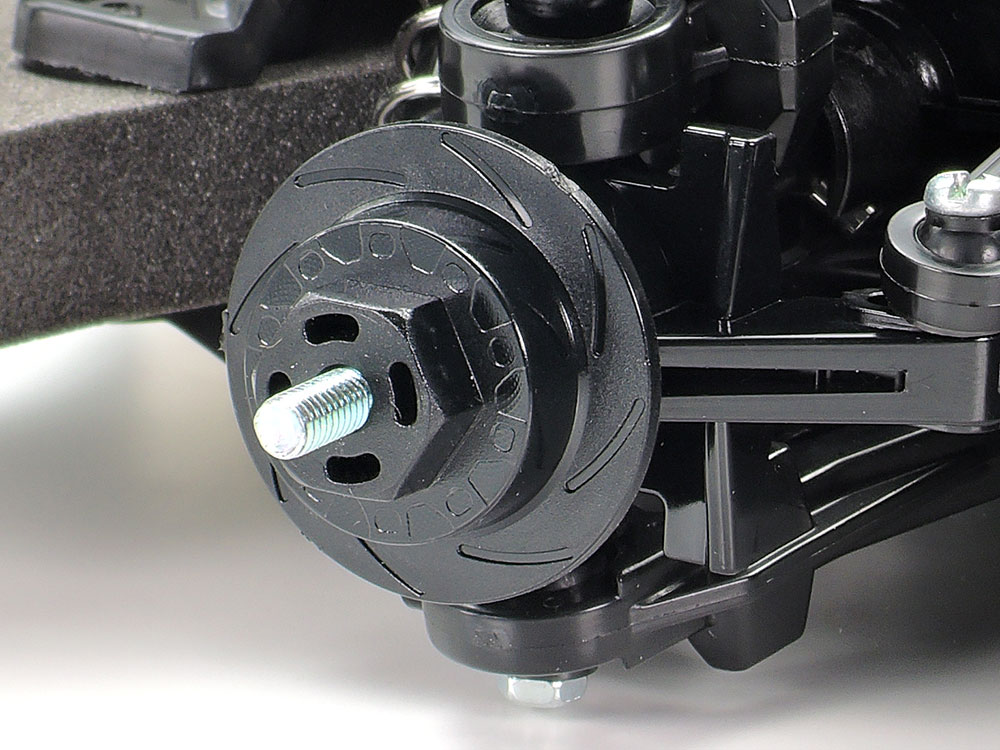

Wheel hubs are shaped to look like brake discs.
Motor cover includes removable cooling duct (not attached in image).
This image gives a closer look at the rear double-wishbone suspension with friction dampers.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Cars
Tamiya Big Scale Series No.46 - 1/12 - Team Lotus Type 72D 1972
Aoshima - 1/24 - Toyota - Japan Taxi Checker 2017
Tamiya 18720 MINI 4WD K4 TASCHEL (FM-A)
Revell RV05664 007 GIFT SET 1/24 MUSTANG MACH-1
Academy 9-15617 1/24 Iconic Korean Brisa Car
Tamiya 58744 TAMIYA 1/10 AUDI 90 QUATTRO (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58744
- Part #: MDLTMA58744
Product URL: https://www.pbtech.co.nz/product/MDLTMA58744/Tamiya-58744-TAMIYA-110-AUDI-90-QUATTRO-INCL-ESC-T
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.
Our polycarbonate body accurately captures the bulky, muscular form of this legendary race car.
Stickers are used for the mesh on the air dam spoiler sides, front grill, headlights and more.
A-pillar mounted side mirrors are separate parts. The window net is a sticker.
The 2-level rear wing is molded in red ABS plastic.
The flat dish wheels are a dedicated design with a +4mm offset. Logos are stickers.
Resin ball links in the steering linkage joints make for smooth, comfortable motion.
Wheel hubs are shaped to look like brake discs.
Motor cover includes removable cooling duct (not attached in image).
This image gives a closer look at the rear double-wishbone suspension with friction dampers.
Specifications
Product Type
Plastic model assembly kit
Brand
Tamiya
Scale
1/10
Length
446mm
Width
192mm
Height
127mm
Wheelbase
251mm
Tire Width/Diameter
26/66mm (front and rear)
Motor Type
Type 540
Gear ratio
8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Separately Required Items (Not Included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
