Tamiya 58748 TAMIYA 1/10 VW GOLF II GTi (INCL ESC) MB-01
Out of stock
Tamiya 58748 TAMIYA 1/10 VW GOLF II GTi (INCL ESC) MB-01
- Brand: Tamiya
- MPN: Tamiya 58748
- Part #: MDLTMA58748
- UPC:
- Brand: Tamiya
- MPN: Tamiya 58748
- Part #: MDLTMA58748
- UPC:
Features
The FF drivetrain Golf is one of Volkswagen's most iconic cars. From its first appearance in 1974, the Volkswagen Golf has continued to develop and lead the worldwide compact car class. In 1986, the Golf II GTI 16V was added to the second-generation model Golf II lineup which had made its debut in 1983. With a 1,781cc inline-4 DOHC 16-valve engine, a tuned car took part in global rally races, in 1986 becoming class champion. This R/C model assembly kit recreates that car, with the iconic form captured by a polycarbonate body and separate parts for headlight cases plus side mirrors. Stickers are included to add further detail to the body.
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a front-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
- Bathtub type chassis
- Front-wheel drive
- 4-bevel differential gear
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Friction dampers
- Type 540 motor
- ESC included

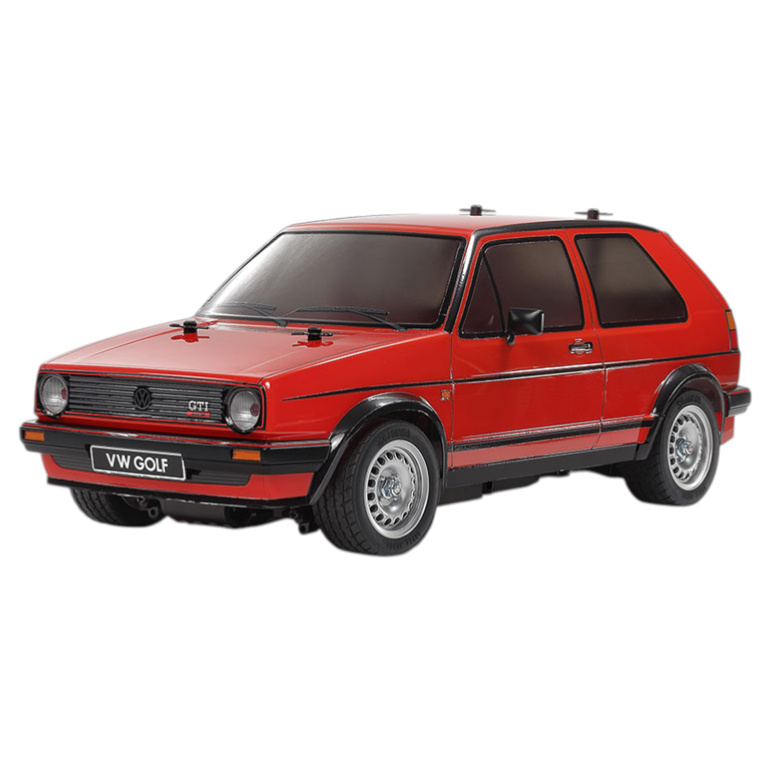

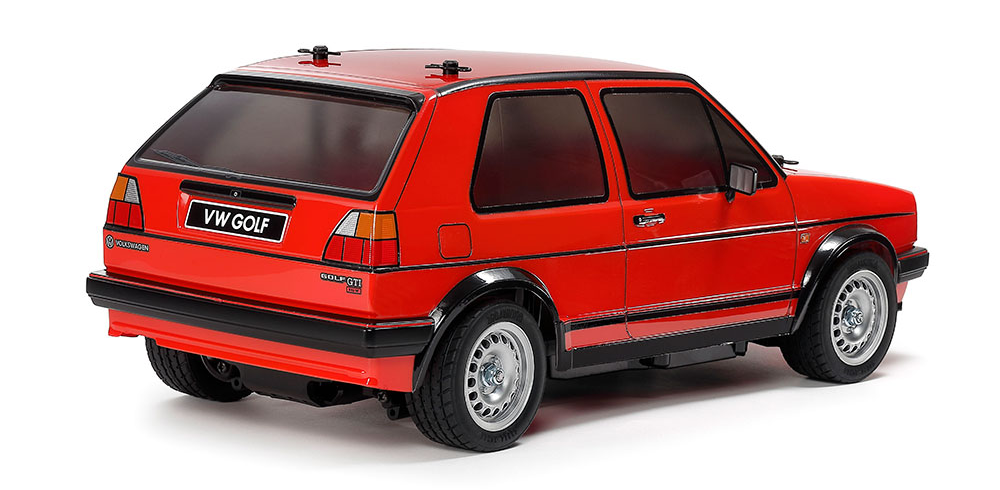

The iconic Golf form is captured in style.

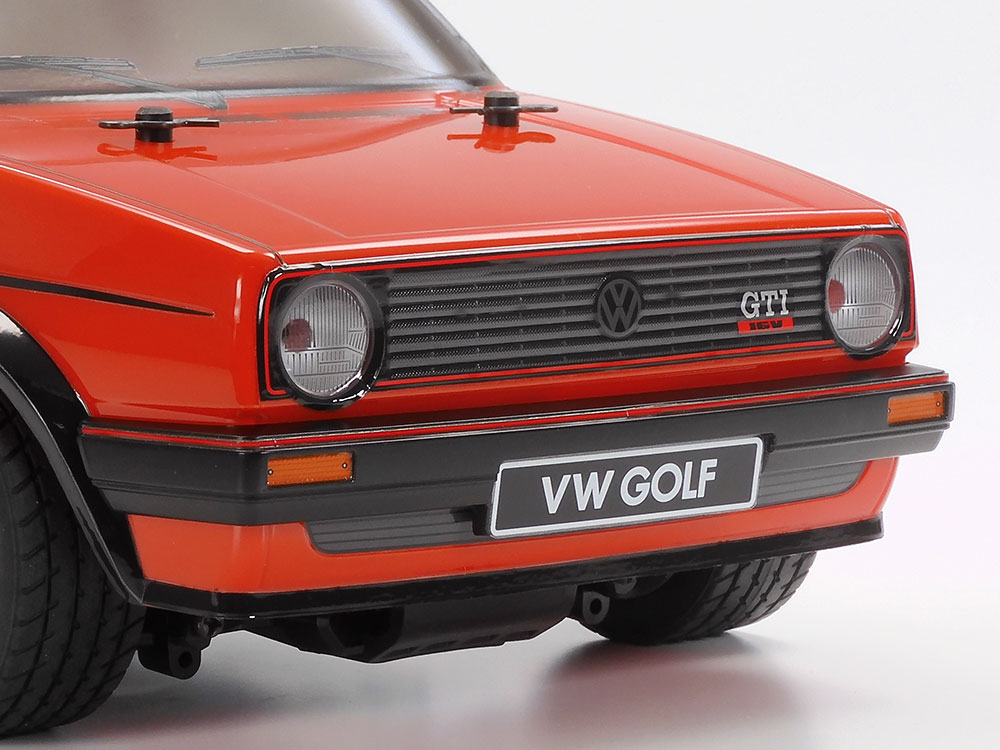

Headlights can be lit up with separately sold LEDs. The front bumper is a separately molded part.

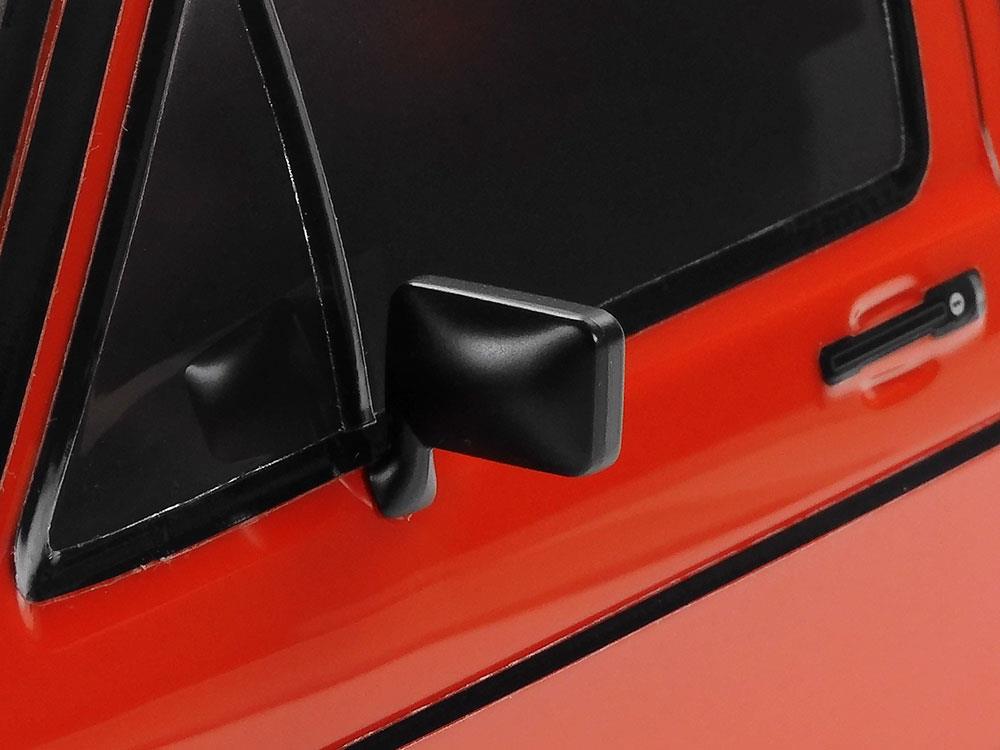

Blocky side mirrors have stickers to recreate the mirror surface.

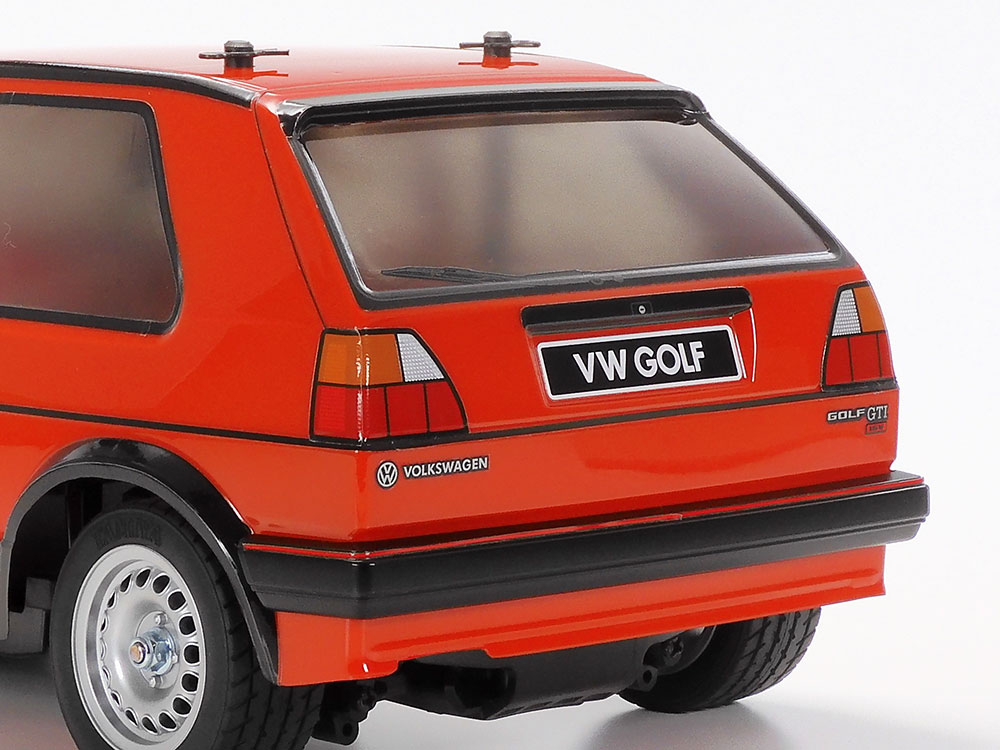

Taillights are also compatible with separately sold LEDs, and the rear bumper too is a separate part.

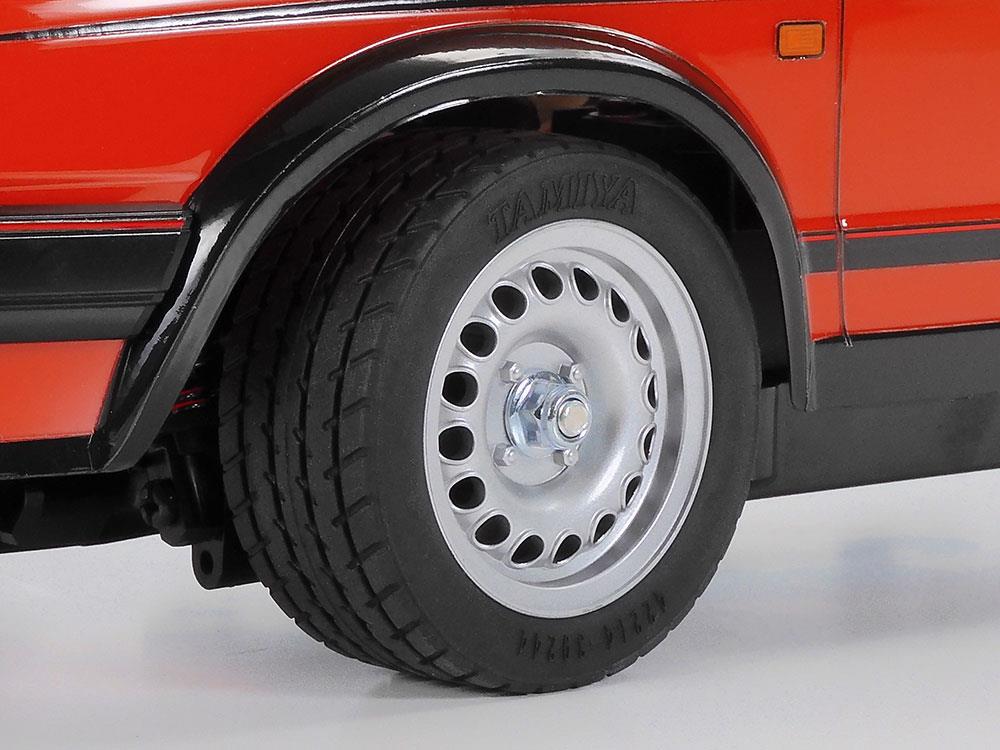

Dish wheels are paired with treaded 60D radial tires. Stickers recreate black fender arches.

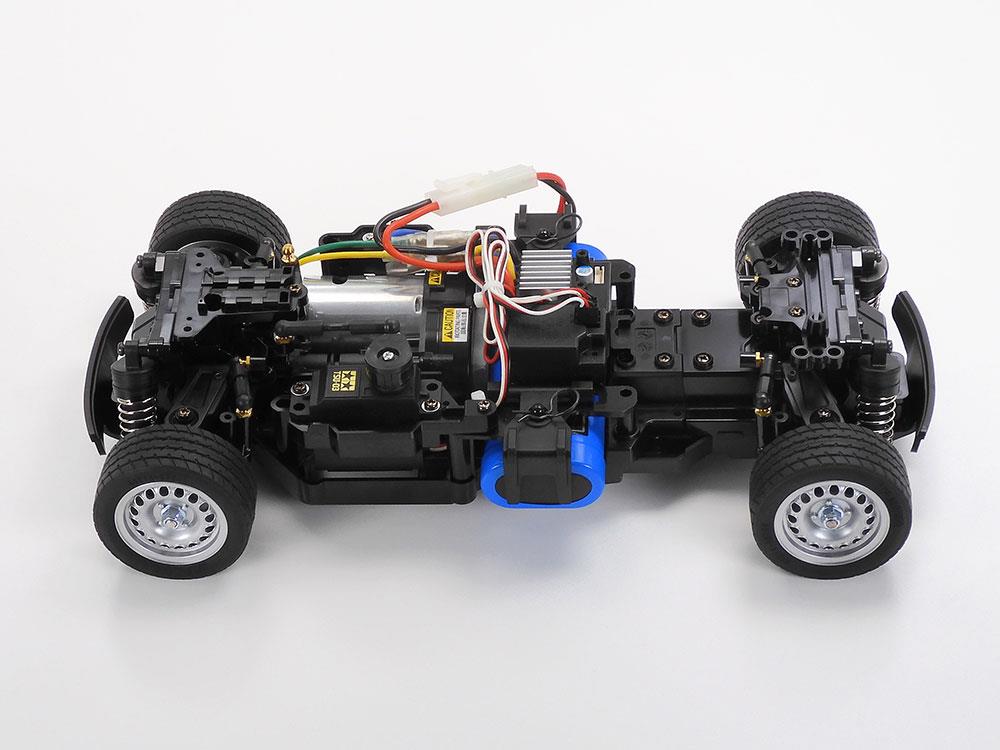

The compact MB-01 chassis. For this model, it is assembled with a long wheelbase: 239mm.

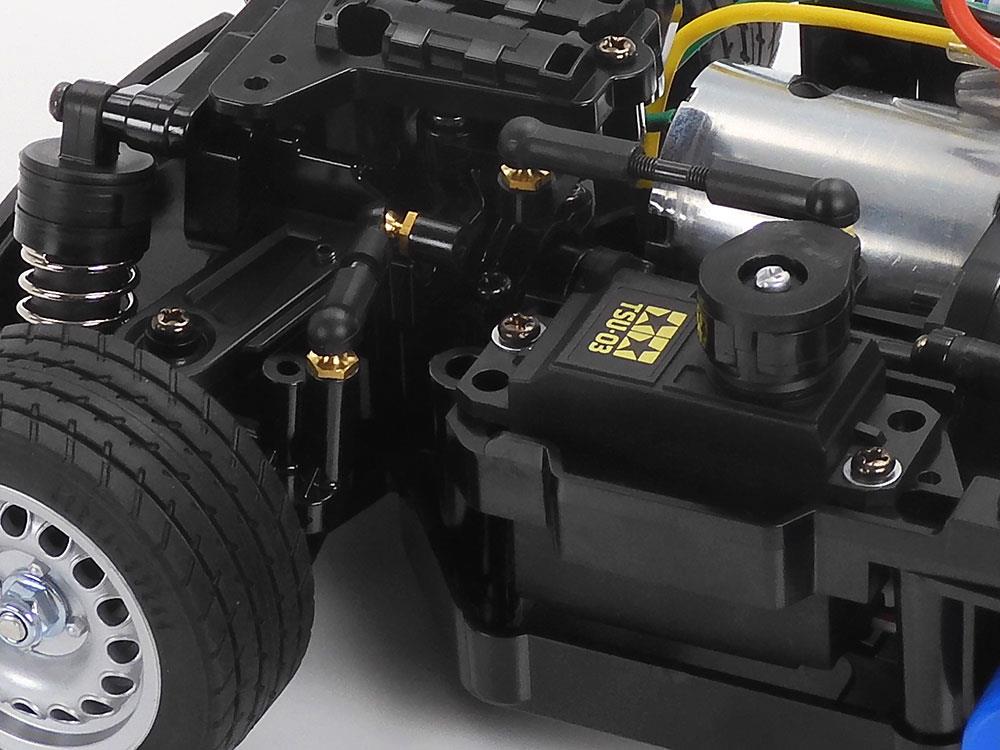

The servo is installed in the front-left of the model.

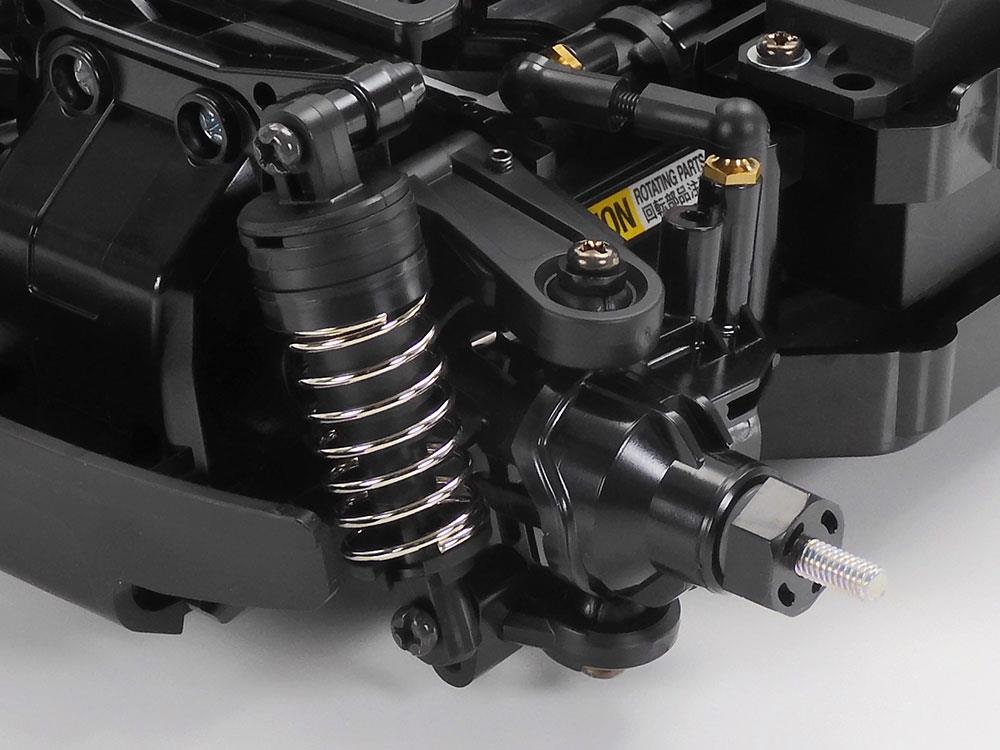

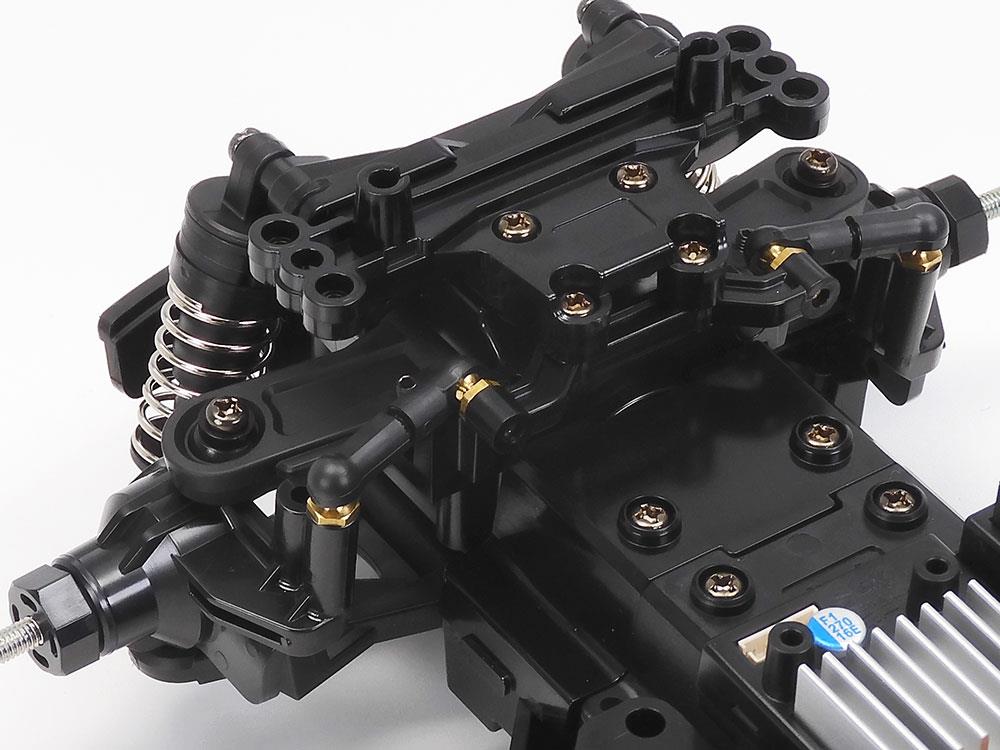

The four-wheel double wishbone suspension uses symmetrical arms.
The motor resides in the front-right, with power going to the wheels via propeller shaft and the front differential.

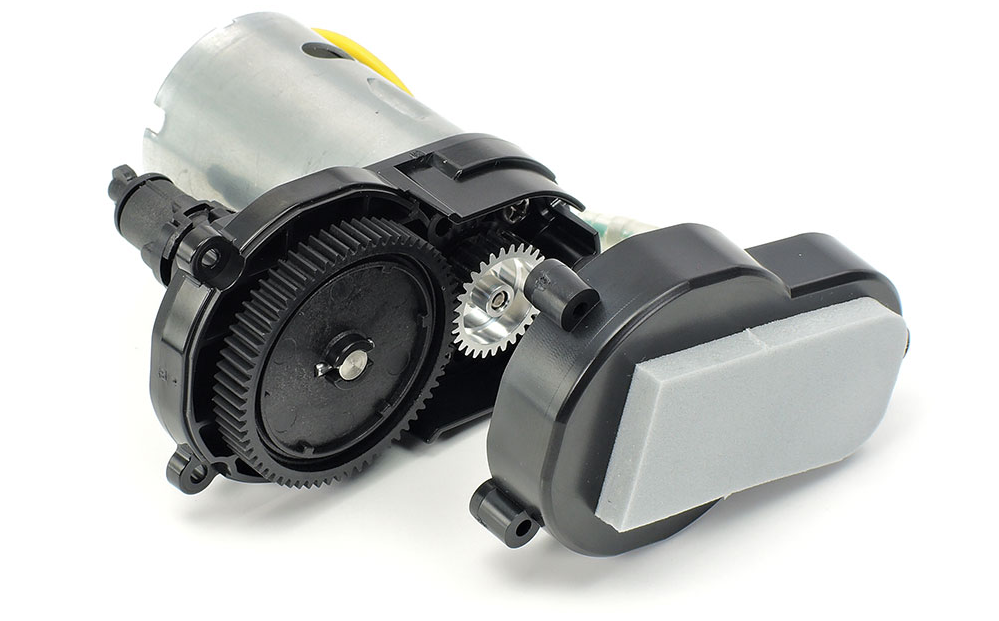

The motor mount is assembled as a unit, and secured to the chassis using two screws.

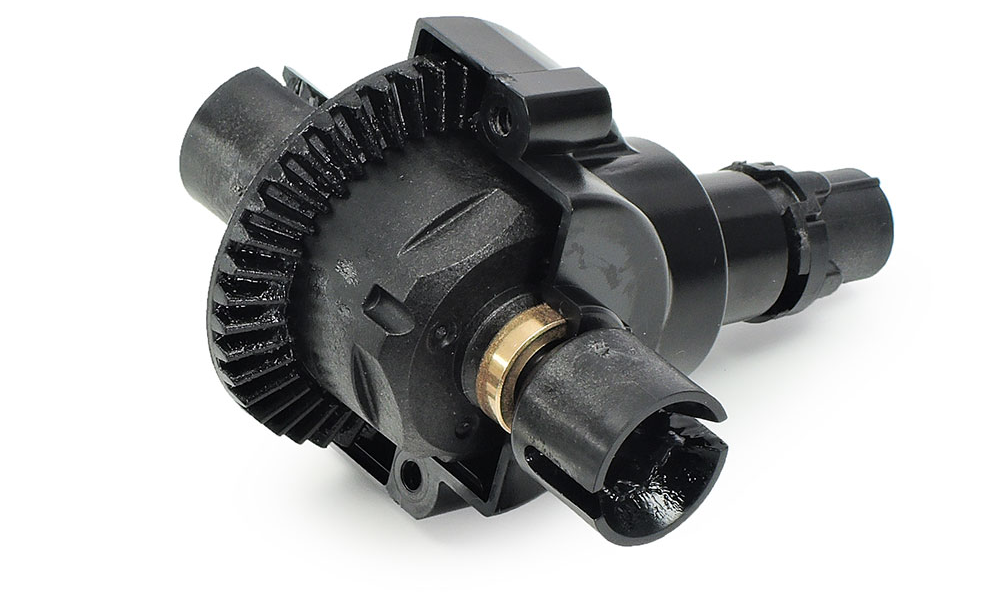

The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.

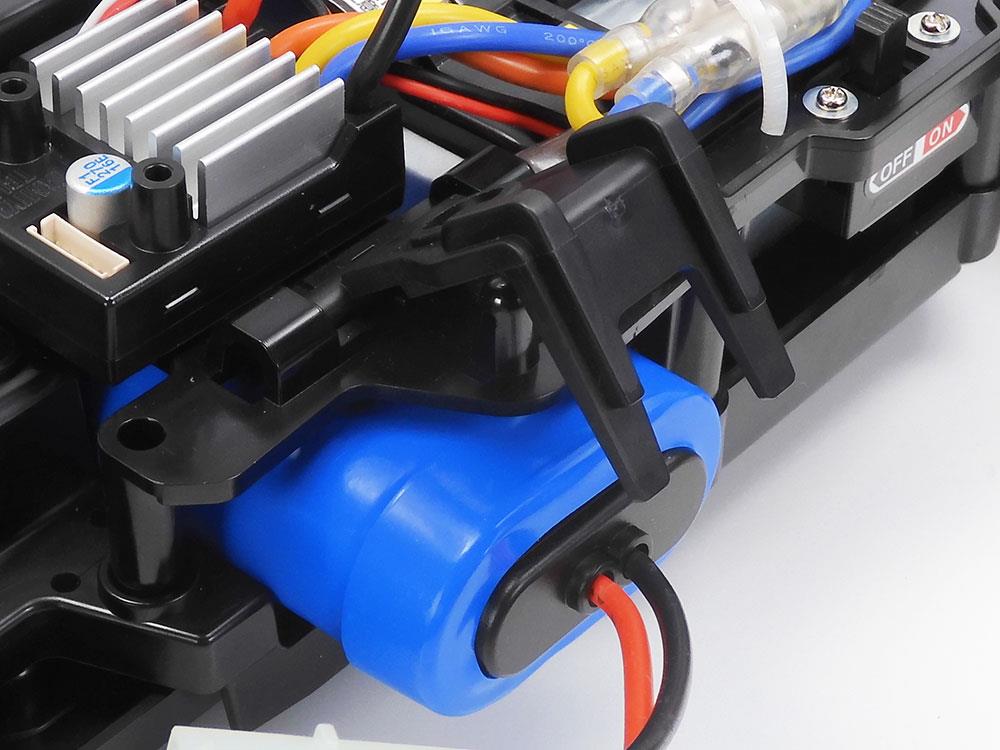

The flip-up battery holder gives quick access.
The sub-deck spacer makes the chassis wheelbase 239mm.

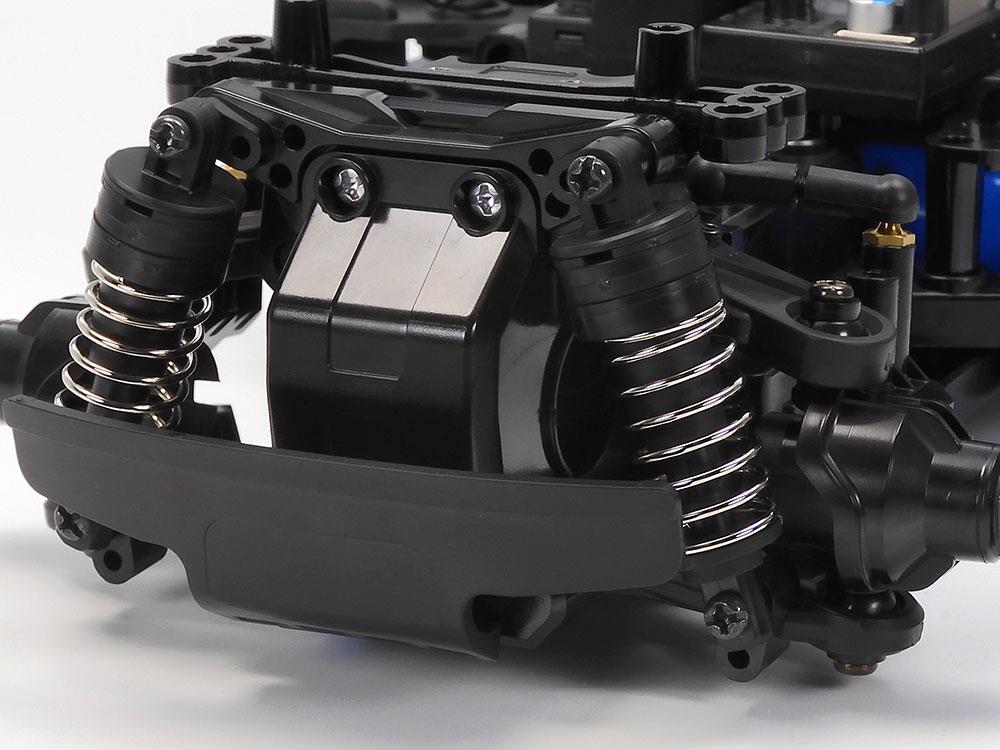

Coil sprung dampers come as standard.

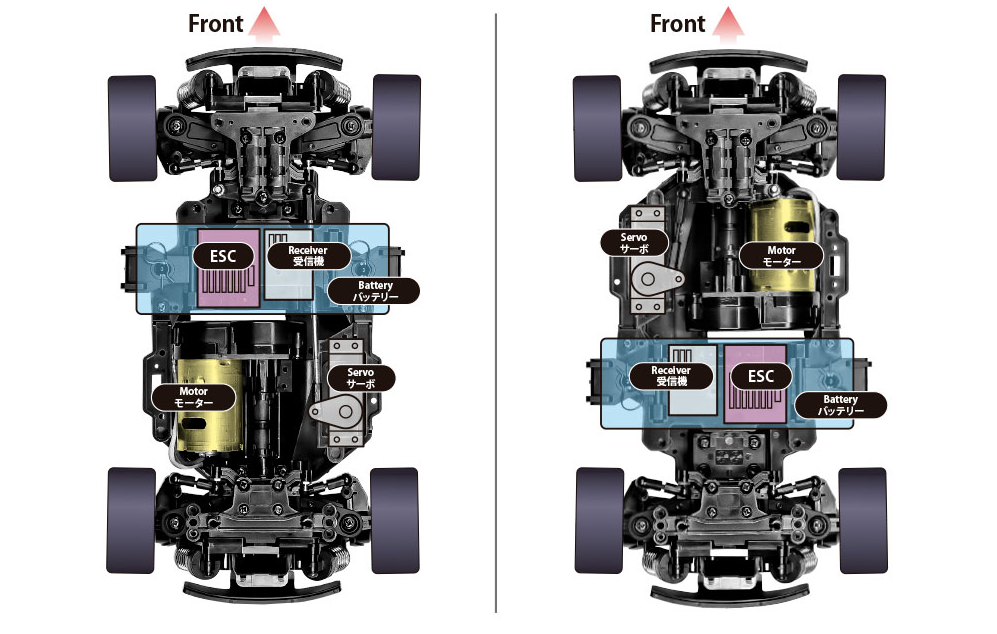

This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Cars
Tamiya Big Scale Series No.46 - 1/12 - Team Lotus Type 72D 1972
Aoshima - 1/24 - Toyota - Japan Taxi Checker 2017
Tamiya 18720 MINI 4WD K4 TASCHEL (FM-A)
Academy 9-15617 1/24 Iconic Korean Brisa Car
Zvezda 1/43 Emergency Rescue Service UAZ 3909
Tamiya 58748 TAMIYA 1/10 VW GOLF II GTi (INCL ESC) MB-01
- Brand: Tamiya
- MPN: Tamiya 58748
- Part #: MDLTMA58748
Product URL: https://www.pbtech.co.nz/product/MDLTMA58748/Tamiya-58748-TAMIYA-110-VW-GOLF-II-GTi-INCL-ESC-MB
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The FF drivetrain Golf is one of Volkswagen's most iconic cars. From its first appearance in 1974, the Volkswagen Golf has continued to develop and lead the worldwide compact car class. In 1986, the Golf II GTI 16V was added to the second-generation model Golf II lineup which had made its debut in 1983. With a 1,781cc inline-4 DOHC 16-valve engine, a tuned car took part in global rally races, in 1986 becoming class champion. This R/C model assembly kit recreates that car, with the iconic form captured by a polycarbonate body and separate parts for headlight cases plus side mirrors. Stickers are included to add further detail to the body.
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a front-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
- Bathtub type chassis
- Front-wheel drive
- 4-bevel differential gear
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Friction dampers
- Type 540 motor
- ESC included
The iconic Golf form is captured in style.
Headlights can be lit up with separately sold LEDs. The front bumper is a separately molded part.
Blocky side mirrors have stickers to recreate the mirror surface.
Taillights are also compatible with separately sold LEDs, and the rear bumper too is a separate part.
Dish wheels are paired with treaded 60D radial tires. Stickers recreate black fender arches.
The compact MB-01 chassis. For this model, it is assembled with a long wheelbase: 239mm.
The servo is installed in the front-left of the model.
The four-wheel double wishbone suspension uses symmetrical arms.
The motor resides in the front-right, with power going to the wheels via propeller shaft and the front differential.
The motor mount is assembled as a unit, and secured to the chassis using two screws.
The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.
The flip-up battery holder gives quick access.
The sub-deck spacer makes the chassis wheelbase 239mm.
Coil sprung dampers come as standard.
This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
Specifications
Product Type
Plastic model assembly kit
Brand
Tamiya
Scale
1/10
Length
383mm
Width
170mm
Height
138mm
Wheelbase
239mm (Long)
Tread
140mm (front & rear)
Tire Width/Diameter
25/59mm (front and rear)
Gear ratio
5.83:1 (using kit 29T pinion)
Separately Required Items (Not Included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
