Tamiya 58749 TAMIYA 1/10 AUDI R8 LEMANS (INCL ESC) TT-02
Out of stock
Tamiya 58749 TAMIYA 1/10 AUDI R8 LEMANS (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58749
- Part #: MDLTMA58749
- UPC:
- Brand: Tamiya
- MPN: Tamiya 58749
- Part #: MDLTMA58749
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Cars





Tamiya 58749 TAMIYA 1/10 AUDI R8 LEMANS (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58749
- Part #: MDLTMA58749

Product URL: https://www.pbtech.co.nz/product/MDLTMA58749/Tamiya-58749-TAMIYA-110-AUDI-R8-LEMANS-INCL-ESC-TT
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Based upon the Audi sportscar R8 and conforming to GT3 regulations, the Audi R8 LMS was announced in 2008. A 5.2-liter V10 midship engine capable of over 500hp was mounted in a lightweight aluminum space frame. Body sections were modified, and the drivetrain was changed from 4WD to a rear-wheel drive system. From 2009 onward, this car was delivered to racing teams around the world and achieved many racing successes. This R/C model assembly kit recreates that car, with a polycarbonate body and separately molded rear wing and side mirror parts. The TT-02 chassis is a trusted platform, and here is assembled with wide rear tread.
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black fin design wheels use semi-pneumatic slick tires.
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel plastic differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Type 540 motor
- ESC included

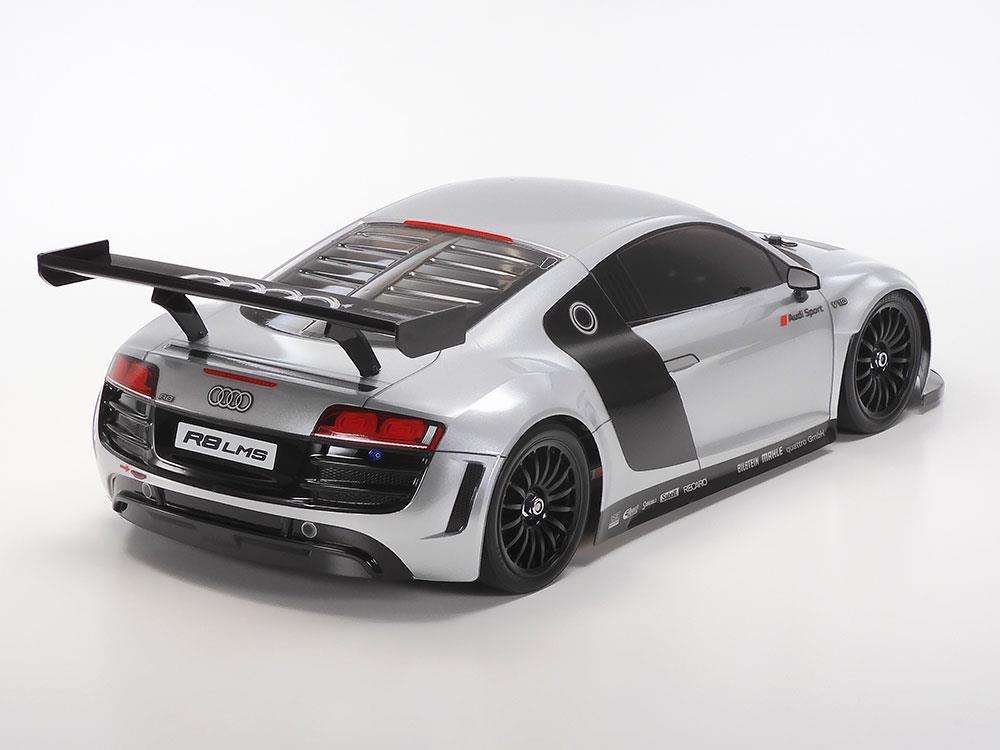

The powerful form of the car is recreated by a lightweight and durable polycarbonate body.

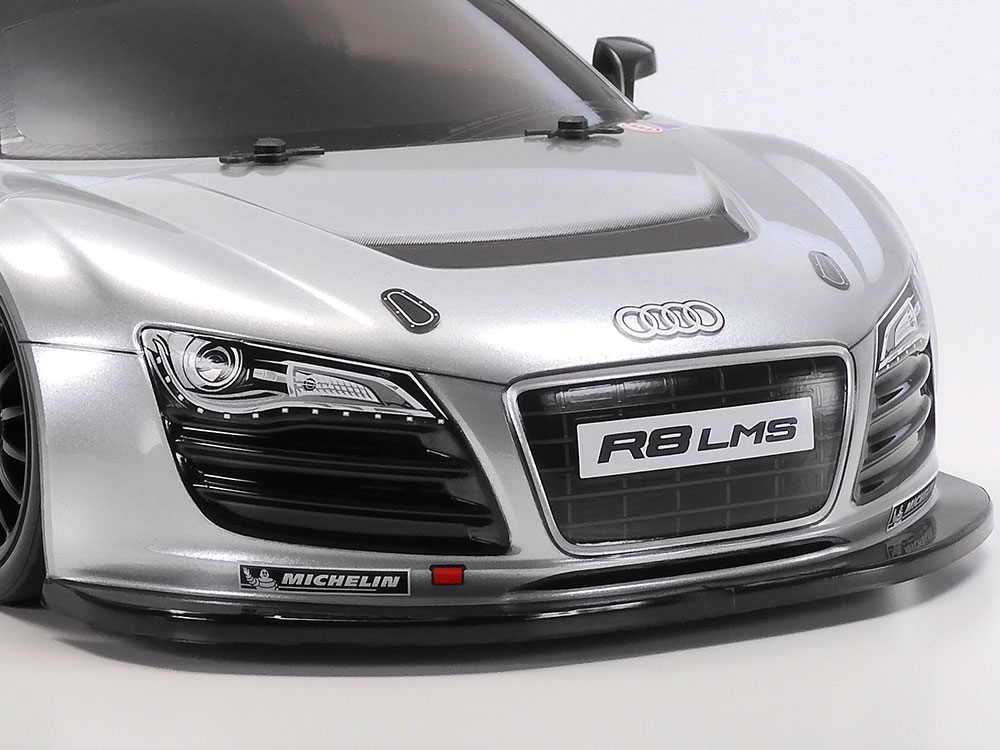

Stickers are used to depict the front grille, headlights and bonnet air duct.

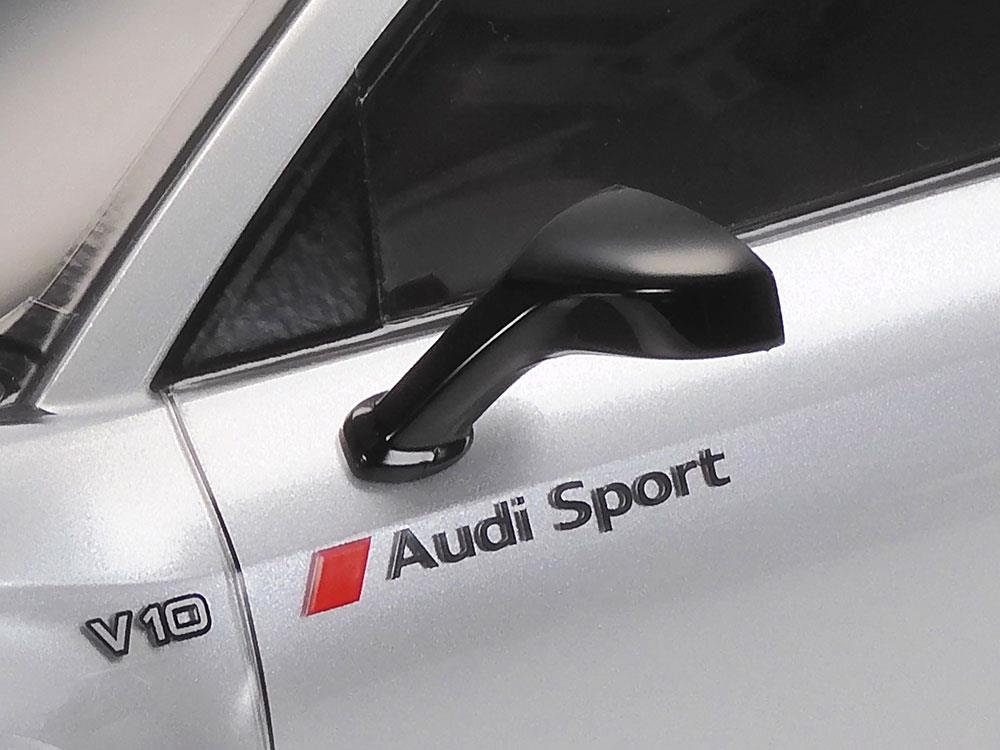

Distinctive side mirrors are separately molded parts, with stickers for the mirror surfaces.

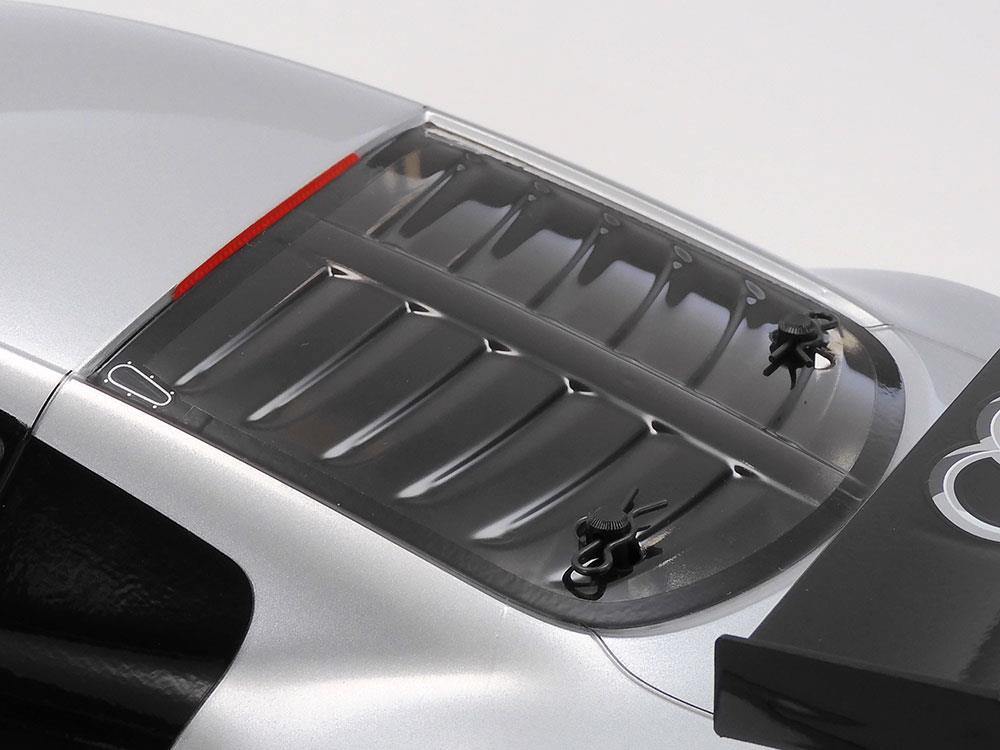

The rear window features depictions of the louver shapes. A sticker recreates the top brake lamp.
The rear wing is a separately molded part, with a sticker for the Audi emblem.

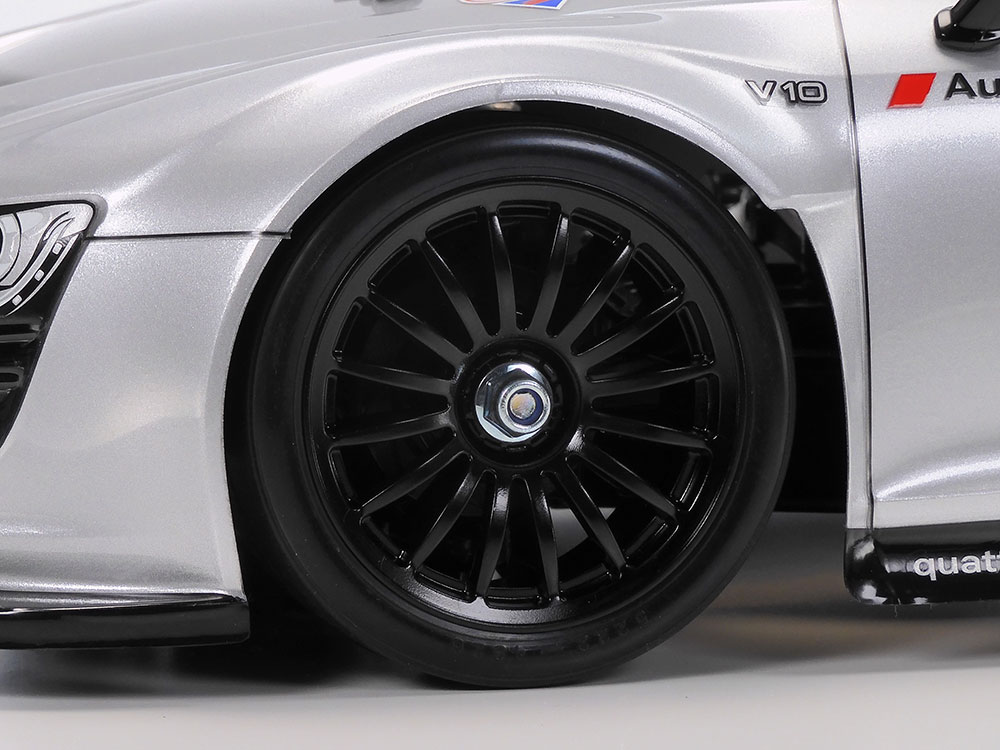

Black wheels have 16 fin spokes and are paired with slick tires.

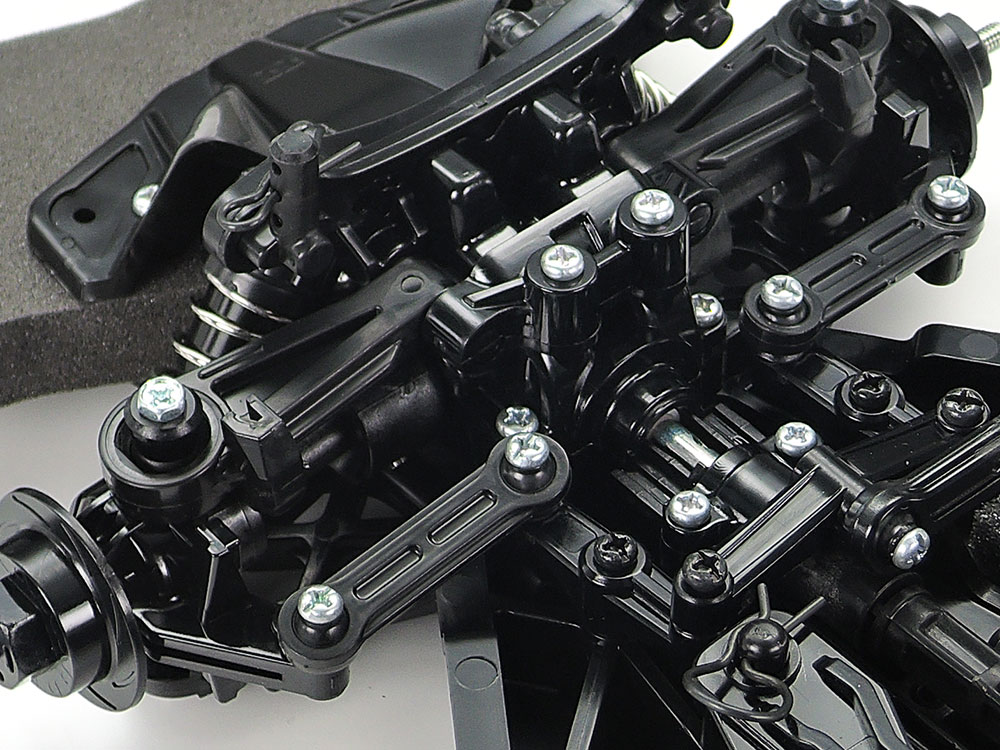

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

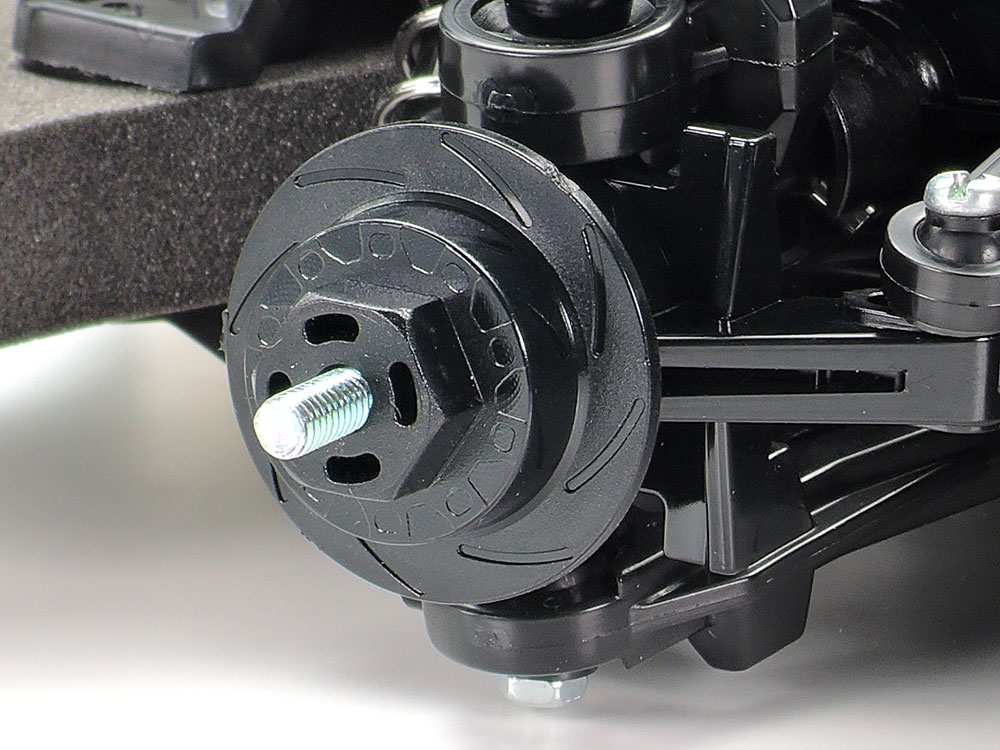

Wheel hubs are shaped to look like brake discs.
Motor cover includes removable cooling duct (not attached in this image).
This image gives a closer look at the rear double-wishbone suspension with friction dampers.
Specifications
Product Type
Plastic model assembly kit
Brand
Tamiya
Scale
1/10
Length
434mm
Width
194mm
Height
120mm
Wheelbase
257mm
Tire Width/Diameter
27/67mm (front & rear)
Motor Type
Type 540
Gear ratio
8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Separately Required Items (Not Included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
