DJI Mic 3 Receiver
Out of stock
- Brand: DJI
- MPN: 190021141889
- Part #: MICDJI3004
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Microphones





DJI Mic 3 Receiver
- Brand: DJI
- MPN: 190021141889
- Part #: MICDJI3004

Product URL: https://www.pbtech.co.nz/product/MICDJI3004/DJI-Mic-3-Receiver
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications

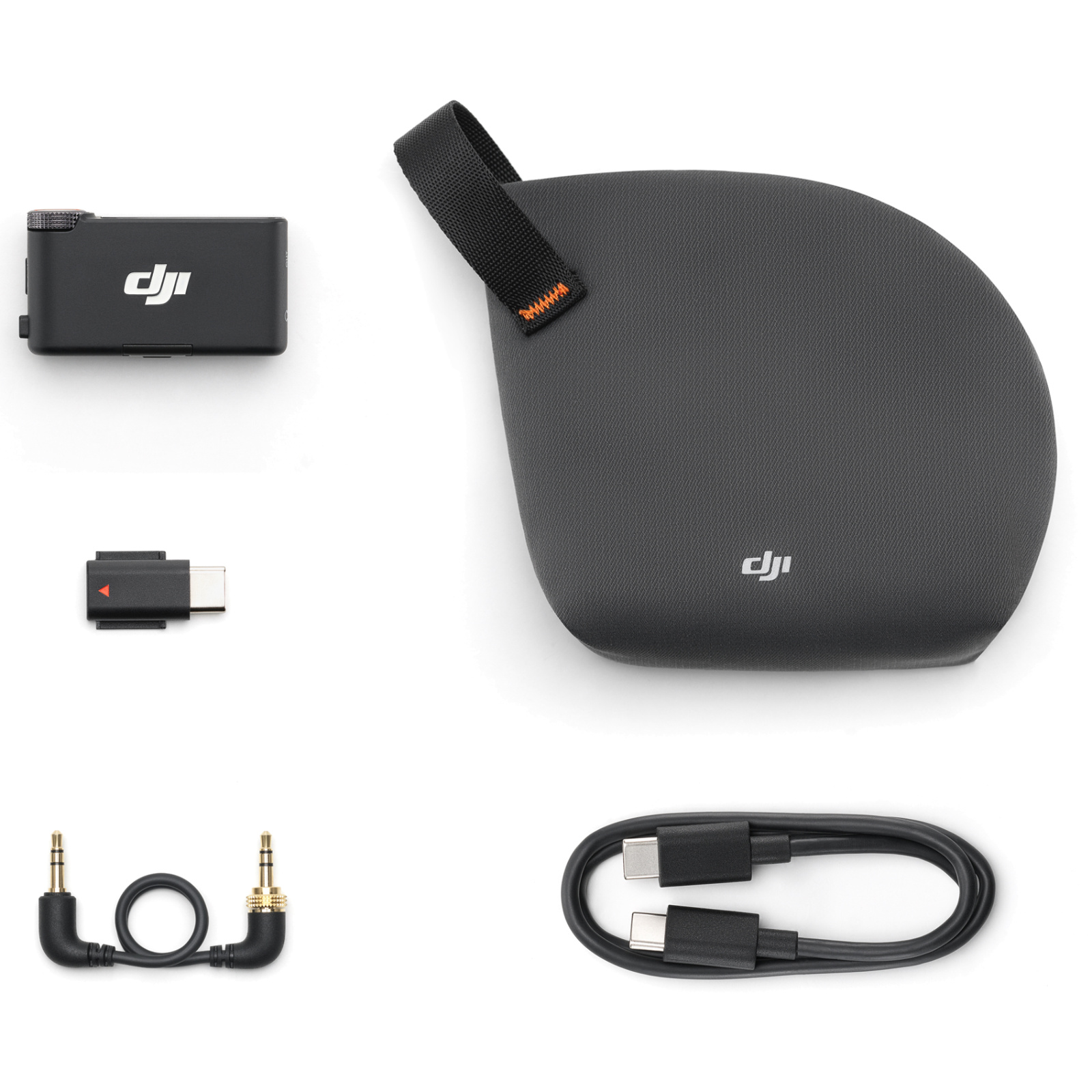

In the Box
DJI Mic 3 Receiver
DJI Mic 3 Mobile Phone Adapter (USB-C)
USB-C to USB-C Data Cable
DJI Mic 3 Locking Audio Adapter Cable (3.5mm TRS to TRS)
DJI Mic 3 Compact Carrying Pouch
DJI Mic 3 Receiver
Model
DMR03
Dimensions
53.85×28.69×22.00 mm (L×W×H)
Weight
25.1 g
Wireless Mode
Wi-Fi: 802.11 a/b/g/n/ac/ax
SDR: Customizable
Equivalent Isotropic Radiated Power (EIRP)
Wi-Fi:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
SDR:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Operating Frequency
Wi-Fi:
2.400-2.4835 GHz
5.725-5.850 GHz
SDR:
2.400-2.4835 GHz
5.150-5.250 GHz
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Bluetooth Protocol
Bluetooth 5.4
Bluetooth Operating Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
BLE: < 10 dBm
Battery Type
Li-ion
Battery Capacity
275 mAh
Battery Energy
1.065 Wh
Battery Voltage
3.87 V
Charging Specification
Max 5 V
Charging Temperature
5° to 45° C (41° to 113° F)
Operating Temperature
-10° to 45° C (14° to 113° F)
Charging Time
Approx. 50 minutes
Operating Time
10 hours
Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
