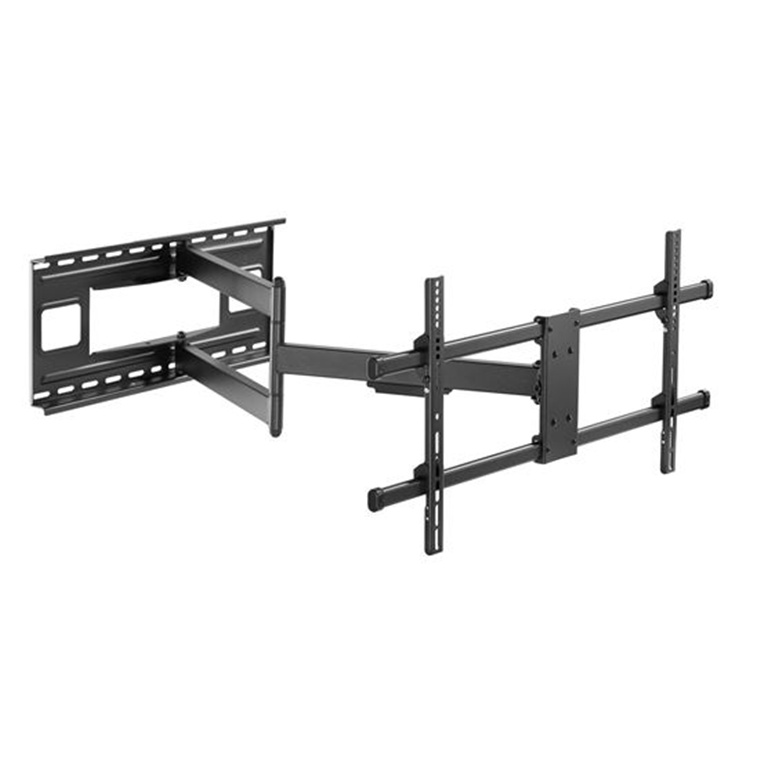

Brateck LPA49-483XLD 43 -80 Extra Long Arm Full Motion Wall Mount Bracket, Max Arm Extension - 1015mm, VESA Support up to: 600x400, Weight Cap, 50Kgs, Black Colour
Brateck LPA49-483XLD 43 -80 Extra Long Arm Full Motion Wall Mount Bracket, Max Arm Extension - 1015mm, VESA Support up to: 600x400, Weight Cap, 50Kgs, Black Colour
- Brand: Brateck
- MPN: LPA49-483XLD
- Part #: MOABRA0455
- UPC:
Similar in-stock products available at PB Tech right now
What PB Tech customers are saying about this product...
See More Reviews"Pros - Solid with strong hinges designed to take a big TV. ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Full Motion Articulating TV Mounts
Brateck LPA49-483XLD 43 -80 Extra Long Arm Full Motion Wall Mount Bracket, Max Arm Extension - 1015mm, VESA Support up to: 600x400, Weight Cap, 50Kgs, Black Colour
- Brand: Brateck
- MPN: LPA49-483XLD
- Part #: MOABRA0455
Product URL: https://www.pbtech.co.nz/product/MOABRA0455/Brateck-LPA49-483XLD-43--80-Extra-Long-Arm-Full-Mo?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
BRATECK 43''-80'' Extra Long Arm Full Motion Wall Mount Bracket. Max Arm Extension - 1015mm. VESA Support up to: 600x400. Weight Cap. 50Kgs. Black Colour.

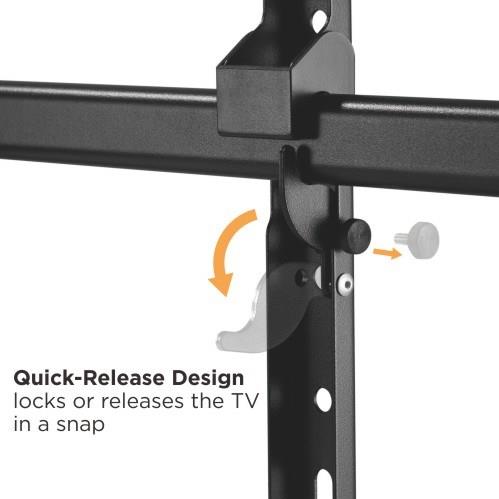

Featuring 1015mm (40") of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge. Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs). TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.





Download data sheet: https://dynamix.co.nz/content/images/PDF/lpa49483xld.pdf
Specifications
Product Category:
Fixed TV Wall Mount
Rank:
Standard
Material:
Steel
Metal Sheet Thickness:
Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet, VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet, VESA Panel THK=0.059" cold-rolled sheet)
Pipe Size:
50x25x1.5mm Square Steel Tube
Surface Finish:
Powder Coating
Colour:
Fine Texture Black
Dimensions:
1015x885x430mm
Fit Screen Size:
43"~80"
Fit Curved TV:
Yes
Mounting Hole Pattern :
VESA Only
VESA Compatible:
200x200, 300x200, 300x300, 400x200, 800x400, 400x300, 400x400, 600x400
Max. VESA:
819x410mm
Weight Capacity:
50kg
Strength Tested:
2 Times Approved
Profile:
82~1015mm
Tilt Range:
+5°~-15°
Swivel Range:
+90°~-90°
Screen Level:
+3°~-3°
Screen Freely Tilting:
Yes
Installation:
Double Stud (406mm/450mm/600mm), Solid Wall
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Direction Indicator:
Yes
Cable Management:
Yes
Bubble Level:
Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package:
Compartment Polybag
