Brateck LP73-69T 60"-120" Heavy Duty Tilt TV Wall Mount Bracket. Supports Max Load 120kgs, Toolless Tilt, Automatic Spring Locks with Quick Release, Open Architecture, Max VESA 900x600. Black

PB Tech price
PB Tech price
$ 48 .70
 +GST
$ 56 .00
 inc GST
$48.70  +GST
$56.00

Brateck LP73-69T 60"-120" Heavy Duty Tilt TV Wall Mount Bracket. Supports Max Load 120kgs, Toolless Tilt, Automatic Spring Locks with Quick Release, Open Architecture, Max VESA 900x600. Black

  • Brand: Brateck
  • MPN: LP73-69T
  • Part #: MOABRA0496
  • UPC:
PB Tech price
$ 48 .70 $ 56 .00
 +GST  inc GST


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$48.70  +GST
$56.00
  • Brand: Brateck
  • MPN: LP73-69T
  • Part #: MOABRA0496
  • UPC:

Max Screen Size Supported

120 inches

Min Screen Size Supported

60 inches

Max Weight Supported

120kg

Features

Brateck 60-120" Heavy Duty Tilt TV Wall Mount Bracket

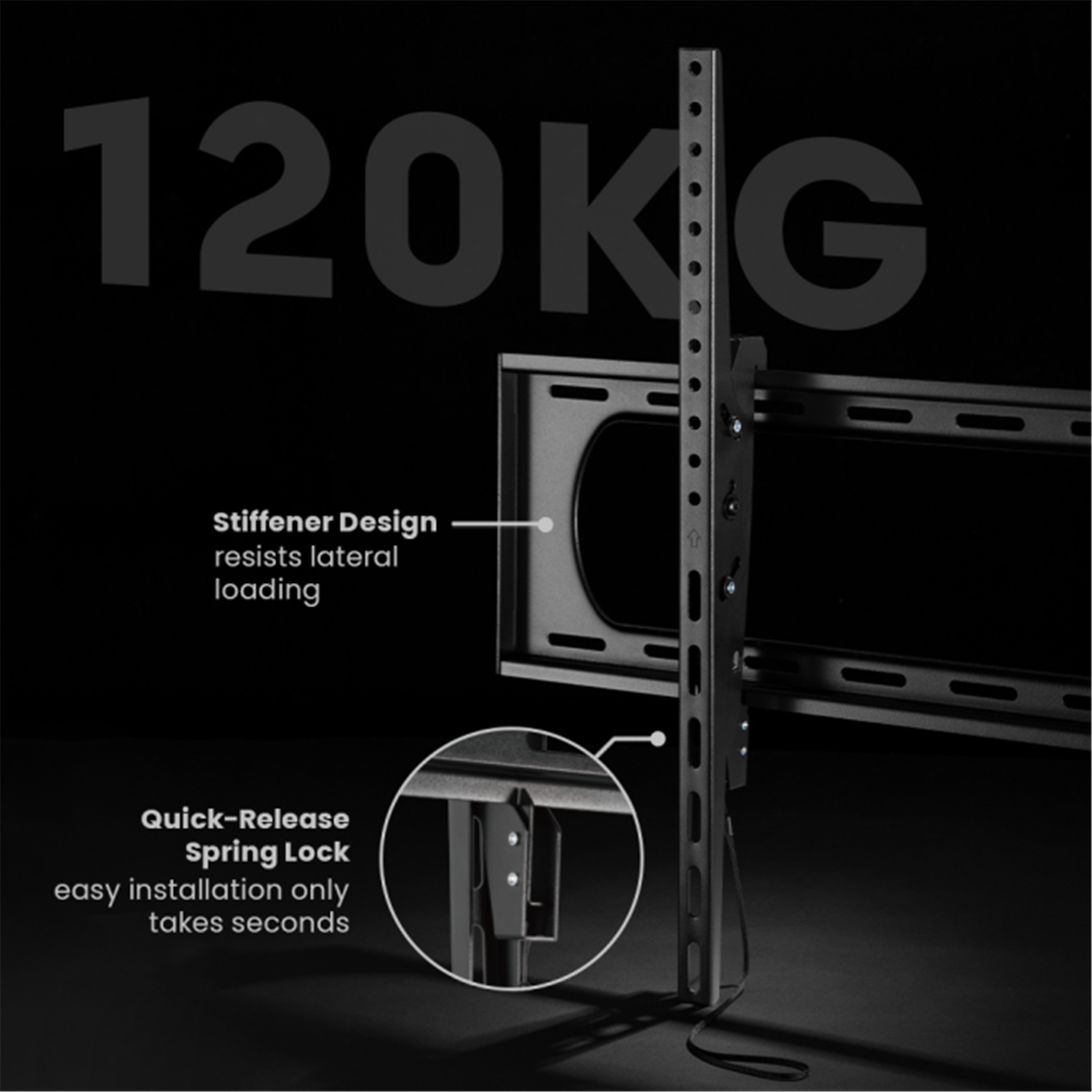

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-69T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg to firmly hold 60"~120" TVs. Ample space in the centre is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install.

- Heavy-Duty Steel Construction: provides extra strength and durability
- Toolless Tilt: allows for effortless positioning
- Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Open Architecture: provides increased ventilation and easier access to wires

How to Install

Specifications

Manufacturer

Brateck

MPN

LP73-69T

Product Category

Tilt TV Wall Mount

Rank

Standard

Material

Steel

Metal Sheet Thickness

Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)

Surface Finish

Powder Coating

Color

Fine Texture Black

Dimensions

80x1005x602mm (3.1"x39.6"x23.7")

Fit Screen Size

60"-120"

Fit Curved TV

Yes

Mounting Hole Pattern

VESA & Universal

VESA Compatible

50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500,800x600,900x600

Max. Mounting Hole

965x602mm

Weight Capacity

120kg (264lbs)

Strength Tested

4 Times Approved

Profile

80mm (3.1")

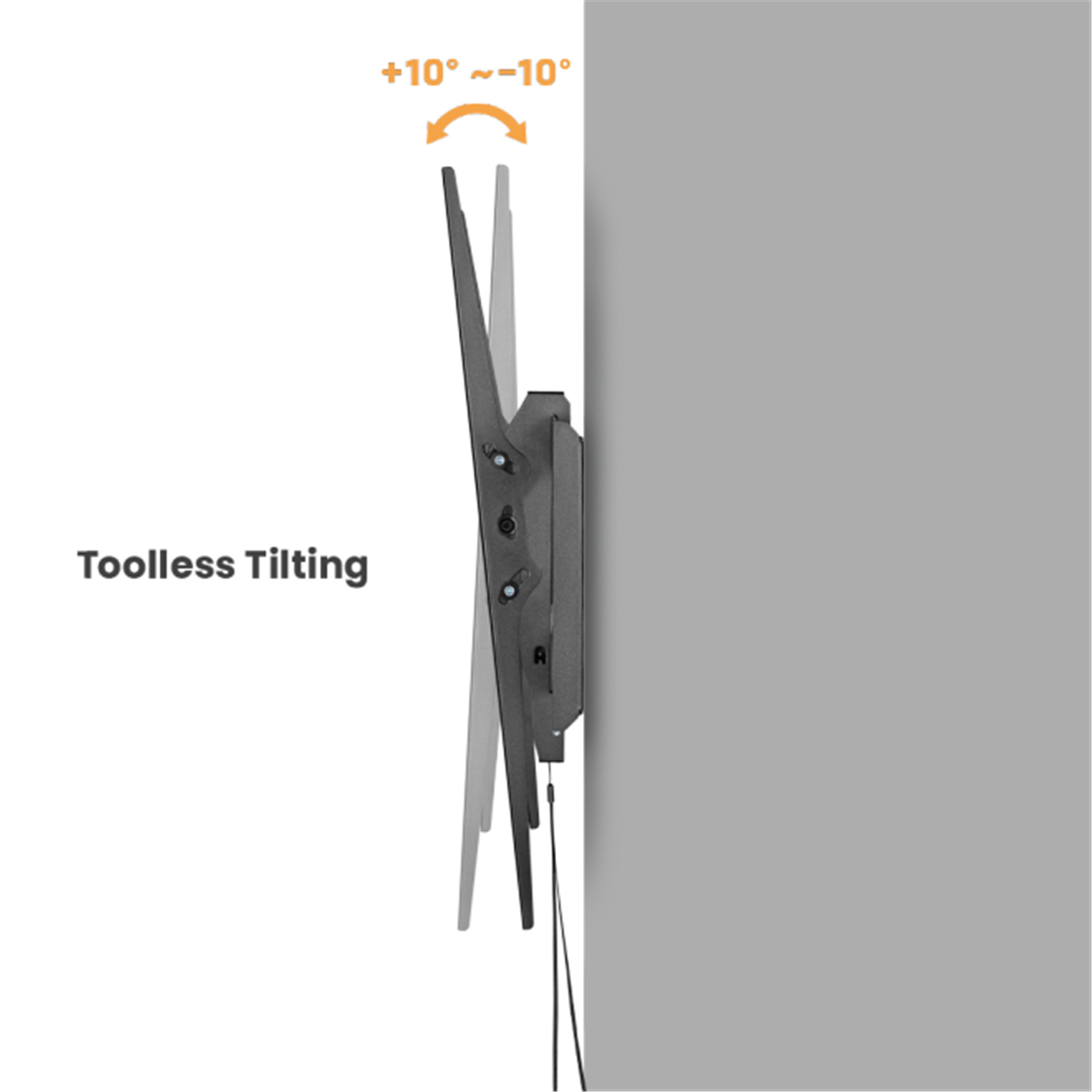

Tilt Range

+10°~-10°

Screen Freely Tilting

Yes

Installation

Solid Wall,Double Stud(406mm/450mm/600mm)

Panel Type

Detachable Panel

Wall Plate Type

Fixed Wall Plate

AV Component Shelf

No

Direction Indicator

Yes

Cable Management

No

Anti-theft

No

Bubble Level

Hook-on Bubble Level(Included in Components Package)

Accessory Kit Package

Normal/Ziplock Polybag,Compartment Polybag

Certification

UL

Silk Screen

Can be silkscreen printed

Manufacturer Part No:
LP73-69T
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
4.9 kg
PB Part No:
MOABRA0496
Product Model:
LP73-69T
Warranty: 12 months *
