Ergotron 45-231-200 DUAL MONITOR DUAL EXTENSION 200 SERI

Ergotron 45-231-200 DUAL MONITOR DUAL EXTENSION 200 SERI

  • Brand: Ergotron
  • MPN: 45-231-200
  • Part #: MOAERG1620292
  • UPC:
  • Mounts Supported:2
  • Max Screen Size Supported:22 inches
  • Max Weight Supported:5.4kg
  • Max Rotation:360 Degrees

Features

- Position two LCDs at the point of need, then push them back out of the way when not in use

- Touch-screen stability

- Cable management system routes and conceals cables under the arm

- Accommodates various display sizes; slide screens into place to align edges

- Rugged steel construction

- Extends out 23" (58 cm) or folds back to 5.7" (14.5 cm) from wall in storage position

- Rotate screens to view in either landscape or portrait mode

Specifications

Description:

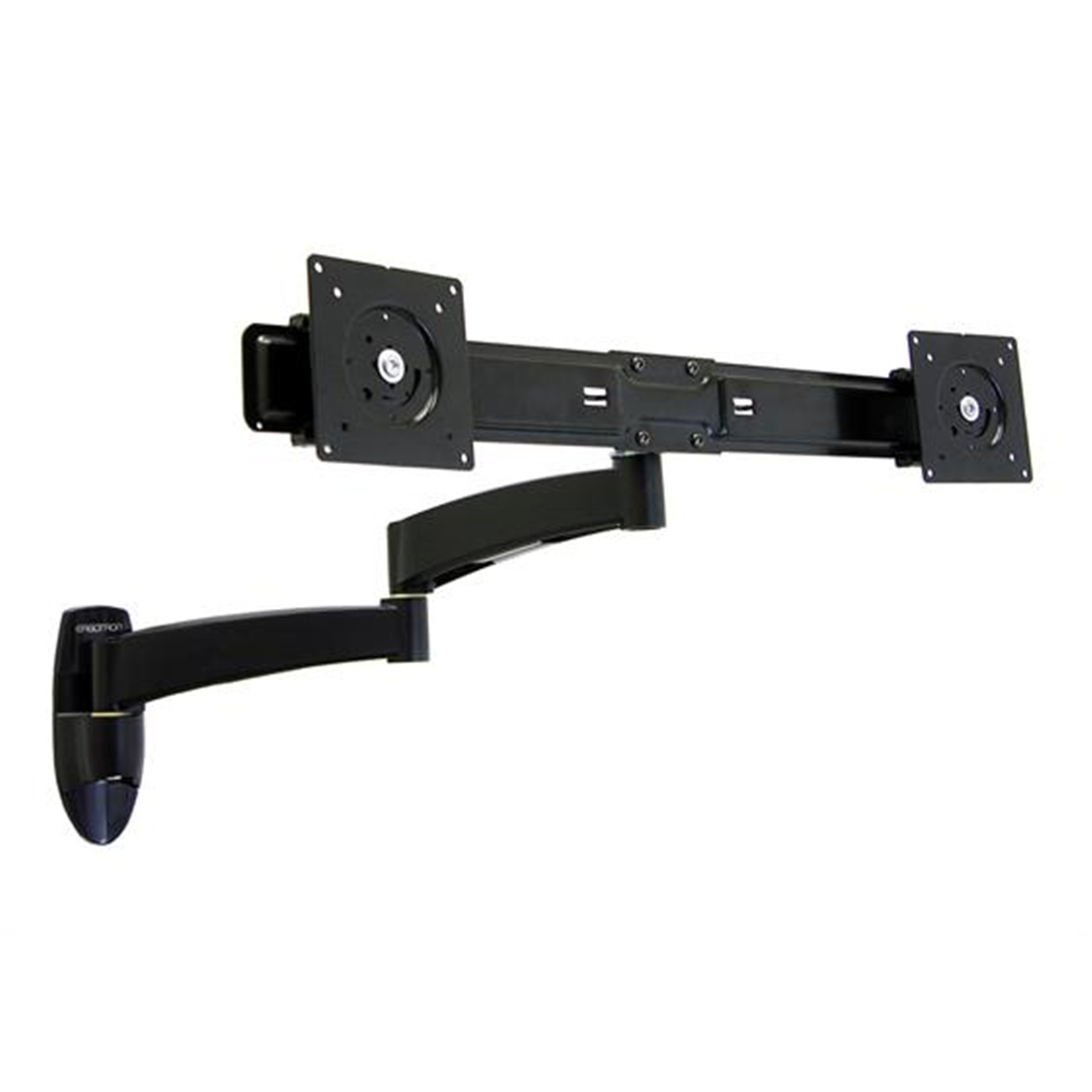

200 Series Dual Monitor Wall Mount Arm (black)

Includes

wall mount bracket, 2 extensions, crossbar and 2 sliding LCD mounts, VESA mounting screws

Maximum outside width of display is

21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness

Weight Capacity:

13 lbs (5.9 kg) per mount, 26 lbs (11.8 kg) total. Note: Monitors must be equal in weight or ±1 pound (.45 kg)

Monitor depth

greater than 3" (7.5 cm) may diminish capacity

Install display mounts on

the bow at +2.5° or -2.5° angle to optimize viewing conditions

Monitors are installed with

8° inward off-set angle, creating a 16° viewing parabola for better sight lines

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Note:

Durable, easy-to-clean powder-coated painted steel exterior

Mounting Options:

Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud

Shipping Dimensions:

5.25"H x 13.75"W x 24.25"D (133 x 349 x 616 mm)

Shipping Weight:

11.8 lbs (5.3 kg)

Manufacturer Part No: 45-231-200 Brand: Ergotron Product Type: -
UPC - Product Family: - Shipping Weight: 5 kg
PB Part No: MOAERG1620292 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
