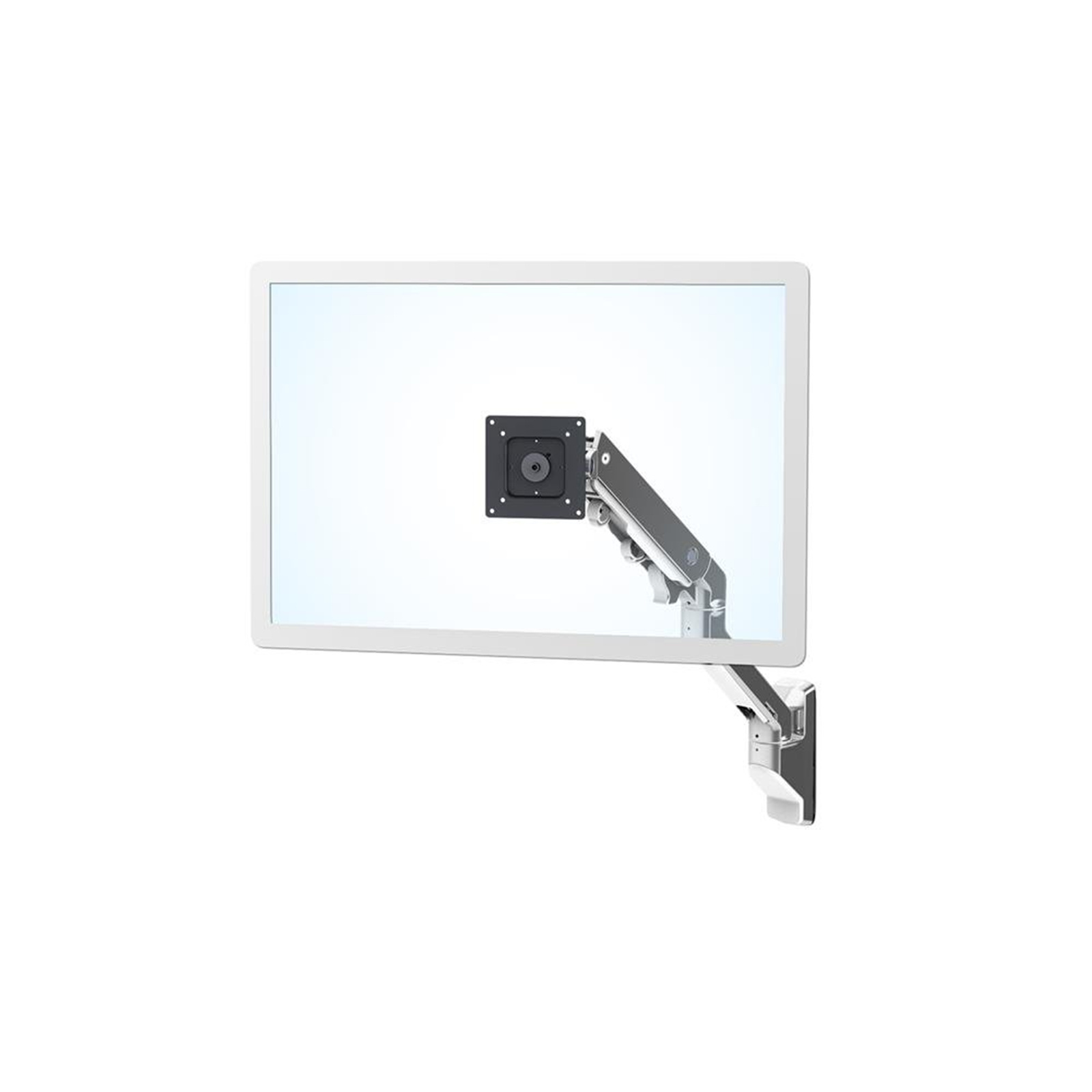

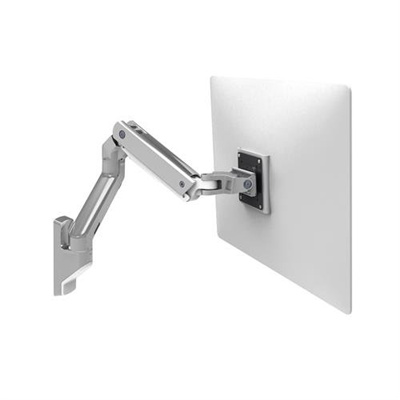

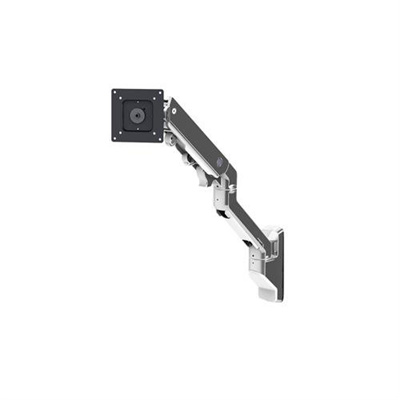

Ergotron 45-478-026 HX WALL MONITOR ARM POLISHED
Out of stock
Ergotron 45-478-026 HX WALL MONITOR ARM POLISHED
- Brand: Ergotron
- MPN: 45-478-026
- Part #: MOAERG3519807
- UPC:
- Brand: Ergotron
- MPN: 45-478-026
- Part #: MOAERG3519807
- UPC:
Features
Ergotron 45-478-026 HX WALL MONITOR ARM POLISHED
- HX Wall Mount Monitor Arm in polished aluminum for heavy monitors
- For an ultrawide monitor that is above 43" screen size, see our solution
- Mounts monitors ranging from 20-42 lbs
- Provides vertical adjustment: 11.5"
- Extends monitor 23.6"
- Arm folds back to free up space in tight areas
HX Monitor Arm 45-478-026 provides flexibility in the form of height adjustability and extension to your heavy monitors, weighing from 20-42 lbs. Mount the HX arm on your wall, install your heavy monitor and what you have freed up is valuable desk space and/or created a public working space for everyone in the office. This arm's 11.5" vertical as well as 23.6" horizontal adjustability not only allows various users to position the display to suit their ergonomic preference but it also lets them retract the arm when not in use. This feature is especially important in space constrained areas. The display adjustability increases ergonomic comfort by reducing strain on shoulders, neck and eyes.
Higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing and surveillance needs that demand heavy monitors. Modular ability to increase from single monitor setup to triple monitor setup (with a HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white and polished aluminum, this arm looks slick and chic and comes with a ten year warranty.
IMPORTANT NOTE
Please note that mounting ultrawide monitors is an evolving field. As new monitors are coming to market all the time, it is not possible to test each and every ultrawide monitor with all the arms that we are offering. However based on the specifications, we believe this arm is compatible with most ultrawide monitors. We recommend that, if and when you purchase this arm, do not discard the original packaging material in case it is needed for a return.
Benefits
- Increases viewing comfort: Helps reduce eye, back and neck strain
- Patented CF motion technology provides premium ease-of-use display adjustment
- Cable management feature routes cables tightly under the arm and through the extension, out of the way
- Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
- Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
- Folding arm frees up space in constrained areas
- Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
- Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Technical Drawing
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Single Monitor Mounts
KONIC 17"-32" Eco Single Monitor Stand - Mechanical Spring Arm -...
Loctek Pro Mount, 17"-30" Single Gas Spring Monitor Stand -...
FlexiSpot 17"-36" Single Gas Spring Monitor Stand - Aluminum Arm ...
Loctek Pro Mount, 17"-30" Single Ergonomic Gas Spring Monitor...
FlexiSpot 17"-36" Single Gas Spring Monitor Stand - Aluminum Arm ...
_20250910222933.webp)
Ergotron 45-478-026 HX WALL MONITOR ARM POLISHED
- Brand: Ergotron
- MPN: 45-478-026
- Part #: MOAERG3519807
Product URL: https://www.pbtech.co.nz/product/MOAERG3519807/Ergotron-45-478-026-HX-WALL-MONITOR-ARM-POLISHED
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Ergotron 45-478-026 HX WALL MONITOR ARM POLISHED
- HX Wall Mount Monitor Arm in polished aluminum for heavy monitors
- For an ultrawide monitor that is above 43" screen size, see our solution
- Mounts monitors ranging from 20-42 lbs
- Provides vertical adjustment: 11.5"
- Extends monitor 23.6"
- Arm folds back to free up space in tight areas
HX Monitor Arm 45-478-026 provides flexibility in the form of height adjustability and extension to your heavy monitors, weighing from 20-42 lbs. Mount the HX arm on your wall, install your heavy monitor and what you have freed up is valuable desk space and/or created a public working space for everyone in the office. This arm's 11.5" vertical as well as 23.6" horizontal adjustability not only allows various users to position the display to suit their ergonomic preference but it also lets them retract the arm when not in use. This feature is especially important in space constrained areas. The display adjustability increases ergonomic comfort by reducing strain on shoulders, neck and eyes.
Higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing and surveillance needs that demand heavy monitors. Modular ability to increase from single monitor setup to triple monitor setup (with a HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white and polished aluminum, this arm looks slick and chic and comes with a ten year warranty.
IMPORTANT NOTE
Please note that mounting ultrawide monitors is an evolving field. As new monitors are coming to market all the time, it is not possible to test each and every ultrawide monitor with all the arms that we are offering. However based on the specifications, we believe this arm is compatible with most ultrawide monitors. We recommend that, if and when you purchase this arm, do not discard the original packaging material in case it is needed for a return.
Benefits
- Increases viewing comfort: Helps reduce eye, back and neck strain
- Patented CF motion technology provides premium ease-of-use display adjustment
- Cable management feature routes cables tightly under the arm and through the extension, out of the way
- Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
- Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
- Folding arm frees up space in constrained areas
- Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
- Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free height adjustment

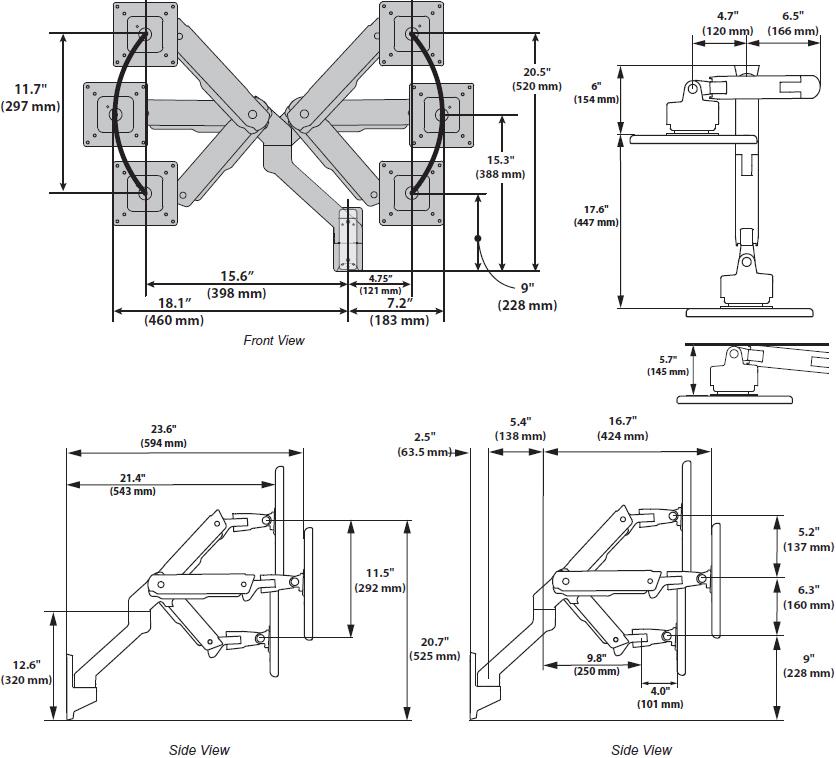

Technical Drawing
Specifications
Includes
Arm
Extension
Monitor pivot
Wall mount and monitor mounting hardware
Arm
Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Portrait/Landscape Rotation
Portrait/landscape rotation with lockout
Cable Management
Streamline cable management that routes cables under arm and within extension
Rotation
Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
Mounting Standards
VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Mounting Options
Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall track using bracket 97-091 (order separately)
Screen Size
Maximum screen size determined by the monitor weight
Weight Capacity
20-42 lbs (9.1-19.1 kg)
Tilt Range
70° backward, 5° forward
Shipping Dimensions
12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
Shipping Weight
18.3 lbs (8.3 kg)
