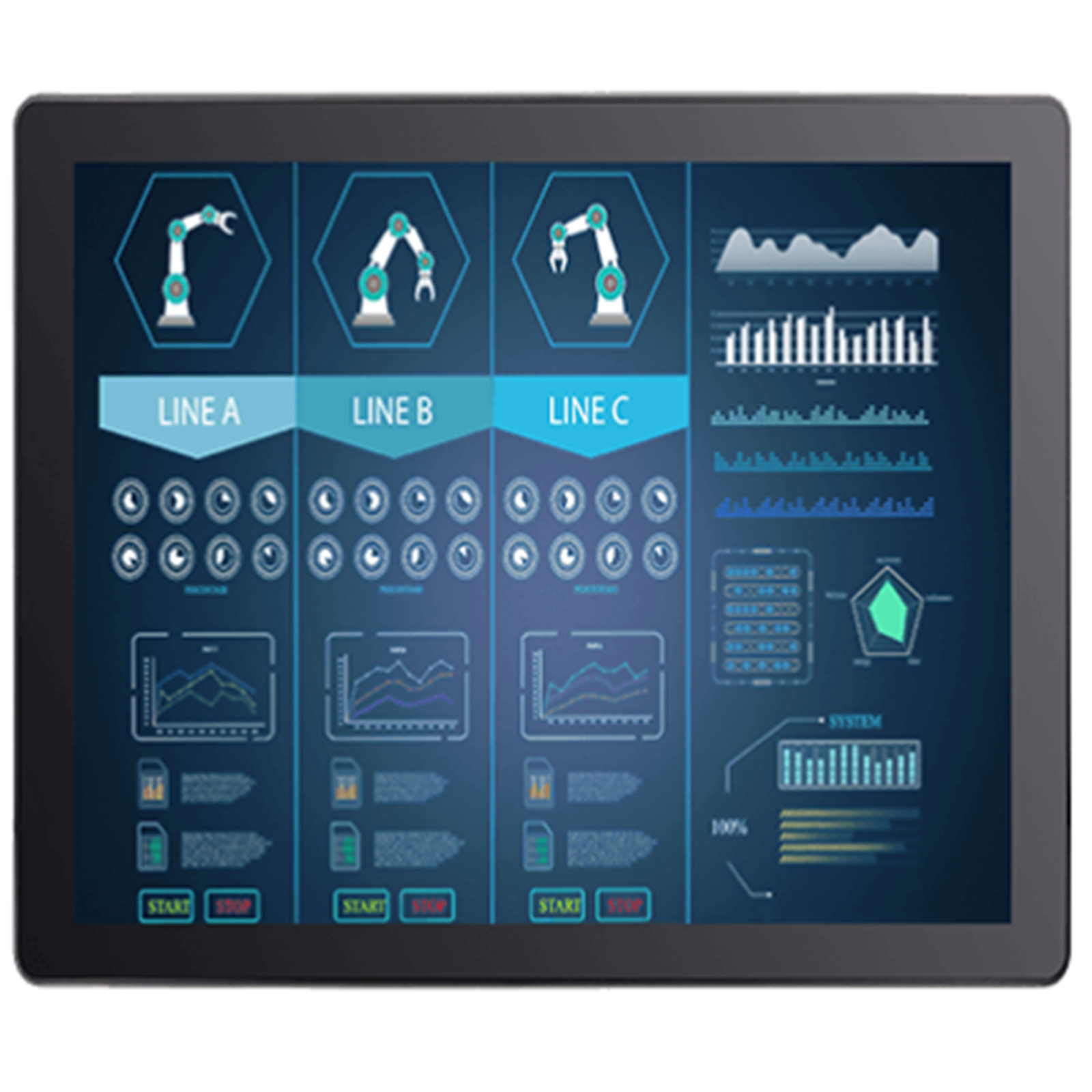

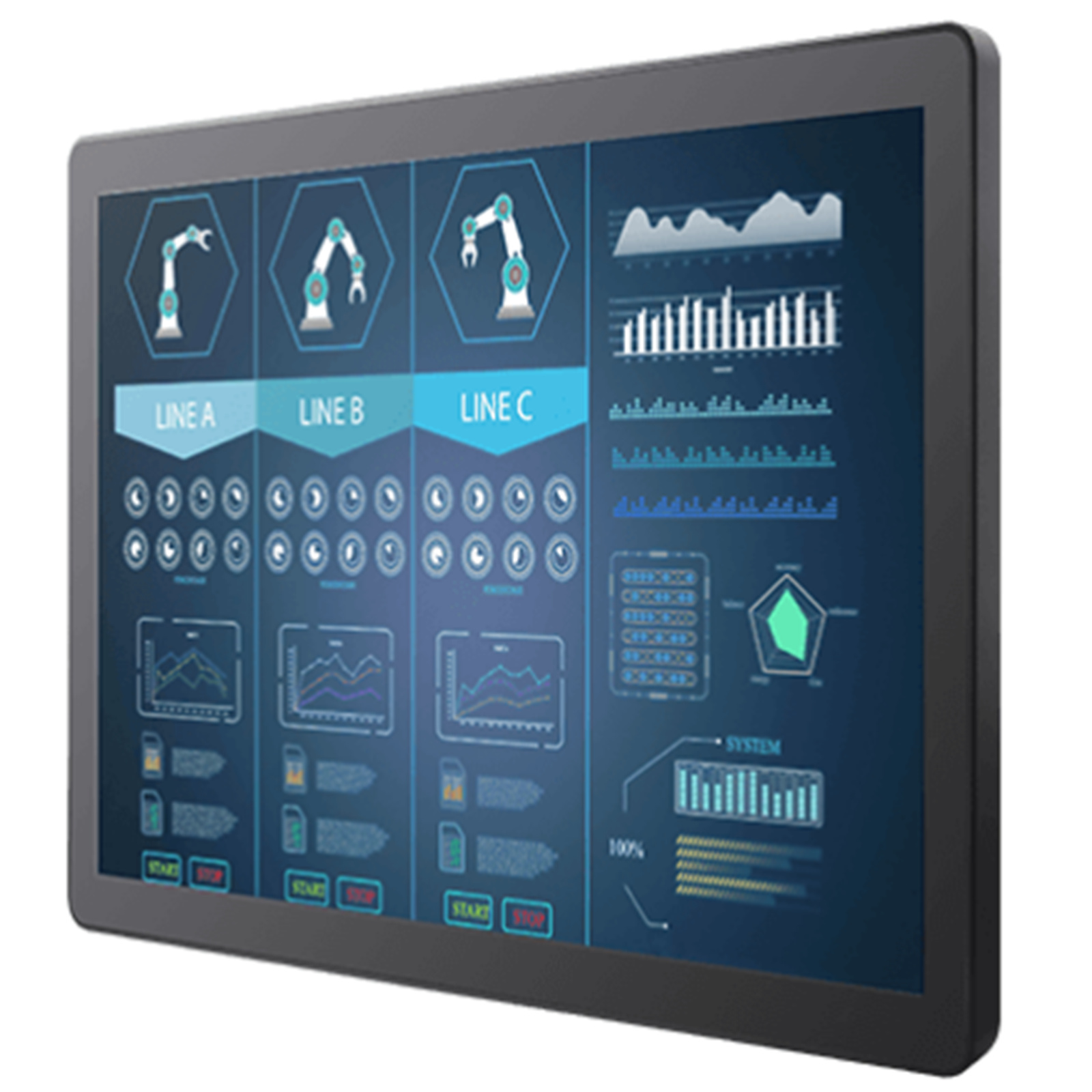

Winmate Touch Display R19L100-GCM1 19' PCAP, 1280 x 1024, 250 nits, Front IP65, 1xVGA,1 x HDMI, 1 x DVI (Optional), Fanless Design,12V DC input,VESA Mount/ Panel Mount

PB Tech price
PB Tech price
$ 1,457 .14
 +GST
$ 1,675 .71
 inc GST
$1,457.14  +GST
$1,675.71

Winmate Touch Display R19L100-GCM1 19' PCAP, 1280 x 1024, 250 nits, Front IP65, 1xVGA,1 x HDMI, 1 x DVI (Optional), Fanless Design,12V DC input,VESA Mount/ Panel Mount

  • Brand: Winmate
  • MPN: R19L100-GCM1
  • Part #: MONWMAR19L10001
  • UPC:
PB Tech price
$ 1,457 .14 $ 1,675 .71
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 13 Dec When will I receive it?
$1,457.14  +GST
$1,675.71

Four payments of $423.12 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $15.35 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $33.28 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

Features

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.

Dust and Water Protection

The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.

Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity - especially in heavy-duty applications where dusty conditions are prevalent.

Comprehensive I/O Ports

Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection.

Anti-Shock and Vibration

The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensures the screen and housing are both rugged to the max.

- 19" 1280 x 1024 Resolution Front IP65 PCAP Display
- VGA input and HDMI input
- Projected Capacitive Multi-Touch
- Front IP65 for protection against water and dust

Specifications

Display

Size

19.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x1024

Panel Brightness

250 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Display Color

16.7M Colors

Environment

Operating Humidity

10% to 90% (Non-Condensing)

Operating Temperature

0~50°C

Shock

40g for 11ms

Vibration

1.48/1.90/2.24 g rms for XYZ/ 5-500Hz

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)

Mechanical

Dimension

445 x 370 x 51 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Plastic Bezel & Metal back cover

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC input

Control

Button

5 Keys: - , + , Power , Esc , Enter

Manufacturer Part No:
R19L100-GCM1
Brand:
Product Type:
19' PCAP,
UPC
-
Product Family:
Touch Display
Shipping Weight:
1 kg
PB Part No:
MONWMAR19L10001
Product Model:
R19L100-GCM1
Warranty: 12 months *
