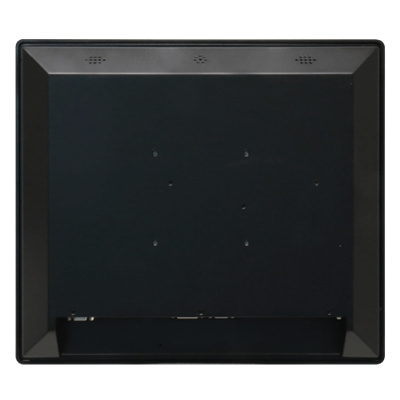

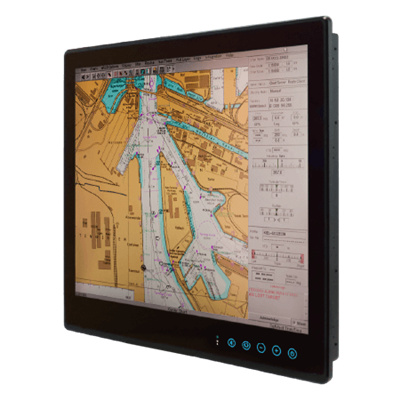

Winmate Marine Display R19L300-MRA1FP 19' ECDIS Marine Display 1280x1024, 400 nits,P-CAP 1xVGA,1 x DVI-D,1 x HDMI,IP66, 9-36VDC (with terminal block + external AC/DC power adapter)

PB Tech price
PB Tech price
$ 3,407 .99
 +GST
$ 3,919 .19
 inc GST

Out of stock

Winmate Marine Display R19L300-MRA1FP 19' ECDIS Marine Display 1280x1024, 400 nits,P-CAP 1xVGA,1 x DVI-D,1 x HDMI,IP66, 9-36VDC (with terminal block + external AC/DC power adapter)

  • Brand: Winmate
  • MPN: R19L300-MRA1FP
  • Part #: MONWMAR19L30003
  • UPC:
PB Tech price
$ 3,407 .99 $ 3,919 .19
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Reliable Computing Certified for Marine Applications

Winmate ECDIS Marine Displays are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.

ECDIS Reliability for the Real Marine Colors Representation

On Winmate ECDIS Marine Displays, users can adjust to a day, dusk, or night mode through the capacitive touch key to accommodate any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.

Sleek Design for Modern Bridge Workstations

Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives a slim and elegant appearance to the device goes beyond that of the standard industrial, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.

Ultimate Touch Experience

Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the ECDIS Marine Displays, and experience the ultimate durability in some of the most demanding applications, such as bridge navigation and control.

Video-Input Options

Video input consists of DVI-D, HDMI, and VGA connectors. Use the RS232 port for remote control and a USB connector for touch.

Specifications

Display

Size

19.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen
AR Glass (Optional)

Resolution

1280x1024

Panel Brightness

400 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Display Color

16.7M Colors

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNVGL CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

Certification

DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC

IO Ports

USB Port

1 x USB Type A

Serial Port

1 x RS232 for remote control

Video

1 x VGA
1 x DVI-D
1 x HDMI 1.4

Front Control

Power
Brightness+
Brightness-
OSD/ Enter
ECDIS Key/ ESC

Indicator

Day Mode
Dusk Mode
Night Mode

Mechanical

Dimension

429 x 382 x 72.8 mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Anodized Aluminum Bezel

Cooling System

Fanless Design

Power

Power Rating

24V DC-in with Isolation (Approval by Certificate)
9~36V DC Input Accpetable

Manufacturer Part No:
R19L300-MRA1FP
Brand:
Product Type:
19' ECDIS Marine Display
UPC
-
Product Family:
Marine Display
Shipping Weight:
11 kg
PB Part No:
MONWMAR19L30003
Product Model:
R19L300-MRA1FP
Warranty: 12 months *
