Winmate Marine Display R19L300-PPA3OD 19" Panel Mount Display 1280x1024, 1000 nits, P-CAP, with UV film 1xVGA+1x HDMI ,IP65, 9-36VDC (with terminal block + external AC/DC power adapter)
Out of stock
Winmate Marine Display R19L300-PPA3OD 19" Panel Mount Display 1280x1024, 1000 nits, P-CAP, with UV film 1xVGA+1x HDMI ,IP65, 9-36VDC (with terminal block + external AC/DC power adapter)
- Brand: Winmate
- MPN: R19L300-PPA3OD
- Part #: MONWMAR19L30005
- UPC:
- Brand: Winmate
- MPN: R19L300-PPA3OD
- Part #: MONWMAR19L30005
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Winmate Marine Display R19L300-PPA3OD 19" Panel Mount Display 1280x1024, 1000 nits, P-CAP, with UV film 1xVGA+1x HDMI ,IP65, 9-36VDC (with terminal block + external AC/DC power adapter)
- Brand: Winmate
- MPN: R19L300-PPA3OD
- Part #: MONWMAR19L30005

Product URL: https://www.pbtech.co.nz/product/MONWMAR19L30005/Winmate-Marine-Display-R19L300-PPA3OD-19-Panel-Mou
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

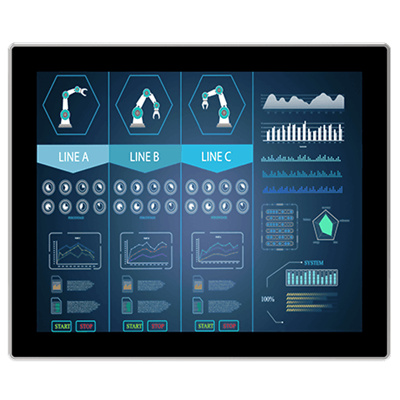

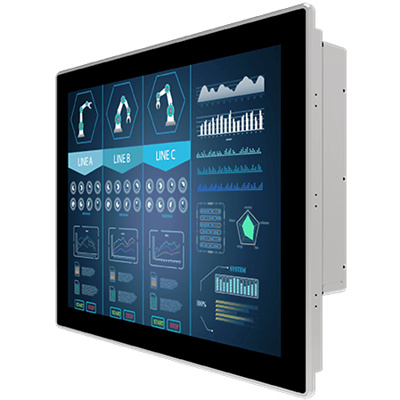

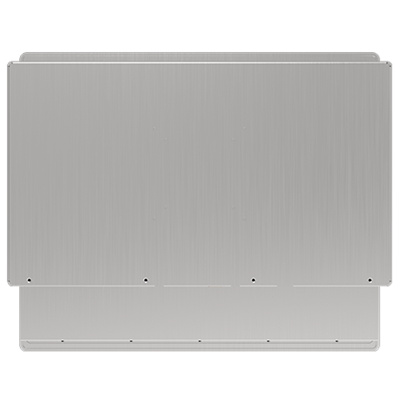

Winmate Marine Display 19" Panel Mount Display
Winmate Panel Mount Display (PCAP Touch) Series provides a versatile and durable solution for industrial and outdoor applications. These sunlight-readable displays feature high brightness for excellent visibility and projected capacitive (PCAP) touch for seamless user interaction. Built with front IP65 protection and optional UV film for solar radiation, they withstand harsh environments. Operating in temperatures as low as -25°C with optional heater solutions, they are ideal for demanding settings like kiosks, automation, and outdoor displays.
- Sunlight readable with high brightness solution
- Support panel mount
- Support PCAP touch
- Operating temperature -10~60°C
- Optional operating temperature -25~60°C with heater solution
- Optional solar radiation protection with UV film for directed sunlight environment
- Front IP65
Easy Mounting
Winmate industrial outdoor display series support universal wall and flat surface mounting options. Enable easy installation and use in various industries according to your specific requirements.
Clear and Vibrant Displays
Winmate outdoor display product family boosts sunlight-readable and high brightness solutions to enhance users' readability even under direct sunlight in outdoor environments and support 24/7 visual operation.
Built for Outdoor Use
With the optional heater, Winmate outdoor displays support a wide range of temperatures. Also, the optional UV Film for added solar radiation protection on the panel makes the touchscreen suitable for various industrial and commercial applications.
Specifications
Display
Size
19.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x1024
Panel Brightness
1000.0 nits
Contrast Ratio
1000:1
View Angles
85,85,80,80
Display Color
16.7M Colors
Active Area
376.32x301.06 mm
Environment
Operating Humidity
10% to 90% RH, Non-Condensing
Operating Temperature
-10°C to 60°C
Storage Temperature
-20°C to 70°C
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Audio
Audio line in (3.5mm) (Optional)
2 x Speaker (Optional)
Mechanical
Dimension
446 x 370 x 77 mm
Cut out
431 x 341 mm
Mounting
VESA Mount/ Panel Mount
Enclosure
Metal Housing with Aluminum Bezel
Cooling System
Fanless Design
Optional Accessory
Remote Controller (Optional,Varies by product)
Power
Power Rating
12V DC in
24V DC in (optional)
Control
Button
5 Keys: - , + , Power , Esc , Enter
