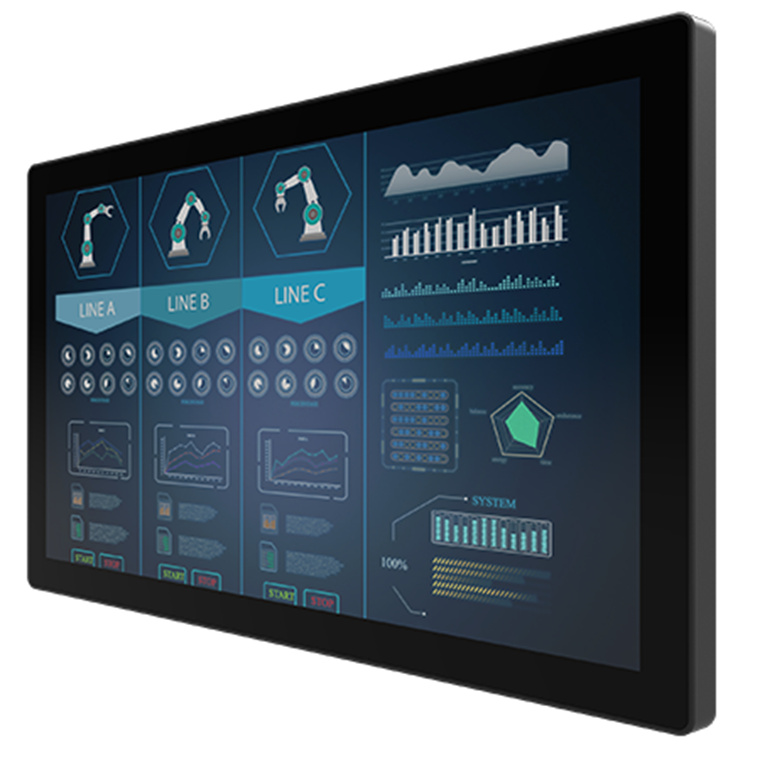

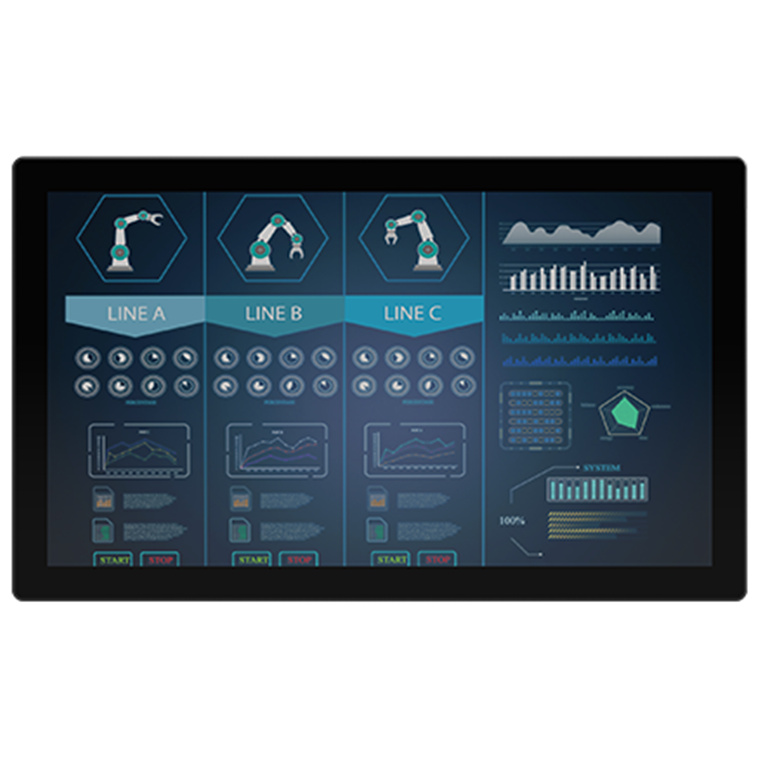

Winmate W24L100-GCC1OD 24" PCAP Touch Display 1920 x 1080, 1000nits, VGA/HDMI. optical bonding, UV film, VESA mount, Operating temperature:-10~60
Out of stock
Winmate W24L100-GCC1OD 24" PCAP Touch Display 1920 x 1080, 1000nits, VGA/HDMI. optical bonding, UV film, VESA mount, Operating temperature:-10~60
- Brand: Winmate
- MPN: W24L100-GCC1OD
- Part #: MONWMAW24005
- UPC:
- Brand: Winmate
- MPN: W24L100-GCC1OD
- Part #: MONWMAW24005
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Winmate W24L100-GCC1OD 24" PCAP Touch Display 1920 x 1080, 1000nits, VGA/HDMI. optical bonding, UV film, VESA mount, Operating temperature:-10~60
- Brand: Winmate
- MPN: W24L100-GCC1OD
- Part #: MONWMAW24005

Product URL: https://www.pbtech.co.nz/product/MONWMAW24005/Winmate-W24L100-GCC1OD-24-PCAP-Touch-Display-1920
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
- Sunlight readable with high brightness solution
- Support VESA mount
- Support PCAP touch
- Operating temperature:-10~60°C
- Optional solar radiation protection with UV film for directed sunlight environment
Easy Mounting
Winmate industrial outdoor display series support universal wall and flat surface mounting options. Enable easy installation and use in various industries according to your specific requirements.
Clear and Vibrant Displays
Winmate outdoor display product family boosts sunlight-readable and high brightness solutions to enhance users' readability even under direct sunlight in outdoor environments and support 24/7 visual operation.
Built for Outdoor Use
The optional UV Film for added solar radiation protection on the panel makes the touchscreen suitable for various industrial and commercial applications.
Specifications
Display
Touch / Glass
Projected Capacitive Multi Touch Screen
Size
23.8 inches
Resolution
1920x1080
Panel Brightness
1000.0 nits
Contrast Ratio
1000:1
View Angles
88,88,88,88
Display Color
16.7M Colors
Active Area
527.04x296.46 mm
Control
Button
5 Keys: - , + , Power , Esc , Enter
Environment
Operating Humidity
10% to 90% RH, Non-Condensing
Operating Temperature
-10°C to 60°C
Storage Temperature
-20°C to 70°C
Certification
Certification
CE, FCC
I/O Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Mechanical
Dimension
588 x 358 x 55 mm
Mounting
VESA Mount/ Panel Mount
Enclosure
Plastic Bezel & Metal back cover
Cooling System
Fanless Design
Power
Power Rating
12V DC in
24V DC in (optional)
