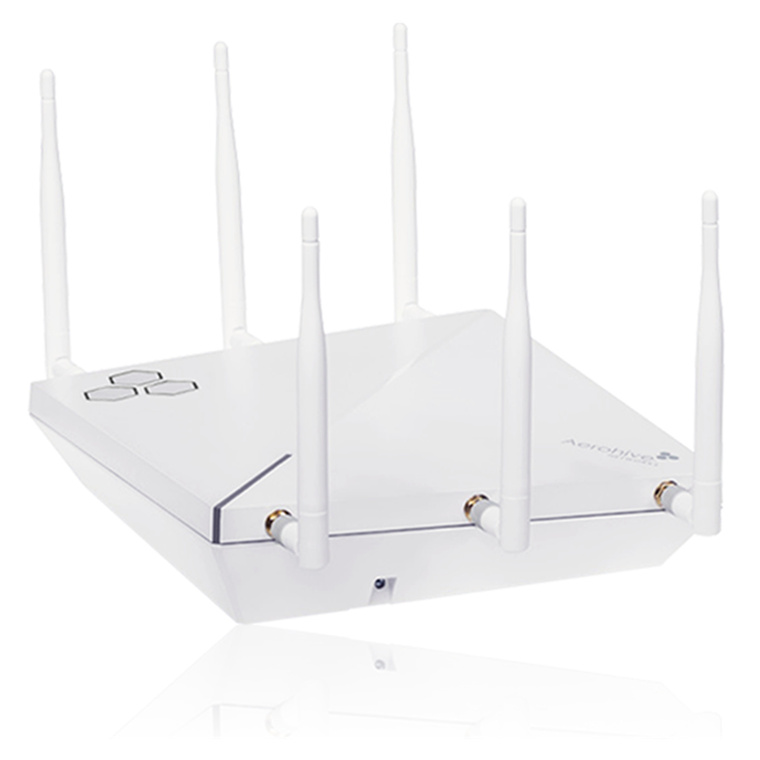

Aerohive 802.11ac Wave 2, AP245X, 2 radio 3x3:3, Indoor plenum rated Access Point, 2 x Gigabit Ethernet, BLE, USB, without power suppply (external antennas sold separately)

Aerohive 802.11ac Wave 2, AP245X, 2 radio 3x3:3, Indoor plenum rated Access Point, 2 x Gigabit Ethernet, BLE, USB, without power suppply (external antennas sold separately)
PB Tech price: PB Tech price:
$852 94  +GST $980 88  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A
  • Accessories

Generating Print Page

Aerohive 802.11ac Wave 2, AP245X, 2 radio 3x3:3, Indoor plenum rated Access Point, 2 x Gigabit Ethernet, BLE, USB, without power suppply (external antennas sold separately)

ENTERPRISE CONNECTIVITY, CLOUD MANAGEMENT, HIVECARE SUPPORT

Aerohive 802.11ac Wave 2, AP245X, 2 radio 3x3:3, Indoor plenum rated Access Point, 2 x Gigabit...

  • Brand: AEROHIVE
  • MPN: AH-AP-245X-AC-W
  • Part #: NAPARH1080
  • UPC:
  • Wireless Transmission Speed:N/A
  • Wi-Fi Bands:N/A
  • Ethernet Ports:2
  • Wireless Technology:802.11ac
  • USB Ports:None
PB Tech price: PB Tech price:
$852 94 $980 88
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 05/11/2020 When will I receive it?
Shop in-store: Check store stock levels

Six easy payments of $168.38 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $9.10 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

The AP245X enterprise access point combines high-performance 802.11ac Wave 2 with the simplicity of Aerohive's distributed, cooperative architecture. This power-optimized access point uniquely incorporates a 2.4 GHZ 802.11b/g/n radio, next generation of 802.11ac 5 GHz radio and integrated BLE (BlueTooth Low Energy) to provide uncompromised wireless performance on the standard 802.3af PoE power.

- Energy-efficient AP245X energy allows full 3-stream, 2.4 GHz and 5 GHz 802.11ac performance while using existing 802.3af PoE infrastructure
- Integrated BLE (Bluetooth Low Energy) radio enables mobile engagement services that can be based on ambient data, micro-location or orientation
- Certified with 3 different indoor antennas: standard omni directional, 60° sector, and 120° sector antennas
- Extended operating temperature range

AP245X combines high-performance 802.11ac Wave2 with the simplicity of Aerohive's distributed, cooperative architecture. This access point has an extended operating temperature range and external antenna connectors. AP245X is a perfect fit for challenging environments where deployments require specialized antennas or higher temperature ranges. This power optimized access point line uniquely incorporates next generation 802.11ac, integrated BLE radio for iBeacon and other beacon applications and a standard USB port for variety of IoT applications. AP245X smoothly integrates into your existing 802.3af or 802.3at power and network infrastructure. AP245X is a key component of the Aerohive Connect solution. Connect provides cloud-managed connectivity built on Aerohive's industry-first cooperative control Wi-Fi focused on optimizing speed and resilience. Connect is centrally managed from the cloud, allowing for simple, fast, and powerful management.

Specifications

Radio Specifications-802.11a

5.150-5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications-802.11b

2.4-2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
20 dBm (100 mW) Transmit Power
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications-802.11n

2.4-2.5 GHz & 5.150-5.850 GHz Operating Frequency
802.11n Modulation
Rates (Mbps): MCS0-MCS23 (6.5Mbps - 450Mbps)
3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
HT40 High-Throughput (HT) Support for 5 GHz
A-MPDU and A-MSDU Frame Aggregation

Radio Specifications-802.11ac

5.150-5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0-MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3.
3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support

Included Mounting Options

Wall Mount
Ceiling Tile flush 15/16" and Wall Mount locking accessory included with AP

Mounting

Desktop
Ceiling Tile Recessed 15/16", 3/8", 9/16" sold as an accessory
Ceiling Tile flush 3/8", 9/16" sold as an accessory
Suspend Mount sold as an accessory
Plenum Mount sold as an accessory
Silhouette and Interlude sold as an accessory

Antennas

3x RP-SMA connector 2.4 GHz
3x RP-SMA connector 5 GHz
1x BLE internal antenna

Interfaces

Two Autosensing 10/100/1000 Base-T Ethernet ports. PoE (Power over Ethernet 802.3af) ca pability on one of the ports
RJ-45 console port
Standard USB port

Physical

WxDxH: 7.25" x 7.25" x 1.87"(18.4 cm x 18.4 cm x 1.87cm) [plus .25", mounting hardware - 2.12" (5.4 cm) H total ]
Weight: 1.8 lb ( 0.81 kg)

Environmental

Operating: 0 to +50°C, Storage: -40 to +70°C
Humidity: 95%

Environmental Compliance

UL2043

Power Specifications

IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance and BLE. No USB port, no 2nd Ethernet port.
IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
Power Options
Power Draw: Typical 11.22W, Max 15.74W

Certifications

WPA/WPA2
Voice-Enterprise

Manufacturer Part No: AH-AP-245X-AC-W Brand: AEROHIVE Product Type: -
UPC - Product Family: 802.11ac Wave 2, Shipping Weight: 1.098 kg
PB Part No: NAPARH1080 Product Model: AP245X,

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
