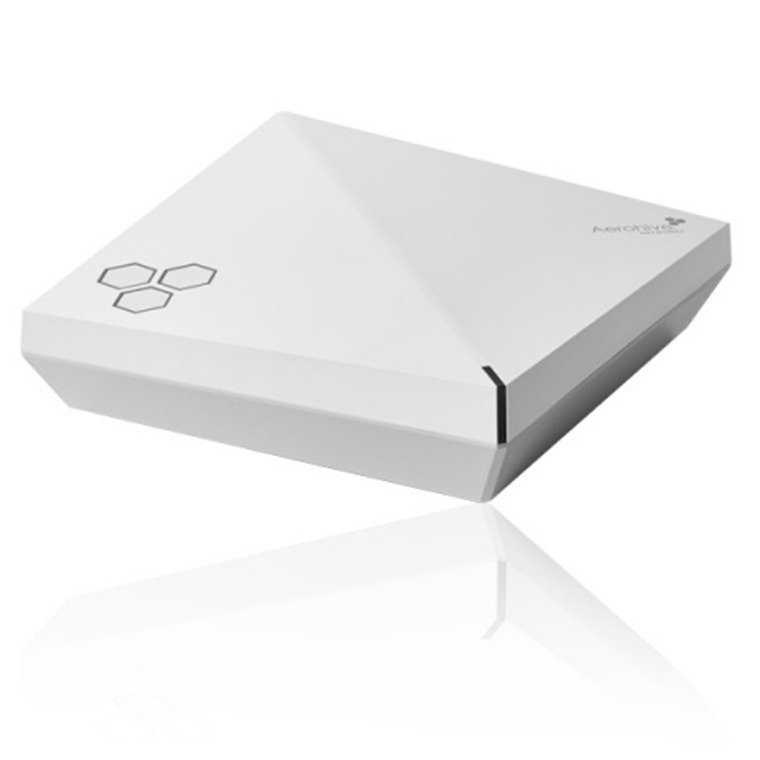

Aerohive 802.11ac Wave 2, AP550, 2 radio 4x4:4, Indoor plenum rated Access Point, 2 x Gigabit Ethernet, BLE, USB, without power suppply

PB Tech price
PB Tech price
$ 1,562 .50
 +GST
$ 1,796 .88
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Aerohive 802.11ac Wave 2, AP550, 2 radio 4x4:4, Indoor plenum rated Access Point, 2 x Gigabit Ethernet, BLE, USB, without power suppply

ENTERPRISE CONNECTIVITY, CLOUD MANAGEMENT, HIVECARE SUPPORT
  • Brand: AEROHIVE
  • MPN: AH-AP-550-AC-W
  • Part #: NAPARH1082
  • UPC:
PB Tech price
$ 1,562 .50 $ 1,796 .88
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: AEROHIVE
  • MPN: AH-AP-550-AC-W
  • Part #: NAPARH1082
  • UPC:

Ethernet Ports

2

Power Option

PoE

USB Ports

1

WiFi Bands

N/A

Wireless Technology

WiFi 5 (802.11ac)

Wireless Transmission Speed

N/A

Pack Size

1-Pack

Features

AP550 Indoor plenum rated, 2 radio 4x4:4 802.11a/b/g/n/ac Access Point, MU-MIMO, 2 10/100/1000 Ethernet ports, FCC regulatory domain, without power supply (Internal Antenna only)

The AP550 is an excellent choice to provide instant adaption to ever-changing capacity and density needs. AP550 features 4x4:4 MU-MIMO with aggregate data rates up to 3.46 Gbps per access point. Software configurable radio allows IT managers to enable dual 5GHz 802.11ac performance on both radios to provide the best of coverage and capacity Wi-Fi design and maximize ROI. Built-in BLE (Bluetooth Low Energy) radio enables proximity, indoor location tracking, and other location-based mobile engagement services.

- Software selectable radio allowing either two 5 GHz 802.11a/n/ac radios (for High Density-High Capacity deployments) or concurrent 802.11a/n/ac and 802.11b/g/n radios
- Full 4x4:4 Wave 2 802.11ac MU-MIMO and dual 5 GHz performance
- Built-in Bluetooth Low Energy for iBeacon and other beacon technologies
- IoT readiness with USB port for other wireless technologies to connect seamlessly

Specifications

Radio Specifications-802.11a

5.150-5.850 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications-802.11b

2.4-2.5GHz Operating Frequency
Direct-Sequence Spread-Spectrum (DSSS) Modulation
Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

Radio Specifications-802.11g

2.4-2.5 GHz Operating Frequency
Orthogonal Frequency Division Multiplexing (OFDM) Modulation
Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback

Radio Specifications-802.11n

2.4-2.5 GHz & 5.150-5.850 GHz Operating Frequency
Rates (Mbps): MCS0-MCS23 (6.5Mbps - 300Mbps)
4x4 4-Stream Multiple-In, Multiple-Out (MIMO) Radio
HT20 High-Throughput (HT) Support for 2.4 GHz and 5 GHz
HT40 High-Throughput (HT) Support for 5 GHz
A-MPDU and A-MSDU Frame Aggregation

Radio Specifications-802.11ac

5.150-5.850 GHz Operating Frequency
802.11ac Modulation (256-QAM)
Rates (Mbps): MCS0-MCS9 (6.5Mbps - 1733Mbps), NSS = 1-4.
4x4 4-Stream Multiple-In, Multiple-Out (MIMO) Radio
VHT20/VHT40/VHT80 support

Included Mounting Options

Wall Mount
Ceiling Tile flush 15/16"

Mounting

Desktop
Ceiling Tile Recessed 15/16", 3/8", 9/16" sold as an accessory
Ceiling Tile flush 3/8", 9/16" sold as an accessory
Suspend Mount sold as an accessory
Plenum Mount sold as an accessory
Silhouette and Interlude sold as an accessory

Antennas

12x WiFi internal antennas (4x 2.4 GHz antennas and 8x 5 GHz antennas)
1x BLE internal antenna

Interfaces

Two Autosensing 10/100/1000 Base-T 802.3af) capability on both the ports for redundancy and high availability
RJ-45 console port
Standard USB port

Physical

WxDxH: 8.15" x 8.15" x 2.17" [208mm x 208mm x 55mm]
Weight: 2.4 lbs (1.1 Kg)

Environmental

Operating: 0 to +40°C, Storage: -40 to +70°C
Humidity: 95%

Environmental Compliance

UL2043

Power Specifications

IEEE 802.3at PoE Power required for full 4x4:4 MU-MIMO, dual 5 GHz, USB, BLE and 2 Ethernet ports to operate

Manufacturer Part No:
AH-AP-550-AC-W
Brand:
Product Type:
-
UPC
-
Product Family:
802.11ac Wave 2,
Shipping Weight:
1.5 kg
PB Part No:
NAPARH1082
Product Model:
AP550,
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
