NETGEAR Insight Managed WAC505 MU-MIMO Smart Cloud Wireless Access Point, Dual-band AC1200 (300+867Mbps), 1 x Gigabit LAN, PoE 802.3af - 8.9W

PB Tech price
PB Tech price
$ 109 .57
 +GST
$ 126 .01
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

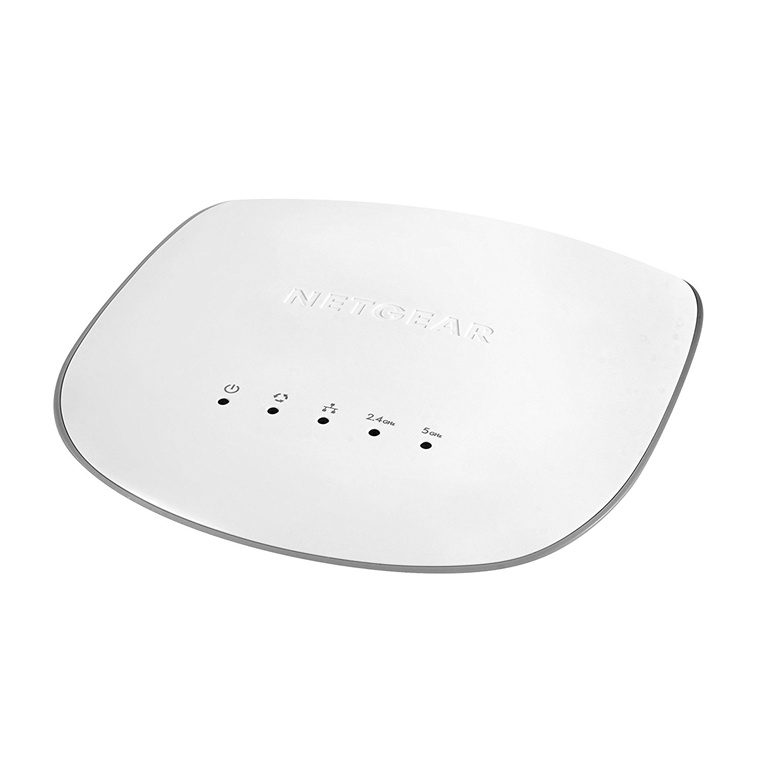

NETGEAR Insight Managed WAC505 MU-MIMO Smart Cloud Wireless Access Point, Dual-band AC1200 (300+867Mbps), 1 x Gigabit LAN, PoE 802.3af - 8.9W

1-Year NETGEAR Insight Included
  • Brand: Netgear
  • MPN: WAC505-10000S
  • Part #: NAPNGR575932
  • UPC: 606449119848
PB Tech price
$ 109 .57 $ 126 .01
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: Netgear
  • MPN: WAC505-10000S
  • Part #: NAPNGR575932
  • UPC: 606449119848

Ethernet Ports

1

USB Ports

None

WiFi Bands

Dual

Wireless Technology

WiFi 5 (802.11ac)

Wireless Transmission Speed

1200Mbps

Pack Size

1-Pack

Product is out of stock. View similar products in-stock at PB Tech

Features

Insight Managed Smart Cloud Wireless Access Point (WAC505) - One-touch network visibility. Anywhere.

The NETGEAR® Insight Managed Wireless Access Point WAC505 delivers high performance WiFi and high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC505 is managed by NETGEAR Insight app, for a more intuitive and innovative support, with no need for extra management hardware. The WAC505 features Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.2 Gbps, option to configure as or Access Point modes, and comes with two Ethernet ports, a Power-over-Ethernet (PoE) 1Gb LAN port and a WAN port. WAC505 comes with market-leading 5-year hardware warranty.



One-touch wireless connectivity & management with NETGEAR Insight app

Instant in-app discovery & set-up
Local and Cloud monitoring and management
Remote access and multi-device configuration
No additional Cloud controller, appliance, network manager, or PC/server is necessary
QR code initial configuration for instant installation





Superior performance with 802.11ac Wave 2

Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
Maximum performance with multi-gigabit throughput (up to 1.2 Gbps)
Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
Improves coverage for multiple users in dense environment





Flexible deployment with Power over Ethernet and accessories

Standard based 802.3af Power over Ethernet (PoE)
Access Point mode for multiple WAC505 for mid-size office environment
Ceiling and wall mount for ease of placement



Specifications

Standards

IEEE 802.11ac specification
IEEE 802.11ac 2.0 specification
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Frequency Band

2.4GHz and 5GHz concurrent operation

Maximum Theoretical Throughput

300Mbps (2.4GHz)
867Mbps (5GHz)

Maximum Number of Clients

200

Deployment options

Standalone
Netgear Insight app management

Access Point

Internal Antenna Gain: 3 dBi (2.4 GHz) / 6 dBi (5 GHz)

Advanced Wireless

WDS Point-to-point wireless bridge mode
WDS Point-to-multipoint wireless bridge mode

Security

WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)

MAC Address filtering

4 BSSIDs per Radio

MAC ACL

Yes

Routing Function

Yes

802.11e WMM

(Wireless multimedia mode) for QoS

Simultaneous Bridge/Client Association

Yes

Power

Power adapter (not included): 12V DC, 2.5A;
Power consumption: 9.3W

Physical Specifications

Dimensions (W x D x H): 6.89 x 6.49 x 1.38in (175 x 165 x 35mm)
Weight: 0.53lb (256g)

Mounting

Desktop standable

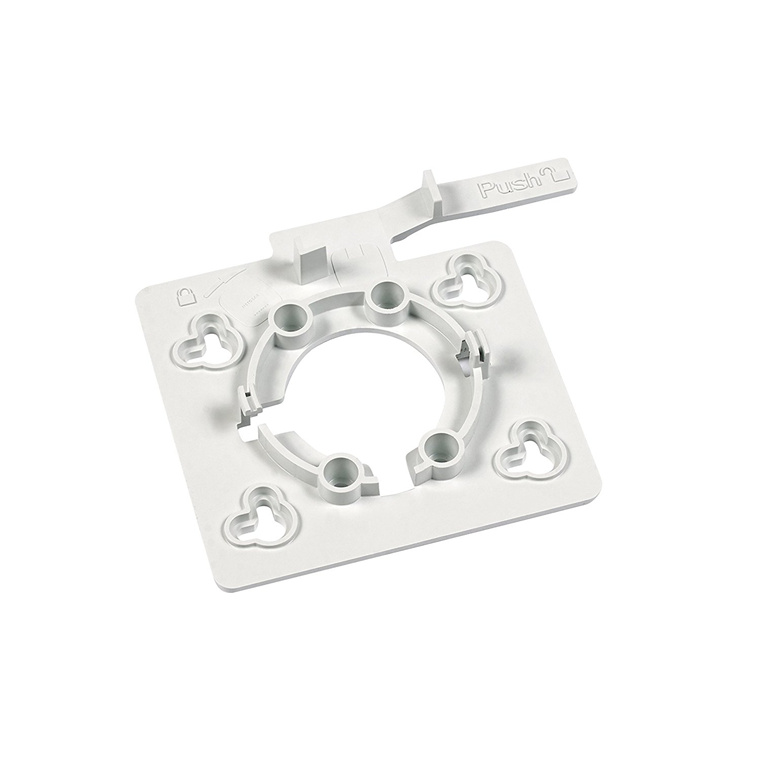

Ceiling and wall mountable (mount included)

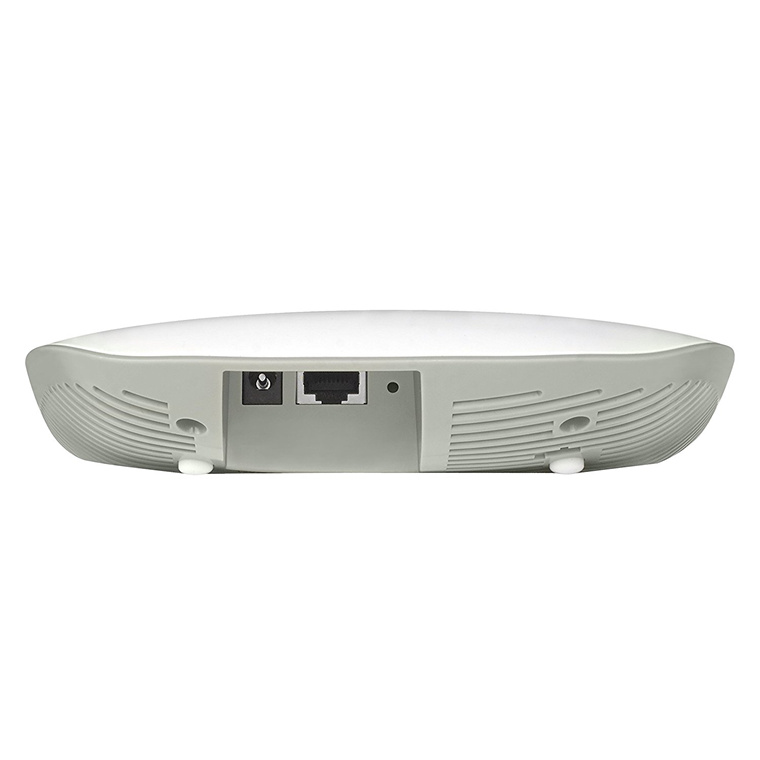

Physical Interfaces

One 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink® (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)

LEDs

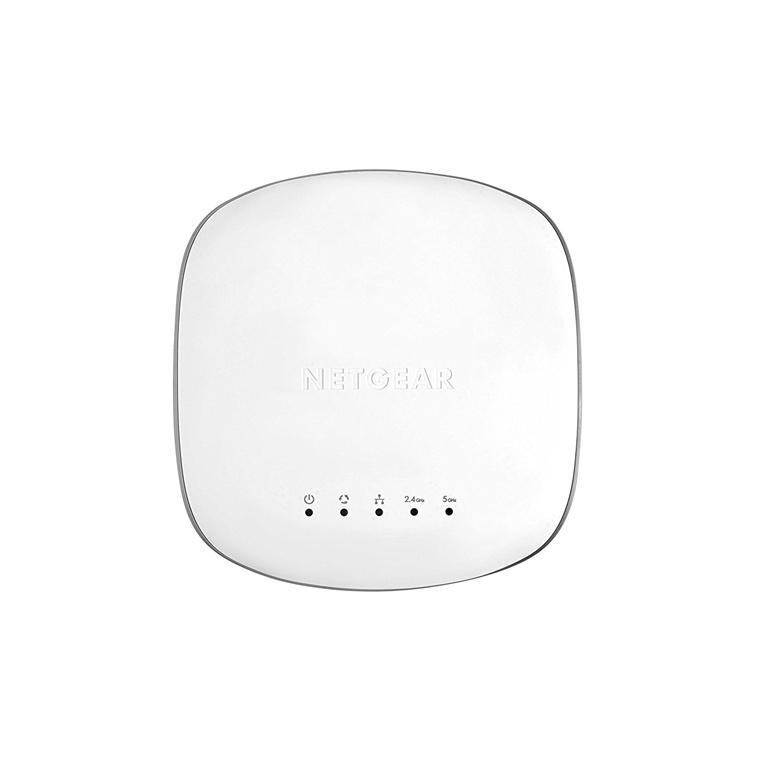

Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz

Default Reset

Yes

Operating Temperature

32° to 104°F (0° to 40°C)

Storage Temperature

-4° to 158°F (-20° to 70°C)

Operating Relative Humidity

10-90%

Storage Humidity

5-95%

MTBF

@ 25°C > 978,210 Hours

Package Contents

Insight Managed Smart Cloud Wireless Access Point (WAC505)

Safety Certification

FCC, CE (EN60950)

Optional Support

PMB0351: 5 years OnCall 24x7
PMB0331: 3 years OnCall 24x7
PMB0311: 1 year OnCall 24x7

Product Ordering Information

WAC505-100NAS
WAC505-10000S

Manufacturer Part No:
WAC505-10000S
Brand:
Product Type:
MU-MIMO
UPC
606449119848
Product Family:
Insight Managed
Shipping Weight:
1.5 kg
PB Part No:
NAPNGR575932
Product Model:
WAC505
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
