Features

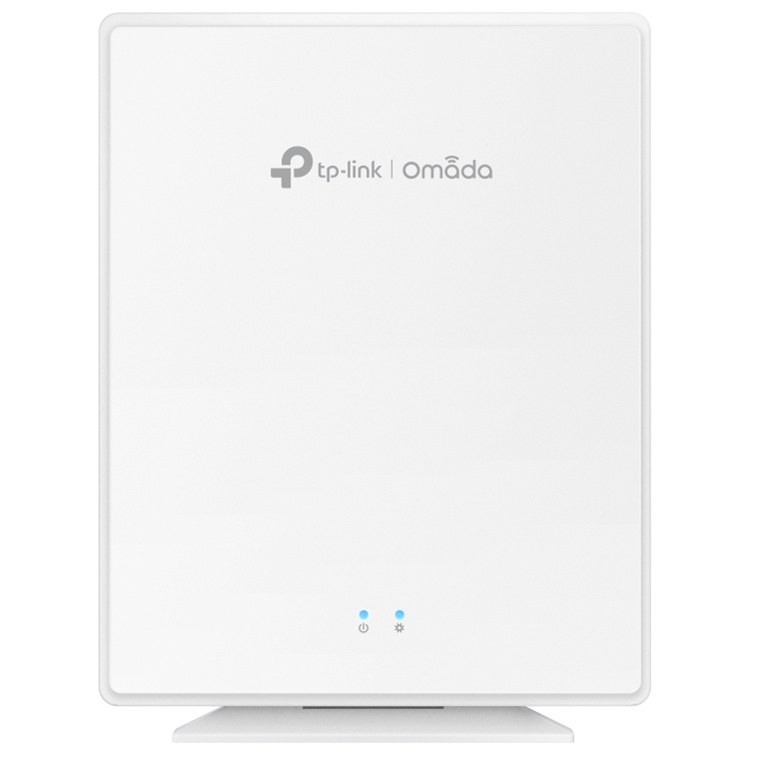

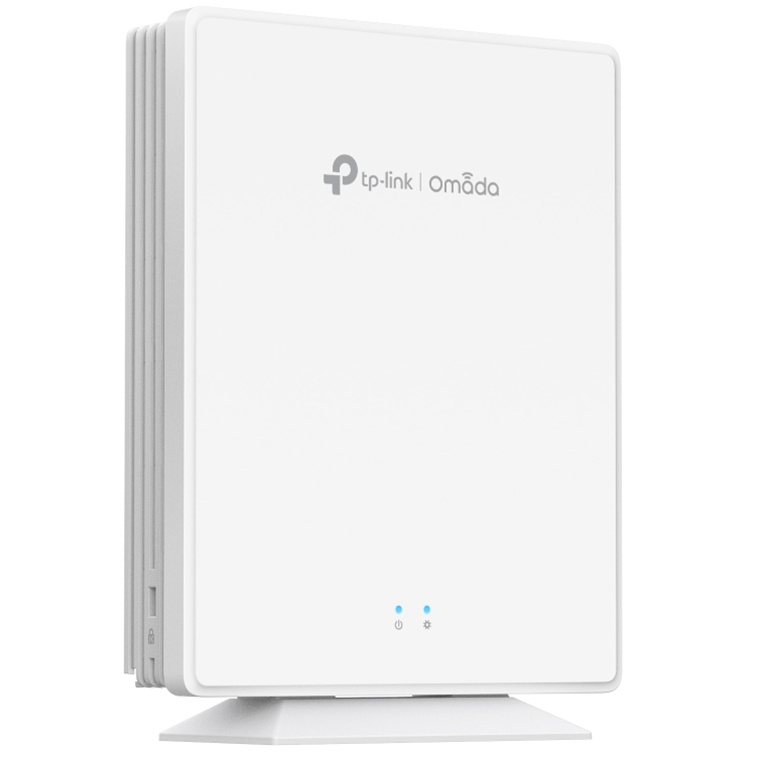

EAP650-Desktop Omada AX3000 Desktop Wi-Fi 6 Access Point

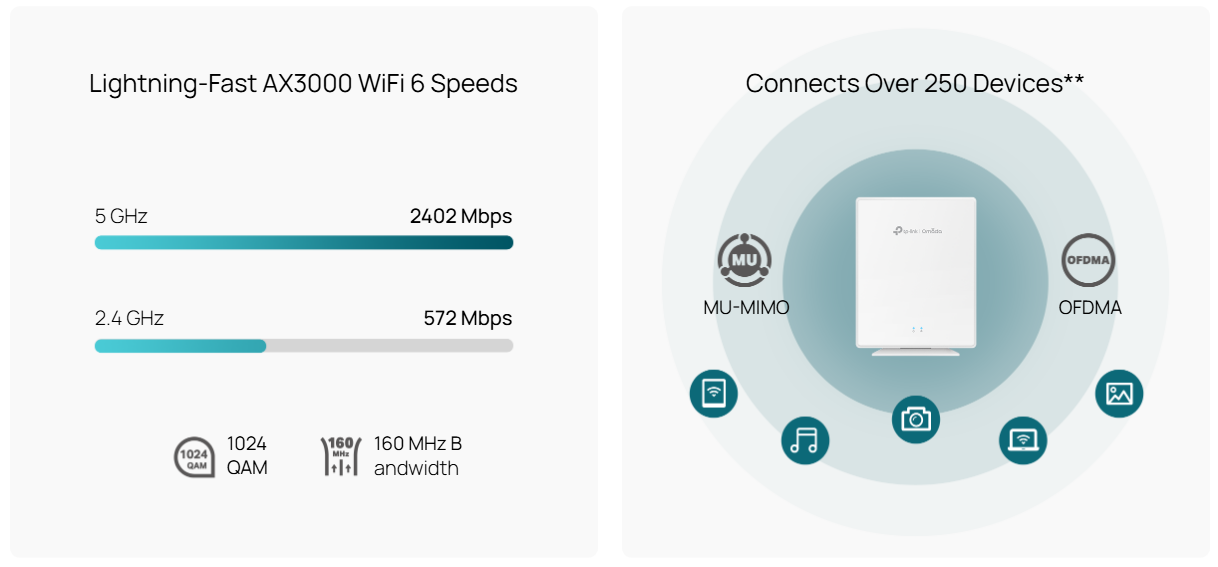

Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds[1].

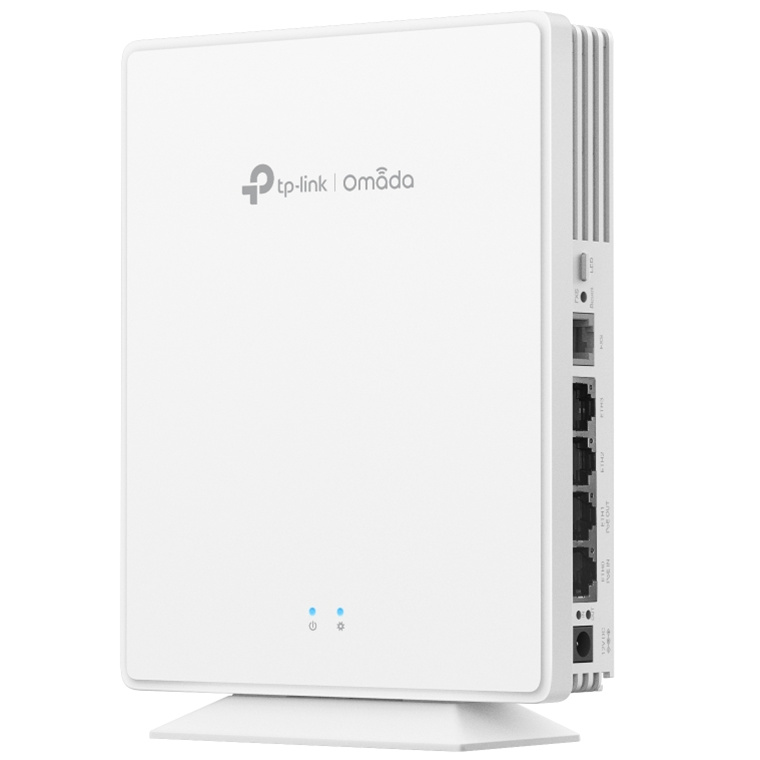

Multiple Gigabit Ports: Connect multiple devices with 4x Gigabit Ethernet Ports.
Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.

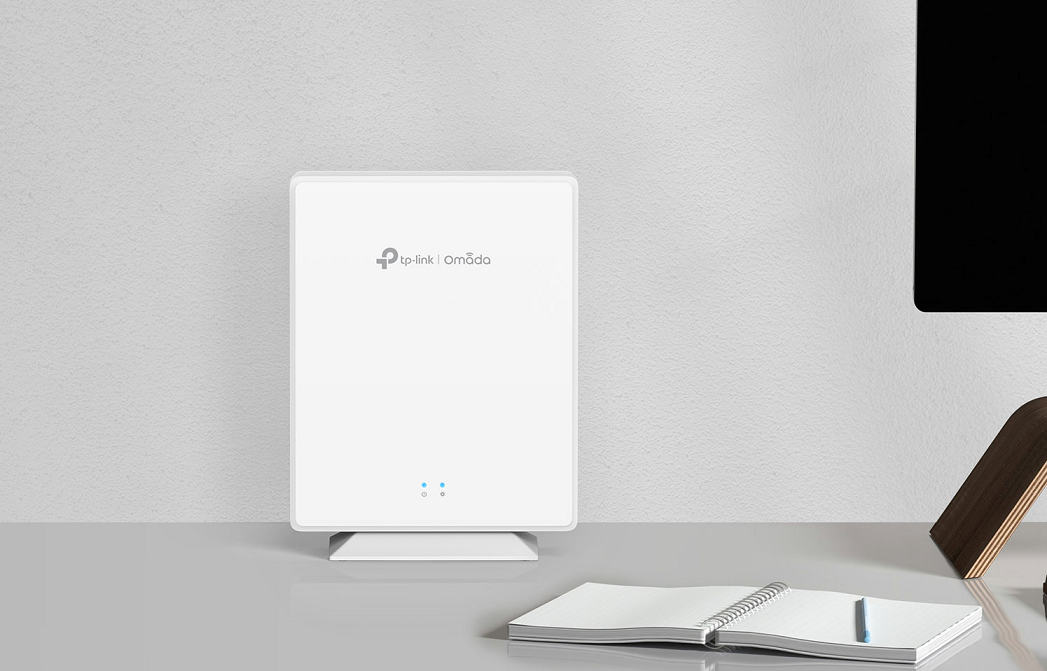

No Installation needed: Supports desktop installation without the need for additional setup.

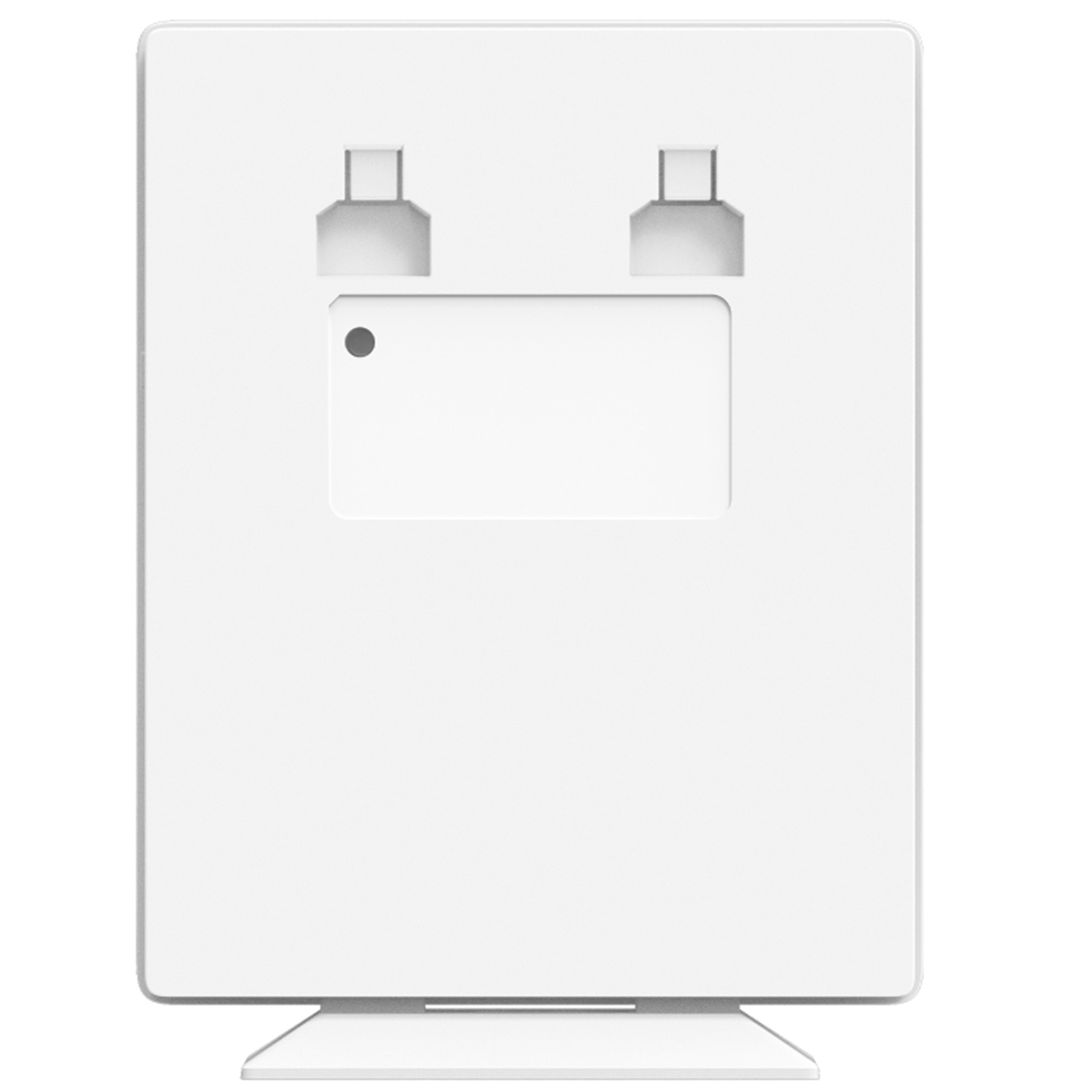

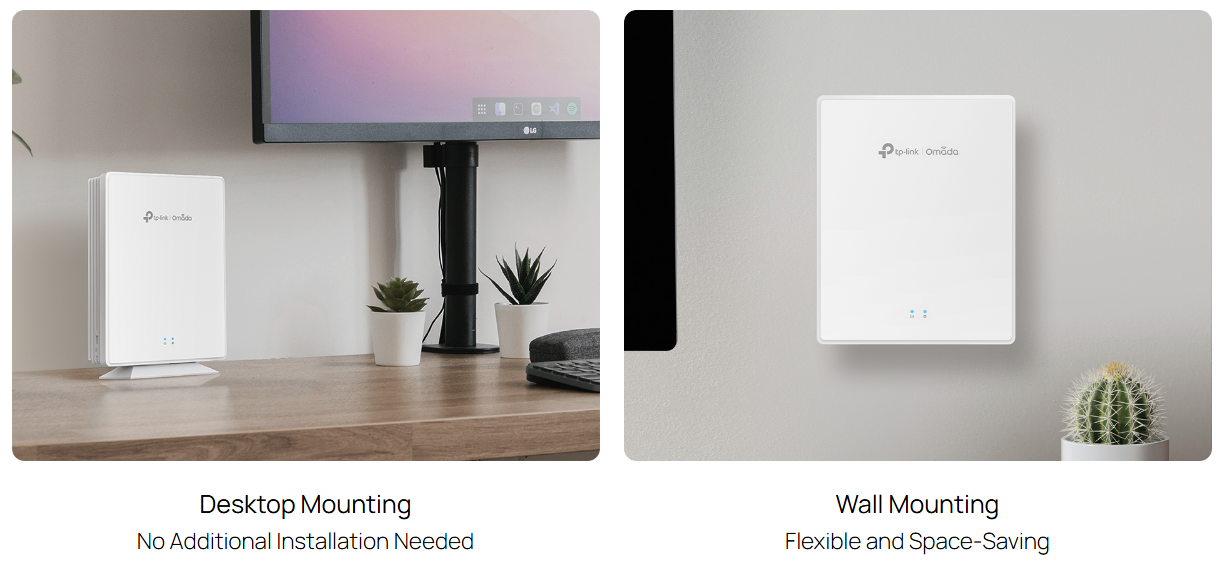

High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management[2].
No Complex Installation, No Complicated Cabling
Ideal for Versatile Business Environments
Power Up Your Business with New-Era WiFi 6

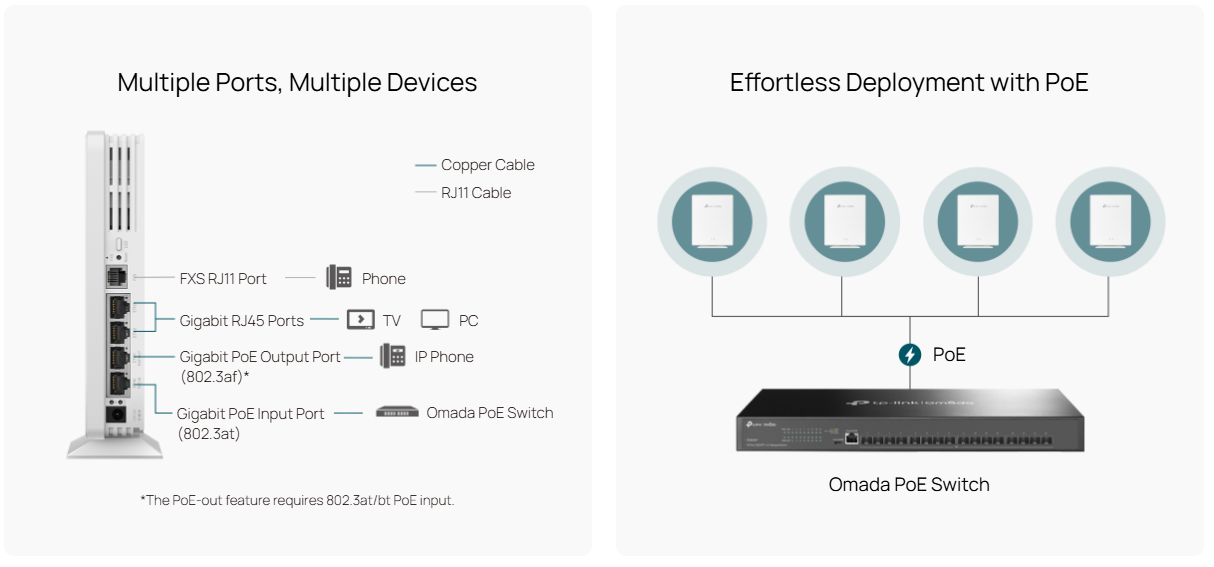

Gigabit Ports with PoE Support

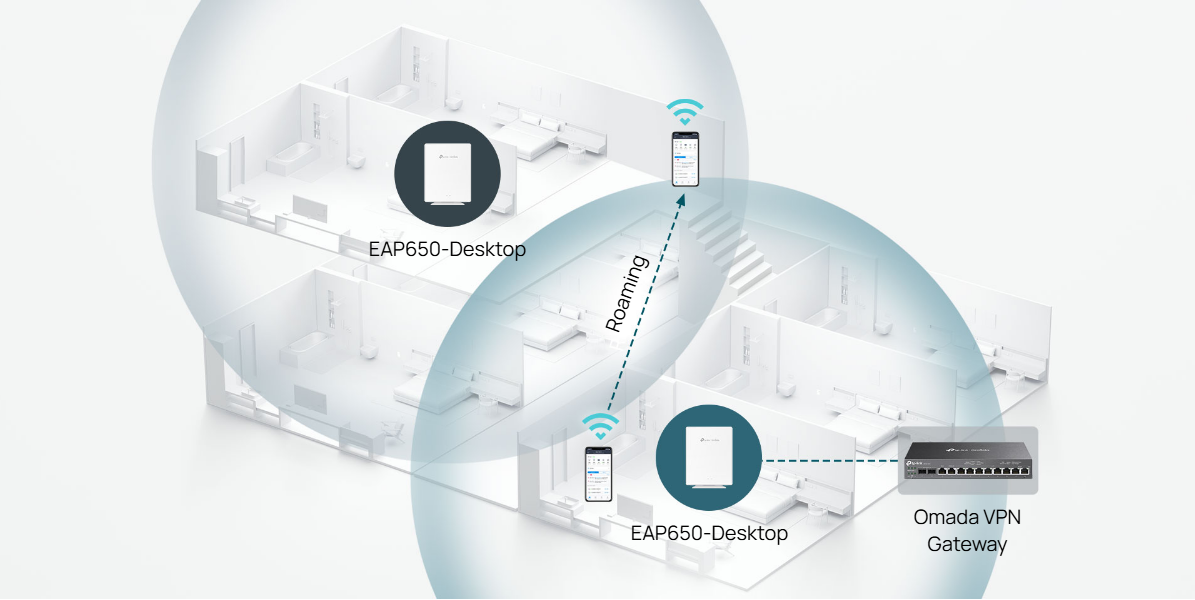

Seamless WiFi 6 Mesh Networking

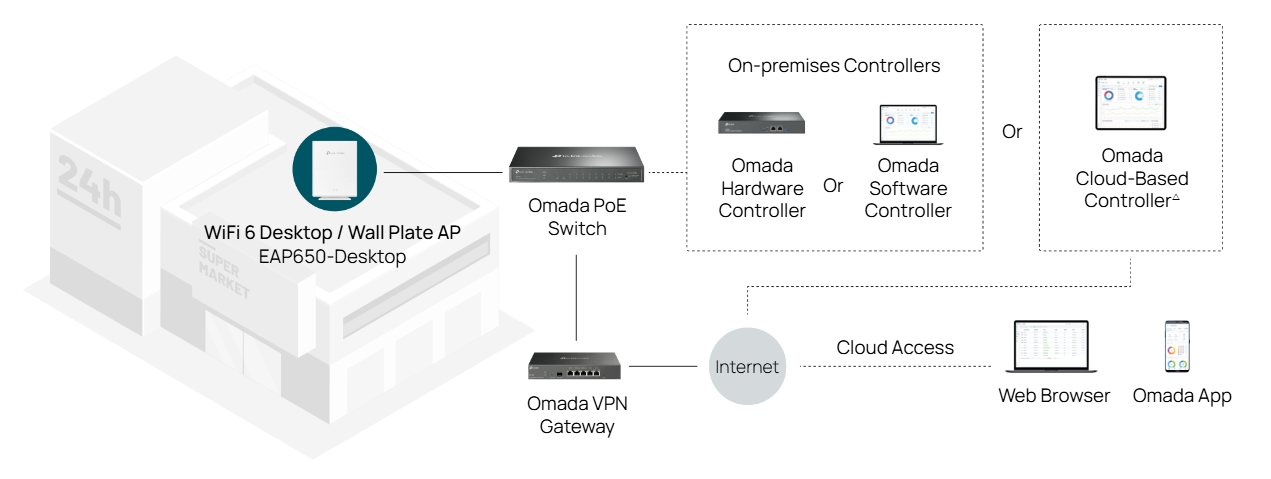

Software-Defined-Networking (SDN) with Cloud Access
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
[2]Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Specifications
HARDWARE FEATURES

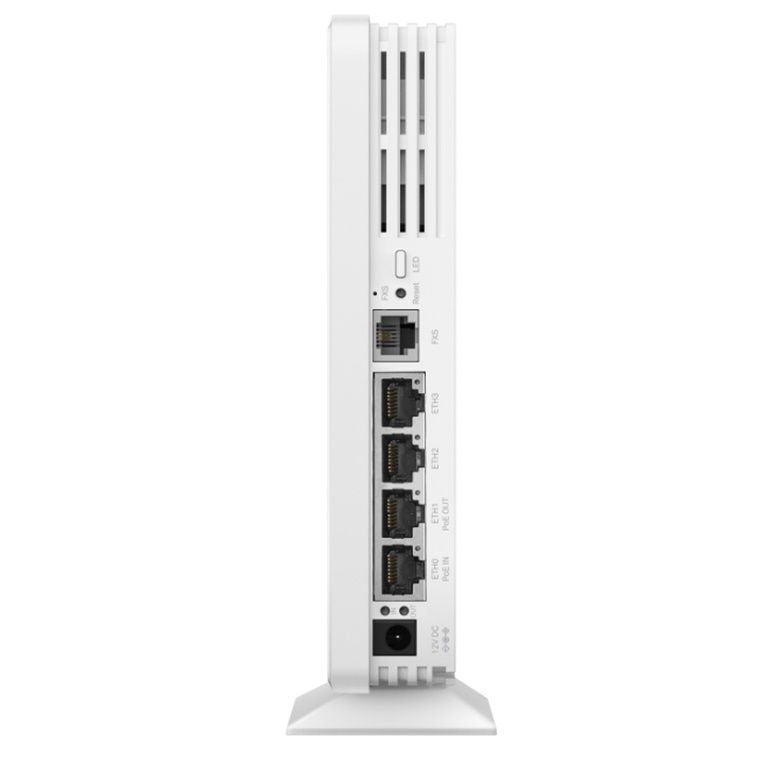

Interface
4x 1Gbps Ethernet Ports + 1× FXS Port
(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button
Reset
LED
Power Supply
802.3 af/at/bt PoE or 12V/1.5A DC
*PoE Out requires 802.3at/bt PoE power supply
Max. Power Consumption
17.3W (PoE Out Off)
Weight
452g (excluding mounting base)
Dimensions ( W x D x H )
6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna
Internal Omni
2.4 GHz: 2× 5 dBi
5 GHz: 3× 4.7 dBi
Range
140m²(1500 ft²)*
Mounting
Desktop / Wall mouting (Kits included)
WIRELESS FEATURES
Concurrent Clients
250+*
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: 2402 Mbps[1]
2.4 GHz: 574 Mbps
Wireless Functions
2×2 (2.4G & 5G) MU-MIMO[2]
HE160 (160 MHz Bandwidth)[2]
OFDMA[2]
Omada Mesh
Seamless Roaming[3]
Multiple SSIDs (16 SSIDs, 8 on each band)
Enable/Disable SSID Broadcast
Enable/Disable Wireless Radio
Guest Network
Automatic Channel Assignment
Beamforming
Rate Limit (Based on SSID/Client)
Band Steering
Load Balance
Airtime Fairness
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule and Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication[3]
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)
FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)
Management Features
Omada App
Yes
Centralized Management
Omada Hardware Controller
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
Zero-Touch Provisioning
Yes.Reauire the use of Omada Cloud-Based controller
OTHERS
Certification
CE, FCC, RoHS, IC
Package Content
EAP650-Desktop
Desktop/Wall Mounting Kit
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: 0-40°C (32-104°F)
Storage Temperature: -40-70°C(-40-158°F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Notes
Notes
*Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2]Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.
[3]Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
