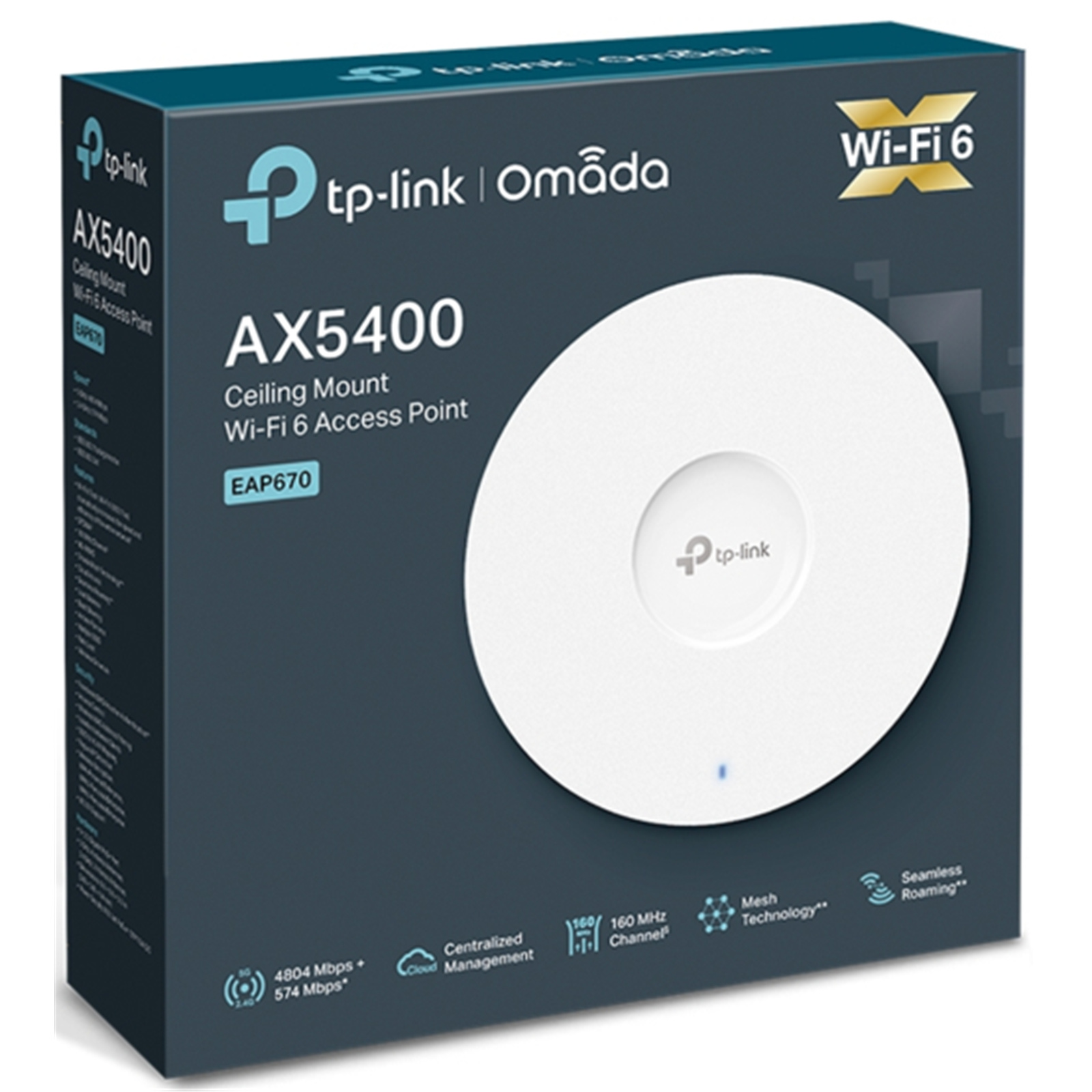

TP-Link Omada EAP670 (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
Out of stock
TP-Link Omada EAP670 (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: TL-EAP670
- Part #: NAPTPL0670
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Great wifi 6 access point performance wise. The one draw back is the looks but not a deal breaker for the price"
Features

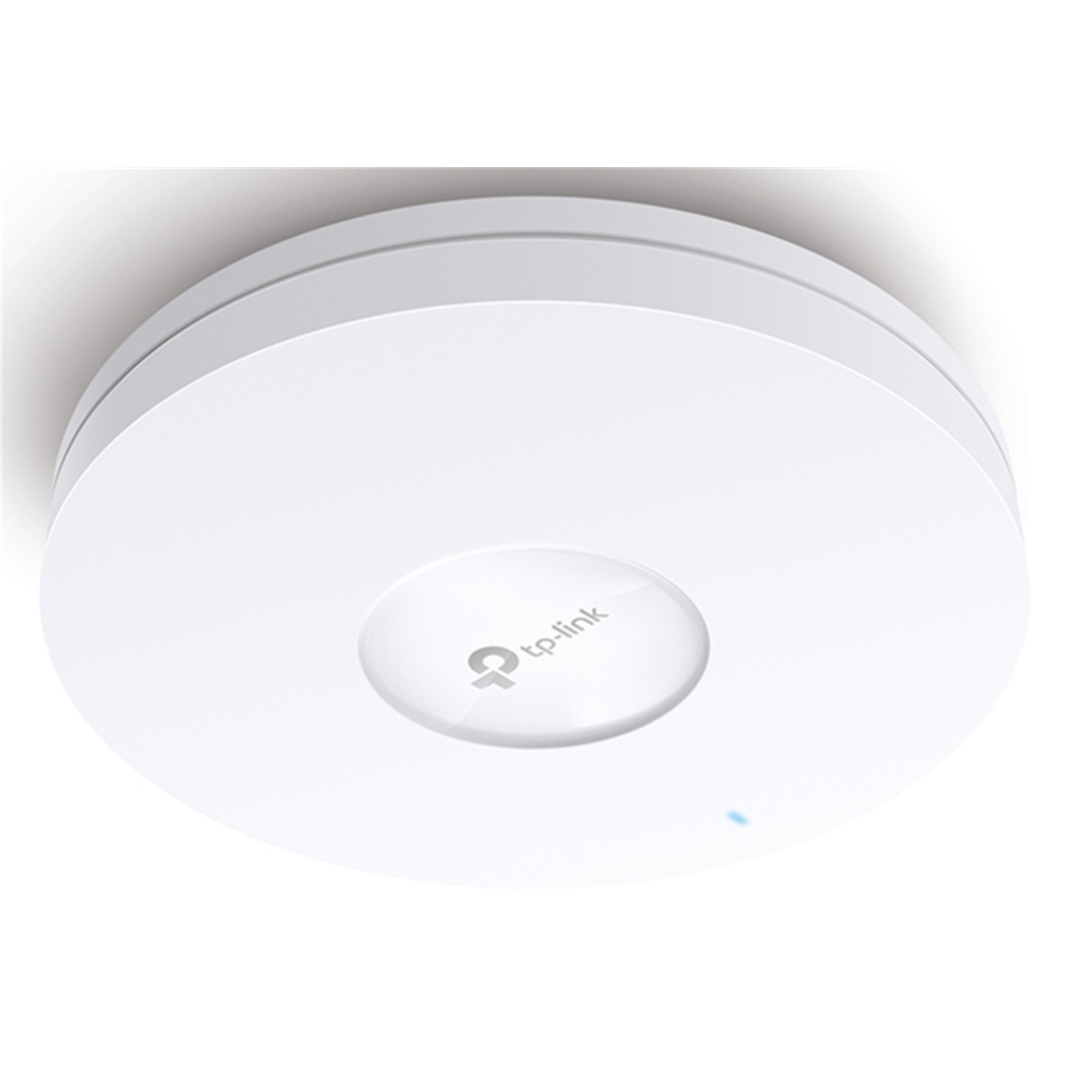

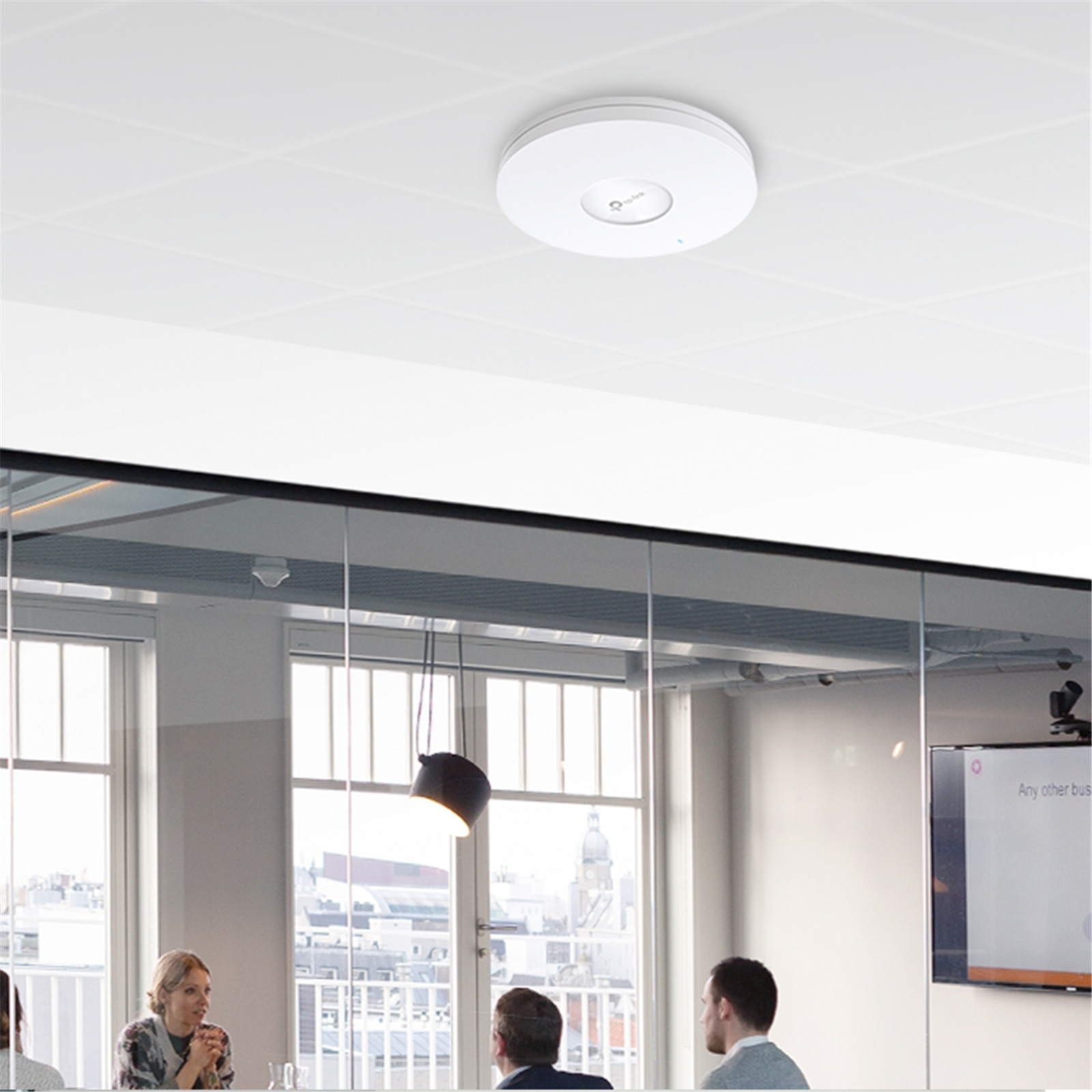

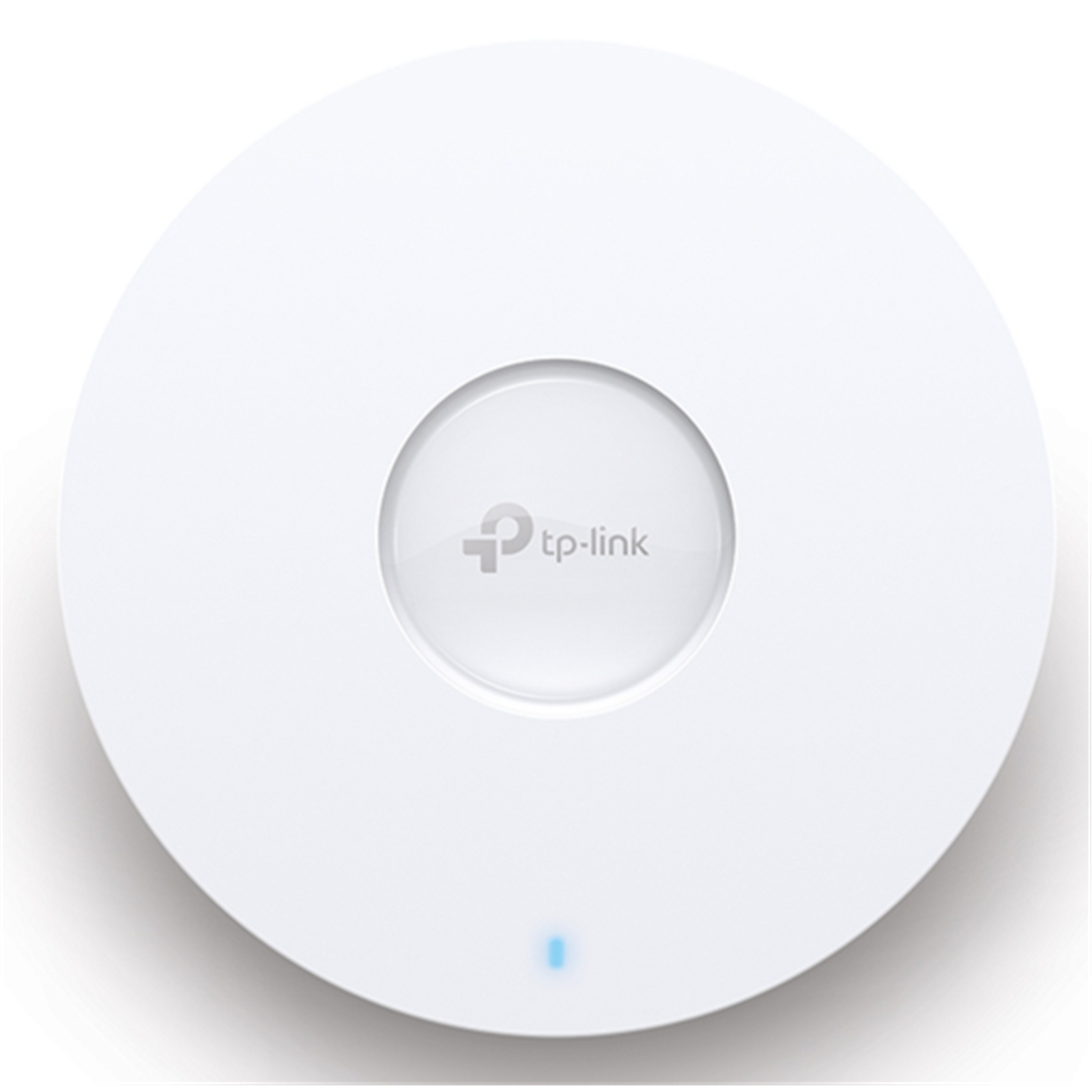

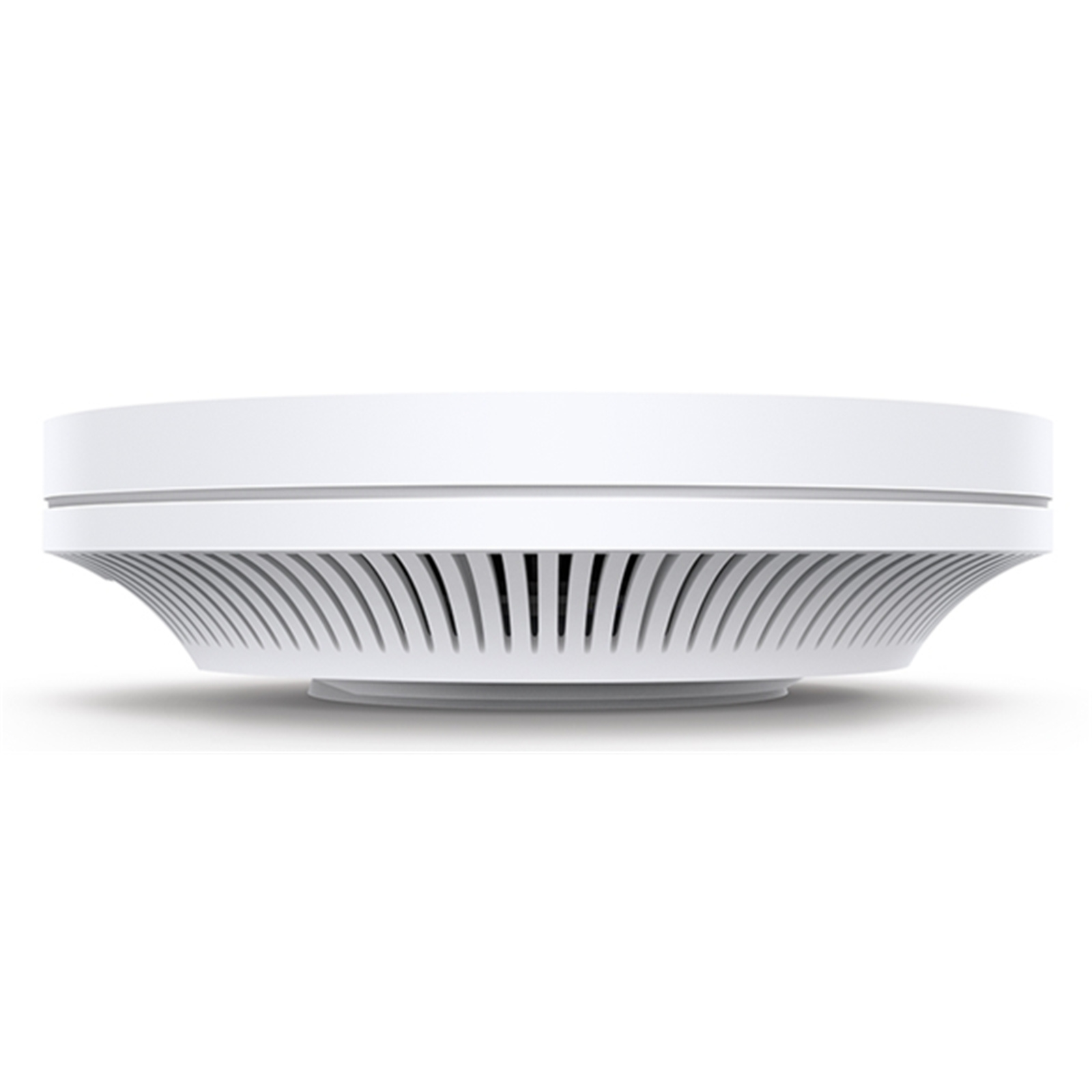

EAP670 AX5400 Ceiling Mount WiFi 6 Access Point

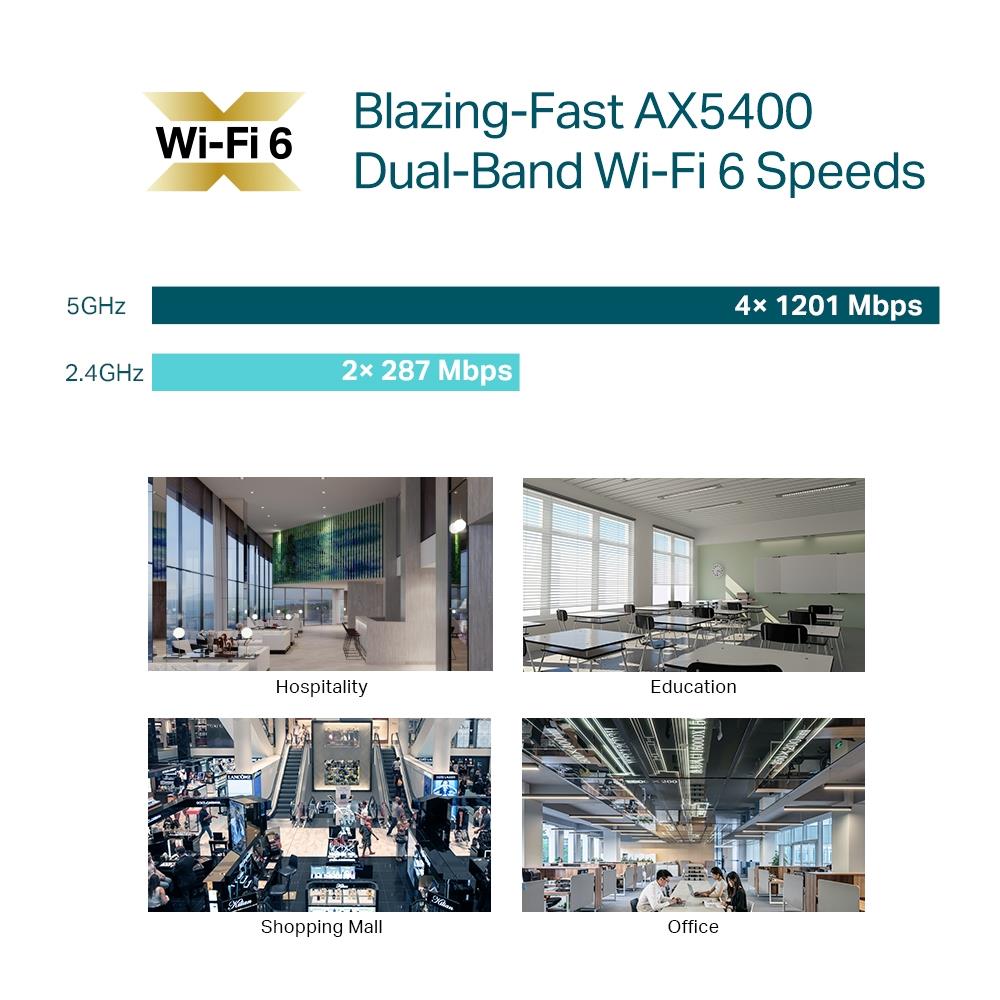

Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.[1]
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

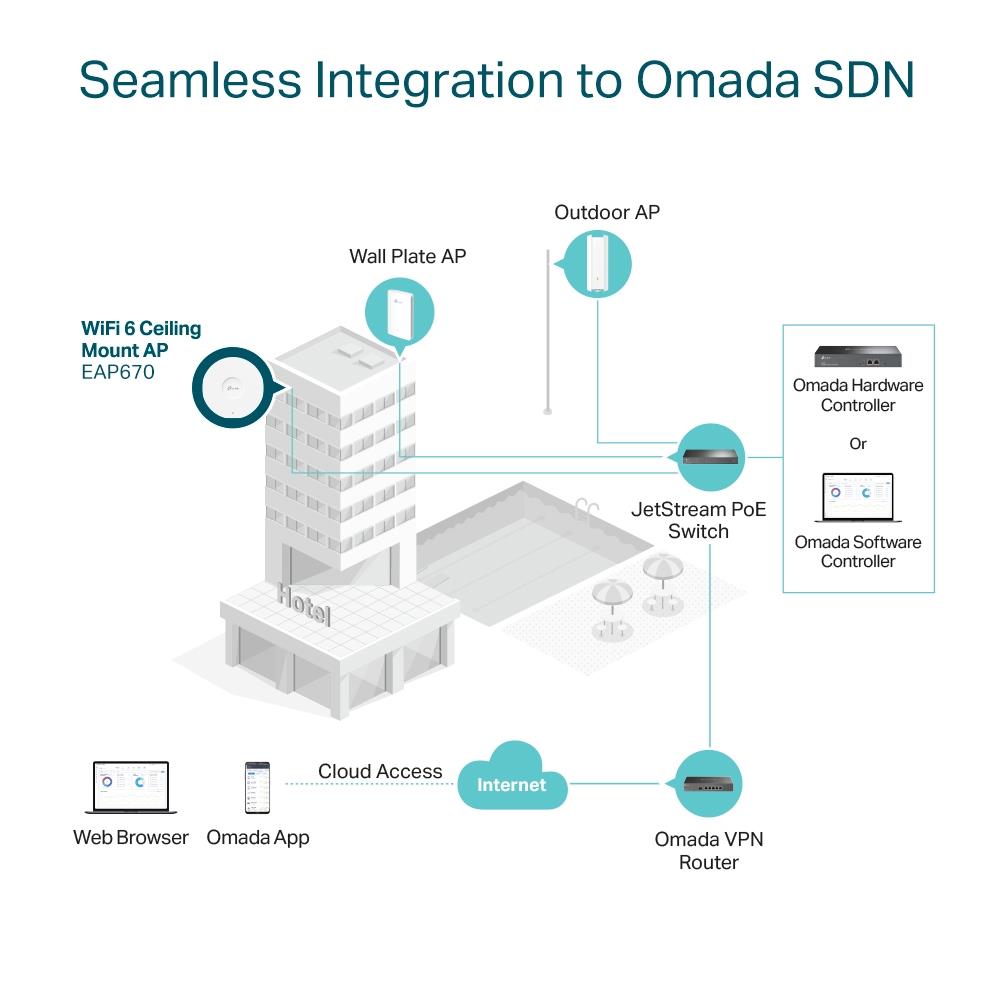

Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.[2]
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.[3]
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.[3]
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

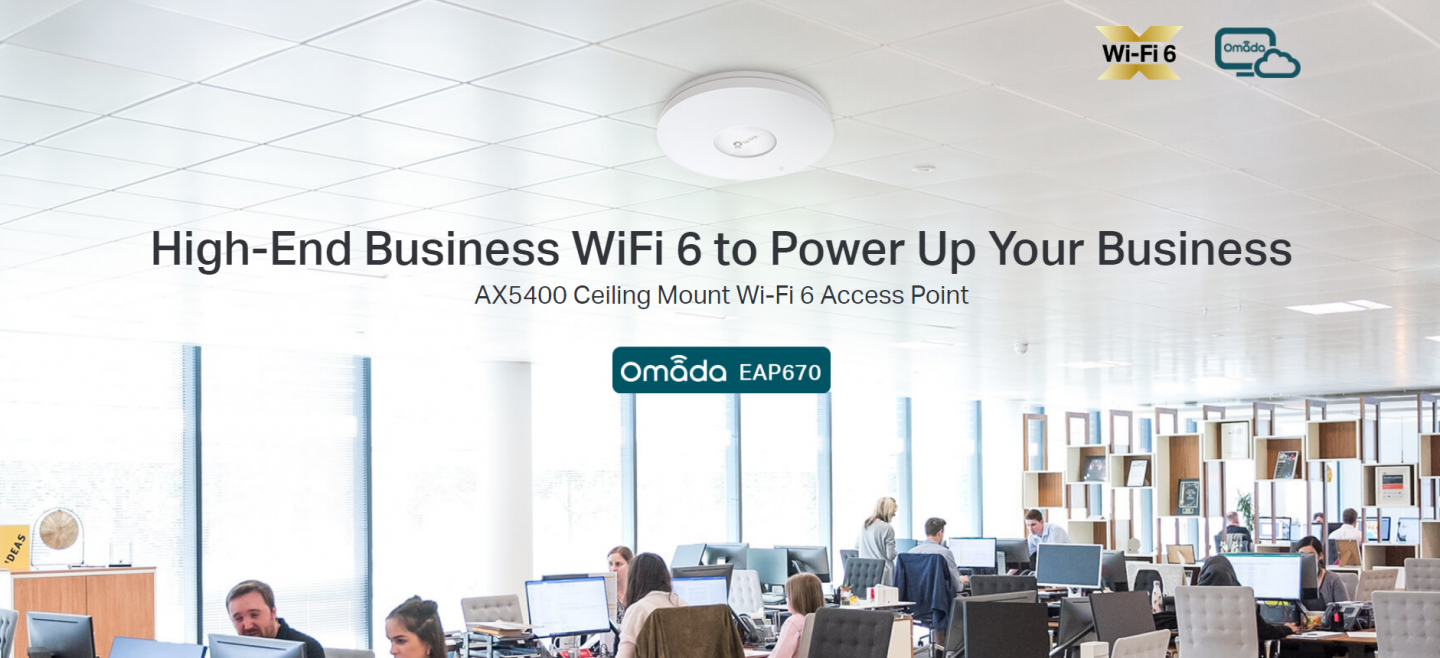

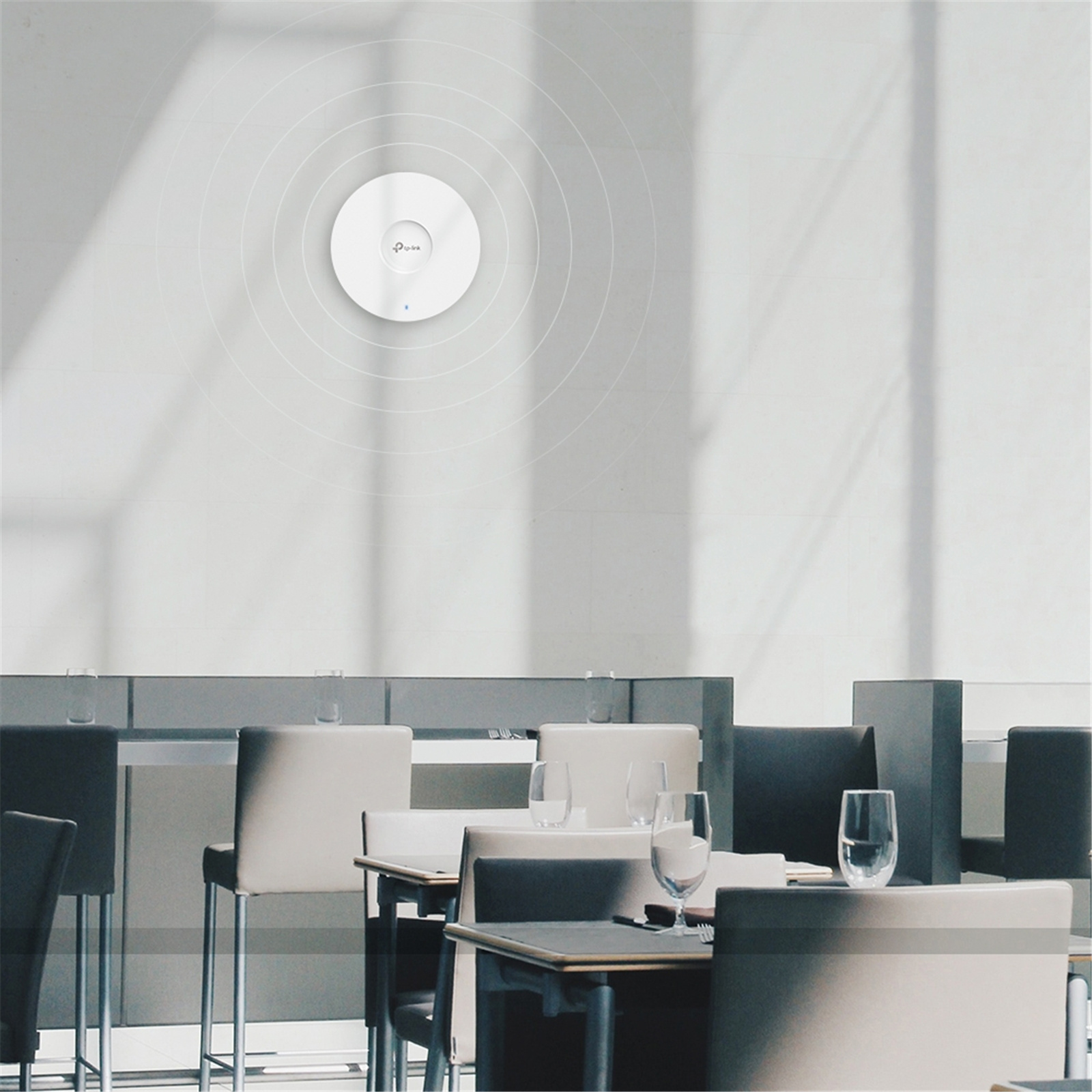

Designed for Business Environments Requiring High-Performance WiFi

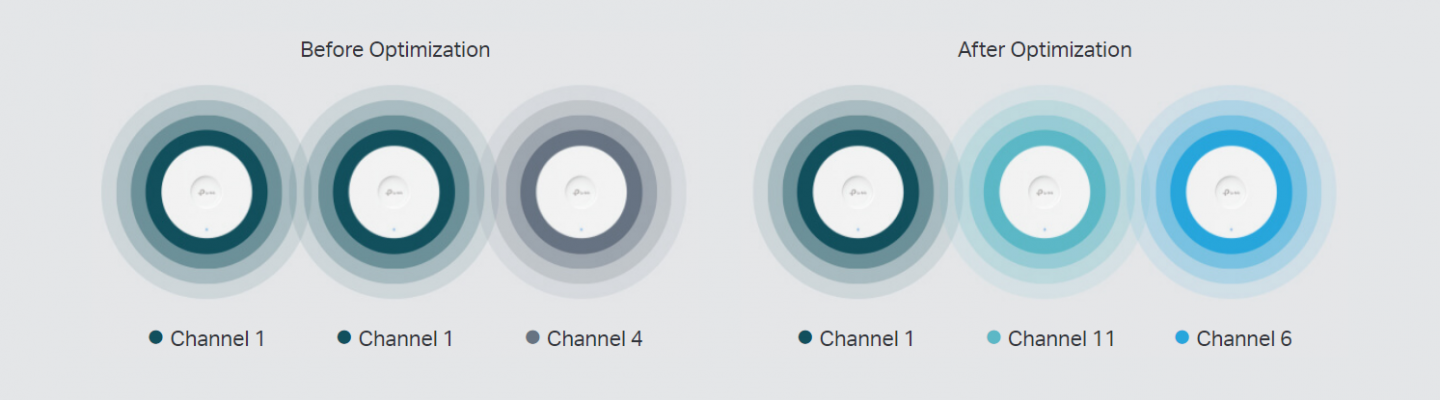

Auto Channel Selection and Power Adjustment to Optimize Overall Performance[4]
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

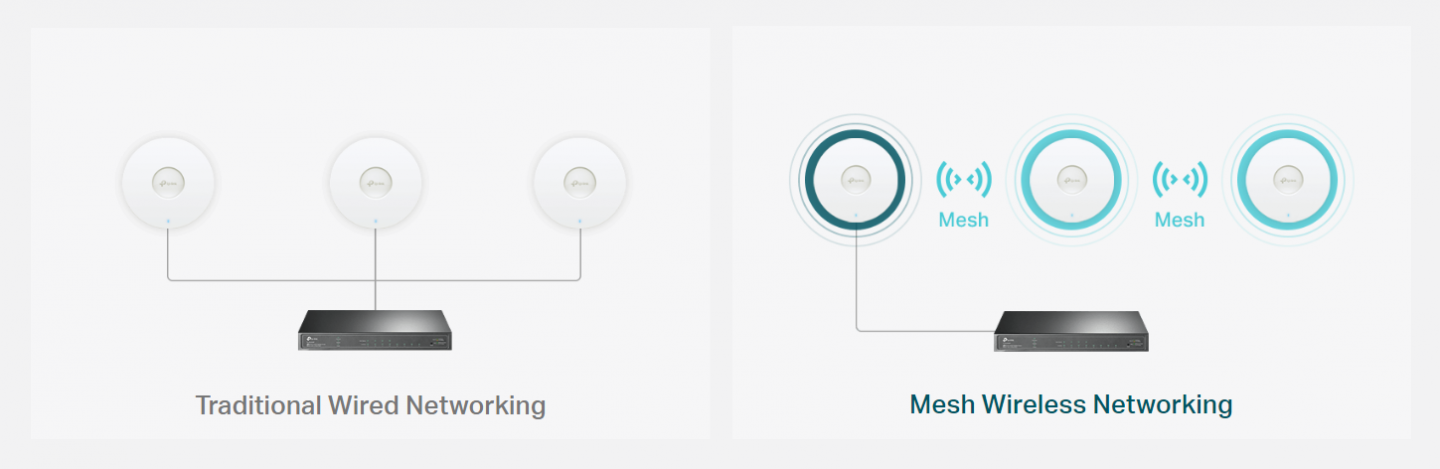

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
3. Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
4. Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Indoor Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
TP-Link TL-WA1201 Wi-Fi Access Point MU-MIMO - Dual-Band AC1200 ...
TP-Link Omada EAP670 (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: TL-EAP670
- Part #: NAPTPL0670
Product URL: https://www.pbtech.co.nz/product/NAPTPL0670/TP-Link-Omada-EAP670-Dual-Band-AX5400-Wi-Fi-6-Acce
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EAP670 AX5400 Ceiling Mount WiFi 6 Access Point
Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.[1]
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.[2]
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.[3]
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.[3]
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Designed for Business Environments Requiring High-Performance WiFi
Auto Channel Selection and Power Adjustment to Optimize Overall Performance[4]
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
3. Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
4. Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
Specifications
HARDWARE FEATURES
Interface
1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12 V / 1.5 A DC
Power Consumption
EU: 18.1 W
US: 19.8 W
Dimensions ( W x D x H )
9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type
Internal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 4× 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<30 dBm(5 GHz, band3, EIRP)
FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP670
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
Operating Temperature: 0-40 C (32-104 F)
Storage Temperature: -40-70 C (-40-158 F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
