TP-Link Omada EAP683 UR (AX6000) Dual-Band 8-Stream Ultra-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
Out of stock
TP-Link Omada EAP683 UR (AX6000) Dual-Band 8-Stream Ultra-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: EAP683 UR
- Part #: NAPTPL0684
- UPC:
- Brand: TP-Link
- MPN: EAP683 UR
- Part #: NAPTPL0684
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz*
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.**
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.***
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Ultra-Range Wireless Coverage
4 x 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.
Ultra-Fast AX6000 WiFi 6 Speeds
Seamless Integration into Omada SDN
Easy Deployment and Higher Performance with Omada Mesh
Easy Pairing, Less Wiring
Optimized Network Performance
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
**Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz, compared to 80 MHz for general WiFi 6 APs.
***Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /us/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Indoor Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
TP-Link TL-WA1201 Wi-Fi Access Point MU-MIMO - Dual-Band AC1200 ...
TP-Link Omada EAP683 UR (AX6000) Dual-Band 8-Stream Ultra-Range Wi-Fi 6 Access Point with 2.5GbE x1 (PoE+ 21W)
- Brand: TP-Link
- MPN: EAP683 UR
- Part #: NAPTPL0684
Product URL: https://www.pbtech.co.nz/product/NAPTPL0684/TP-Link-Omada-EAP683-UR-AX6000-Dual-Band-8-Stream
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz*
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.**
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.***
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

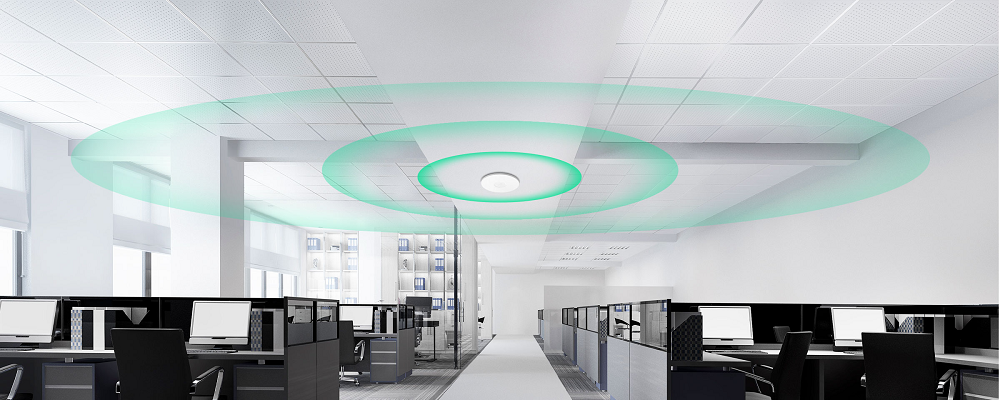

Ultra-Range Wireless Coverage
4 x 4 MIMO dual-band internal antennas with high transmission power offer robust and extensive wireless coverage.

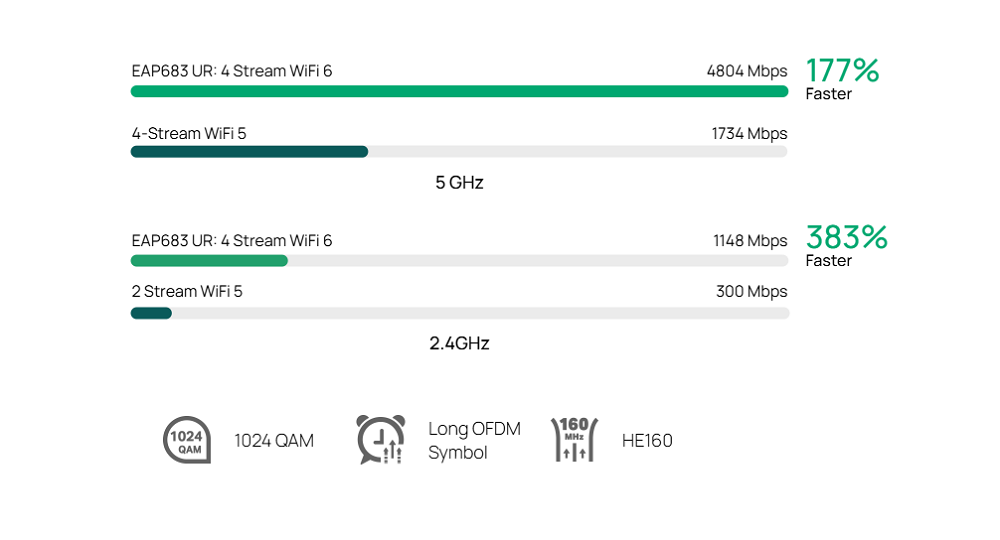

Ultra-Fast AX6000 WiFi 6 Speeds

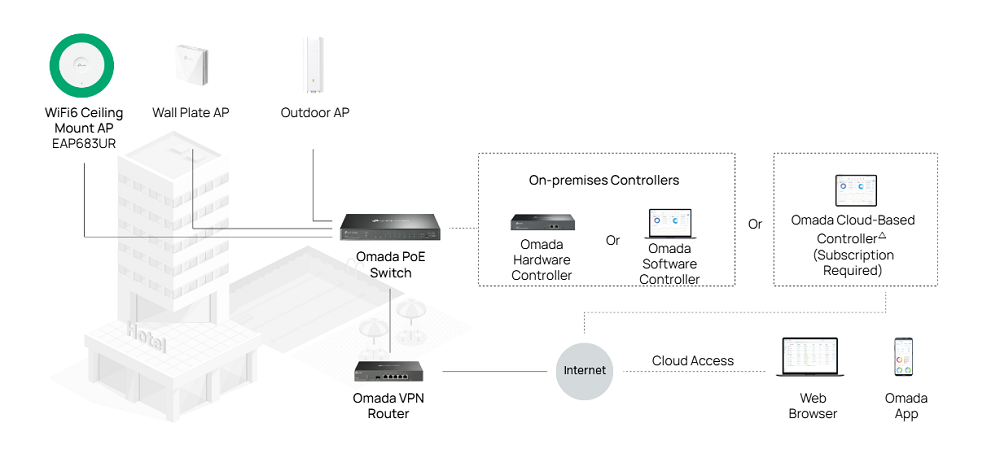

Seamless Integration into Omada SDN

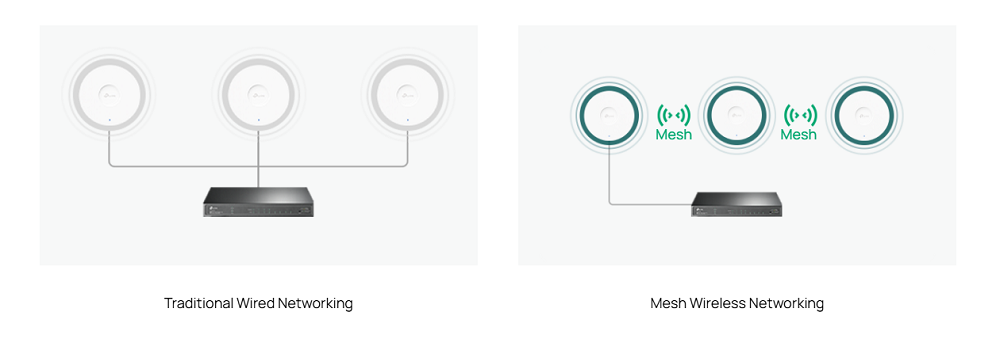

Easy Deployment and Higher Performance with Omada Mesh
Easy Pairing, Less Wiring
Optimized Network Performance
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
**Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz, compared to 80 MHz for general WiFi 6 APs.
***Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /us/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
Hardware Features

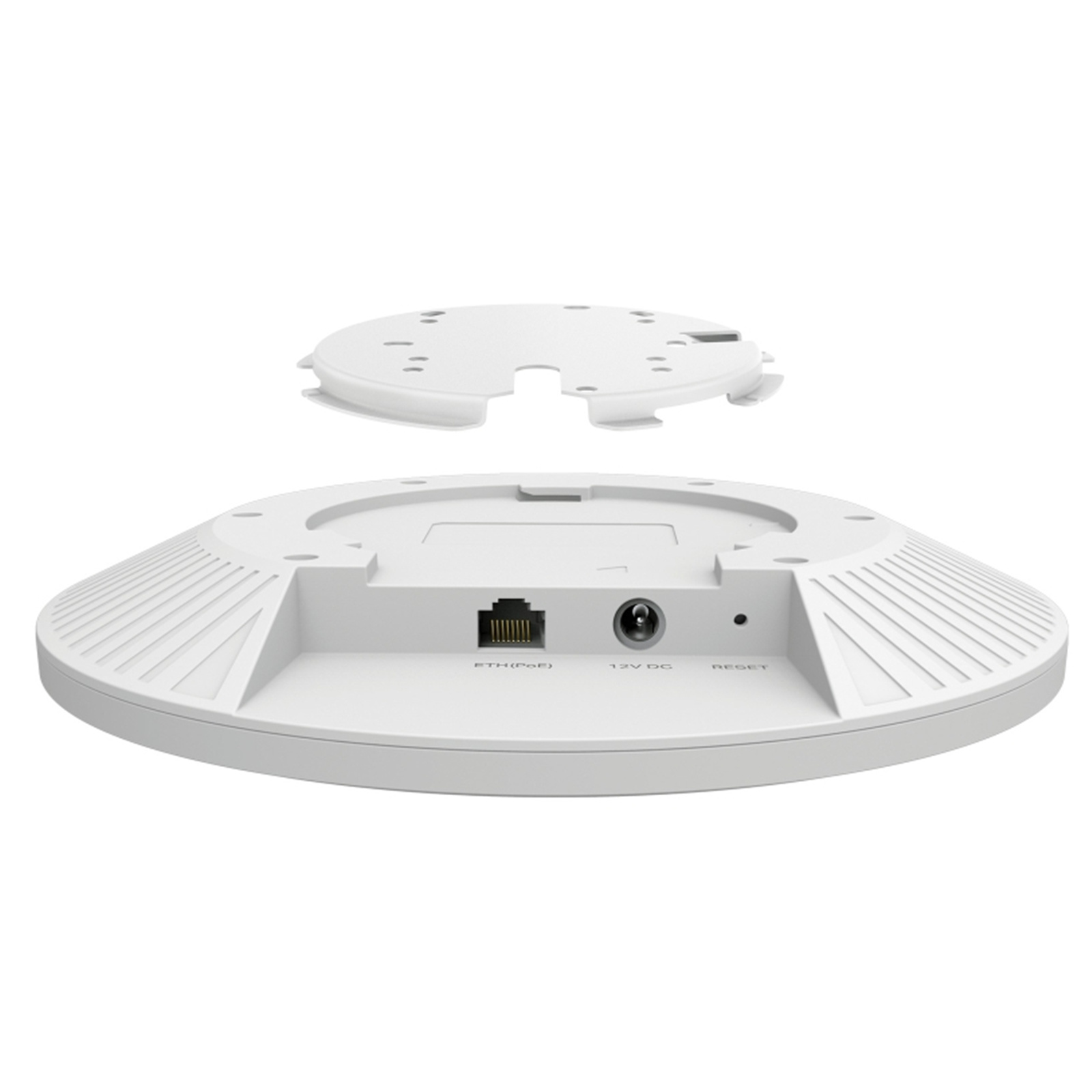

Interface
1x 2.5 Gigabit PoE+ Port
Button
Reset
Power Supply
- 802.3at PoE
- 12 V / 2 A DC
Note:Power adapter is not included.
Max. Power Consumption
- EU: 20.43W
- US: 23.69W
Dimensions ( W x D x H )
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Internal Omni
- 2.4 GHz: 4× 4 dBi
- 5 GHz: 4× 5 dBi
Bluetooth
Yes
Mounting
Ceiling /Wall Mounting (Kits included)
Wireless Features
Coverage
185m²(2000ft²)**
**Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
Concurrent Clients
510+*
*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 1148 Mbps
Wireless Functions
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication§
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE: <20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
- FCC: <26 dBm (2.4 GHz)
<26 dBm (5 GHz)
Management Features
Omada App
Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE,FCC,RoHS
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- Operating Temperature: 0-40 ? (32-104 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
