Features

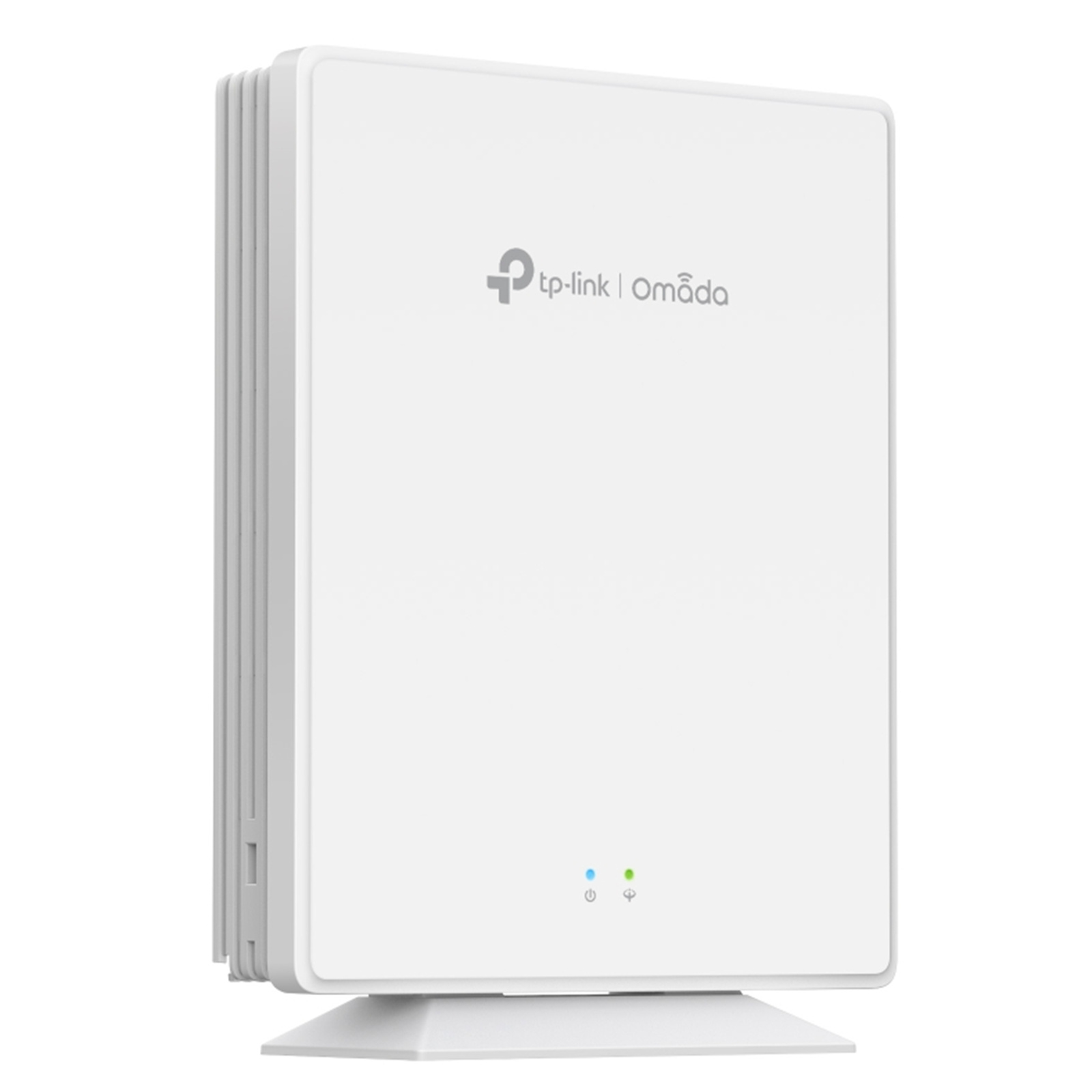

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
- 1× GPON Port for High-Speed and Ultra-Range Access
- Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Smart O&M: PPSK? and Multiple Portals§
- High Flexibility: Support both desktop and wall mounting setups
- Centralized Management: Integrates with the Unified Optical Solution
Specifications
HARDWARE FEATURES

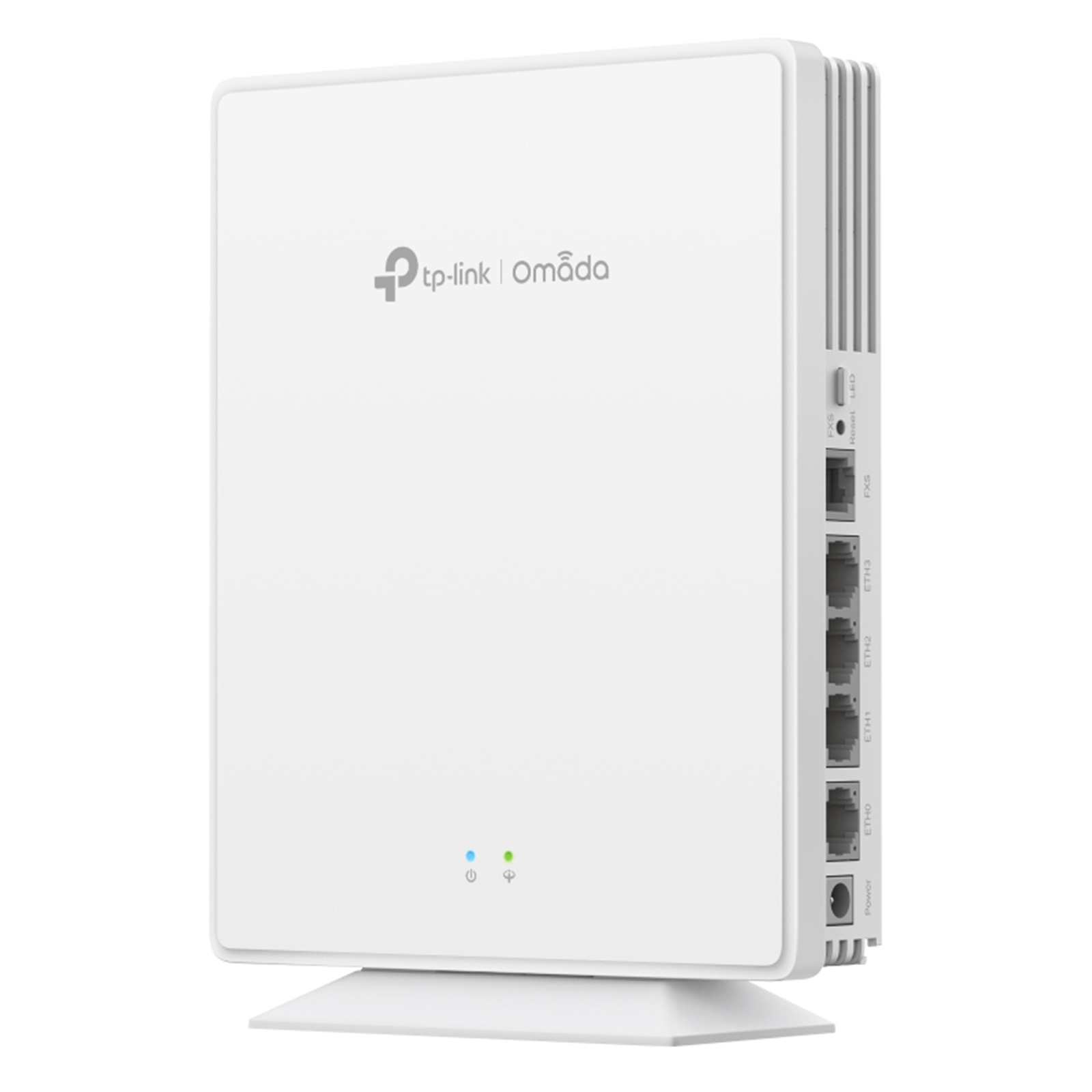

Interface
- 1x GPON Port
- 1x FXS Port
- 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
GPON Interface
- Port Type: SC-APC
- Standards and Protocols: ITU-984.x, G.988, Class B+
- Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
- Fiber Type: 9/125 um Single mode
- Max. Cable Length: 20 km
Button
- Reset
- LED
Power Supply
53.5V/0.81A DC
Power Consumption
17.3W (PoE Out Off)
Weight
492g
Dimensions ( W x D x H )
6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type
Internal Omni
- 2.4 GHz: 2× 5 dBi
- 5 GHz: 2× 4.5 dBi
Mounting

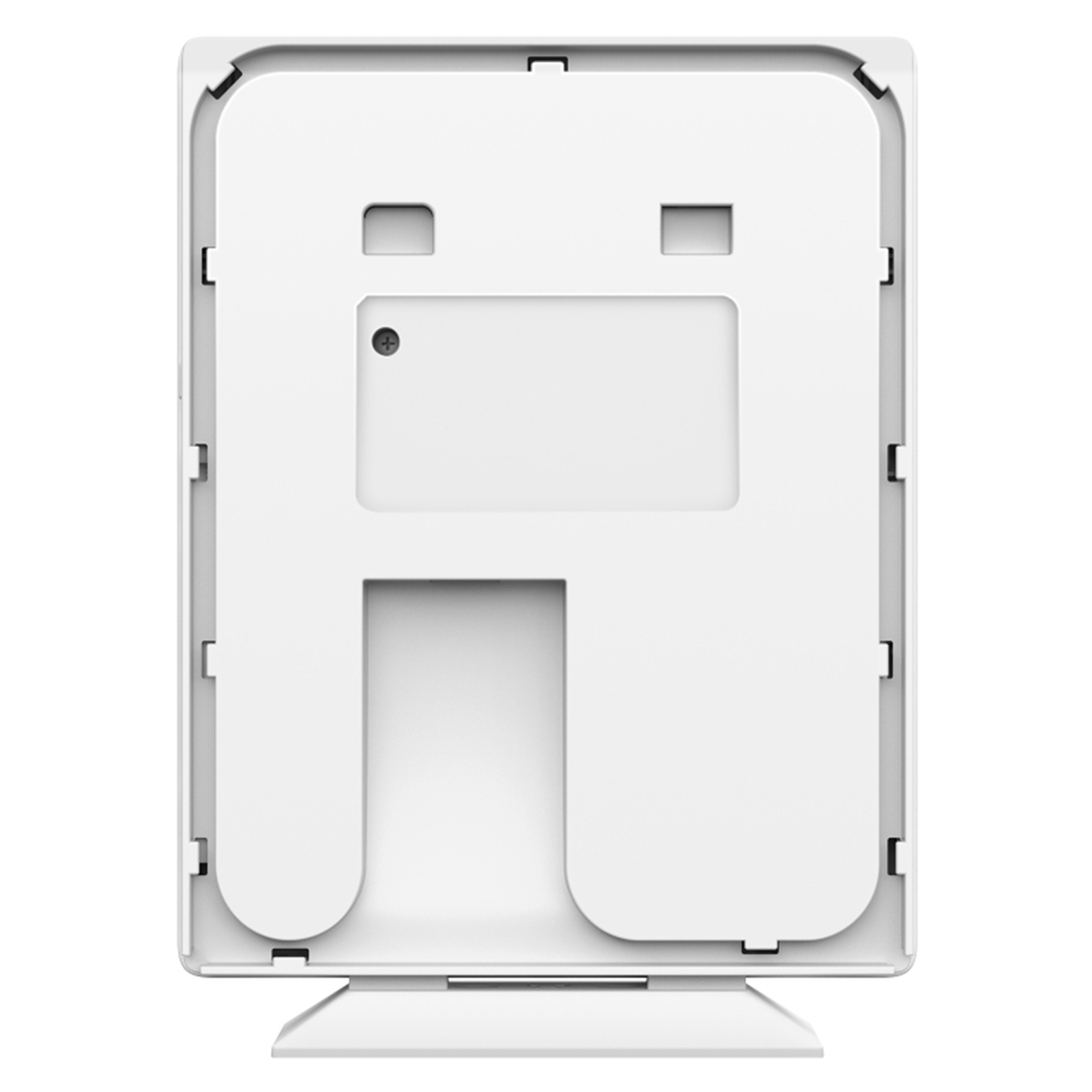

Desktop / Wall mouting (Kits included)
WIRELESS FEATURES
Coverage
140?(1500ft²)**
Concurrent Clients
120+*
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Frequency
2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: 1201 Mbps†
- 2.4 GHz: 574 Mbps
Wireless Functions
- 2×2 (2.4G & 5G) MU-MIMO‡
- HE80 (80 MHz Bandwidth)‡
- OFDMA‡
- Seamless Roaming §
- Multiple SSIDs (16 SSIDs, 8 on each band)
- Enable/Disable SSID Broadcast
- Enable/Disable Wireless Radio
- Guest Network
- Automatic Channel Assignment
- Beamforming
- Rate Limit
- Band Steering
- Load Balance
- Airtime Fairness
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- RADIUS Accounting
- MAC Authentication
- Reboot Schedule
- Wireless Schedule and Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication§
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<27 dBm(5 GHz, band3, EIRP)
- FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
- Omada Hardware Controller (OC300, OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, RoHS, IC
Package Contents
- EAP610GP-Desktop
- Desktop/Wall Mounting Kit
- Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
- Operating Temperature: 0-40 ? (32-104 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
