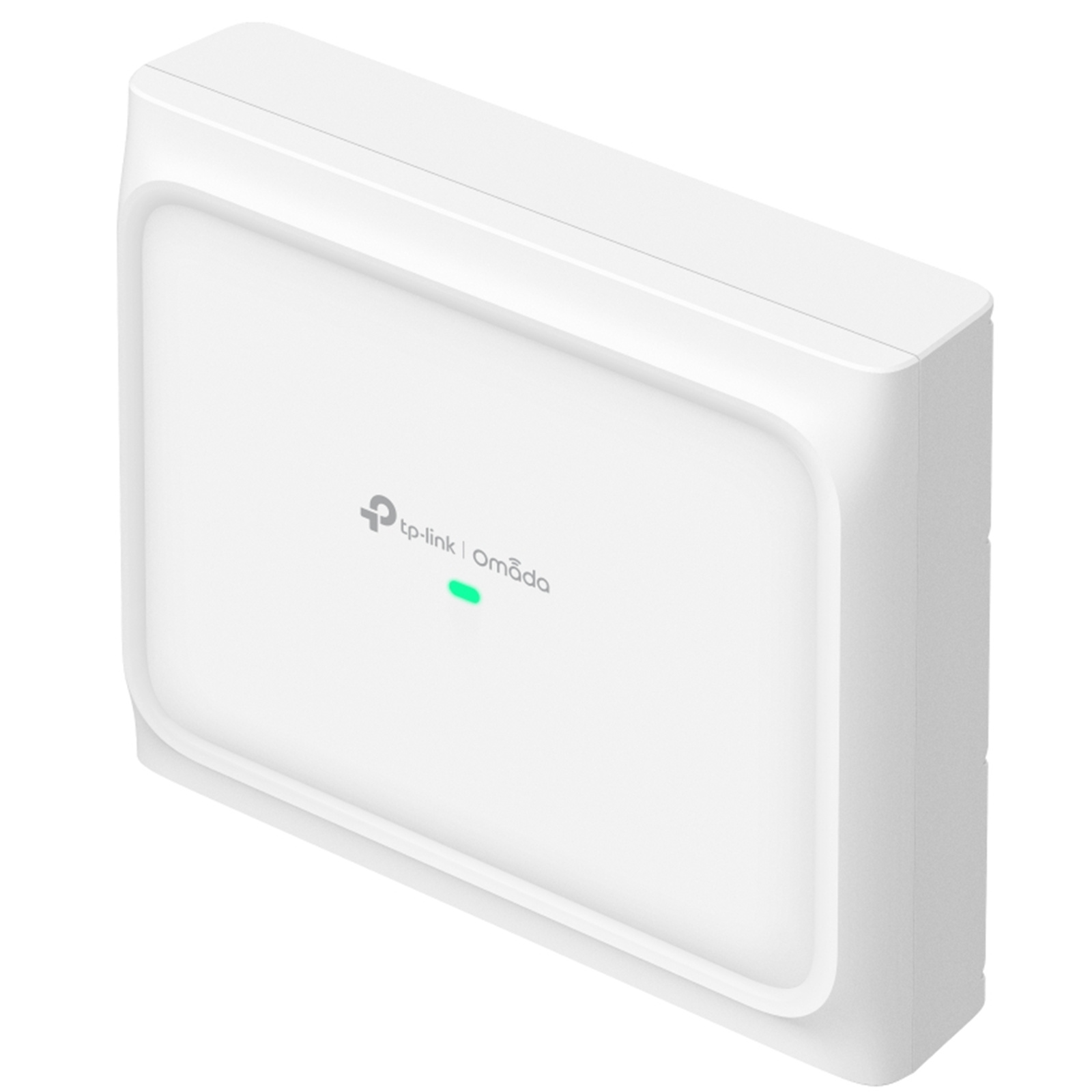

TP-Link Omada EAP772-Outdoor (BE9300) Tri-Band 6-Stream IP67 Outdoor Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 22W)
TP-Link Omada EAP772-Outdoor (BE9300) Tri-Band 6-Stream IP67 Outdoor Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 22W)
- Brand: TP-Link
- MPN: EAP772-Outdoor
- Part #: NAPTPL77321
- UPC:
- Brand: TP-Link
- MPN: EAP772-Outdoor
- Part #: NAPTPL77321
- UPC:
Similar in-stock products available at PB Tech right now
Features
EAP772-Outdoor Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point
Tri-Band Six-Stream Outdoor WiFi 7: Up to 11 Gbps[1].
6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses[2].
True Tri-Band Omnidirectional Coverage: 300m² (3,200ft²) recommended coverage[3].
Professional Hardware Design: Industry-Leading IP68-Rated, 1 x 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.
Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
Advanced Features: Centralized management, mesh, and seamless roaming[4].
Next-Gen Tri-Band Wi-Fi 7: Speed Like Never Before
Tri-Band Omnidirectional Coverage, 6 GHz Unlocked by AFC[2]
Unlock the cleaner 6 GHz outdoors-powered by AFC , the EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage (2.4 GHz, 5 GHz, and 6 GHz). 300m² (3,200ft²) recommended coverage brings silky-smooth outdoor networking.
Perfect for Outbuilding Wi-Fi Coverage
Professional Hardware Design
The EAP772-Outdoor features 1 x 2.5G PoE+ RJ45 port, providing high throughput for applications such as smooth live streaming and 4K video. Additionally, its dual-polarized antennas in 2.4 GHz band offer better anti-interference capability.

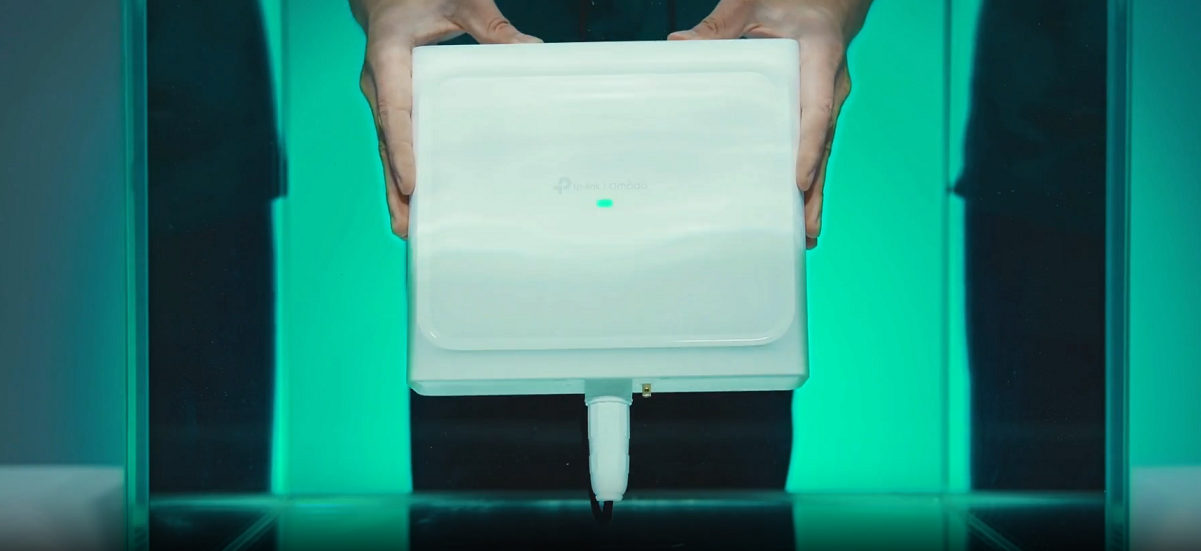

Industry-Leading IP68 Weatherproof Design
The fully sealed EAP772-Outdoor is completely dustproof and can be submerged in water up to 1.5 meters deep for up to 1 hour, exceeding the IP67 standard. It withstands even the harshest outdoor environments.

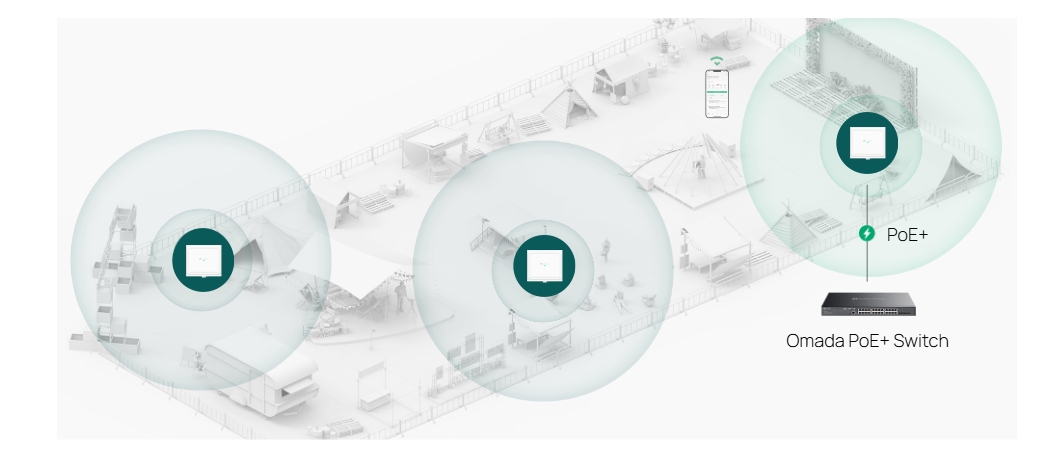

Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy and Quick Setup

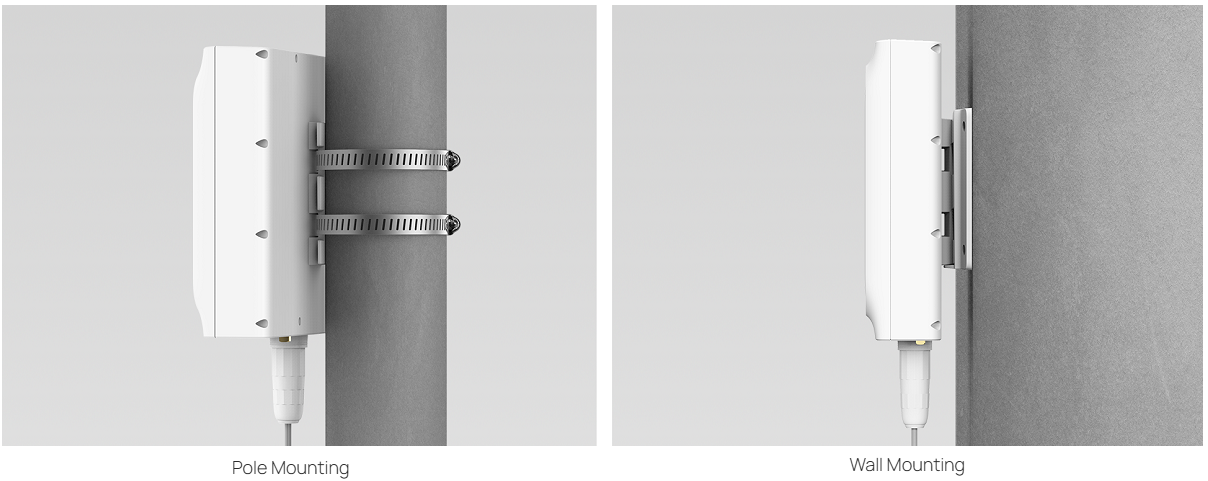

Easy Installation through Wall and Pole Mount
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP772-Outdoor through automatic device identification and one-click adoption.

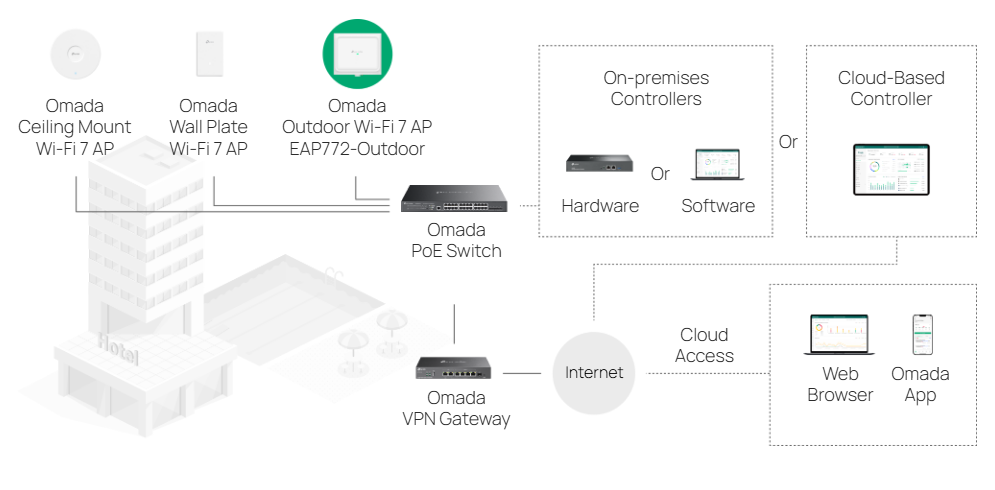

Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
[2]Learn more details about AFC technology and regions that support AFC, please visit: https://www.omadanetworks.com/support/faq/4373/
[3]Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
[4]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Ceiling Mounted Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-LR (AX3000) Dual-Band 8-Stream Wi-Fi 6 Access...
TP-Link Omada EAP772-Outdoor (BE9300) Tri-Band 6-Stream IP67 Outdoor Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 22W)
- Brand: TP-Link
- MPN: EAP772-Outdoor
- Part #: NAPTPL77321
Product URL: https://www.pbtech.co.nz/product/NAPTPL77321/TP-Link-Omada-EAP772-Outdoor-BE9300-Tri-Band-6-Str
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EAP772-Outdoor Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point
Tri-Band Six-Stream Outdoor WiFi 7: Up to 11 Gbps[1].
6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses[2].
True Tri-Band Omnidirectional Coverage: 300m² (3,200ft²) recommended coverage[3].
Professional Hardware Design: Industry-Leading IP68-Rated, 1 x 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.
Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
Advanced Features: Centralized management, mesh, and seamless roaming[4].
Next-Gen Tri-Band Wi-Fi 7: Speed Like Never Before
Tri-Band Omnidirectional Coverage, 6 GHz Unlocked by AFC[2]
Unlock the cleaner 6 GHz outdoors-powered by AFC , the EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage (2.4 GHz, 5 GHz, and 6 GHz). 300m² (3,200ft²) recommended coverage brings silky-smooth outdoor networking.
Perfect for Outbuilding Wi-Fi Coverage
Professional Hardware Design
The EAP772-Outdoor features 1 x 2.5G PoE+ RJ45 port, providing high throughput for applications such as smooth live streaming and 4K video. Additionally, its dual-polarized antennas in 2.4 GHz band offer better anti-interference capability.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP772-Outdoor is completely dustproof and can be submerged in water up to 1.5 meters deep for up to 1 hour, exceeding the IP67 standard. It withstands even the harshest outdoor environments.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy and Quick Setup
Easy Installation through Wall and Pole Mount
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP772-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
[1]Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
[2]Learn more details about AFC technology and regions that support AFC, please visit: https://www.omadanetworks.com/support/faq/4373/
[3]Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
[4]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.
Specifications
HARDWARE FEATURES
Interface

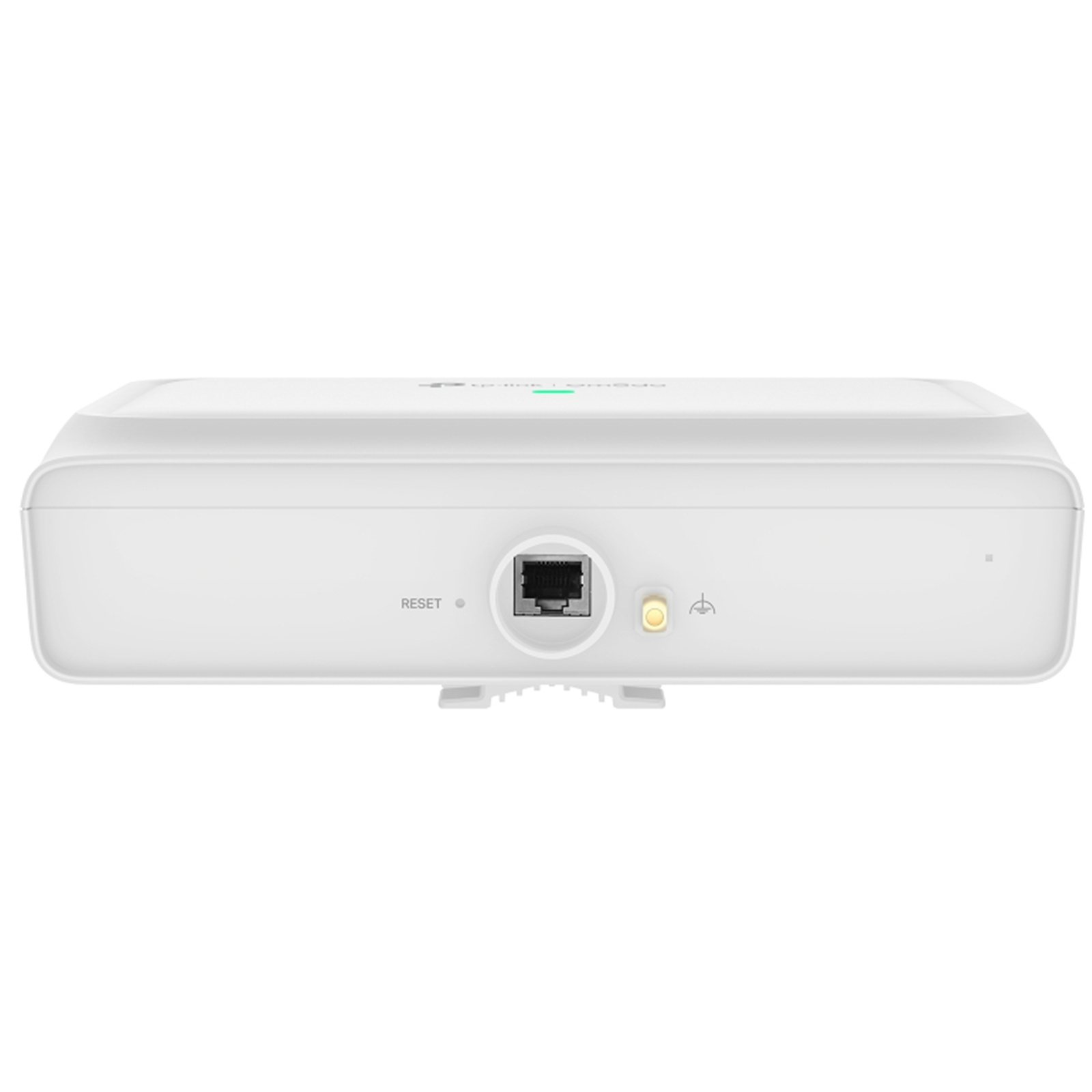

1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
Max. Power Consumption
EU: 21.5W (for PoE)
US: 23W (for PoE)
Dimensions ( W x D x H )
9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna
2.4 GHz: 2× 4 dBi
5 GHz: 2× 6 dBi
6 GHz: 2× 6 dBi
GNSS
L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas
Bluetooth
BLE 5.2
Weatherproof Enclosure
IP68

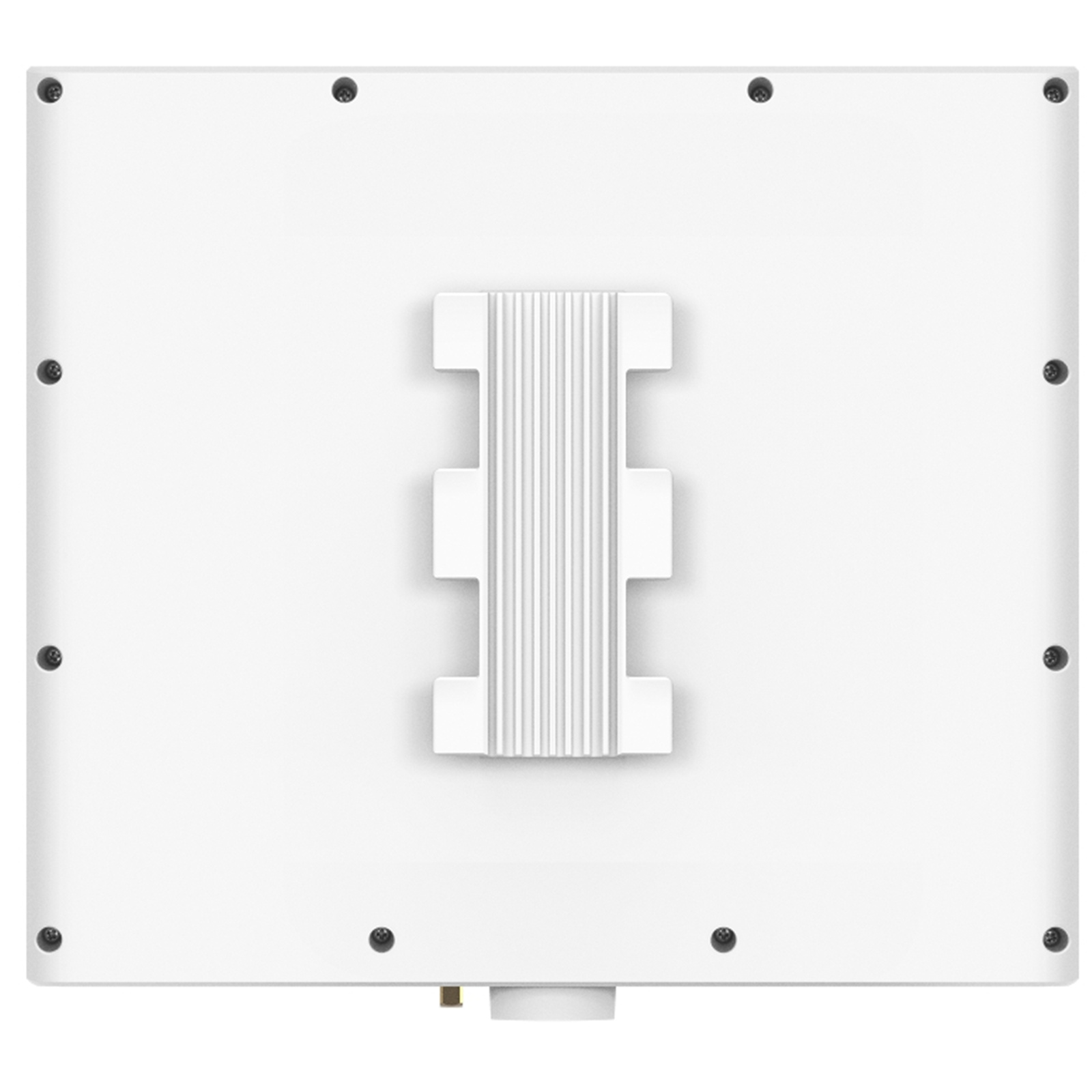

Mounting
Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage
300m² (3,200ft²) Recommended Omnidirectional Coverage
Concurrent Clients
250+^6
Wireless Standards
IEEE 802.11be/ax/ac/n/g/b/a
Frequency
2.4 GHz, 5 GHz, 6 GHz
Signal Rate
802.11be: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS = 1 to 2 HE20/40/80/160/240/320)
802.11ax: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)
802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
4k-QAM
Multiple SSlDs
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
MLO
320MHz
Omada Mesh³
Seamless Roaming(802.11k/v/r)³
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication³
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE: <20 dBm (2.4 GHz, EIRP), <28 dBm(5 GHz, band 3, EIRP)
FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz), <25 dBm(6 GHz)
Management Features
Omada App
Yes
Centralized Management
Yes, through
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes, through
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification
CE, FCC, RoHS

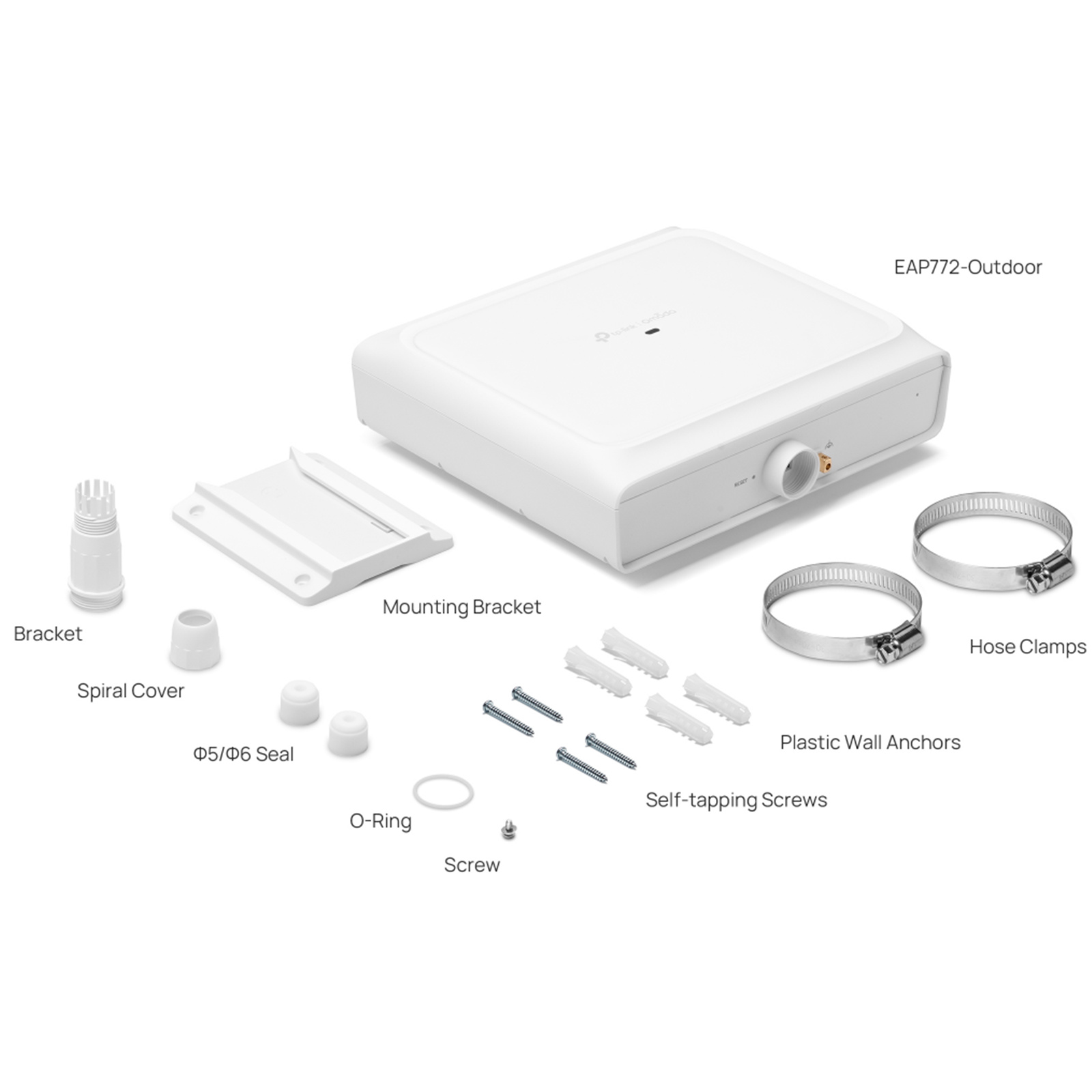

Package Content
Access Point EAP772-Outdoor
Power Cord
Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: -30-70°C (-22-158°F)
Storage Temperature: -40-70°C (-40-158°F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
