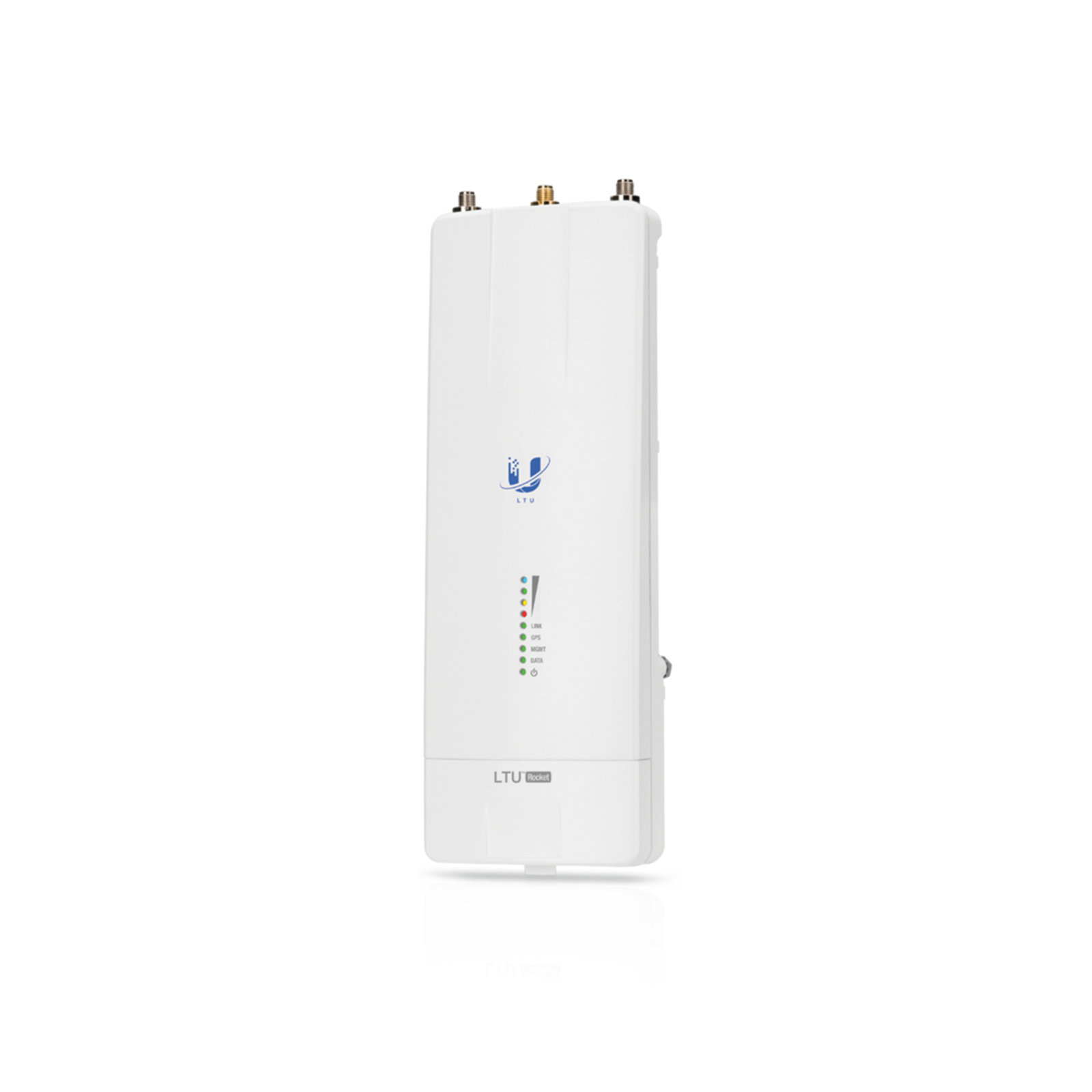

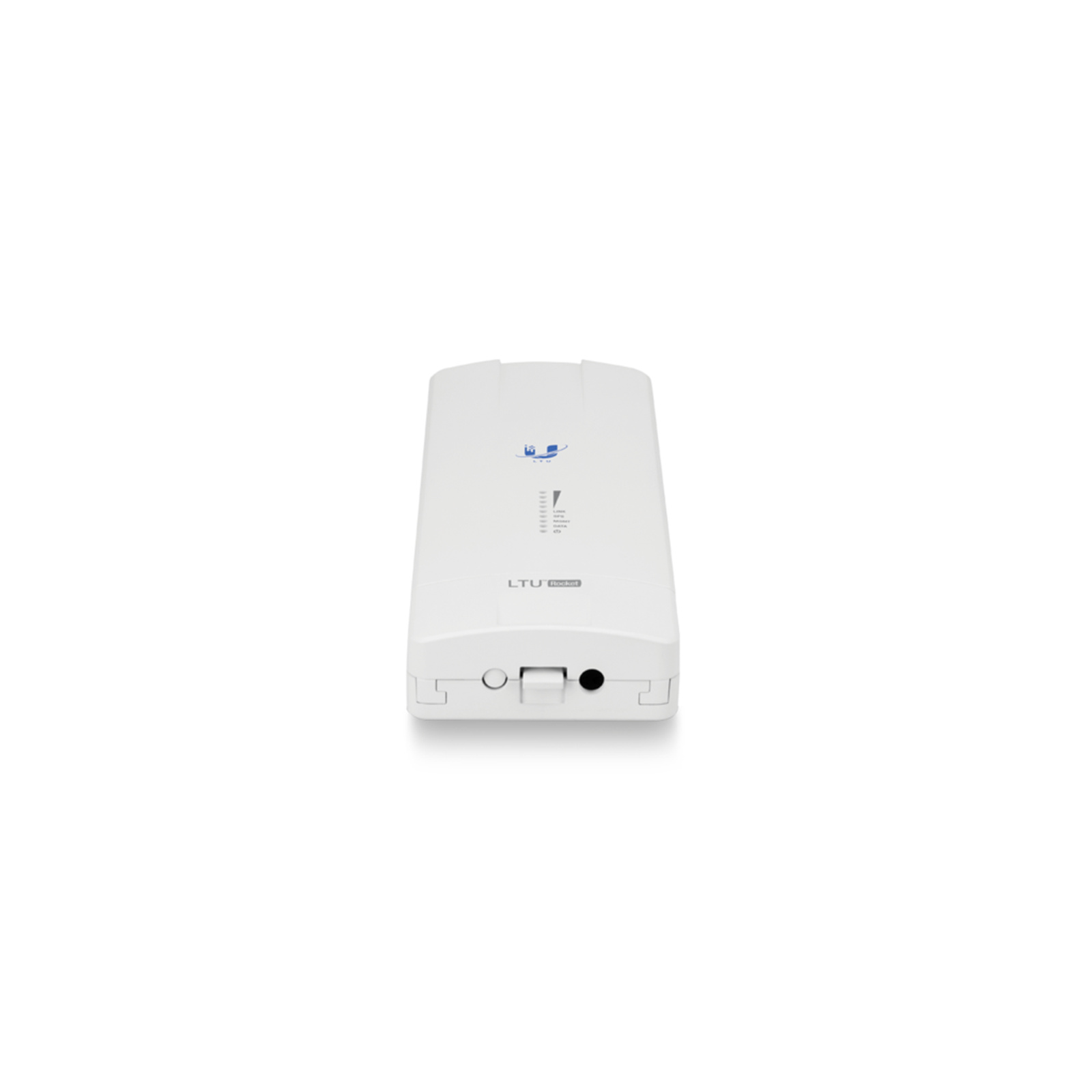

Ubiquiti LTU-Rocket 5GHz PtMP LTU BaseStation Radio, 600Mbps, 2Mpps, Up to 64 client connections per AP
Out of stock
Ubiquiti LTU-Rocket 5GHz PtMP LTU BaseStation Radio, 600Mbps, 2Mpps, Up to 64 client connections per AP
- Brand: Ubiquiti
- MPN: LTU-ROCKET
- Part #: NAPUBI0124
- UPC: 817882029490
- Brand: Ubiquiti
- MPN: LTU-ROCKET
- Part #: NAPUBI0124
- UPC: 817882029490
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular CPE





Ubiquiti LTU-Rocket 5GHz PtMP LTU BaseStation Radio, 600Mbps, 2Mpps, Up to 64 client connections per AP
- Brand: Ubiquiti
- MPN: LTU-ROCKET
- Part #: NAPUBI0124
- UPC:817882029490

Product URL: https://www.pbtech.co.nz/product/NAPUBI0124/Ubiquiti-LTU-Rocket-5GHz-PtMP-LTU-BaseStation-Radi
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Incorporating Ubiquiti's proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.
Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

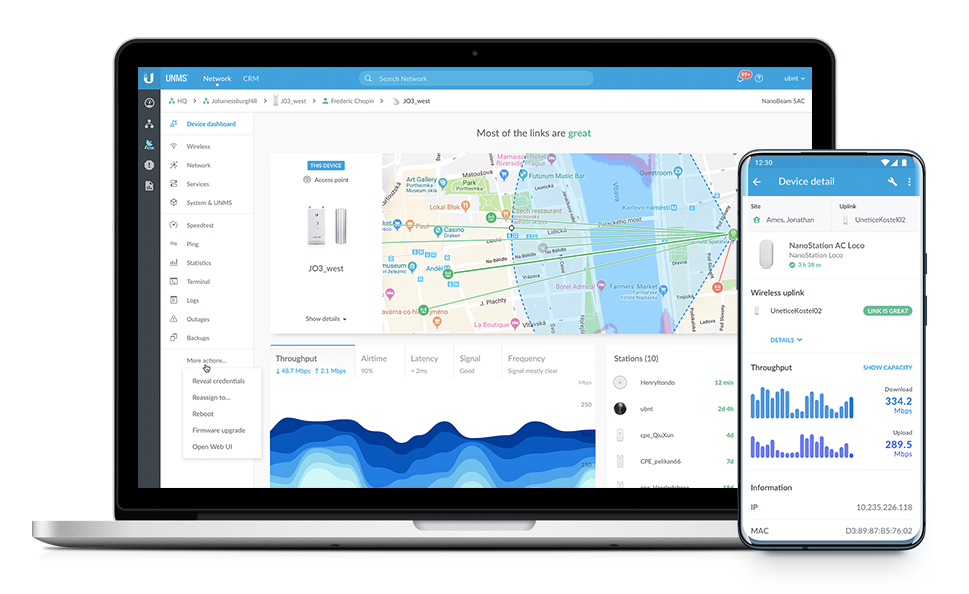

Works with UNMS Network Controller
- Manage your networks from a single control plane
- Intuitive and robust configuration, control and monitoring
- Remote firmware upgrade
- Automatic client shaping
- Customer billing
Specifications
Dimensions
244 x 82 x 48 mm
(9.61 x 3.23 x 1.89")
Weight
0.468 kg
(16.5 oz)
Enclosure
Diecast Aluminum and Polycarbonate

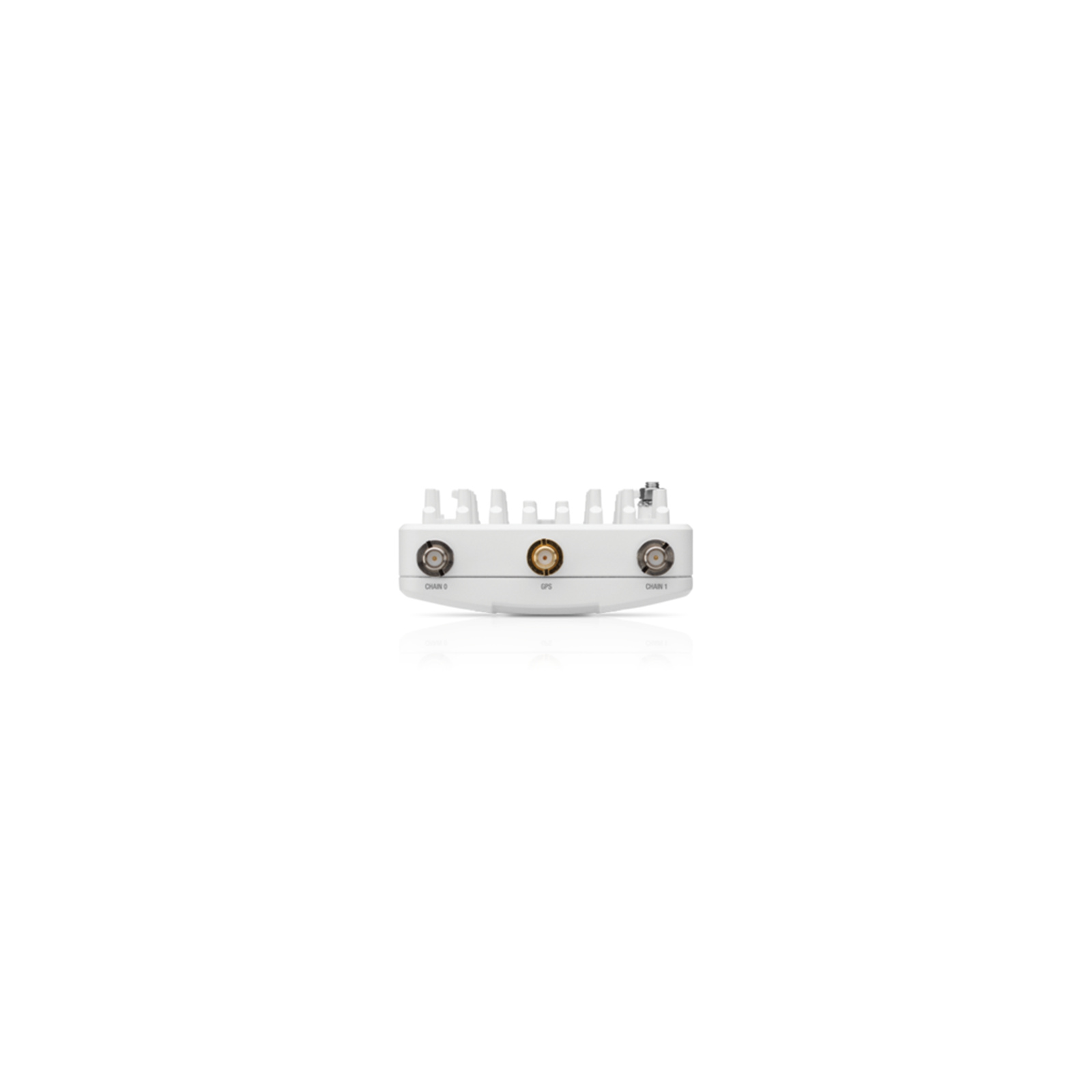

RF Connectors
(2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna
External Magnetic Base
Power Supply
24V, 1A Gigabit PoE Adapter (Included)
Power Method
Proprietary 4-Pair Passive PoE
Pins
1, 2; 4, 5+ and Pins 3, 6; 7, 8-
Max. Power Consumption
15W
Voltage Range
+18 to +54VDC*
Networking Interface
(1) 10/100/1000 Ethernet Port
Mounting
Integrated Pole Mount (Included)
Rocket Mount Compatible
GPS Pole Mount (Included)
Operating Temperature
-40 to 55° C
(-40 to 131° F)
Weatherproofing
IP672**
Certifications
FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
SYSTEM
Maximum Throughput
675.84 Mbps ***, ****
Maximum Range
100+ km***
Packets per Second
2+ Million
Encryption
WPA2-PSK (AES)
Forward Error Correction
LDPC
Uplink/Downlink Ratio
25/75, 33/67, 50/50
OS
airOS LTU
Wireless Modes
AP
