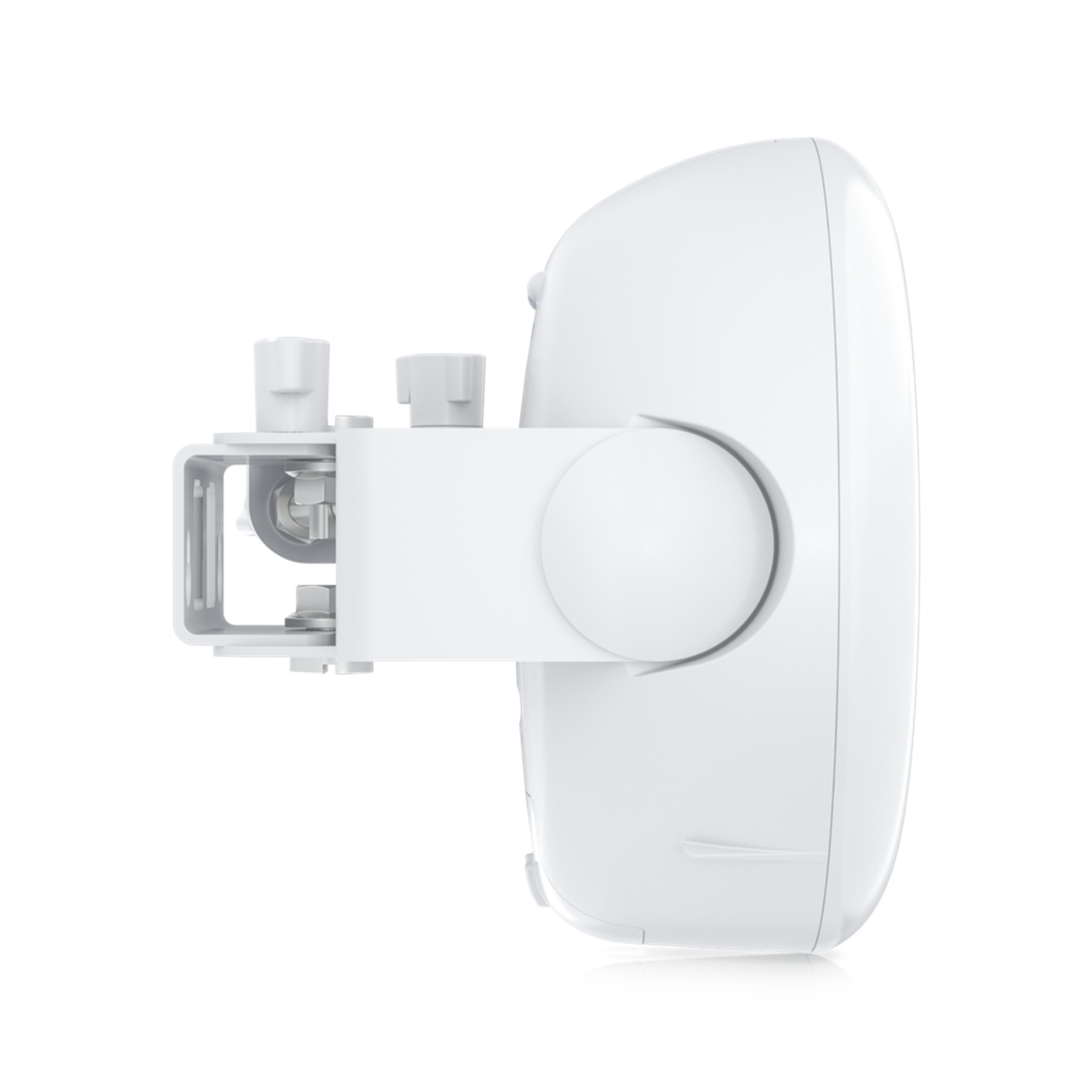

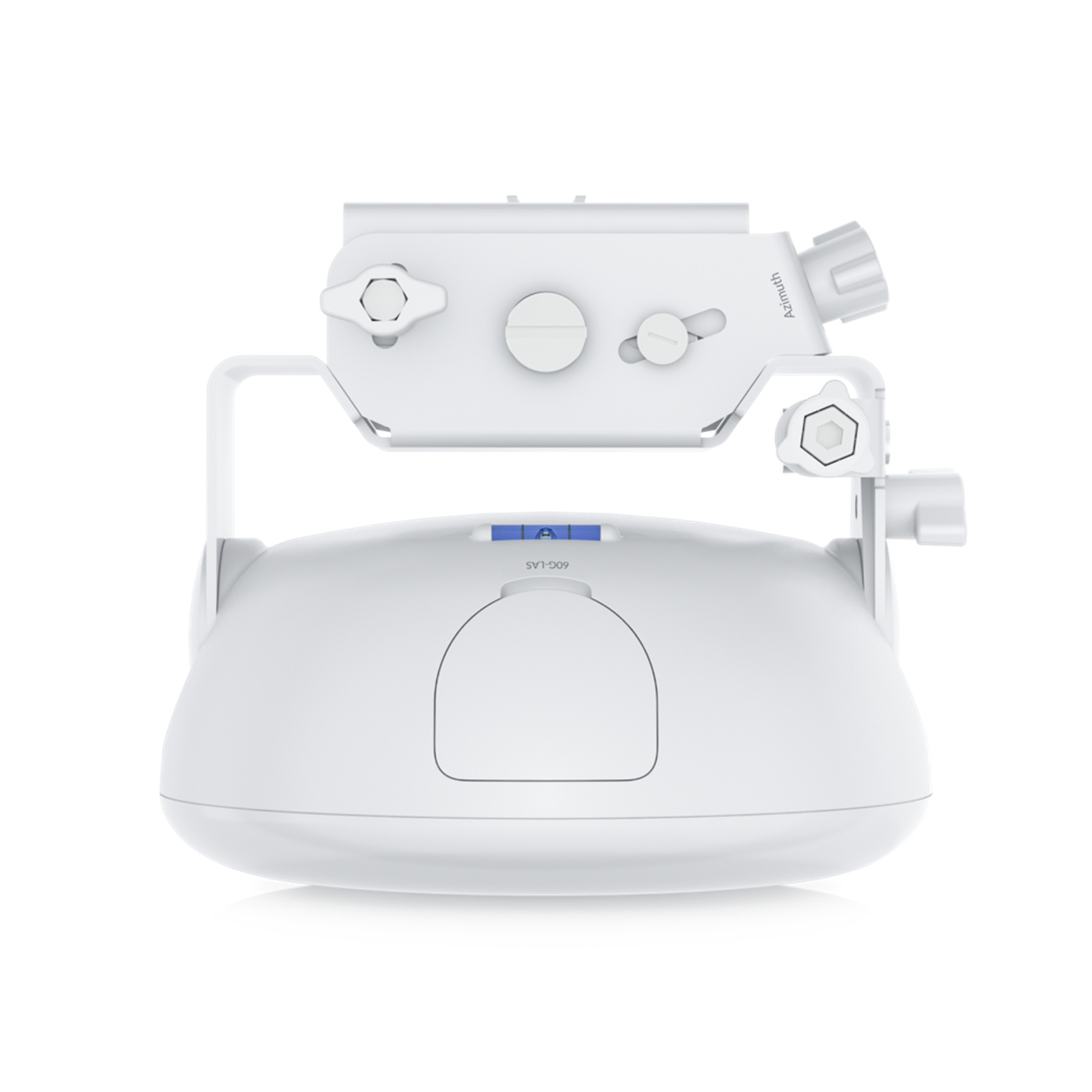

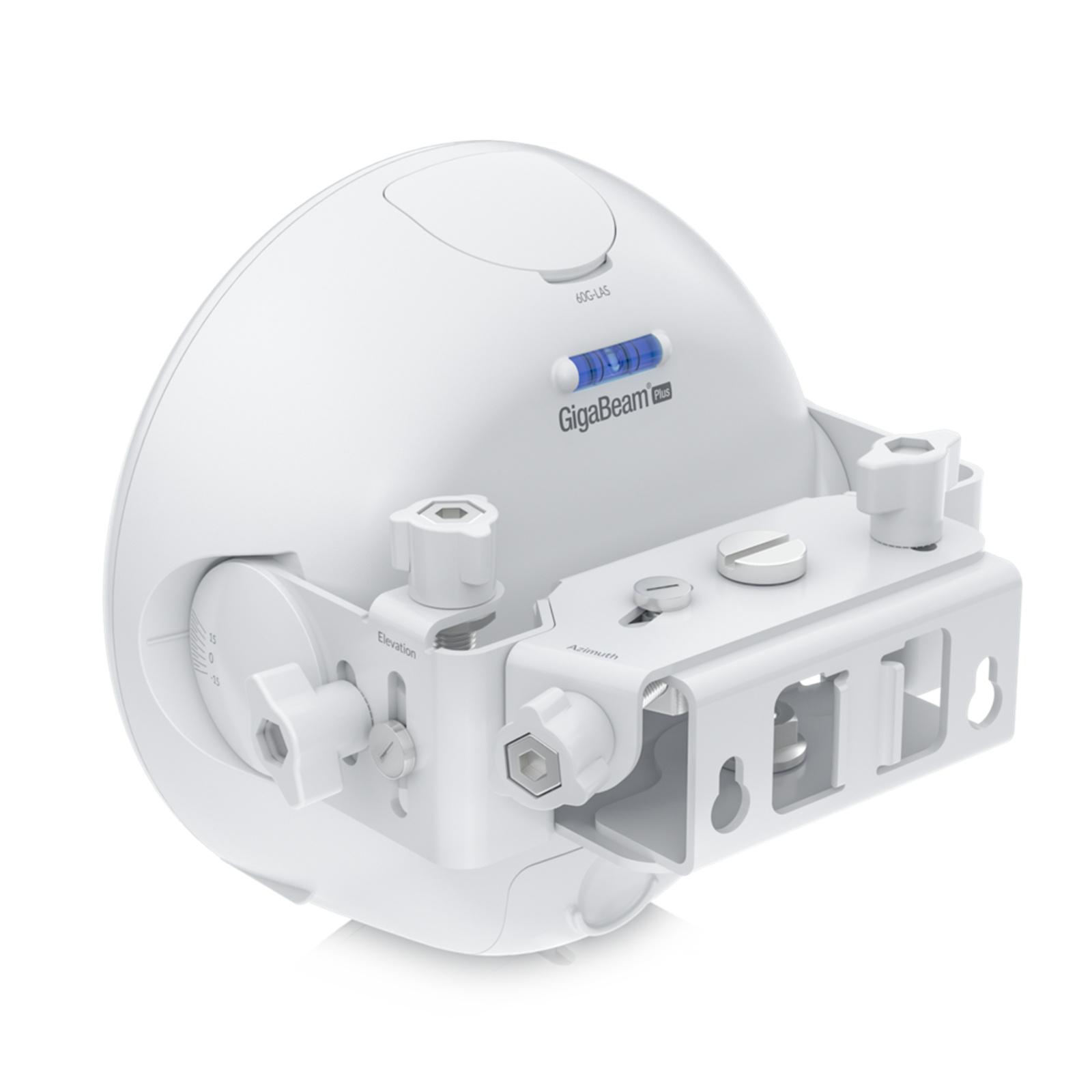

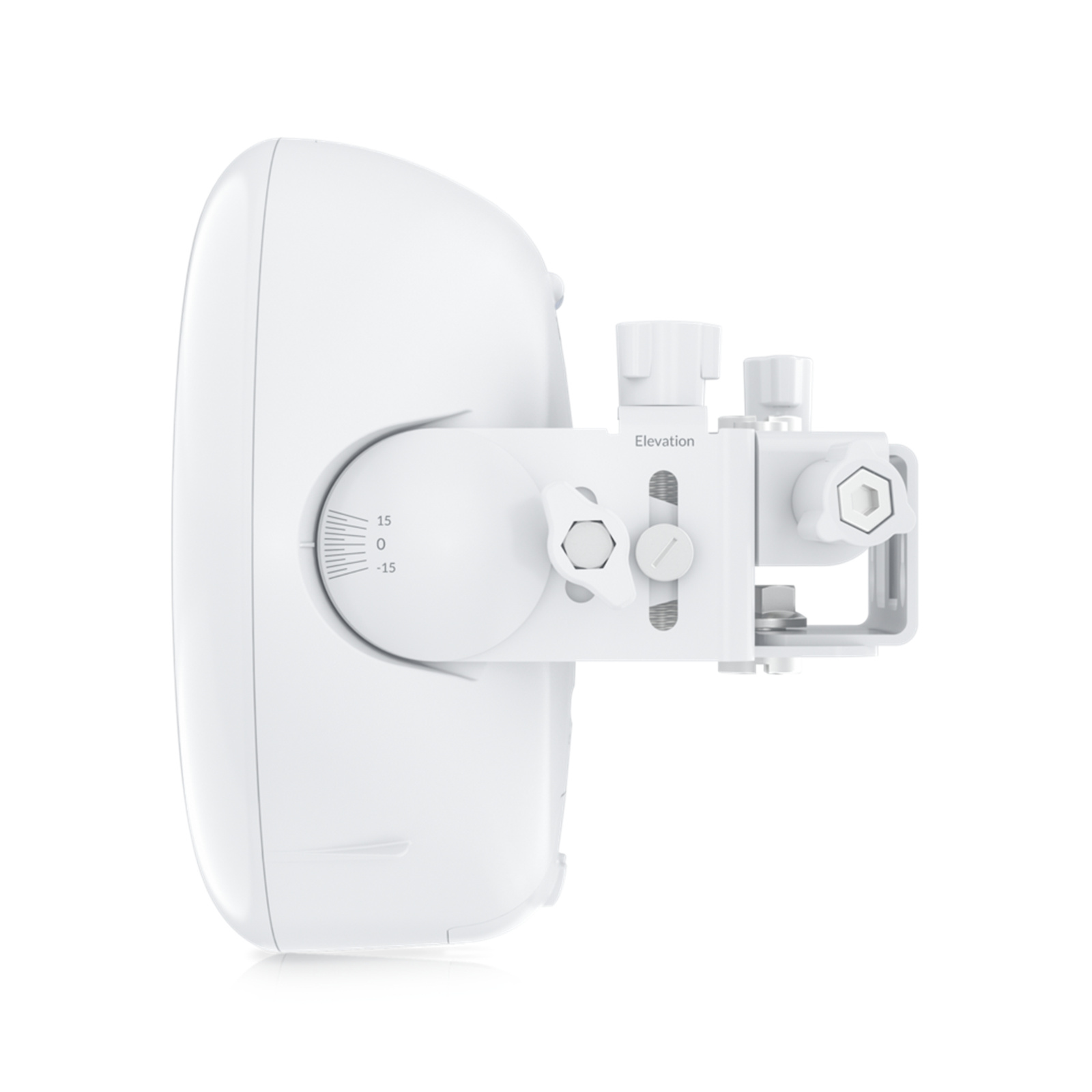

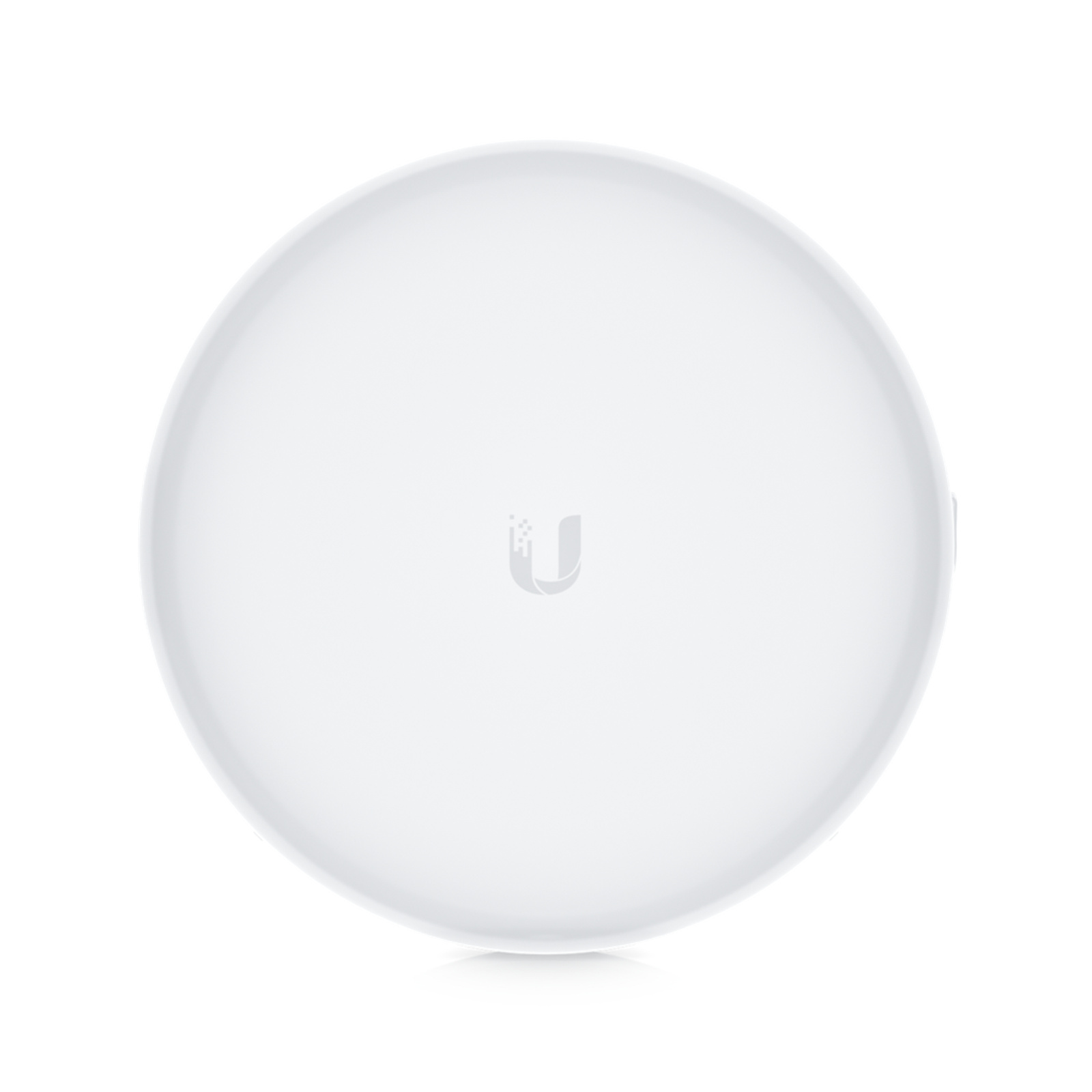

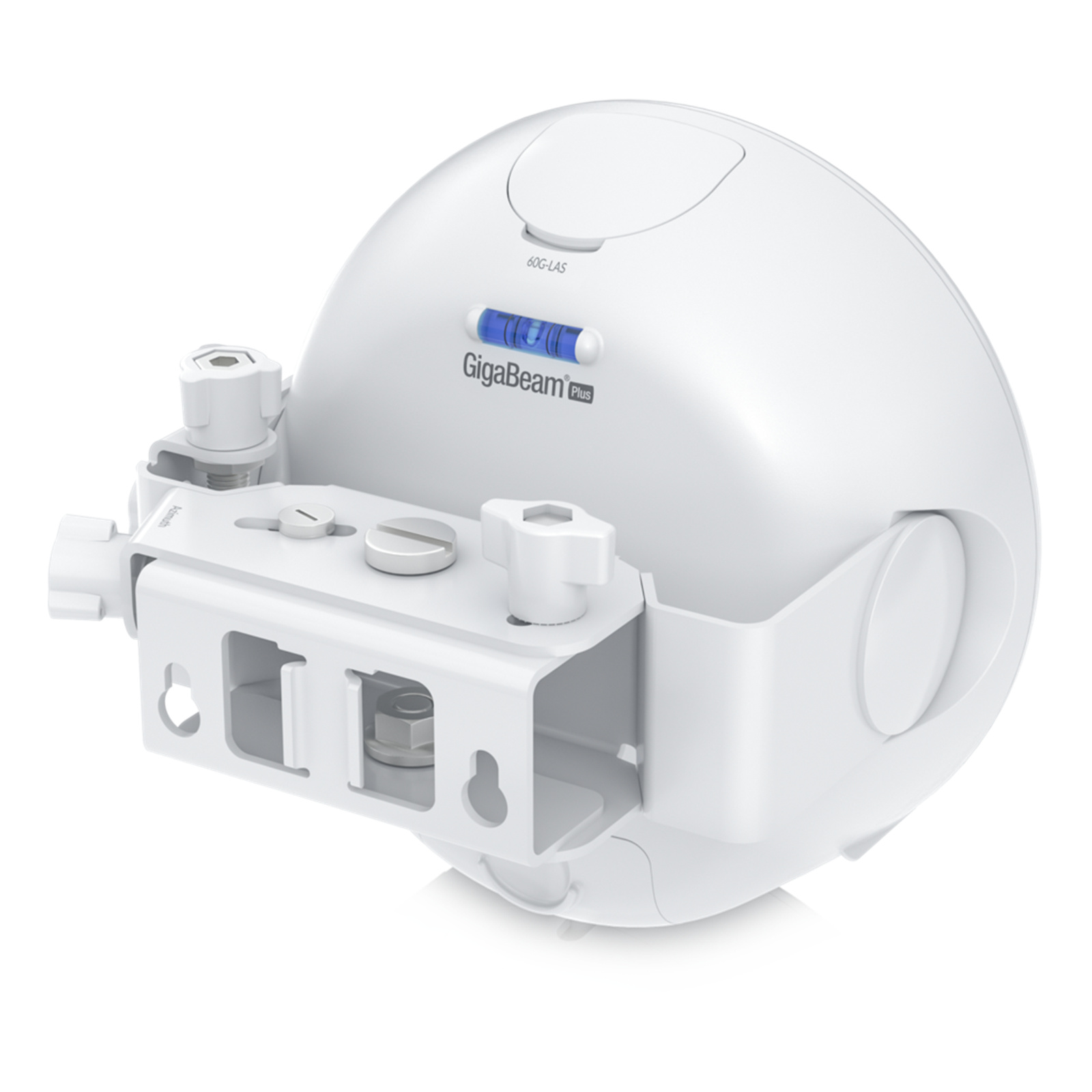

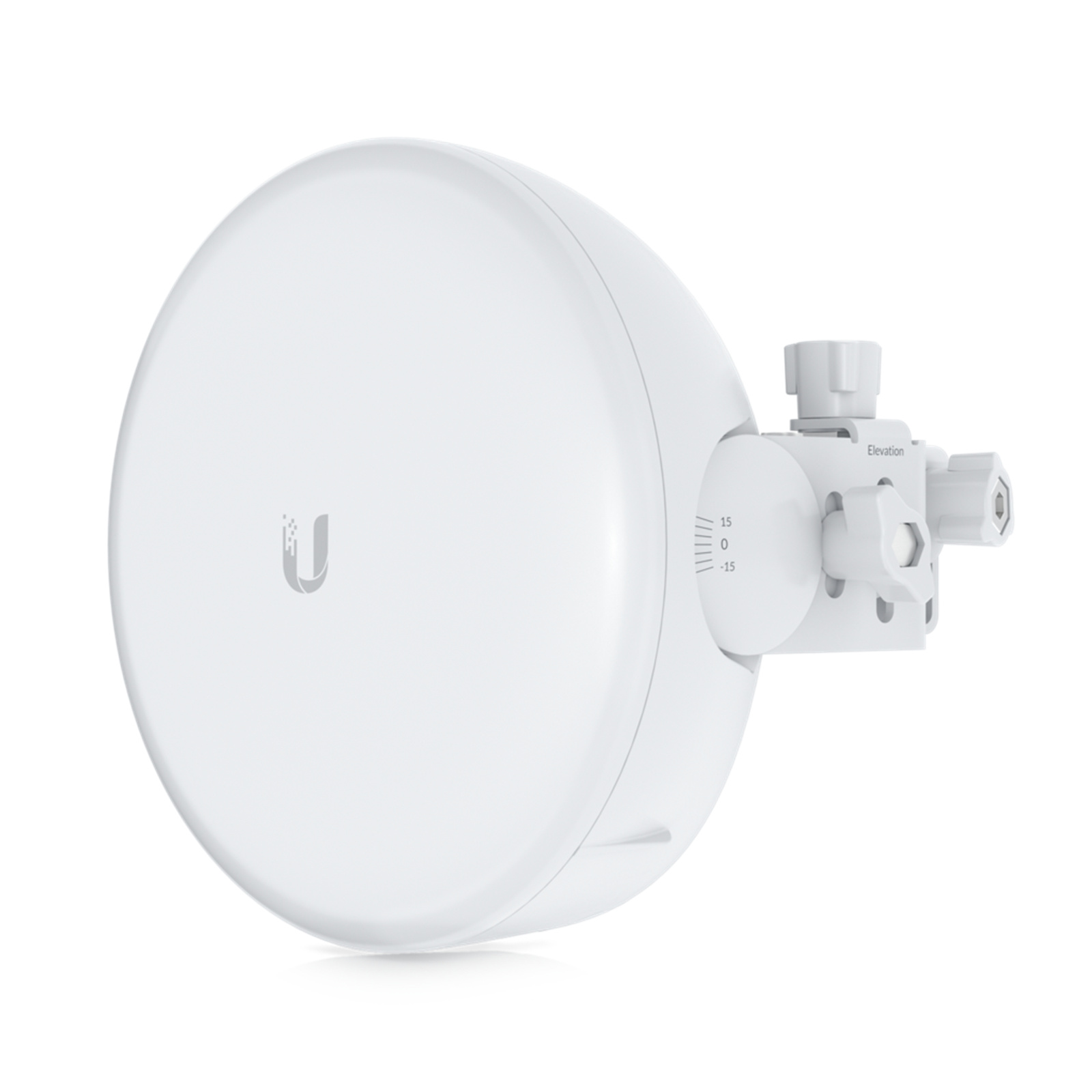

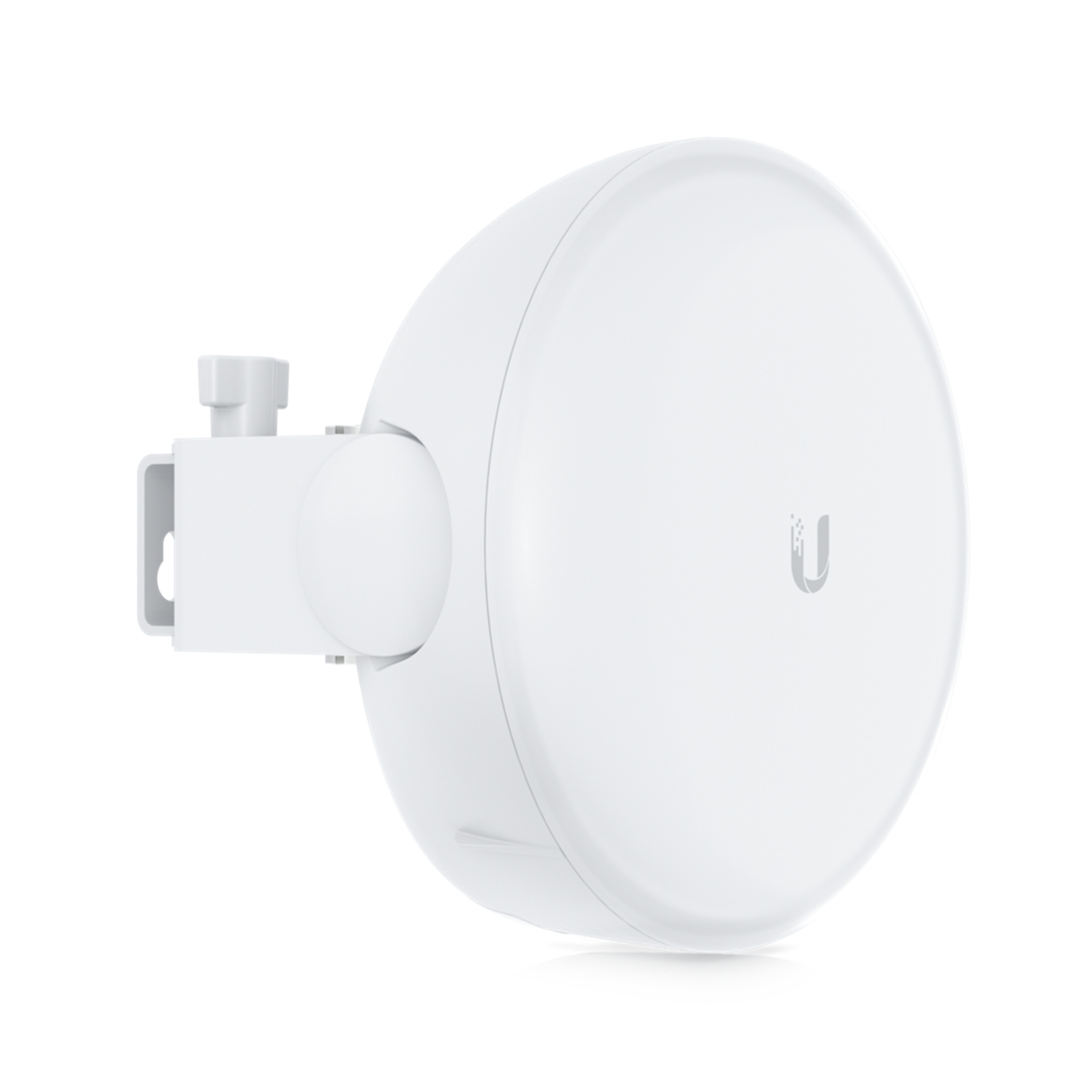

Ubiquiti GBE-Plus airMAX GigaBeam Plus 60 GHz Radio with 1.5+ Gbps Throughput
Ubiquiti GBE-Plus airMAX GigaBeam Plus 60 GHz Radio with 1.5+ Gbps Throughput
- Brand: Ubiquiti
- MPN: GBE-Plus
- Part #: NAPUBI6020
- UPC: 810010075086
What PB Tech customers are saying about this product...
See More Reviews"Does exactly what it is supposed too, very fast connection speed over 500meters a bit of work to set up, but well worth it"
Features
airMAX GigaBeam Plus 60 GHz Radio
airMAX AC 60 GHz Radio System with True Duplex Gigabit Performance.
GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™ Mobile app via Bluetooth.
- Low-Interference 60 GHz Spectrum
- 35 dBi Antenna Gain with Integrated Reflector
- 1.5+ Gbps Bidirectional Throughput with Low Latency
- Long Range, up to 1.5 km
- link.ui.com Planning Support
- Quick Setup Using the UISP™ App via Bluetooth
Download data sheet: https://store.ui.com/collections/operator-airmax-devices/products/airmax-gigabeam-plus-60-ghz-radio
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Hardwired Articles
View All Hardwired Articles
Popular CPE
Ubiquiti LiteBeam LBE-5AC-Gen2 airMAX ac CPE, 5GHz,450+ Mbps, PtP...
Ubiquiti NanoBeam NBE-5AC-Gen2 High-Performance airMAX ac Bridge,...
TP-Link Omada EAP215-Bridge KIT 5GHz 867Mbps Wireless Bridge, Up...
TP-Link Omada EAP211-Bridge KIT 5GHz 867Mbps Wireless Bridge, Up...
Ubiquiti airCube ACB-AC airMAX Home Wi-Fi Access Point, Dual-band...
_20241004123114.webp)
Ubiquiti GBE-Plus airMAX GigaBeam Plus 60 GHz Radio with 1.5+ Gbps Throughput
- Brand: Ubiquiti
- MPN: GBE-Plus
- Part #: NAPUBI6020
- UPC:810010075086
Product URL: https://www.pbtech.co.nz/product/NAPUBI6020/Ubiquiti-GBE-Plus-airMAX-GigaBeam-Plus-60-GHz-Radi
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 0 | |
| Henderson (Express) | 0 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 0 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
airMAX GigaBeam Plus 60 GHz Radio
airMAX AC 60 GHz Radio System with True Duplex Gigabit Performance.
GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™ Mobile app via Bluetooth.
- Low-Interference 60 GHz Spectrum
- 35 dBi Antenna Gain with Integrated Reflector
- 1.5+ Gbps Bidirectional Throughput with Low Latency
- Long Range, up to 1.5 km
- link.ui.com Planning Support
- Quick Setup Using the UISP™ App via Bluetooth
Download data sheet: https://store.ui.com/collections/operator-airmax-devices/products/airmax-gigabeam-plus-60-ghz-radio
Specifications
Mechanical
Dimensions
Ø155 x 137 mm (Ø6.1 x 5.4")
Weight
1kg (2.2 lb)
Enclosure Materials
UV Resistance Polycarbonate, Stainless Steel
Mount Materials
Metal
Wind Loading
50 N at 200 km/h (11.24 lbf at 125 mph)
Hardware
Processor
Quad-Core ARM® Cortex® A7
Memory
256 MB DDR3
Networking Interface
10/100/1000 Mbps Ethernet RJ45
Management Interface
Ethernet In-Band
Bluetooth
RF Connections
Internal
Max. Power Consumption
11W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply
24VDC, 0.5A Gigabit PoE Adapter
24V, 1A for using Motor Accessory
Supported Voltage Range
22 to 26VDC
ESD/EMP Protection
Air/Contact: ± 24kV
Operating Temperature
-40 to 60° C (-40 to 140° F)
Operating Humidity
5 - 95% Noncondensing
Certifications
FCC, IC, CE

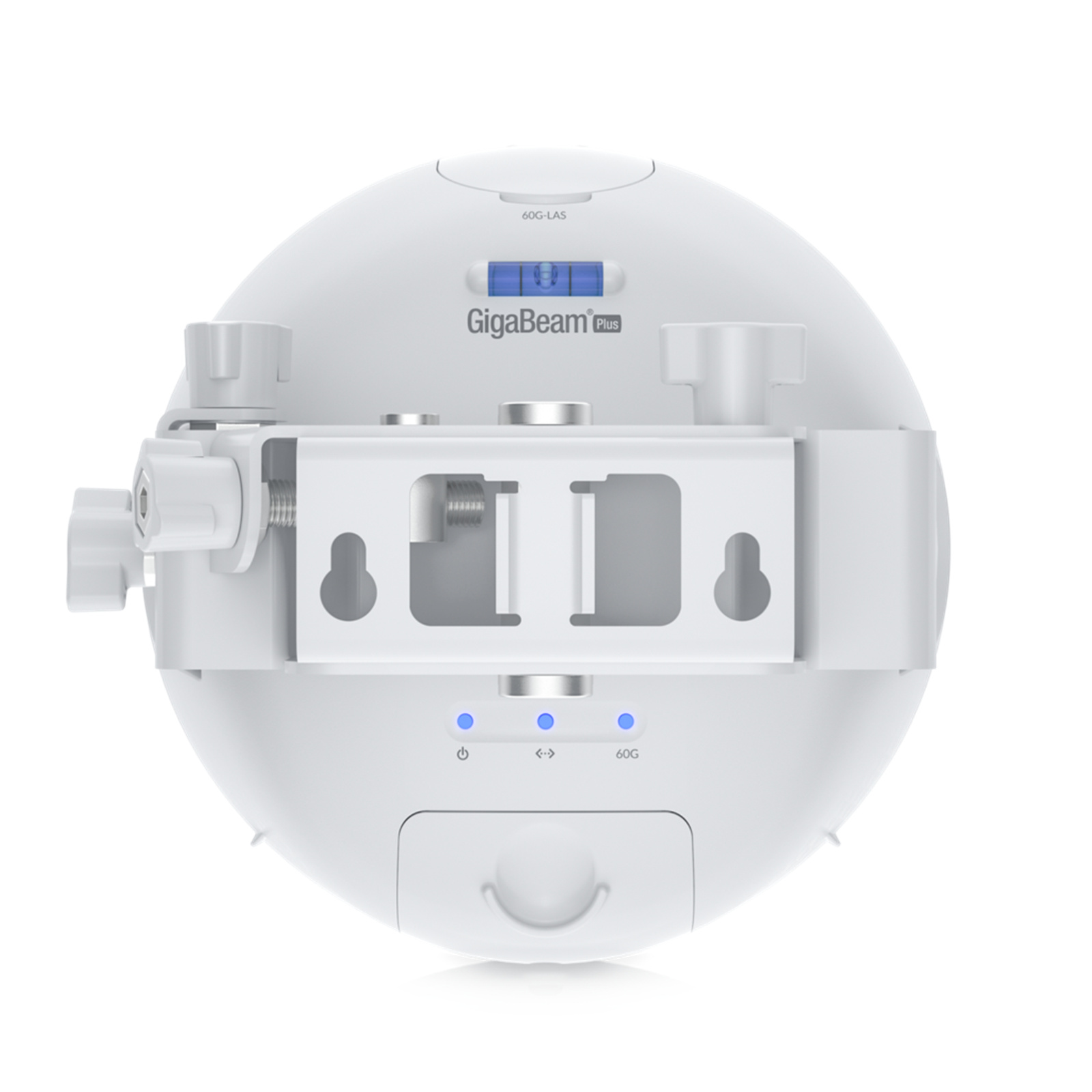

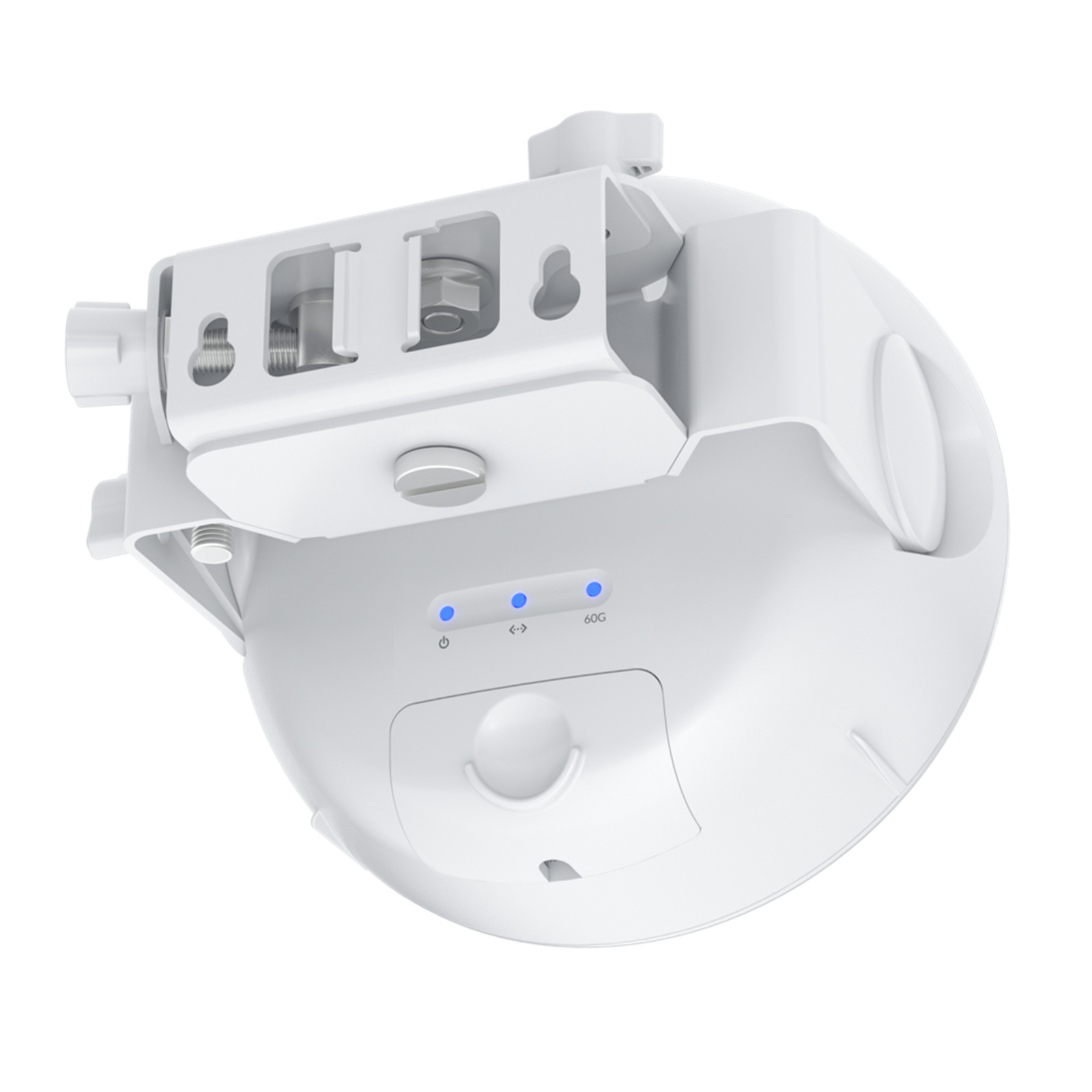

LEDs
Power
Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Internet Service Provider (UISP™)
Blue: Connected to UISP
Ethernet
Flashing Blue: Ethernet Traffic Detected
60GHz
Blue: Active Connection
Software
OS
airOS®
Operating Modes
PtP as Access Point or Station
Ubiquiti Specific Features
Integrated 60 GHz Radio, Discovery Protocol
Security
WPA2 AES Only
Dashboard
Yes
Wireless Settings
Yes
Network Settings
Yes
System
Yes
Services
UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools
Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Software Management
Bluetooth Management for Easy Setup Over UISP™ App
WEB UI
Minimum Software Requirements
Any Modern Web Browser/iPhone/Android
RF
Operating Frequency*
57,000 - 66,000 MHz
* Depends on regulatory region.
Max. Conducted TX Power
17 dBm
Channel Bandwidth
2160 MHz
Operating Channels
58320, 60480, 62640, 64800 MHz
Antenna Gain
35 dBi
Beamwidth
HPOL: NaN (The Antenna is Only Vertically Polarized)
VPOL: 3°
Elevation: 3°
Management Radio
2400 - 2483.5 MHz
Electrical Downtilt
0°
